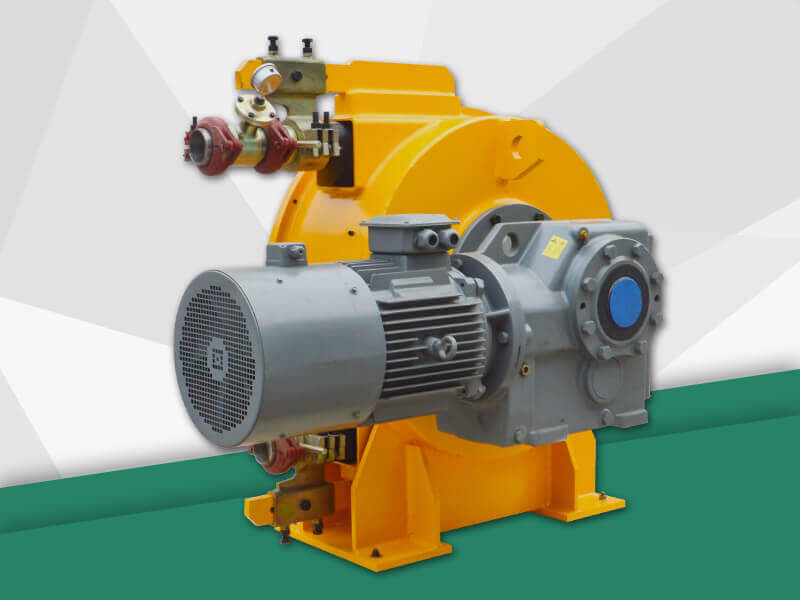

GH76-915B Peristaltic Pump Used for Conveying Milk
The GH76-915B Peristaltic Pump squeezes the hose through the rollers, creating a vacuum when the hose restores its shape, thereby continuously sucking in the fluid and expelling the fluid through the push of the rollers. The design features of this peristaltic pump enable it to handle fluids containing solid particles without contaminating the fluid and avoiding the risk of cross contamination.
GH76-915B
20M3/h
40RPM
76mm
1.0Mpa
3 phase, 380V, 50HZ
Introduction
Product Details
Technical data
Cases
Inquiry
Description

GH76-915B peristaltic pump is widely used in the food industry for conveying milk. GH76-915B uses a hose pump in the food and beverage industry to conveying milk, soy milk, dairy products, meat products, jelly gels, jams, residues, salads, oils, wines, condiments, ketchups in food processing plants. , juice, sugar, chocolate, honey, bean paste, noodle sauce, soy sauce, vinegar, etc.

Peristaltic Pump Work Principle

GH76-915B peristaltic pump is a peristaltic pump. The elastomer tube is extruded in the length direction by a roller that pushes the fluid contained therein. After squeezing, the recovery of the test tube creates a vacuum that continuously draws the fluid into the test tube. This produces a gentle pumping action without any damage to the product. Since the fluid is contained in the tube, contamination is avoided, and the hose pump uses a food grade hose, which is safe, hygienic and has a long service life.

GH76-915B peristaltic hose pump structure

GH76-915B peristaltic pump is a new industrial  hose pump developed by advanced technology. The pump has no seal, no leakage, strong self-priming ability, simple structure, and convenient operation and maintenance. Suitable for conveying various viscosity, density, corrosive and abrasive substances. It can be used in petroleum, chemical, water treatment, mining, gold smelting, medicine, paper, ceramics, and other industries.

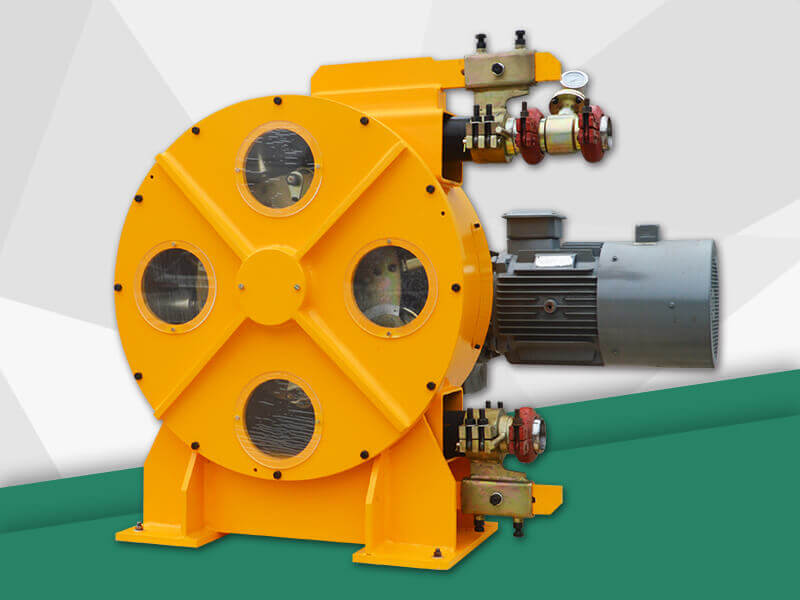

conveying milk hose pump
conveying food peristaltic hose pump



Application

GH76-915B peristaltic pump can be used in food processing plants to transport dairy products, beverages, oils, etc. with stable performance, safety and hygiene. In addition to the food industry, the GH76-915B peristaltic pump is also widely used in other fields:

Peristaltic Hose Pump Application
Peristaltic Pump Application


GH76-915B peristaltic pump can be used in the following applications:

1. Construction: transfer of mortar, concrete and sprayed layers

2. Textile mill: transfer of fiber, liquid, dye and wastewater

3. Dye manufacturing: paint, paint and pigment delivery

4. Water treatment: transporting water and wastewater

5. Papermaking: conveying pulp, pigments and glue

6. Mining: transporting mineral waste

7. Ceramic: conveying glaze and coloring

8. Beer and Beverage: transporting beer, wine, milk, juice, additives and residues

9. Underground engineering: The tunnel construction machinery of TBM bentonite pumping mud pump uses a hose pump to pump or grout bentonite.

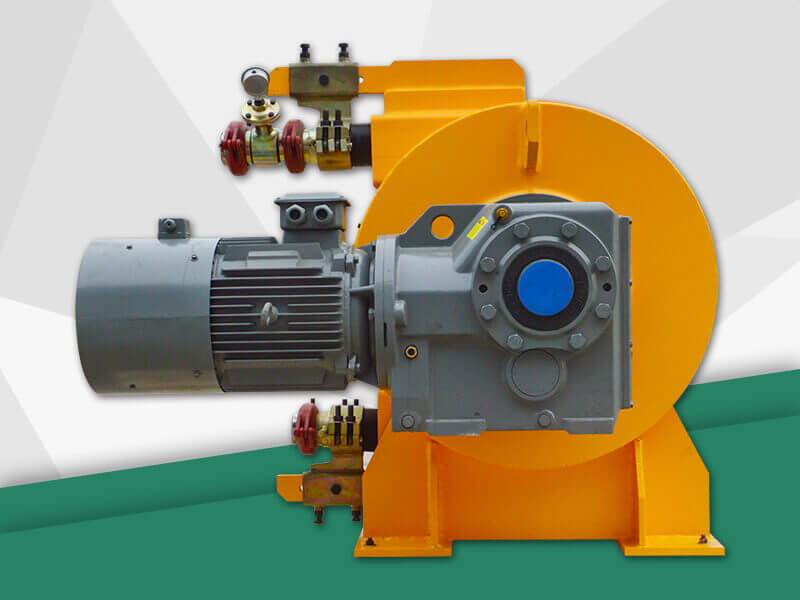

conveying milk peristaltic hose pump

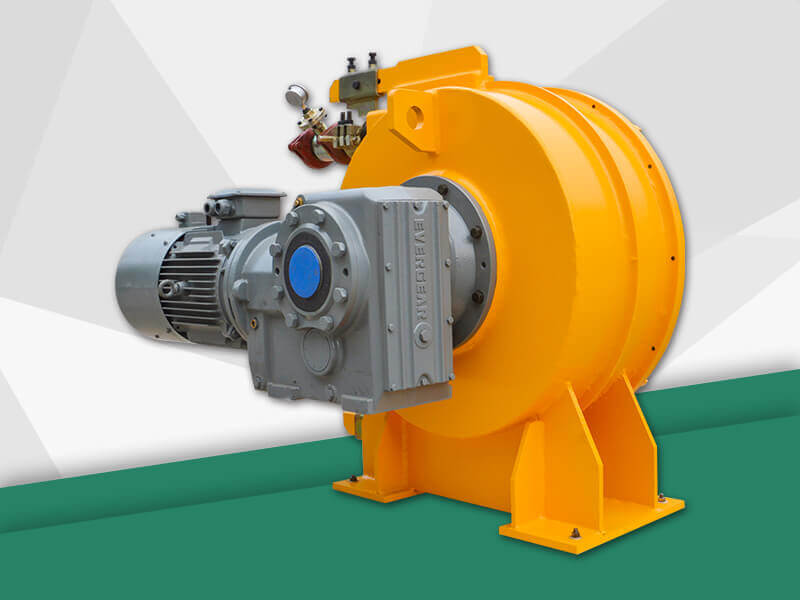

food grade peristalt hose pump

Features

GH76-915B peristaltic pump products comply with national and international standards. GH76-915B peristaltic pump has stable performance, good sealing performance, easy operation, no water cooling, beautiful and durable. They are suitable for transporting a variety of chemical media with different viscosities and temperatures and are therefore widely used in many fields.

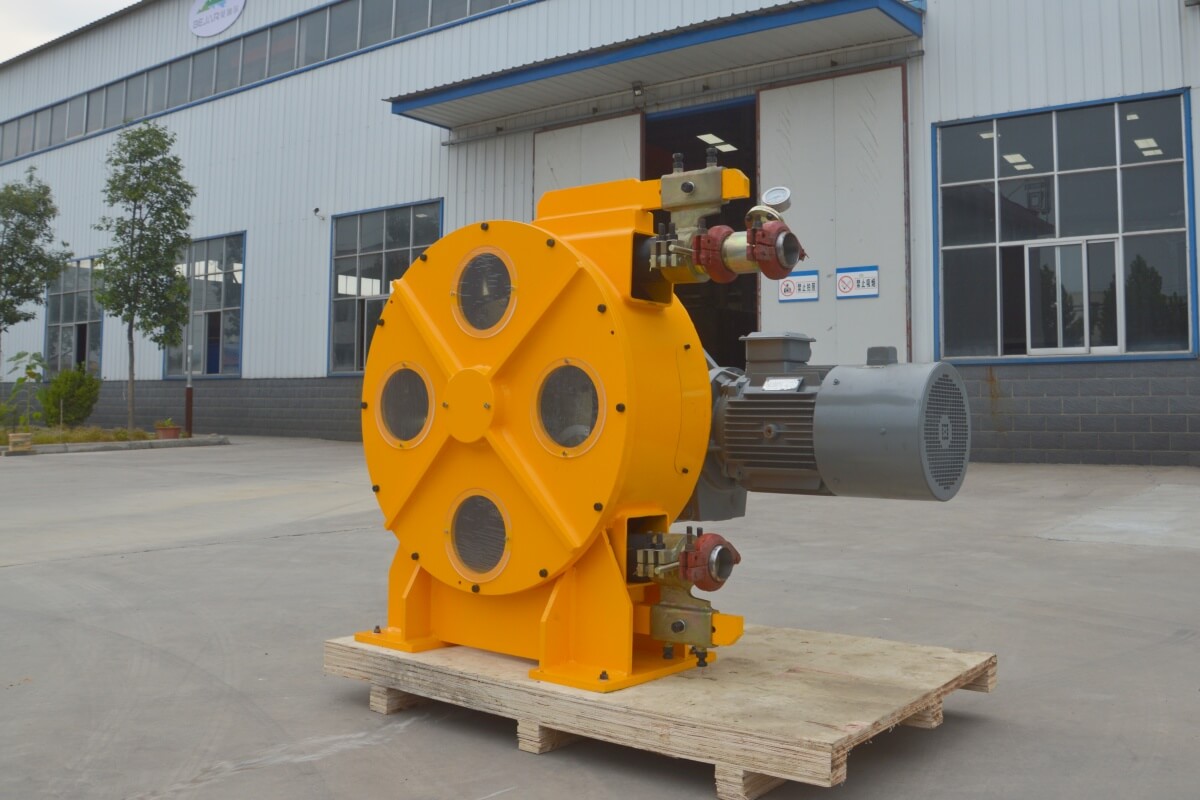

food grade peristaltic hose pump

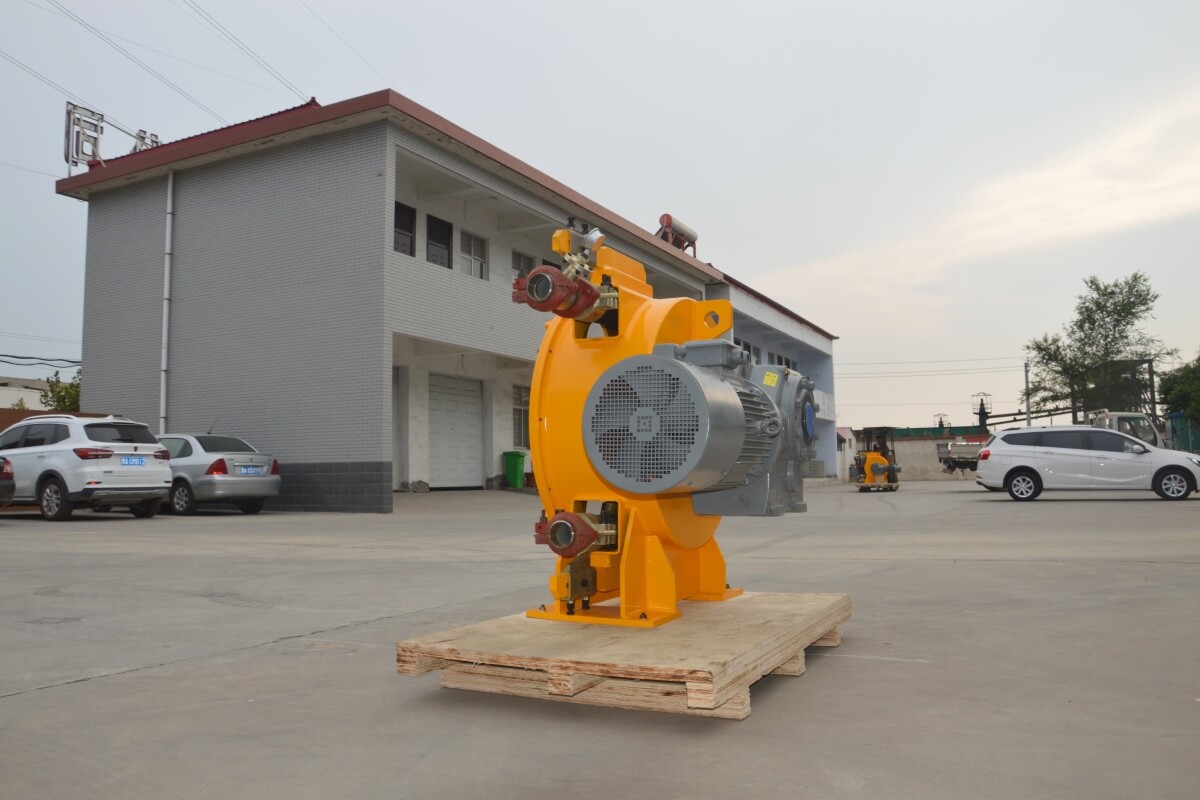

hose pump for pumping milk


The characteristics of the GH76-915B peristaltic pump are:

  1. Reversibility

  2. Seamlessness and valveless

  3. Abrasion resistance

  4. Self priming with high suction

  5. With 1% repeat precision

  6. Corrosion-resistant

  7. Easy to clean

  8. Can run dry without damage

  9. Hose tube  is the only consumption part





Product Details
clamp
helical bevel gear motor
observation port
outlet and inlet
Peristaltic pump with Trelleborg hose

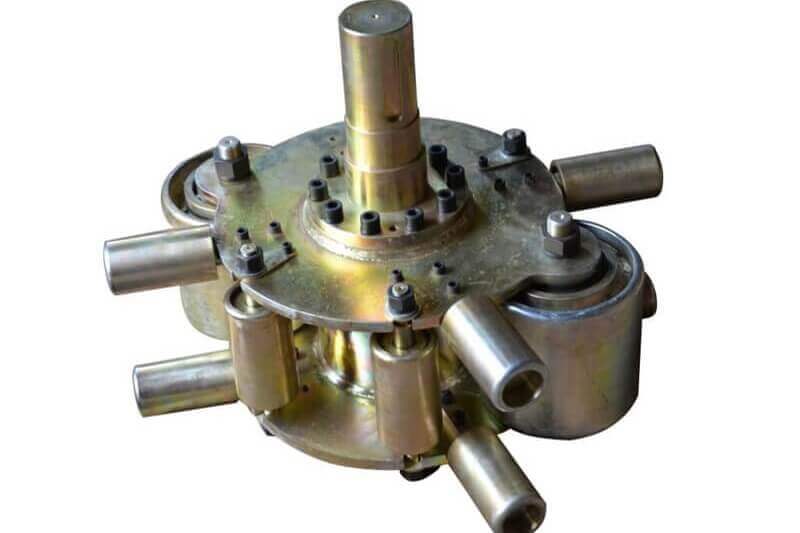

pump core
Technical Parameters
Technical Data

Type

GH76-915B Peristaltic Pump Used for Conveying Milk

Output

20M3/h

Rotation

40RPM

Squeeze hose ID

76mm

Max. pressure

1.0Mpa

Voltage

3 phase, 380V, 50HZ

Power

18.5KW



GH76-915B Peristaltic Pump Delivery
GH76-915B Peristaltic Pump Shippment
