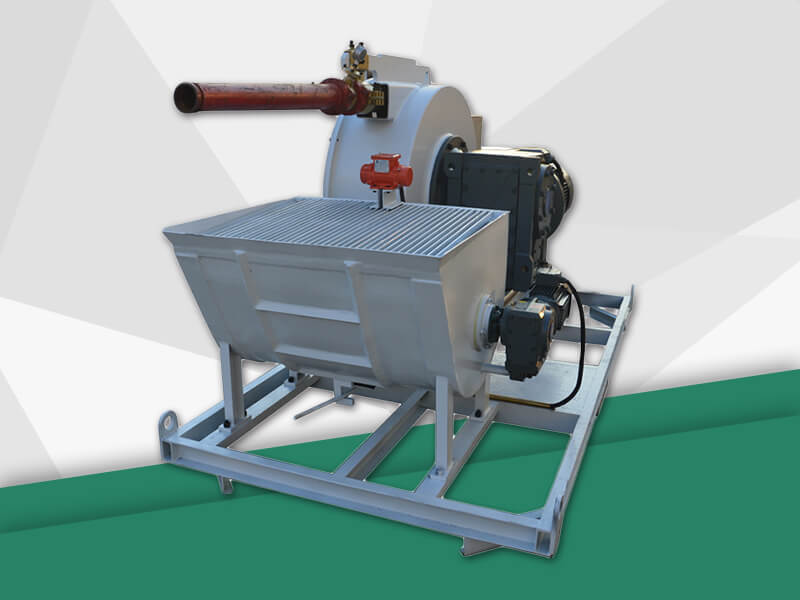

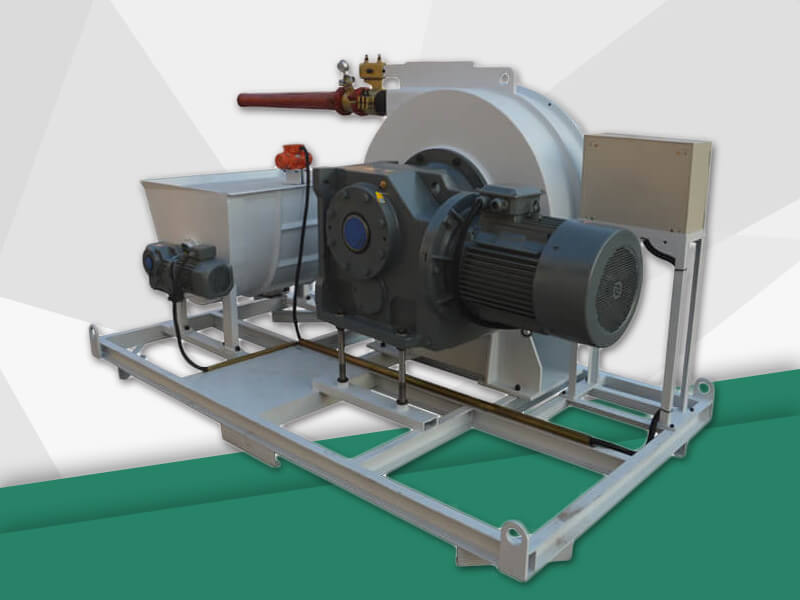

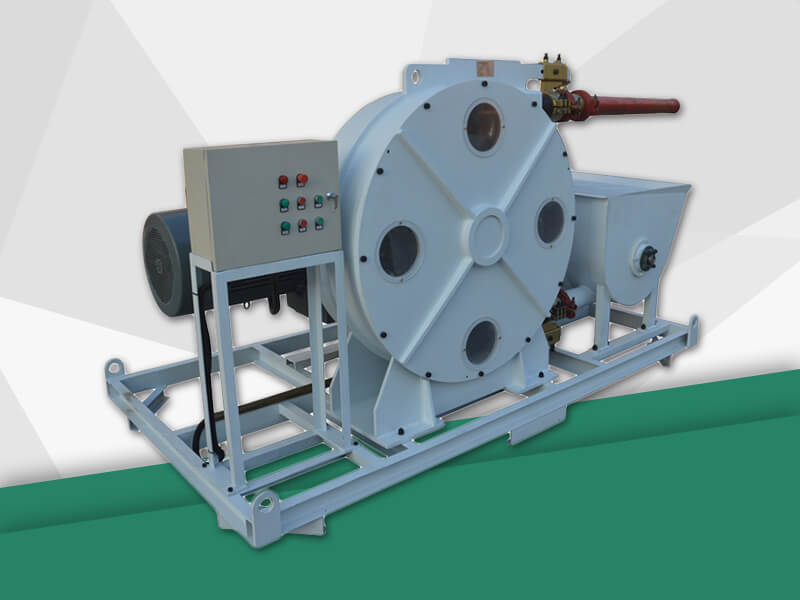

GCP40H-E TBM subway construction hose squeeze concrete pump is equipped with a heavy-duty gearbox, strong power, large flow, rated output of up to 45m3 / h, excellent performance in the building site, stable performance.
GCP40H-E TBM subway construction hose squeeze concrete pump is designed for TBM and is mainly used for pumping bentonite in shield tunneling machine of underground engineering.GCP40H-E TBM subway construction hose squeeze concrete pump has no seal, no leakage, strong self-priming ability, simple structure and convenient operation and maintenance.
GCP40H-E TBM subway construction hose squeeze concrete pump uses a rotor with a roller mounted on it that compresses and blocks certain parts of the tube. This action moves the fluid through the conduit at a constant rate of displacement during each revolution of the rotor, enabling accurate measurement of the amount of fluid pumped through the conduit. It can therefore be used as a metering pump.
GCP40H-E TBM subway construction hose squeeze concrete pump is designed for TBM and is mainly used for pumping bentonite in shield tunneling machine of underground engineering.The peristaltic pump has no seal, no leakage, strong self-priming ability, simple structure and convenient operation and maintenance.
GCP40H-E TBM subway construction hose squeeze concrete pump can be used in tunnel boring machine (TBM) in metro/subway/undergroung project. It can be used for ground grouting, shield machine mud transport, etc.In addition to TBM, GCP40H-E TBM subway construction hose squeeze concrete pumps are also widely used in other fields:
The main application aspects of GCP40H-E TBM subway construction hose squeeze concrete pump are:
1.Mining, metallurgical industry: such as gold mining in filling materials, iron oxide scale, flue mud treatment of thick slurry, underground passage drainage, adsorbents, mortar and mortar;
2. Pharmaceutical industry: transportation of liquid materials;
3. Food industry: food and beverage transportation;
4. Paper industry: pulp, sulphur pulp transportation;
5. Construction industry: cement and mortar transportation;
6. Ceramic industry: transportation of raw material slurry;
7. Nuclear waste, electrolytic waste, metal slag solution, paint, paint and other liquids, material transportation;
8. Beer industry: yeast, diatomaceous earth, distiller's grains, syrup, ingredients, concentrate (liquid), gas-liquid mixture;
GCP40H-E TBM subway construction hose squeeze concrete pump is a new hose pump produced by Gaodetec, which absorbs advanced technology at home and abroad.GCP40H-E TBM subway construction hose squeeze concrete pump has more advantages than traditional other types of pumps.
1. Compact size: hopper with agitator, hose pump, power combined in a base frame.
2. Soft start: electric motor smoothly start and protect the motor
3. Low wear: the squeeze hose is the only wear part of the pump and can be replaced very quickly
4. Delivers even the most difficult materials
5. Quiet pumping process
6. Forwards and reverse, easily to removal the block.
7. Clean on the line: Quick and easy cleaning
8. No residual concrete remains in the system
Description |
parameter |
Hose Pump |
GH100-1050 |
Hose ID |
100mm (Trelleborg Squeeze hose) |
Pump Speed |
39rpm |
Rated Output |
45m3/h |
Pressure |
2.5Mpa |
Max. Aggregate size |
<15mm |
Concrete Slump |
15-23cm |
Hopper Capacity |
400L |
Hopper mixing speed |
37rpm |
Power Voltage |
45KW 50HZ IP55 3~380V |
Overall Dimension |
3080x1560x1730mm |
Weight |
2840kg |
