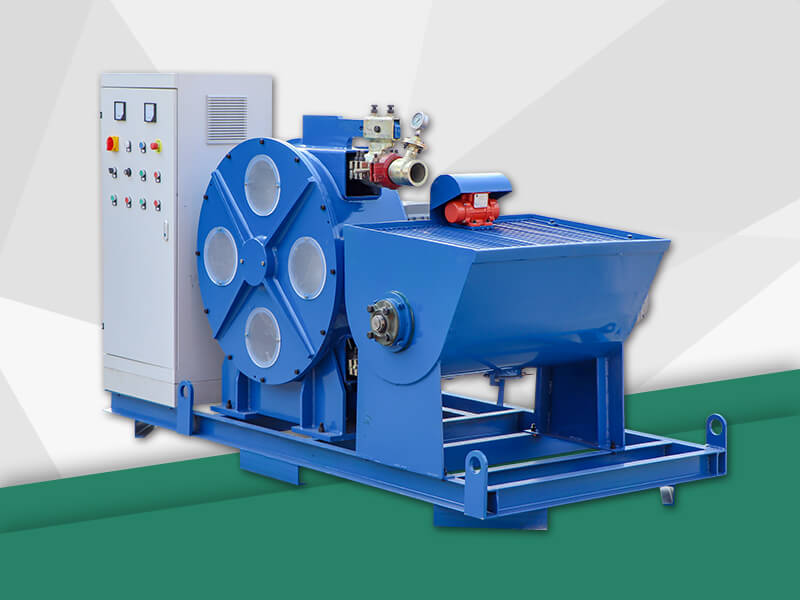

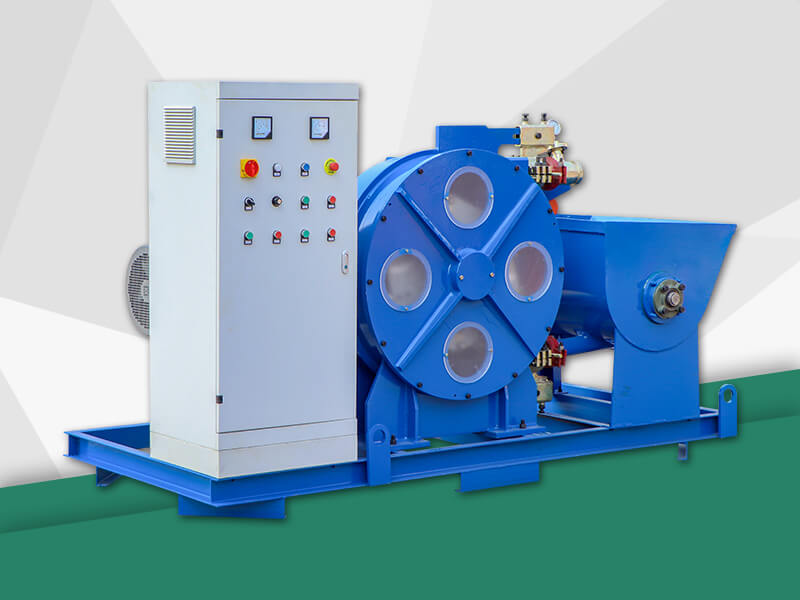

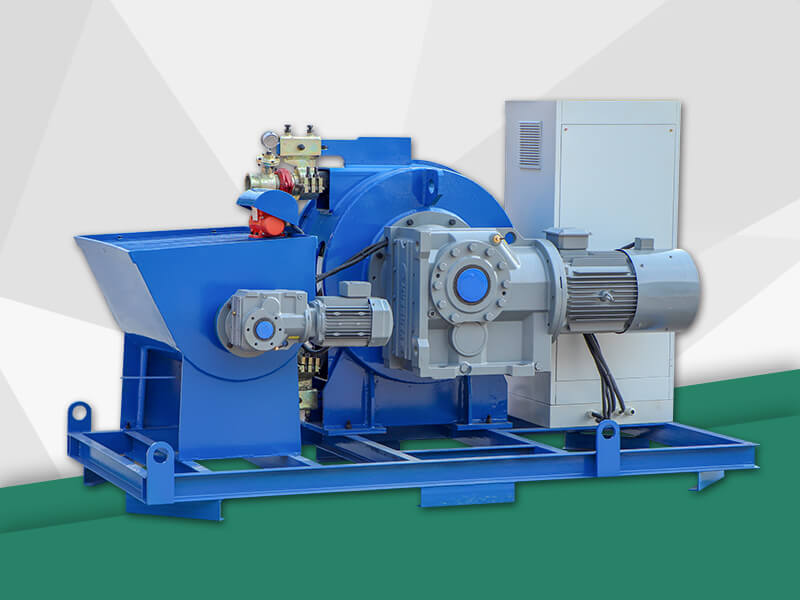

GCP15H-E Hose Type Concrete Pump for Pumping Concrete Slurry
1
GH76-610
76mm (Trelleborg Squeeze hose)
37rpm
15m3/h
3Mpa
<15mm
Introduction
Product Details
Technical data
Cases
Inquiry
Description

GCP15H-E hose type concrete pump is a kind of concrete pump with a squeeze hose pump for the building industry.It can transport concrete slurry, cement slurry, mud,mortar, and other high viscosity liquids in a timely and effective manner.

GCP15H-E hose type concrete pump is widely used in concrete pumping or grouting and painting projects. Typical applications include: transportation of high-rise building mortar and fine stone concrete, secondary structural column grouting, reservoirs, hydropower stations, various concrete transportations at ports and terminals, foundation treatment, weak foundations, reinforced grouting, tunnels, subways, mine backfill grouting anchoring Bracket, watering the secondary building column.

GCP15H-E hose type concrete pump has obvious advantages in conveying strong grinding media. It means that the hose pump has a valveless and sealed structure without any leakage and pollution. Only the inner cavity of the rubber hose is in contact with the medium, and other components are completely independent of Outside the medium; the flow can be adjusted linearly, without any blockage of fluid transport with high viscosity and impurities;

Application
GCP15H-E hose type concrete pumps can be used in following field: Construction, pharmacy, textile mill, dye making, water treatment, paper making, mining, ceramic, brewery and beverage, underground engineering, etc. It's perfect to pump corrosive, abrasives, shear sensitive fluids, high viscosity fluids, high density fluids, large solids, metering(±1%), high pressure(3Mpa). GCP15H-E hose type concrete pumps are mainly applied in distant conveying, grouting and dosing of viscous slurries in construction, mining, food,papermaking, ceramic, etc.
Features

GCP15H-E hose type concrete pumps have proven to deliver outstanding performance in the most demanding applications, handling heavy-duty media, particularly in the minerals, mining and metallurgical and energy, construction and environmental industries. GCP15H-E hose type concrete pump has the performance characteristics of its special type of pump:

1. Compact size, hopper, extrusion pumps, power sources combined in a base   frame.

2. Installation of frequency control, stepless output.

3. Adopting squeeze type pumping, the squeeze hose is the only wearing parts.

4. Imported special concrete squeeze tubes, pressure, wear, long life.

5. Reversible work, facilitate the removal of plugging failure.

6. Clean on the line, sample, convenient.

Product Details
Technical Parameters
Technical Data

Description

parameter

Squeeze Pump

GH76-610

Hose ID

76mm (Trelleborg Squeeze hose)

Speed

37rpm

Output

15m3/h

Pressure

3Mpa

Max. Aggregate size

<15mm

Concrete Slump

15-23cm

Hopper Capacity

350L

Stirring speed

37rpm

Reducer Model

NR137

Voltage

22KW  50HZ  IP55  3~380V

Overall Dimension

2400x1300x1200mm

Weight

1560kg

Used for spraying, recommend air compressor: the output is 6m3/h, the pressure≥0.5bar
