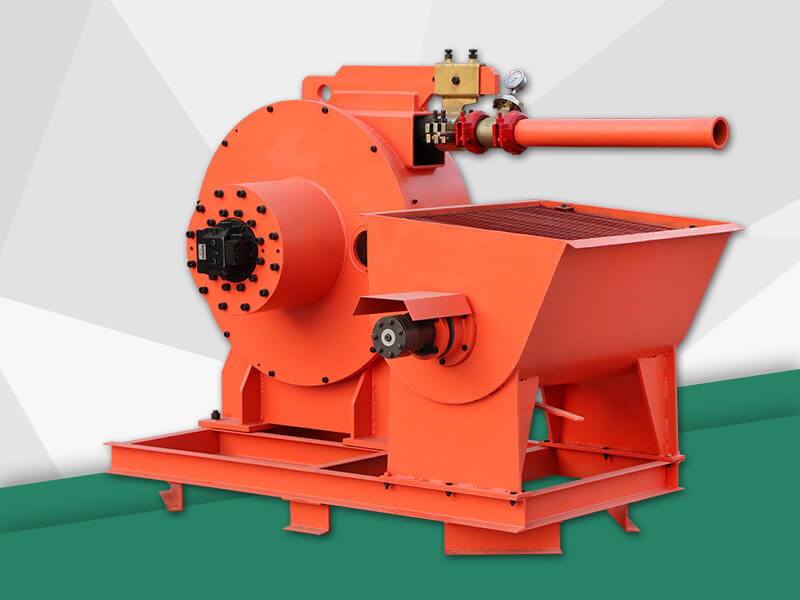

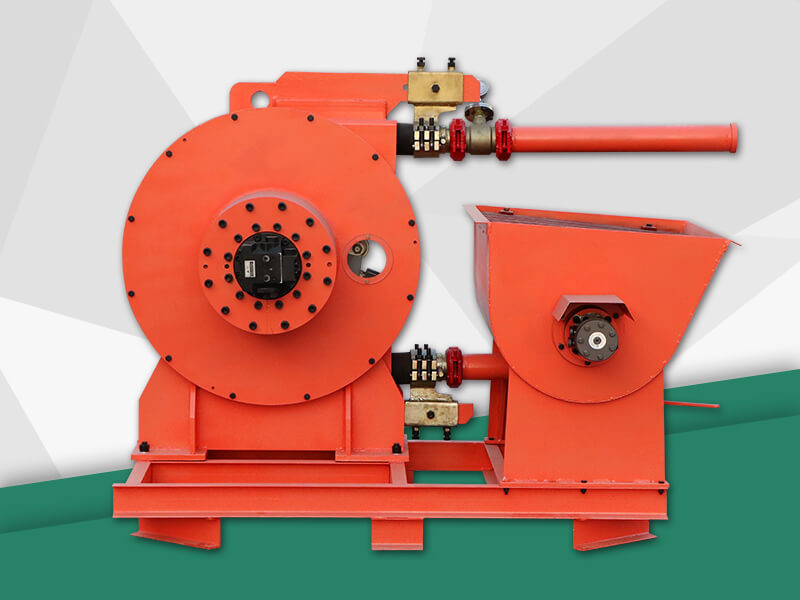

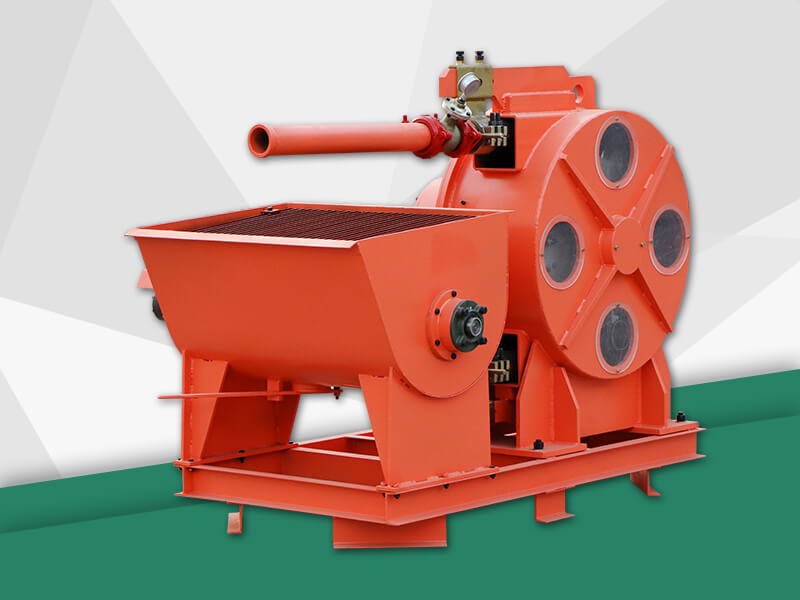

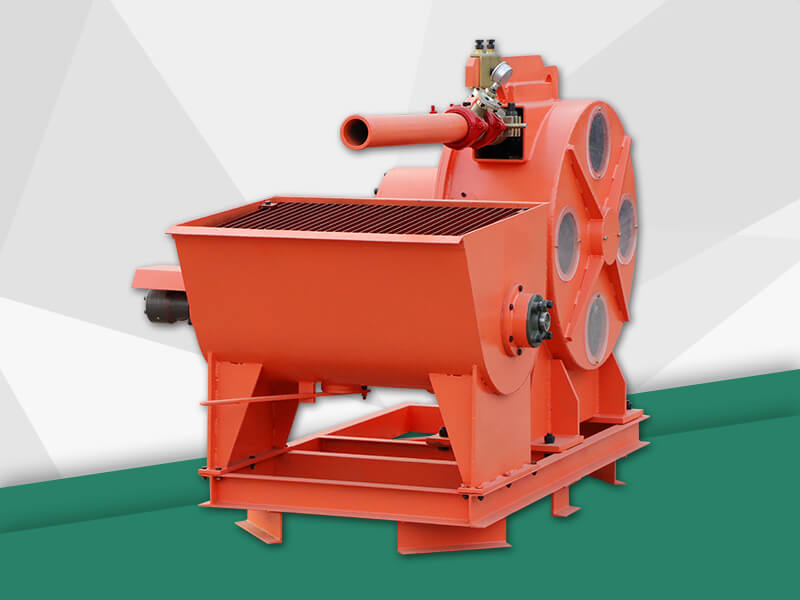

GCP20H-H Hydraulic Motor Drive Hose Type Concrete Pump Supplier
GCP20H-H Hydraulic Motor Drive Hose Type Concrete Pump, also known as hose pumps or peristaltic concrete pumps, are specialized equipment designed for transferring concrete and other viscous materials.
GCP20H-H
2000x1350x1500mm
1145kg
76mm (Trelleborg Squeeze hose)
40rpm
20m3/h
Introduction
Product Details
Technical data
Cases
Inquiry
Description

GCP20H-H hydraulic motor drive hose type concrete pumps are designed on the basis of concrete pumps and are more widely used for pumping concrete, lightweight concrete, mortar and other materials. If the pump is used with an air compressor, it can also be used to spray concrete and mortar.

GCP20H-H hydraulic motor drive hose type concrete pumps are ideal for pumping a wide range of muds and metering a variety of abrasive, corrosive, viscous or crystalline media. GCP20H-H hydraulic motor drive hose type concrete pumps have proven to deliver outstanding performance in the most demanding applications, handling heavy-duty media, particularly in the minerals, mining and metallurgical and energy, construction and environmental industries.

GCP20H-H hydraulic motor drive hose type concrete pump is a new multi-functional industrial peristaltic hose pump developed by advanced technology. It is driven by hydraulic pressure and has higher efficiency. The pump has no seal, no leakage, strong self-priming ability, simple structure and convenient operation and maintenance. Suitable for conveying various viscosity, density, corrosive and abrasive substances, such as pumping cement slurry, mortar, lime slurry and so on. It can be used in petroleum, chemical, water treatment, mining, gold smelting, medicine, paper, ceramics and other industries.

Application

GCP20H-H hydraulic motor drive hose type concrete pumps can be used in following field: Construction, pharmacy, textile mill, dye making, water treatment, paper making, mining, ceramic, brewery and beverage, underground engineering, etc. It's perfect to pump corrosive, abrasives, shear sensitive fluids, high viscosity fluids, high density fluids, large solids, metering(±1%), high pressure(3Mpa). GCP20H-H hydraulic motor drive hose type concrete pumps are mainly applied in distant conveying, grouting and dosing of viscous slurries in construction, mining, food,papermaking, ceramic, etc.

The main application aspects of GCP20H-H hydraulic motor drive hose type concrete pump are:

1. Mining, metallurgical industry: such as gold mining in filling materials, iron oxide scale, flue mud treatment of thick          slurry, underground passage drainage, adsorbents, mortar and mortar;

2. Pharmaceutical industry: transportation of liquid materials;

3. Food industry: food and beverage transportation;

4. Paper industry: pulp, sulphur pulp transportation;

5. Construction industry: cement and mortar transportation;

6. Ceramic industry: transportation of raw material slurry;

7. Nuclear waste, electrolytic waste, metal slag solution, paint, paint and other liquids, material transportation;

8. Beer industry: yeast, diatomaceous earth, distiller's grains, syrup, ingredients, concentrate (liquid), gas-liquid mixture;

Features

GCP20H-H hydraulic motor drive hose type concrete pump is a new hose pump produced by Gaodetec, which absorbs advanced technology at home and abroad. GCP20H-H hydraulic motor drive hose type concrete pump has more advantages than traditional other types of pumps.

The characteristics of the GCP20H-H hydraulic motor drive hose type concrete pumps are as follows:

1. Compact size: hose pump, agitator and  hydraulic motor gearbox combined in a base frame.

2. Hydraulic motor gearbox: stepless speed control, connect with own hydraulic power pack could work directly, easy to operate.

3. Low wear: the squeeze hose is the only wear part of the pump and can be replaced very quickly.

4. Delivers even the most difficult materials.

5. Quiet pumping process.

6. Forwards and reverse, easily to removal the block.

7. Clean on the line: Quick and easy cleaning 8. No residual concrete remains in the system.

Product Details
Technical Parameters
Technical Data

Description

Parameter

Model

GCP20H-H

Overall Dimension

2000x1350x1500mm

Weight

1145kg

Pump Head

Hose Pump

GH76-915B

Squeeze Hose ID

76mm (Trelleborg Squeeze hose)

Pump Speed

40rpm

Rated Output

20m3/h

Pressure

2.5Mpa

Max. Aggregate size

<15mm

Concrete Slump

15-23cm

Heavy Duty Hydraulic Motor Gearbox

Required flow

130L/min

Required pressure

10Mpa

Hydraulic Mixing Motor

Model

BMH200-4-B-D

Required flow

10L/min

Required pressure

10Mpa

Hopper Capacity

400L
