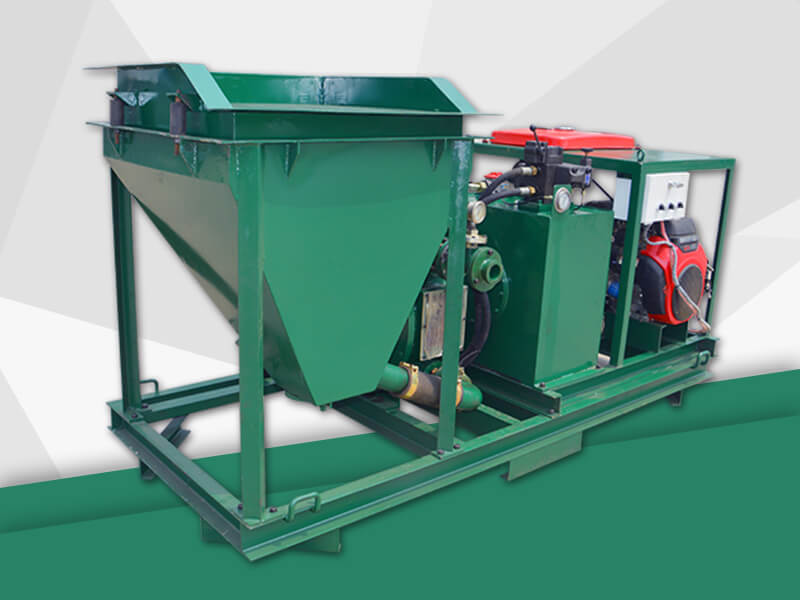

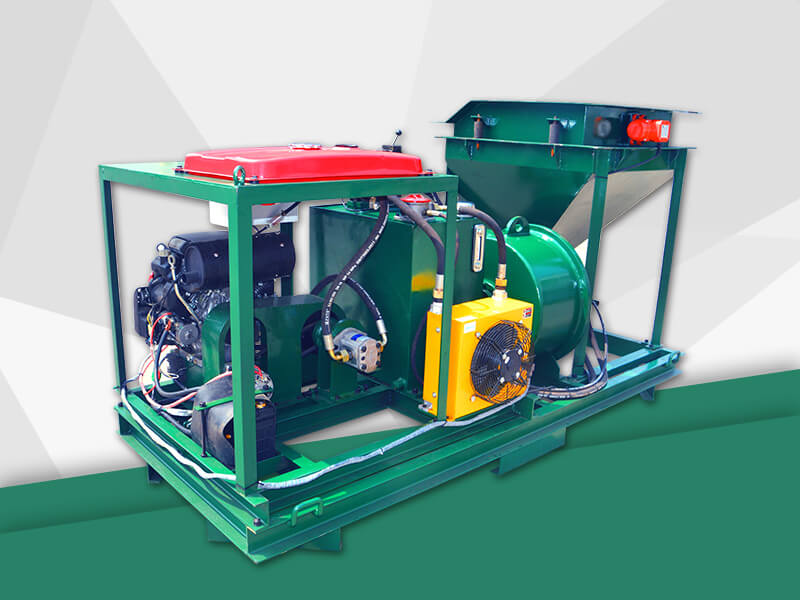

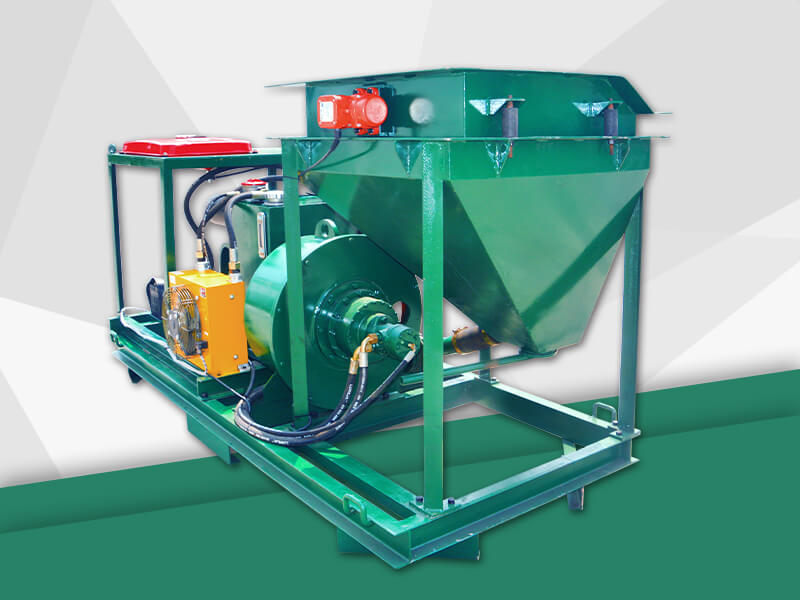

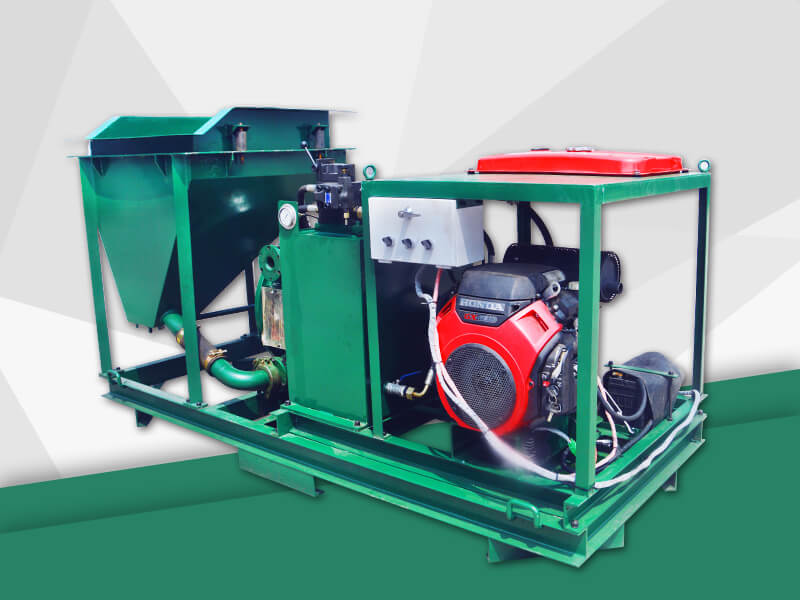

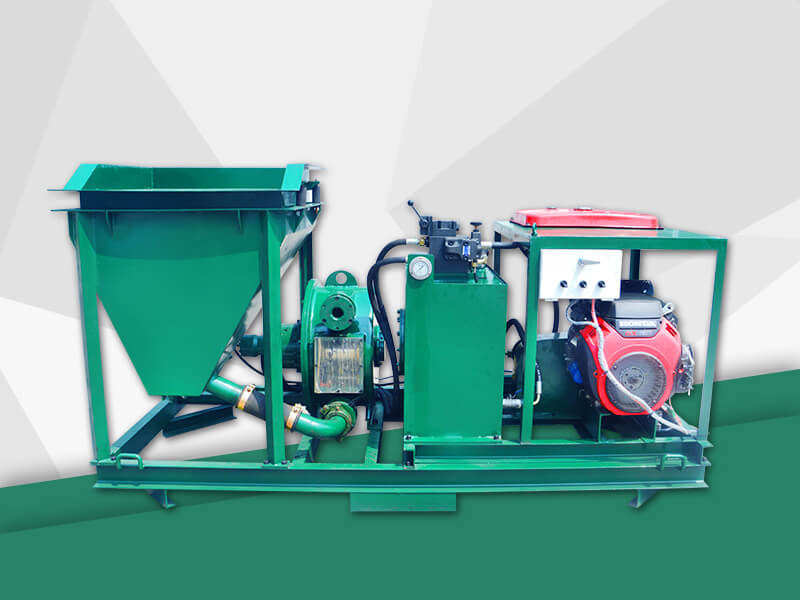

GDS1500G hose type concrete spraying pump is a kind of shotcrete pump which run by a highly-reliable direct drive planetary gearbox and hydraulic power pack. This sturdy workhorse is made better with the added improvement of a direct drive to the carousel. It's designed specifically for the dome-building process. It can be use for pumping ,spraying and conveying concrete, grout and shotcrete.
GDS1500G hose type concrete spraying pump can be used in following field: Construction, pharmacy, textile mill, dye making, water treatment, paper making, mining, ceramic, brewery and beverage, underground engineering, etc. It's perfect to pump corrosive, abrasives, shear sensitive fluids, high viscosity fluids, high density fluids, large solids, metering(±1%), high pressure(3Mpa).
GDS1500G hose type concrete spraying pump is mainly applied in distant conveying, grouting and dosing of viscous slurries in construction, mining, food,papermaking, ceramic, etc.
GDS1500G hose type concrete spraying pump can be used in following field: Construction, pharmacy, textile mill, dye making, water treatment, paper making, mining, ceramic, brewery and beverage, underground engineering, etc. It's perfect to pump corrosive, abrasives, shear sensitive fluids, high viscosity fluids, high density fluids, large solids, metering(±1%), high pressure(3Mpa).
The main application aspects of GDS1500G hose type concrete spraying pump are:
1. Mining, metallurgical industry: such as gold mining in filling materials, iron oxide scale, flue mud treatment of thick slurry, underground passage drainage, adsorbents, mortar and mortar;
2. Pharmaceutical industry: transportation of liquid materials;
3. Food industry: food and beverage transportation;
4. Paper industry: pulp, sulphur pulp transportation;
5. Construction industry: cement and mortar transportation;
6. Ceramic industry: transportation of raw material slurry;
7. Nuclear waste, electrolytic waste, metal slag solution, paint, paint and other liquids, material transportation;
8. Beer industry: yeast, diatomaceous earth, distiller's grains, syrup, ingredients, concentrate (liquid), gas-liquid mixture;
GDS1500G hose type concrete spraying pump is a new hose pump produced by Gaodetec, which absorbs advanced technology at home and abroad. GDS1500G hose type concrete spraying pump has more advantages than traditional other types of pumps.
The characteristics of the GDS1500G hose type concrete spraying pumps are as follows:
1. Highly-reliable direct drive planetary gearbox
2. Infinite speed variation
3. Specially hopper/ agitator stir design
4. Honda GX390 and GX630 gasoline engine for option
5. Easily operating on site work
6. Standard spare part supply
Item |
Description |
Pressure |
1.5 Mpa ( Chinese squeeze hose )/3.5 Mpa ( Trelleborg squeeze hose ) |
Output |
1.5-3m3/h |
Max. Aggregate |
10mm |
The Squeeze Hose |
ID 50mm |
Conveying Hose |
ID 38mm |
Squeeze pump |
GH50-455 |
Power |
Honda GX390 Gasoline engine |
Overall Dimension |
1900x850x1250mm |
Hopper volume |
200 Liter |
Oil tank |
120 Liter |
Weight |
610kg |
Requested air compressor |
3m3/min, 0.5Mpa Pressure |
Vertical Conveying Distance |
15 m ( Chinese squeeze hose )/30 m ( Trelleborg squeeze hose ) |
Horizontal Conveying Distance |
40 m ( Chinese squeeze hose )/80 m ( Trelleborg squeeze hose ) |
