GH100-915HR Mine Used Industrial Peristaltic Hose Pump
A peristaltic hose pump is a pump that delivers liquids by alternately squeezing and releasing a hose. They are typically used in situations where precise flow control is required, handling high viscosity liquids or corrosive liquids. In mining applications, peristaltic hose pumps are favored for their resistance to wear, corrosion and ease of maintenance.
40m3/h
45RPM
102mm
25Bar
3 phase, 380V, 50HZ
18.5 KW
Introduction
Product Details
Technical data
Cases
Inquiry
Description

GH100-915HR mine used industrial peristaltic hose pump is used for slurry transportation in the mining industry. GH100-915HR mine used industrial peristaltic hose pump uses a wear-resistant hose suitable for pumping abrasive slurry concentrate slurry, underground passage drainage, adsorbent, mortar and mortar, etc. When conveying materials, only the hose In contact with the material, the hose is the only vulnerable item. When there is a problem, it only needs to be replaced in time to be used normally.

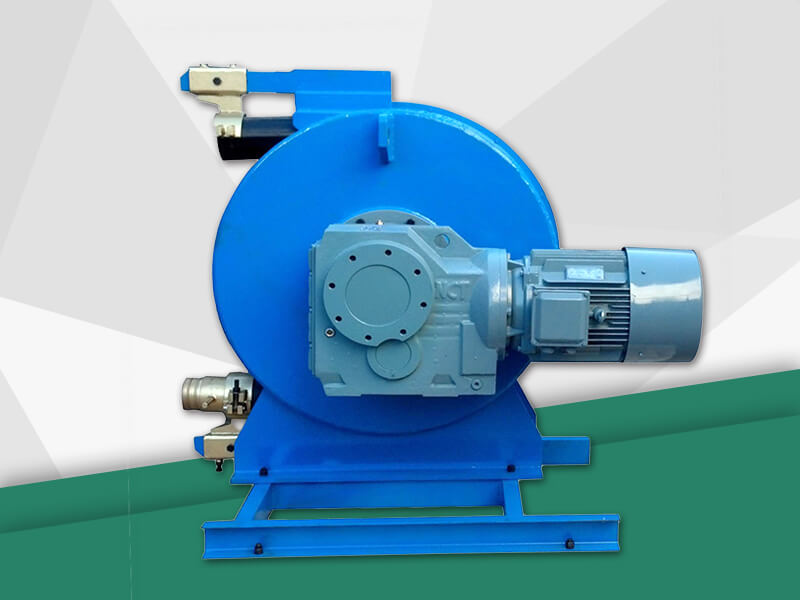

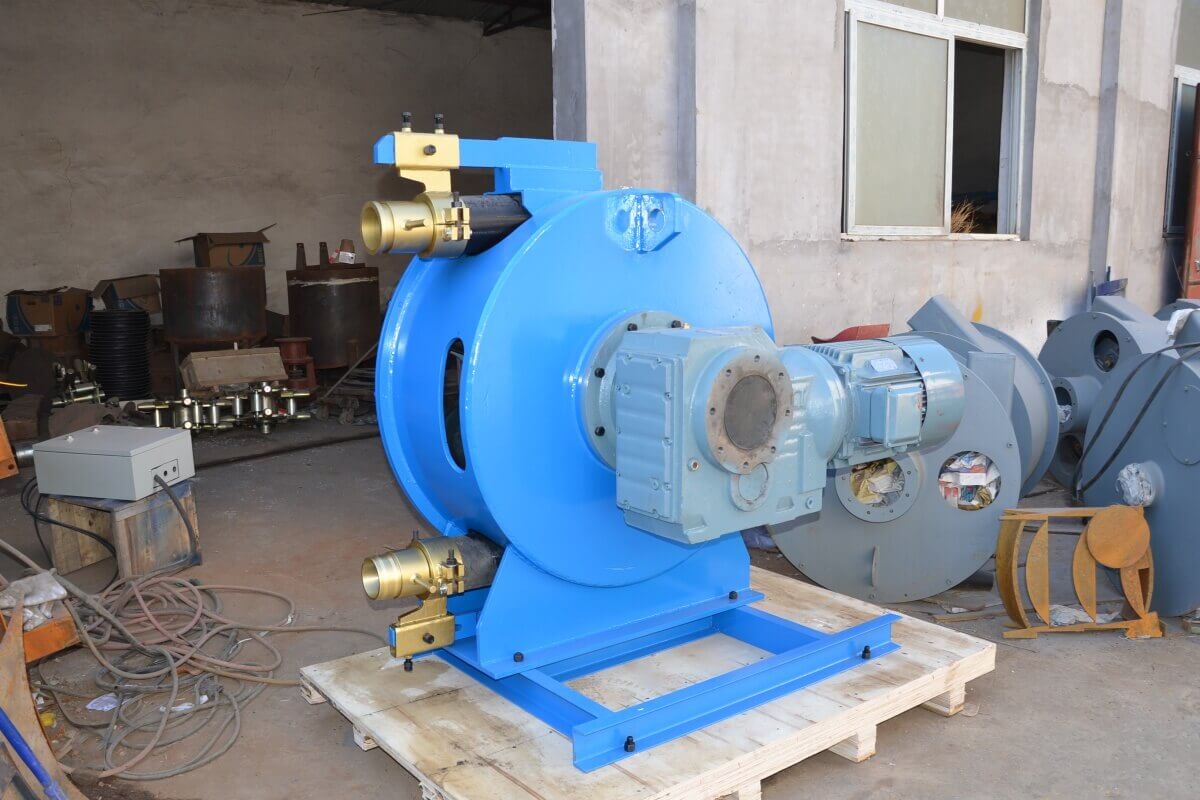

Mining Hose Pump


GH100-915HR mine used industrial peristaltic hose pump have a long hose life and are easy to operate and require easy maintenance when the hose needs to be replaced.

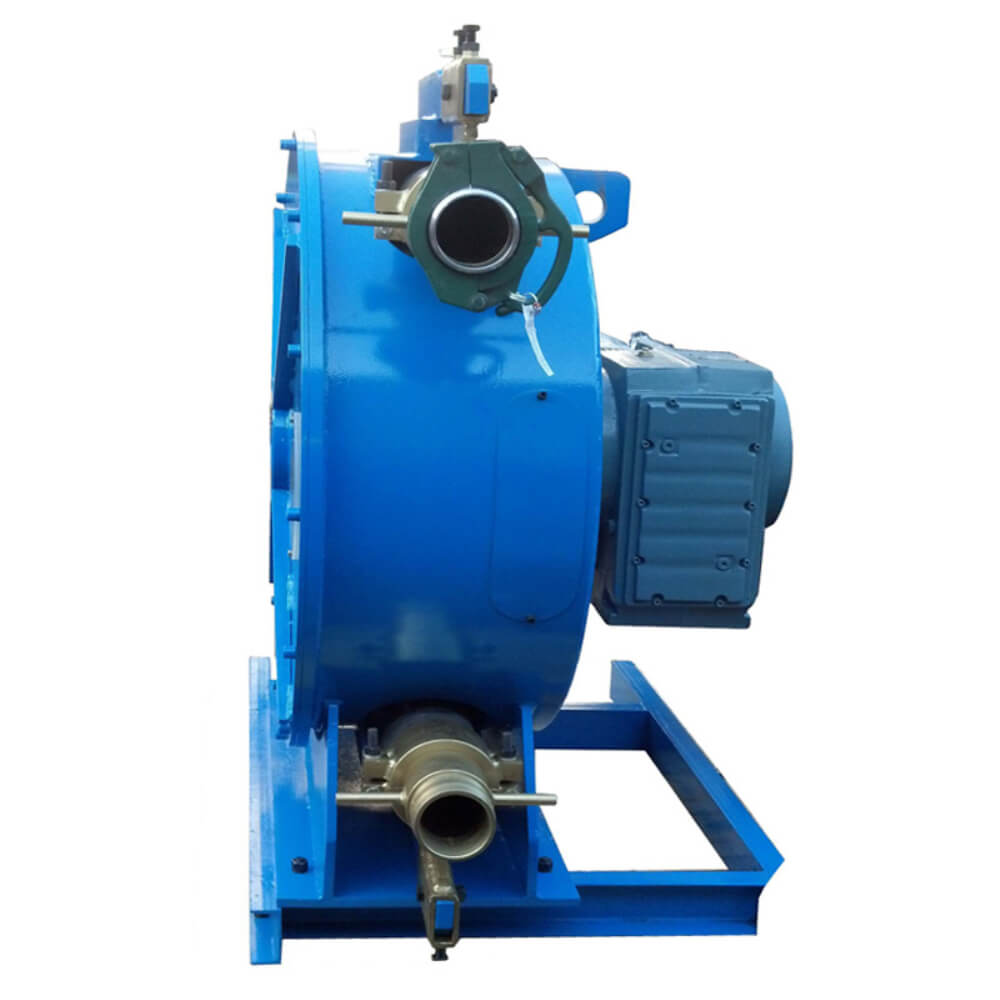

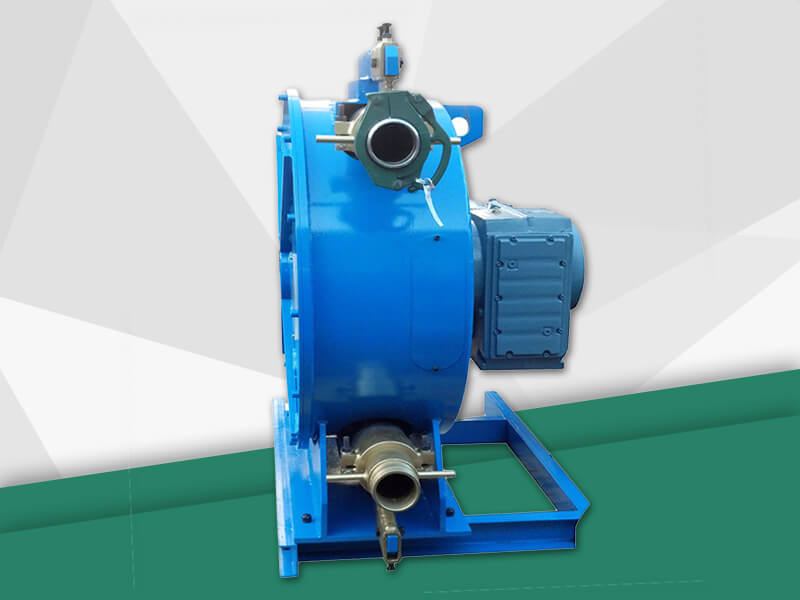

industrial peristaltic hose pump for sale

GH100-915HR mine used industrial peristaltic hose pump is simple in layout, no impeller, no cavity, etc. It is flexible and can transport liquid, mud and viscous suspended solids. In particular, the hose elastic chamber can pump liquids with a particle size smaller than 1/4 of the hose diameter, impurities in various fibers and solid mud, and the smooth hose cavity does not cause any blockage. Large solid particles are allowed. The concentration of the transport medium can reach more than 70%. Therefore, it is very convenient to transport high-concentration materials.

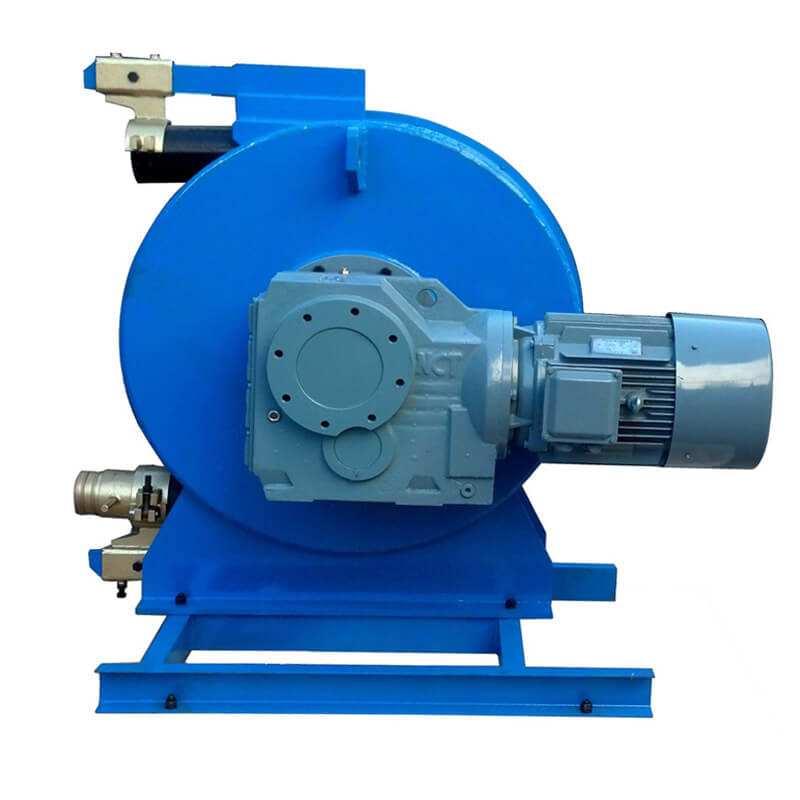

peristaltic hose pump for mine project

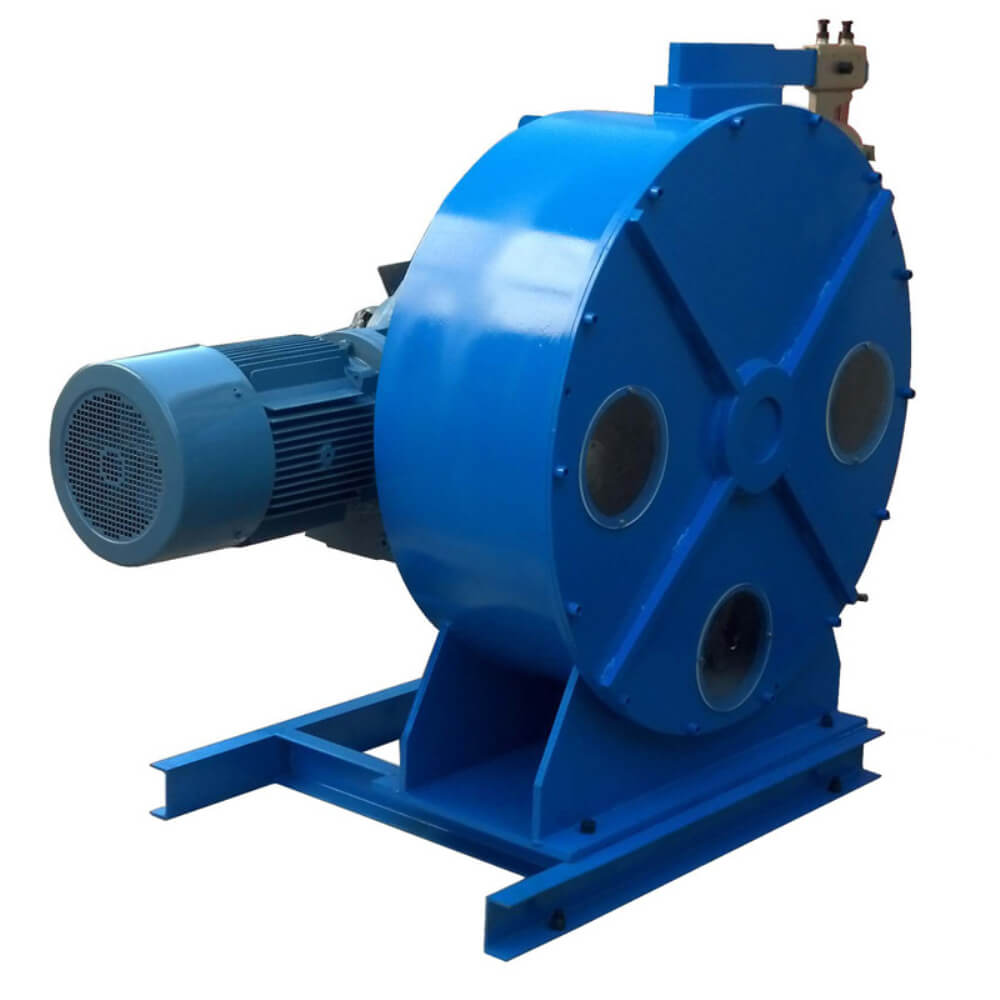

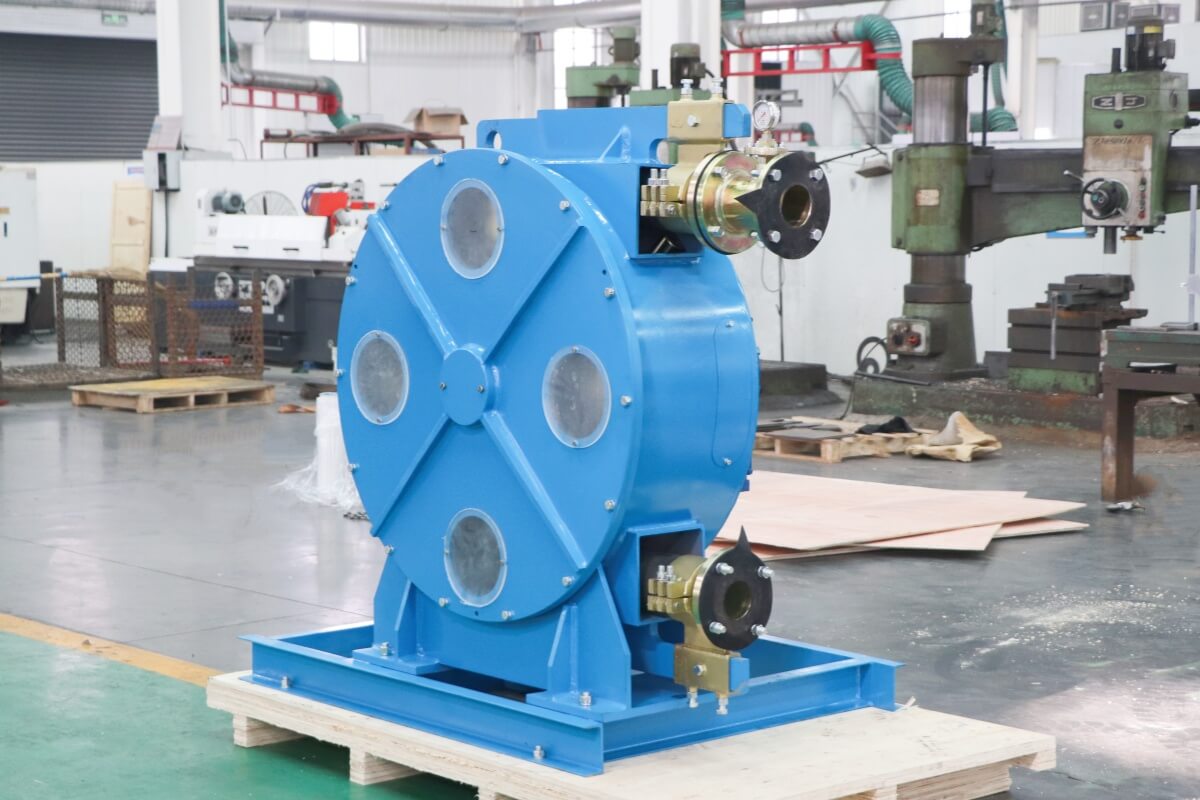

peristaltic pump used for mine project

Application

GH100-915HR mine used industrial peristaltic hose pump products comply with national and international standards. GH100-915HR mine used industrial peristaltic hose pump has stable performance, good sealing performance, easy operation, no water cooling, beautiful and durable. They are suitable for transporting a variety of chemical media with different viscosities and temperatures and are therefore widely used in many fields.

industrial peristaltic hose pump work principle

1. Gold smelting industry: gold pulp and tailings transportation;

2. Chemical industry: acid, alkali, phosphate and titanium dioxide phosphate, titanium dioxide (met titanate) slurry, crystallization liquid, suspension, latex, resin, slime and various liquids;

3. Drilling mud in the petroleum industry: transportation of crude oil and transportation of organic solvents and fuels such as gasoline and kerosene;

4. Water treatment: sludge, lime slurry, added chemicals, sampled water, sediment transport;

5. Mining, metallurgical industry: such as gold mining in filling materials, iron oxide scale, flue mud treatment of thick slurry, underground passage drainage, adsorbents, mortar and mortar;

6. Pharmaceutical industry: transportation of liquid materials;

7. Food industry: food and beverage transportation.

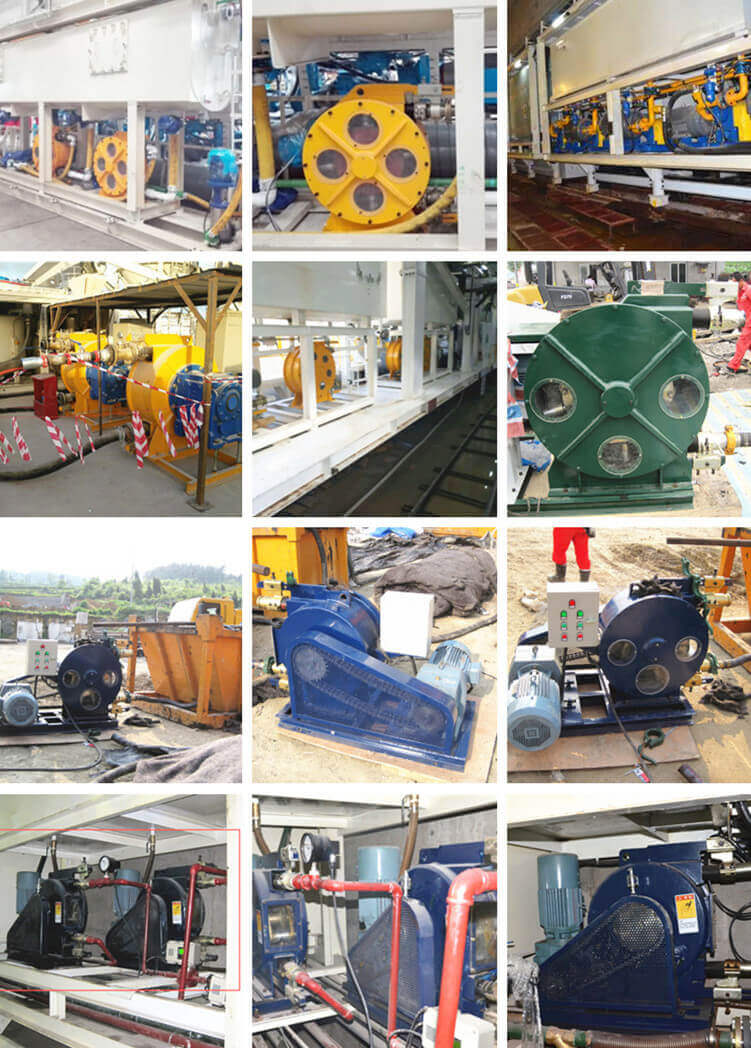

mine application peristaltic hose pump

Features

GH100-915HR mine used industrial peristaltic hose pump used for mine is suitable for pumping slurry, mortar, oil based, slurry, flammable, explosive and certain high viscosity fluids in the mining industry. GH100-915HR mine used industrial peristaltic hose pump has a strong self-reinforcing capability, high flow and easy operation.

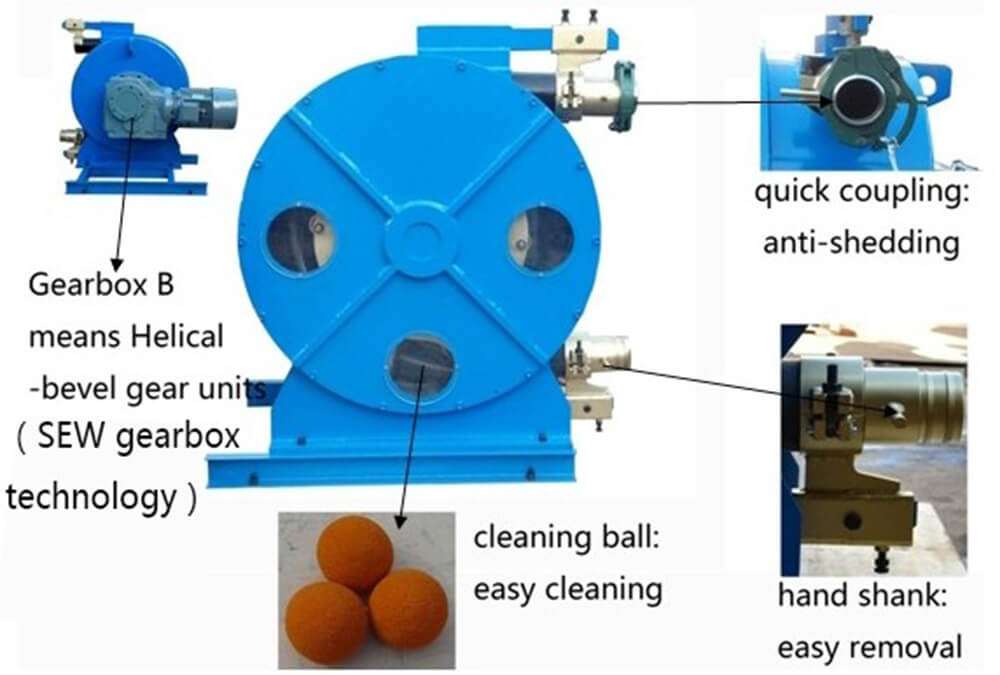

industrial peristaltic hose pump details

In addition to this, GH100-915HR mine used industrial peristaltic hose pump used for mines have many features superior to other types of pumps:

  1. Reversibility

  2. No seals, no valves

  3. Abrasion resistance

  4. Corrosion-resistant

  5. Self priming with high suction

  6. With 1% repeat precision

  7. Easy to clean

  8. Dry-running without damage

  9. Peristaltic tube is the only consumption part



Product Details
Clamp for peristaltic hose pump

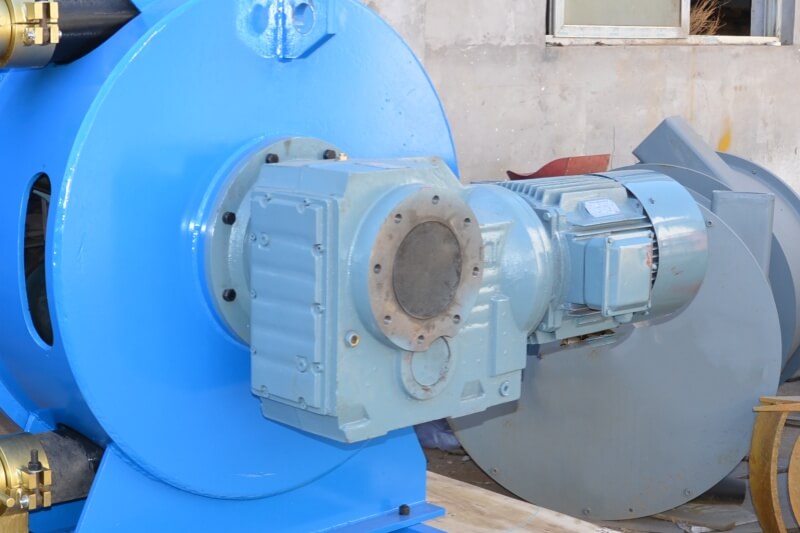

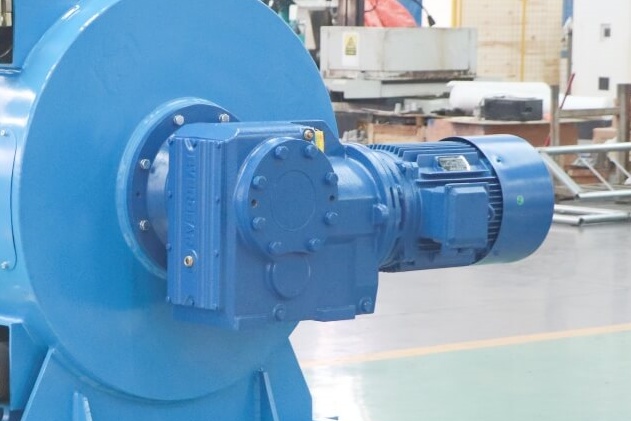

Gearbox

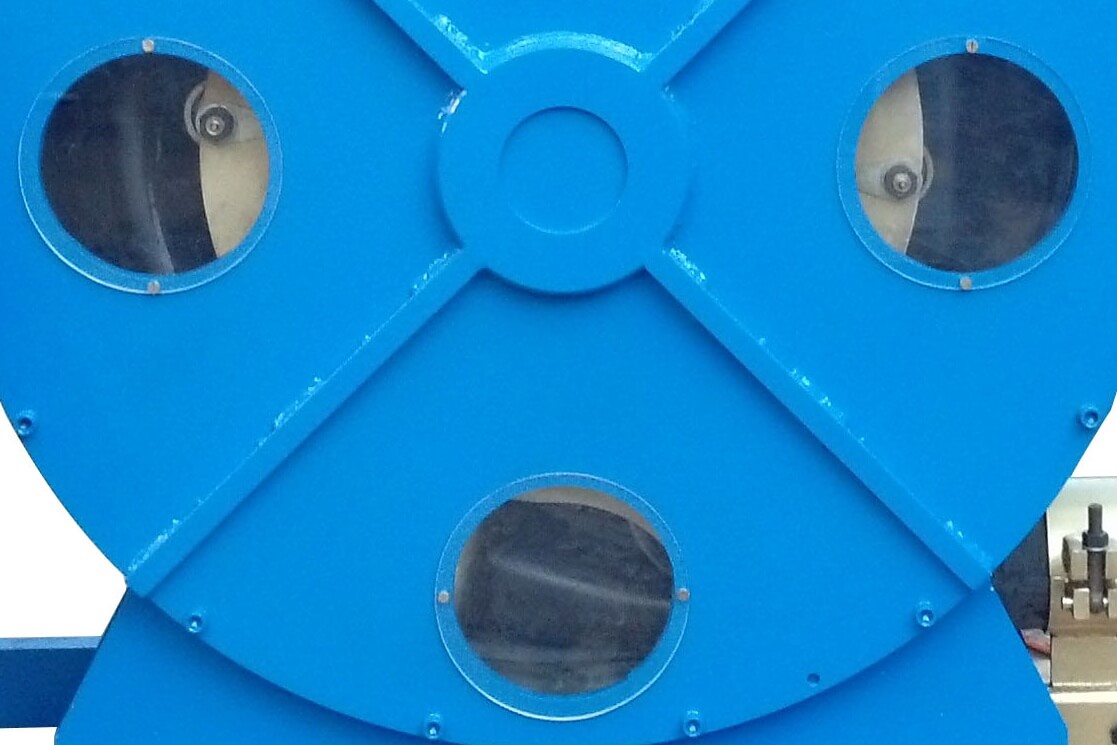

Observation hole

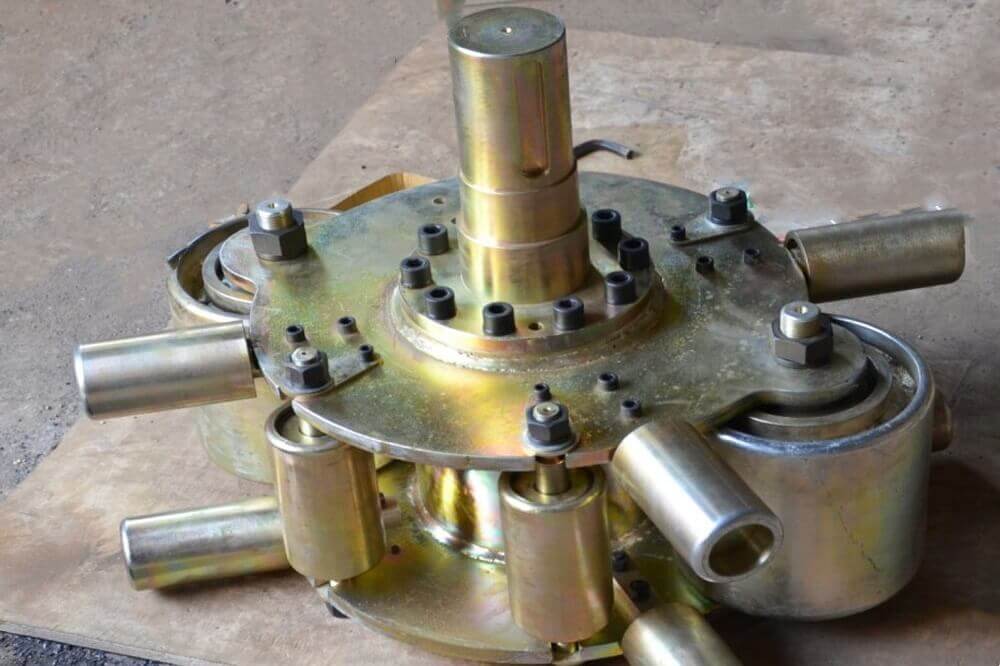

Peristaltic hose pump core

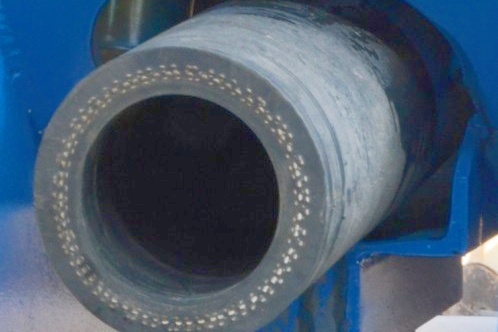

Squeeze hose for peristaltic hose pump

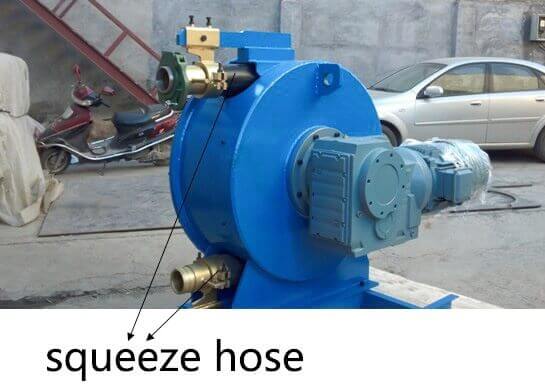

Squeeze hose of foam hose pump
Technical Parameters
Technical Data

Type

GH100-915HR Mine Peristaltic Hose Pump

Max.Output

40m3/h

Rotation

45RPM

Squeeze hose ID

102mm

Work pressure

25Bar

Voltage

3 phase, 380V, 50HZ

Power

18.5 KW
