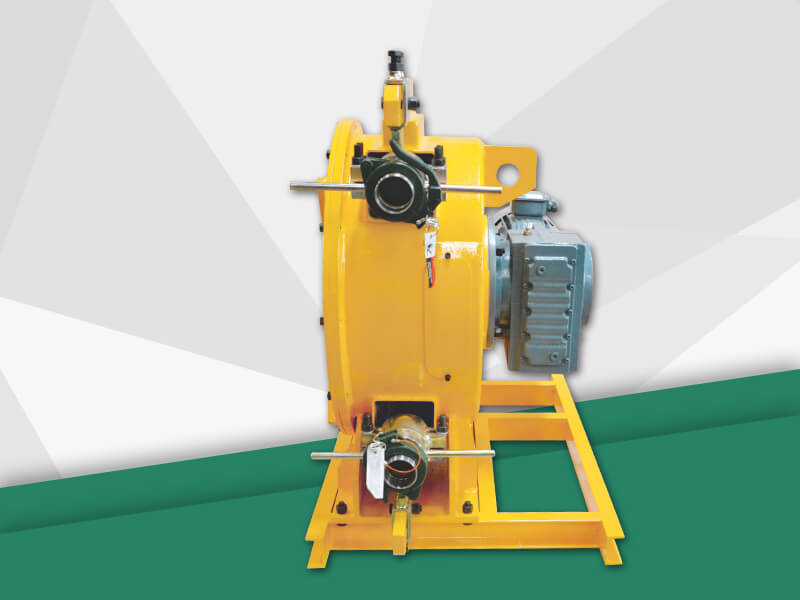

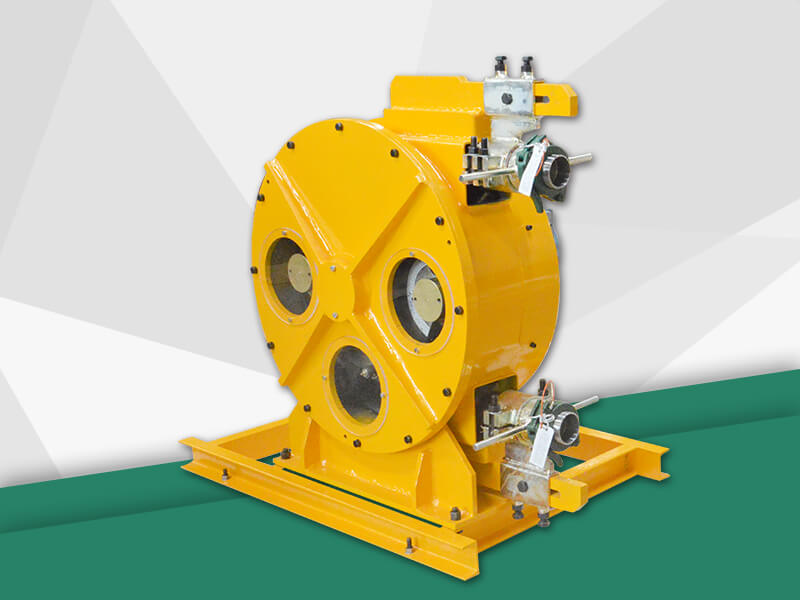

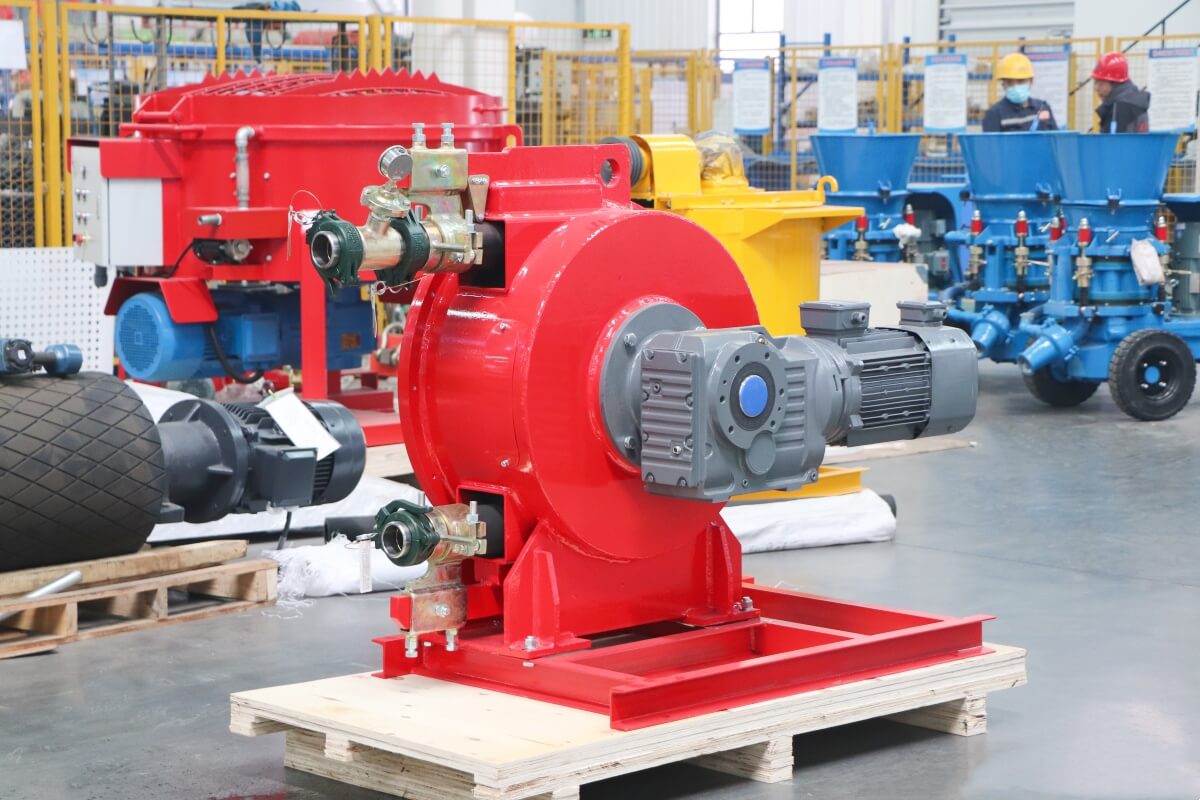

GH65-680HR Hose Pump for Pumping Concrete
1
8m3/h
33RPM
65mm
2.5Mpa
3 phase, 380V, 50HZ
7.5KW
Introduction
Product Details
Technical data
Cases
Inquiry
Description

GH65-680HR hose pump used for pumping concrete,slurry,mud in construction,GH65-680HR hose pump is a kind of peristaltic pump. An elastomeric tube is squeezed along a length by rollers that push the fluid contained within. The tube’s restitution after squeezing produces a vacuum that draws fluid continuously into the tube. This creates a gentle pumping action that doesn’t cause any damage to the product. Contaminations are avoided because the fluid is contained within the tube.

GH65-680HR hose pump is a new industrial  hose pump developed by advanced technology. The pump has no seal, no leakage, strong self-priming ability, simple structure, and convenient operation and maintenance. Suitable for conveying various viscosity, density, corrosive and abrasive substances. It can be used in petroleum, chemical, water treatment, mining, gold smelting, medicine, paper, ceramics, and other industries.

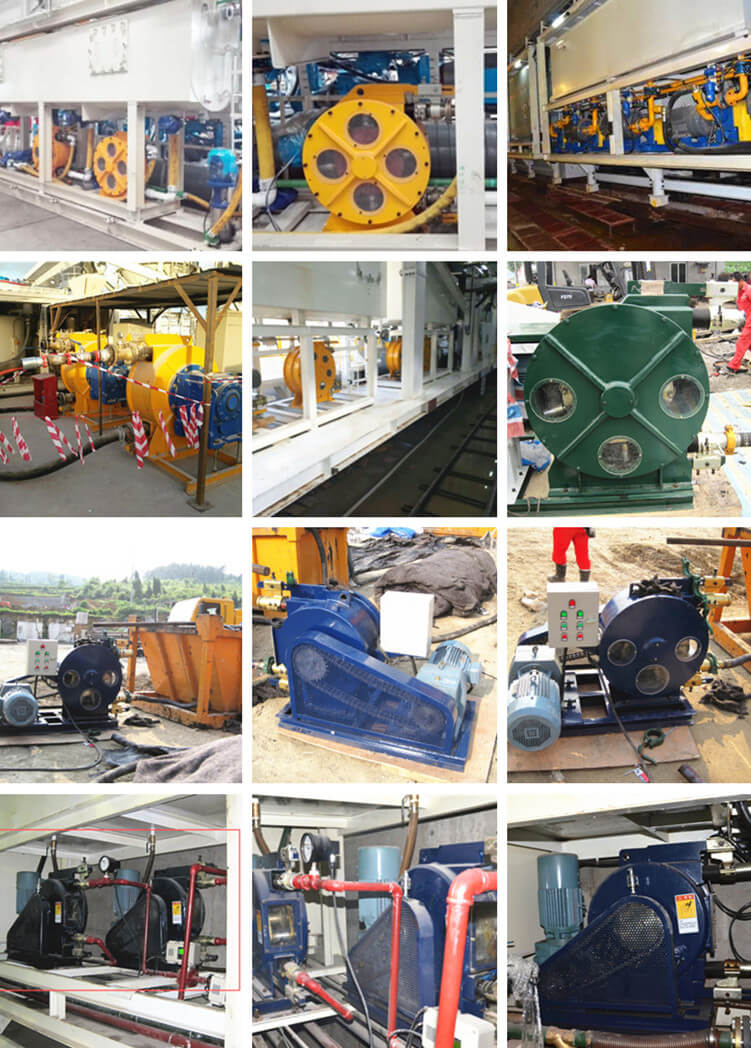

Application

GH65-680HR hose pump for pumping concrete we produce meet the national standards and international standards. The products have stable performance, good sealing performance, easy operation, water-free cooling, beautiful and durable. They are suitable for conveying various chemical media with various viscosity and temperature, so they are widely used in many fields. In addition to construction, GH65-680HR Hose Pump is also widely used in other fields:

1. Gold smelting industry: gold pulp and tailings transportation;

2. Chemical industry: acid, alkali, phosphate and titanium dioxide phosphate, titanium dioxide (met titanate) slurry, crystallization liquid, suspension, latex, resin, slime and various liquids;

3. Drilling mud in the petroleum industry: transportation of crude oil and transportation of organic solvents and fuels such as gasoline and kerosene;

4. Water treatment: sludge, lime slurry, added chemicals, sampled water, sediment transport;

5. Mining, metallurgical industry: such as gold mining in filling materials, iron oxide scale, flue mud treatment of thick slurry, underground passage drainage, adsorbents, mortar and mortar;

Features

GH65-680HR hose pump in construction has been sold abroad, and in Malaysia, Mexico, united Arab emirates, Saudi Arabia, Singapore, kazakhstan, Thailand, myanmar, Russia and many other countries sales, by foreign customers.

GH65-680HR hose pump in construction is a new hose pump produced by Gaodetec, which absorbs advanced technology at home and abroad. GH65-680HR hose pump in construction has more advantages than traditional other types of pumps.

The characteristics of the GH65-680HR hose pump in constructions are as follows:

1. No seals

2. No valves

3. Self-priming

4. Only tube to replace

5. Dry-running without damage

6. Reversible

7. No contact between product and mechanical parts

8. Able to pump products with solid parts inside

9. Easy maintenance, low-cost, short down time

Product Details
Technical Parameters
Technical Data

Type

GH65-680HR

Output

8m3/h

Rotation

33RPM

Squeeze hose ID

65mm

Max. pressure

2.5Mpa

Voltage

3 phase, 380V, 50HZ

Power

7.5KW
