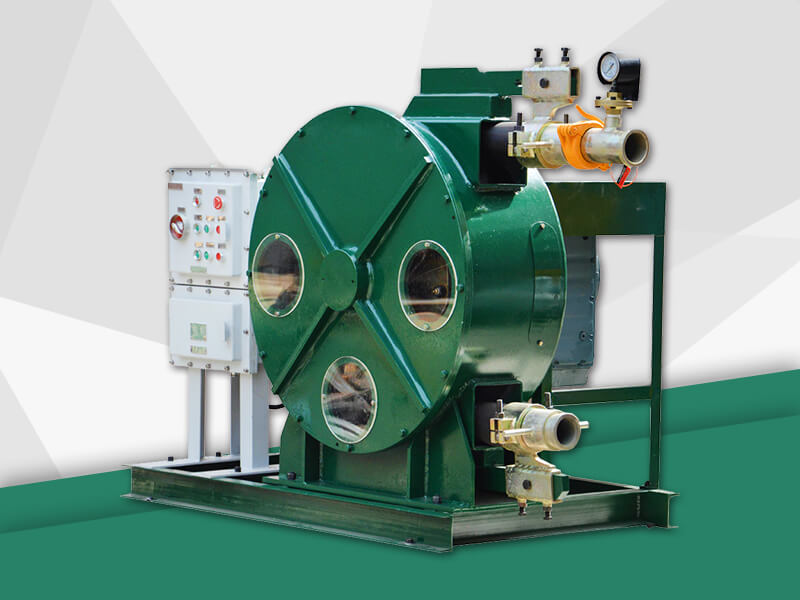

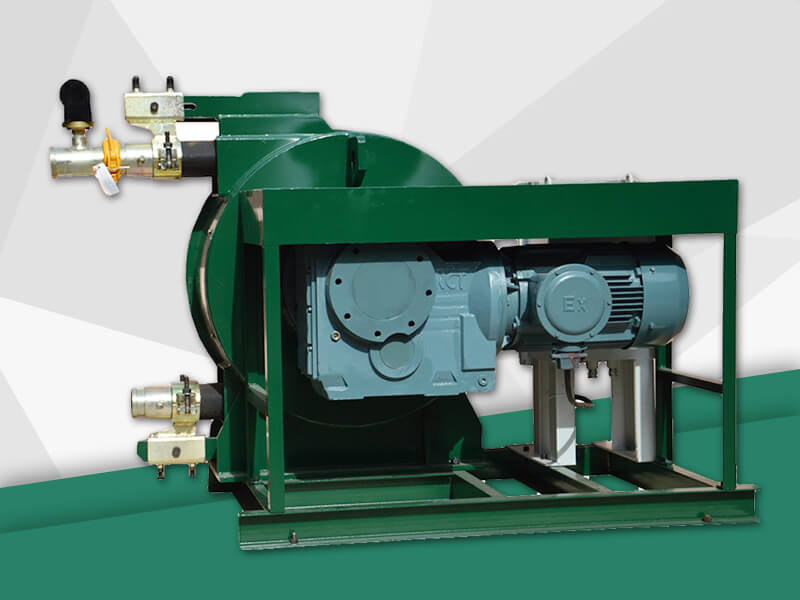

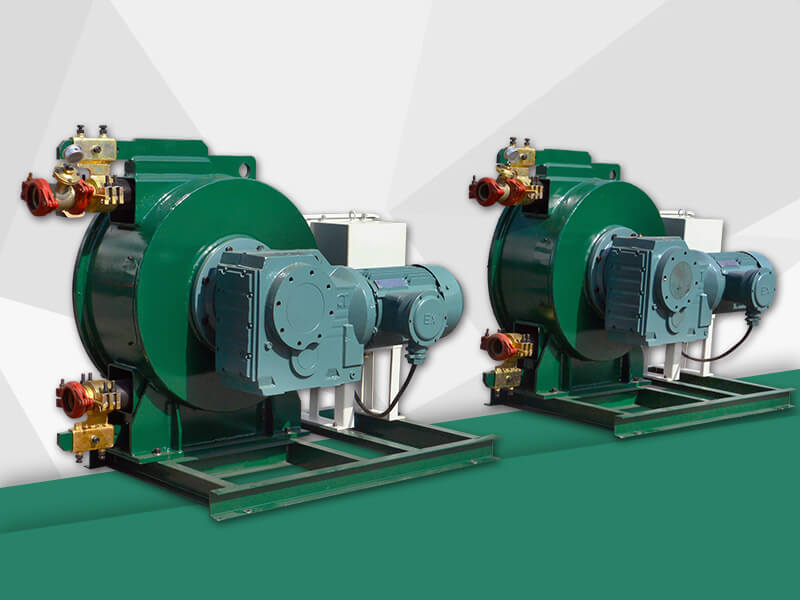

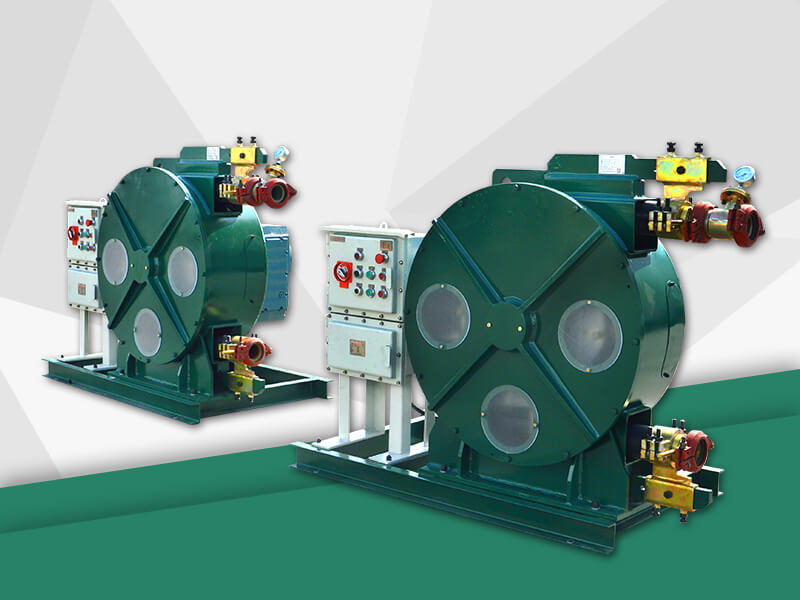

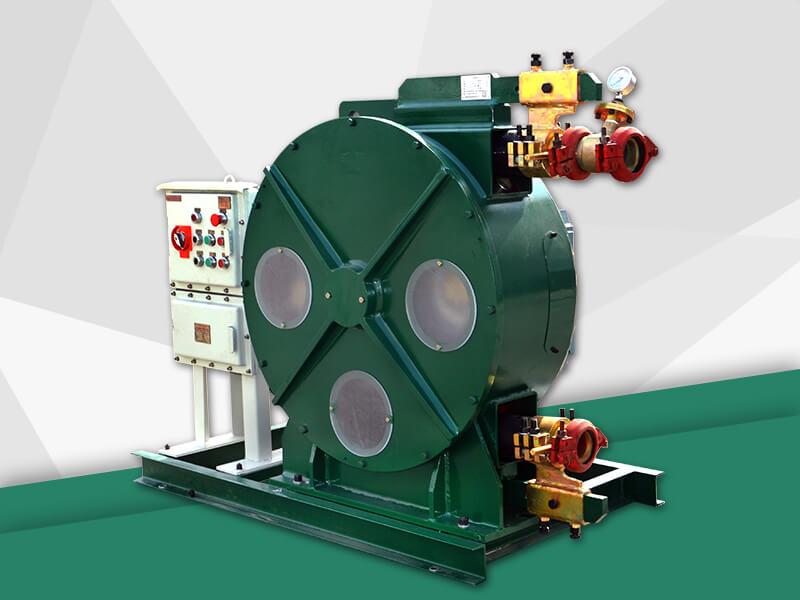

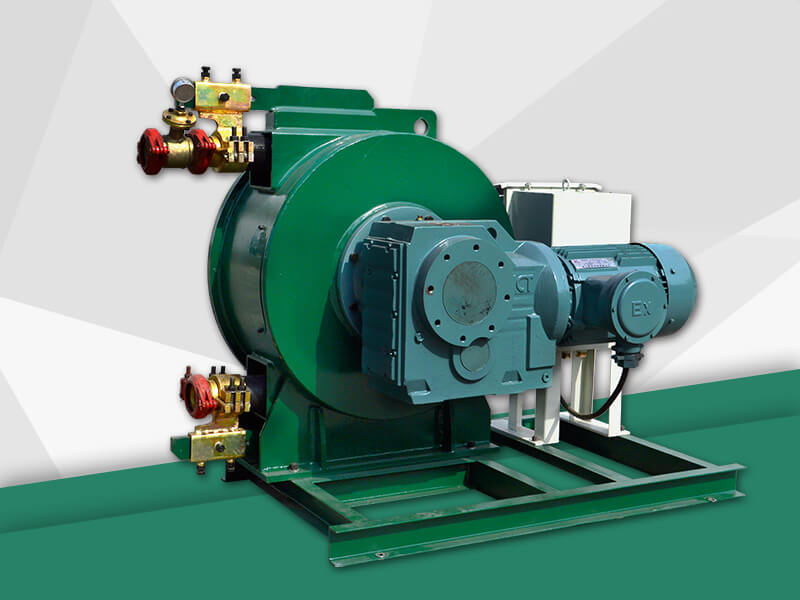

GH76-770HR high pressure peristaltic pump is used for slurry transportation in the mining industry. GH76-770HR high pressure peristaltic pump uses a wear-resistant hose suitable for pumping abrasive slurry concentrate slurry, underground passage drainage, adsorbent, mortar and mortar, etc. When conveying materials, only the hose In contact with the material, the hose is the only vulnerable item. When there is a problem, it only needs to be replaced in time to be used normally.
GH76-770HR high pressure peristaltic pump has the advantages of products that cannot be ignored.
(1)GH76-770HR high pressure peristaltic pump is of the volumetric type, with inorganic sealing, strong self-priming ability and self-cleaning.
(2) No pump valve will not breed signs of harmonious resistance of sealed pump discharge, eliminate leakage caused by the operation, operation, dripping, loss and pollution, and clean up your site.
(3)GH76-770HR high pressure peristaltic pump is simple in layout, no impeller, no cavity, etc. It is flexible and can transport liquid, mud and viscous suspended solids. In particular, the hose elastic chamber can pump liquids with a particle size smaller than 1/4 of the hose diameter, impurities in various fibers and solid mud, and the smooth hose cavity does not cause any blockage. Large solid particles are allowed. The concentration of the transport medium can reach more than 70%. Therefore, it is very convenient to transport high-concentration materials.
(4)GH76-770HR high pressure peristaltic pump is high pressure small in size and light in weight.
GH76-770HR high pressure peristaltic pump products comply with national and international standards. GH76-770HR high pressure peristaltic pump has stable performance, good sealing performance, easy operation, no water cooling, beautiful and durable. They are suitable for transporting a variety of chemical media with different viscosities and temperatures and are therefore widely used in many fields.
1. Gold smelting industry: gold pulp and tailings transportation;
2. Chemical industry: acid, alkali, phosphate and titanium dioxide phosphate, titanium dioxide (met titanate) slurry, crystallization liquid, suspension, latex, resin, slime and various liquids;
3. Drilling mud in the petroleum industry: transportation of crude oil and transportation of organic solvents and fuels such as gasoline and kerosene;
4. Water treatment: sludge, lime slurry, added chemicals, sampled water, sediment transport;
5. Mining, metallurgical industry: such as gold mining in filling materials, iron oxide scale, flue mud treatment of thick slurry, underground passage drainage, adsorbents, mortar and mortar;
6. Pharmaceutical industry: transportation of liquid materials;
7. Food industry: food and beverage transportation;
GH76-770HR high pressure peristaltic pump used for mine is suitable for pumping slurry, mortar, oil based, slurry, flammable, explosive and certain high viscosity fluids in the mining industry. GH76-770HR high pressure peristaltic pump has a strong self-reinforcing capability, high flow and easy operation.
In addition to this, GH76-770HR high pressure peristaltic pump used for mines have many features superior to other types of pumps:
1. Reversibility
2. Sealessness and valveless
3. Abrasion resistance
4. Self priming with high suction
5. With 1% repeat precision
6. Corrosion-resistant
7. Easy to clean
8. Can run dry without damage
9. Peristaltic tube is the only consumption part
Type |
GH76-770HR |
Max. ouput |
300L/min or 18m3/h ( at 0.5Mpa, 50HZ) |
Rotation |
35RPM |
Squeeze hose ID |
76mm |
Max. pressure |
2.5 Mpa |
Voltage |
3 phase, 380V, 50HZ anti-explosion Gaodetec electric motor |
Power |
15KW |
