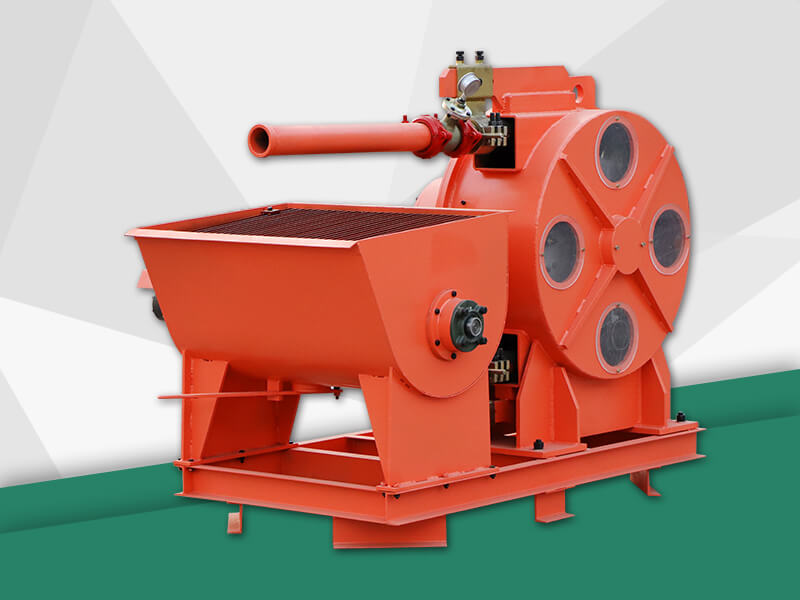

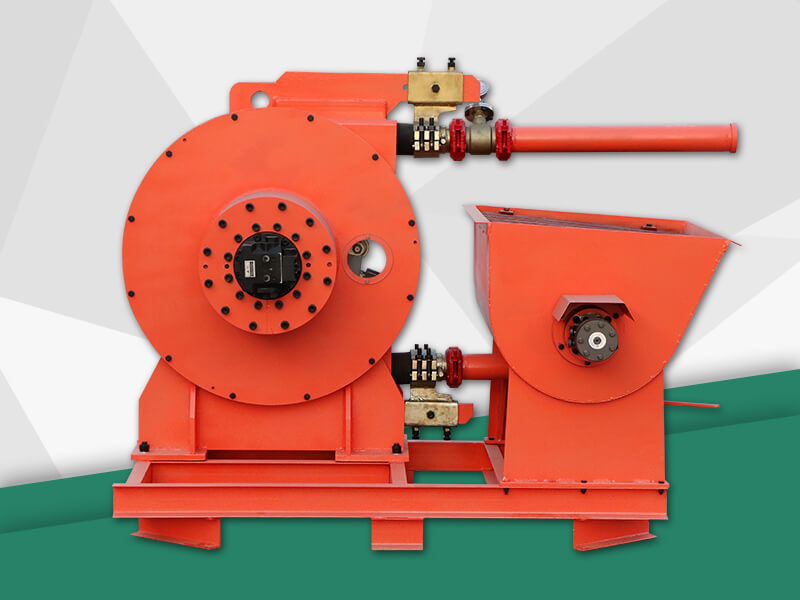

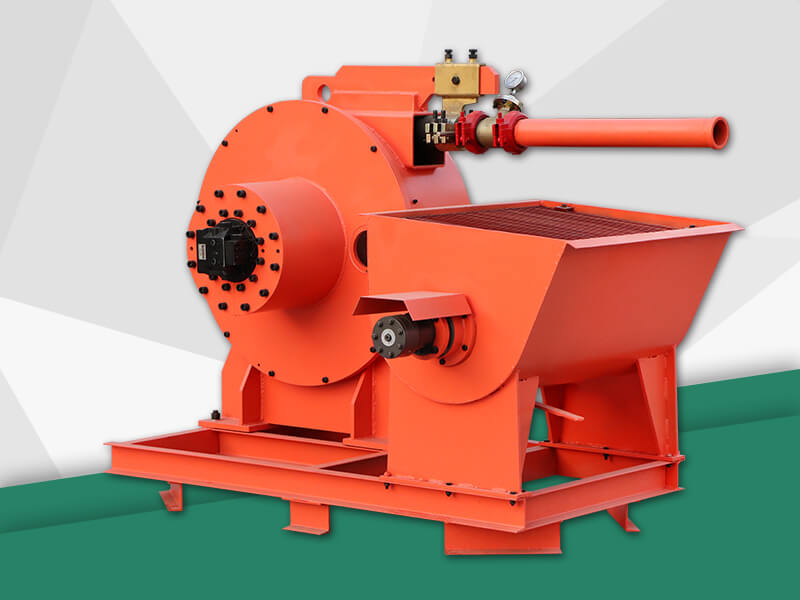

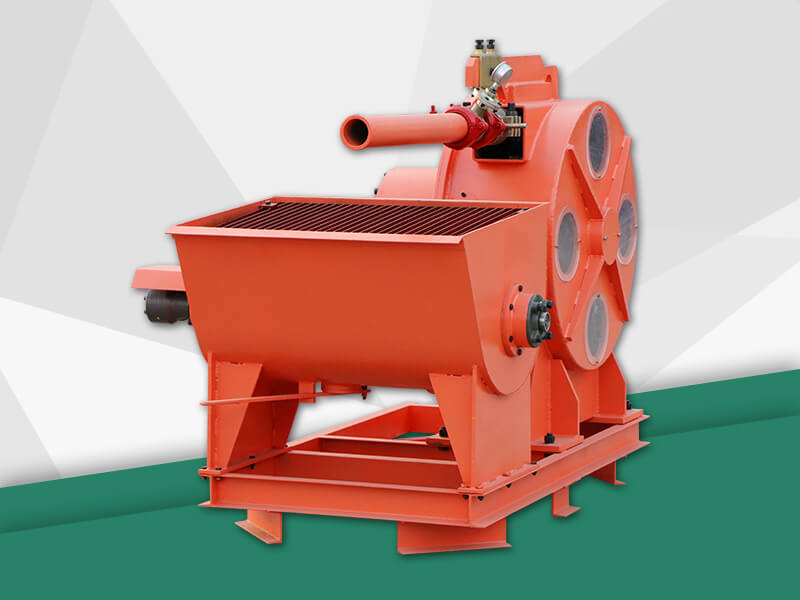

GCP20H-H Squeeze Concrete Pump for Underground Engineering
1
GCP20H-H
2000x1350x1500mm
1145kg
GH76-915B
76mm (Trelleborg Squeeze hose)
40rpm
Introduction
Product Details
Technical data
Cases
Inquiry
Description

GCP20H-H squeeze concrete pump is designed for underground engineering and is mainly used for pumping bentonite in shield tunneling machine of underground engineering. GCP20H-H squeeze concrete pump has no seal, no leakage, strong self-priming ability, simple structure and convenient operation and maintenance.

GCP20H-H squeeze concrete pump uses hydraulic drive. It is equipped with a heavy-duty hydraulic motor gearbox, stepless speed control, connect with own hydraulic power pack could work directly.Easy to operate and large flow.

GCP20H-H squeeze concrete pump has been sold abroad, and in Malaysia, Mexico, united Arab emirates, Saudi Arabia, Singapore, kazakhstan, Thailand, myanmar, Russia and many other countries sales, by foreign customers.



Application

GCP20H-H squeeze concrete pump is ideal for pumping a variety of concrete, bentonite, mortar, mud and metering abrasive, corrosive, viscous or crystalline media in underground engineering. GCP20H-H squeeze concrete pump has proven to perform exceptionally well in the most demanding applications, handling heavy-duty media, especially in the underground engineering, mining, mining and metallurgical and energy, construction and environmental industries.

The main applications of GCP20H-H squeeze concrete pump are:

1. Construction: transfer of mortar, concrete and sprayed layers

2. Textile mill: transfer of fiber, liquid, dye and wastewater

3. Dye manufacturing: paint, paint and pigment delivery

4. Water treatment: transporting water and wastewater

5. Papermaking: conveying pulp, pigments and glue

6. Mining: transporting mineral waste

7. Ceramic: conveying glaze and coloring

8. Beer and Beverage: transporting beer, wine, milk, juice, additives and residues

9. Underground engineering: The tunnel construction machinery of TBM bentonite pumping mud pump uses a hose pump to pump or grout bentonite.







Features

GCP20H-H squeeze concrete pump is a new hose pump produced by Gaodetec, which absorbs advanced technology at home and abroad.GCP20H-H Peristaltic Hose Pump has more advantages than traditional other types of pumps.

The characteristics of the GCP20H-H squeeze concrete pumps are as follows:

1. Compact size: hose pump, agitator and  hydraulic motor gearbox combined in a base frame.

2. Hydraulic motor gearbox: stepless speed control, connect with own hydraulic power pack could work directly, easy to operate.

3. Low wear: the squeeze hose is the only wear part of the pump and can be replaced very quickly.

4. Delivers even the most difficult materials.

5. Quiet pumping process.

6. Forwards and reverse, easily to removal the block.

7. Clean on the line: Quick and easy cleaning 8. No residual concrete remains in the system.





Product Details
Technical Parameters
Technical Data

Description

Parameter

Model

GCP20H-H

Overall Dimension

2000x1350x1500mm

Weight

1145kg

Pump Head

Hose Pump

GH76-915B

Squeeze Hose ID

76mm (Trelleborg Squeeze hose)

Pump Speed

40rpm

Rated Output

20m3/h

Pressure

2.5Mpa

Max. Aggregate size

<15mm

Concrete Slump

15-23cm

Heavy Duty Hydraulic Motor Gearbox

Required flow

130L/min

Required pressure

10Mpa

Hydraulic Mixing Motor

Model

BMH200-4-B-D

Required flow

10L/min

Required pressure

10Mpa

Hopper Capacity

400L
