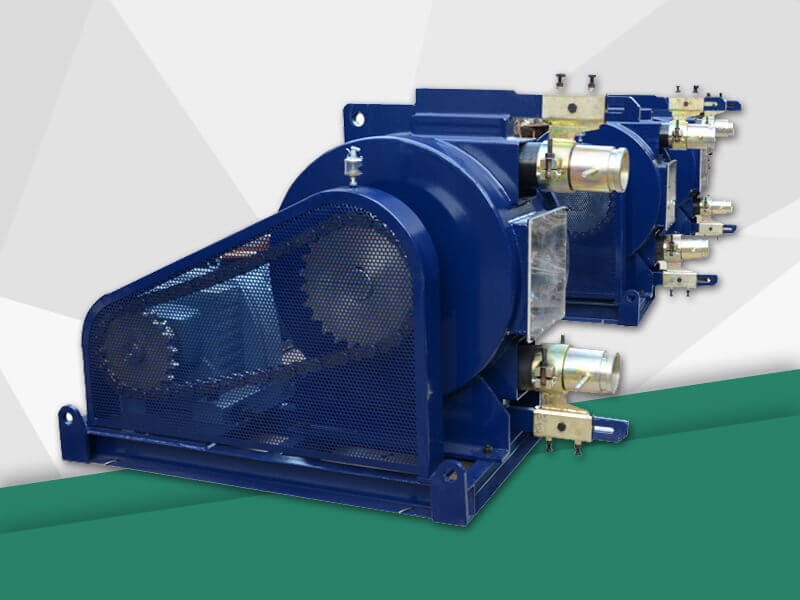

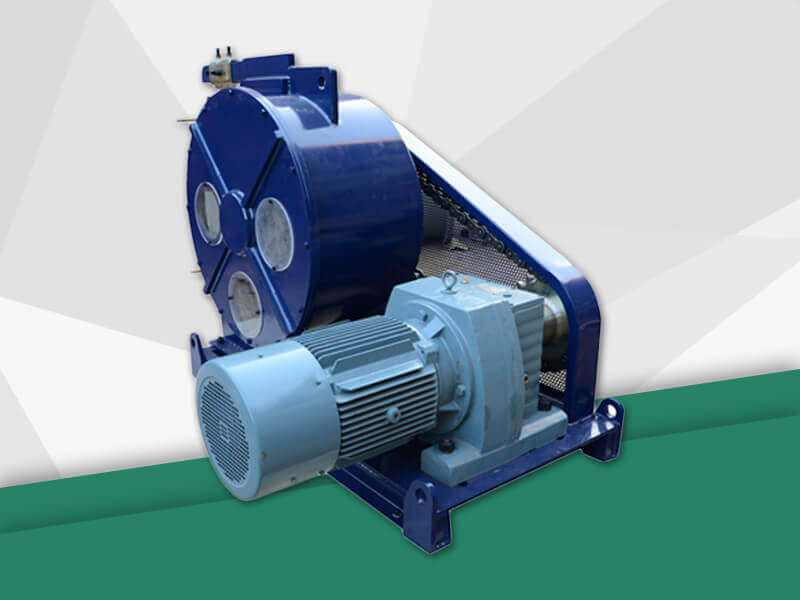

GH89-610C Industrial Peristaltic Squeeze Pump for Pumping Sludge
1
240L/min
45RPM
89mm
1.0Mpa
3 phase, 380V, 50HZ
22KW
Introduction
Product Details
Technical data
Cases
Inquiry
Description

GH89-610C industrial peristaltic squeeze pump is an ideal pump for pumping sewage solid waste in wastewater treatment. It can also be used as a metering pump. Our extruded peristaltic pumps are sold worldwide and can be used in global wastewater treatment plants with powerful capabilities.

GH89-610C industrial peristaltic squeeze pumps have unique performance advantages, no seals, no valves, self-priming, dry running without damage, only hoses are replaceable parts, easy to maintain, low cost, and short downtime. When the pump is used to transport the material, the material is only in contact with the extruded hose and is easy to clean. You can change different material hoses depending on the characteristics of the material being conveyed.

GH89-610C industrial peristaltic squeeze pump suitable for conveying various viscosity, density, corrosive and abrasive substances, such as pumping cement slurry, mortar, lime slurry and so on. It can be used in petroleum, chemical, water treatment, mining, gold smelting, medicine, paper, ceramics and other industries.



Application

GH89-610C industrial peristaltic squeeze pumps have unique performance advantages, no seals, no valves, self-priming, dry running without damage, only hoses are replaceable parts, easy to maintain, low cost, and short downtime. When the pump is used to transport the material, the material is only in contact with the extruded hose and is easy to clean. You can change different material hoses depending on the characteristics of the material being conveyed.

The main applications range of the hose pump are;

1. Construction: transfer of mortar, concrete and sprayed layers

2. Textile mill: transfer of fiber, liquid, dye and wastewater

3. Dye manufacturing: paint, paint and pigment delivery

4. Water treatment: transporting water and wastewater

5. Papermaking: conveying pulp, pigments and glue

6. Mining: transporting mineral waste

7. Ceramic: conveying glaze and coloring

8. Beer and Beverage: transporting beer, wine, milk, juice, additives and residues

9. Underground engineering: The tunnel construction machinery of TBM bentonite pumping mud pump uses a hose pump to pump or grout bentonite.



Features

GH89-610C industrial peristaltic squeeze pump is a new hose pump produced by Gaodetec, which absorbs advanced technology at home and abroad.GH89-610C industrial peristaltic squeeze pump has more advantages than traditional other types of pumps.

The characteristics of the GH89-610C industrial peristaltic squeeze pumps are as follows:

1. Reversibility

2. Sealessness and valveless

3. Abrasion resistance

4. Self priming with high suction

5. With 1% repeat precision

6. Corrosion-resistant

7. Easy to clean

8. Can run dry without damage

9. Peristaltic tube is the only consumption part

Product Details
Technical Parameters
Technical Data

Type

GH89-610C

Max. ouput

240L/min

Rotation

45RPM

Squeeze hose ID

89mm

Max.  pressure

1.0Mpa

Voltage

3 phase, 380V, 50HZ

Power

22KW
