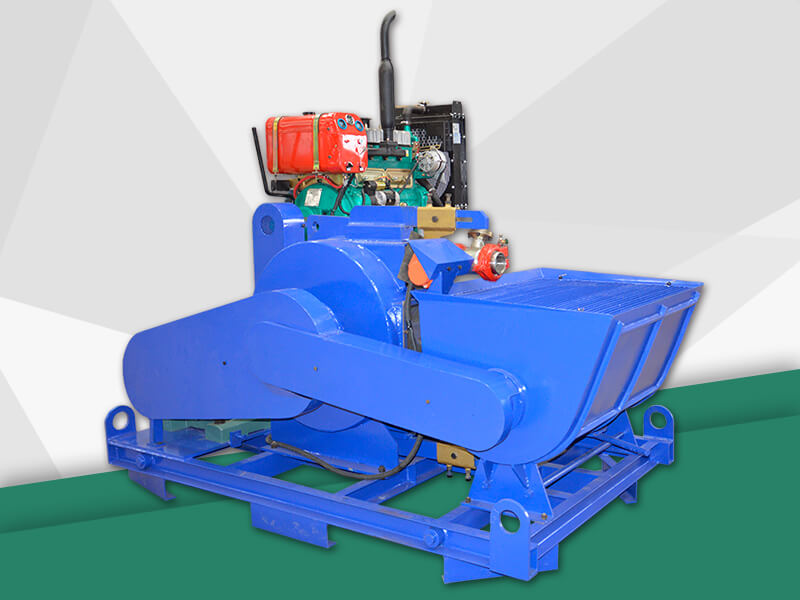

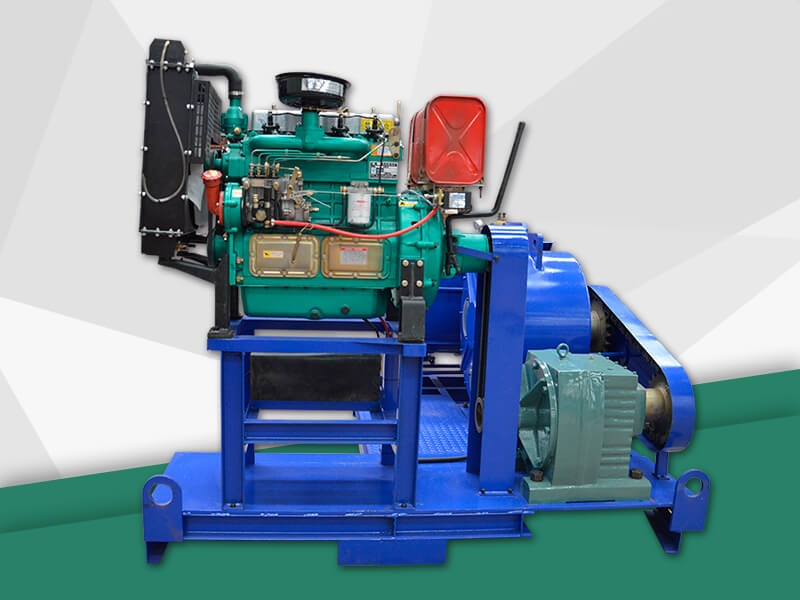

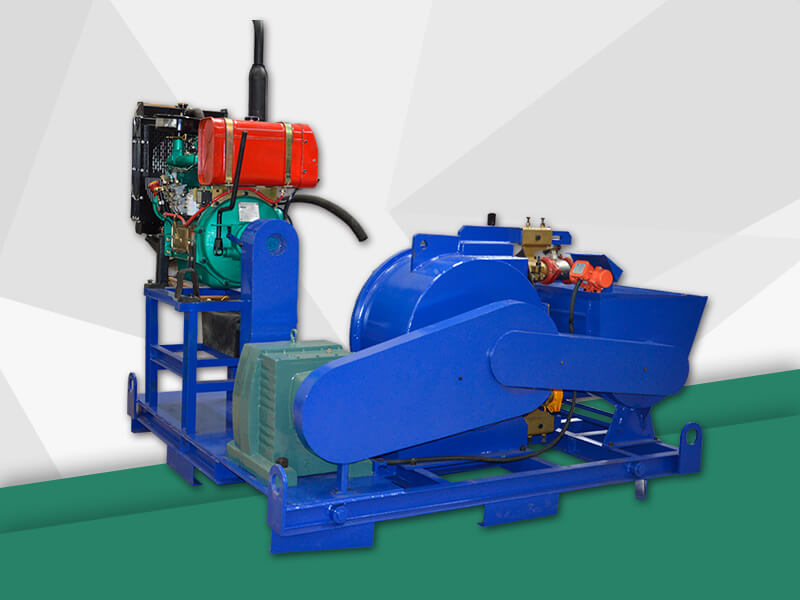

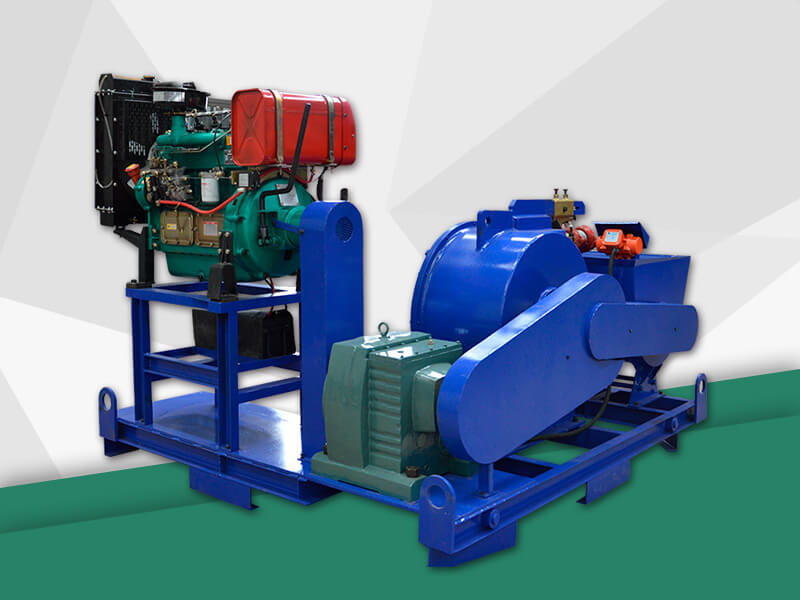

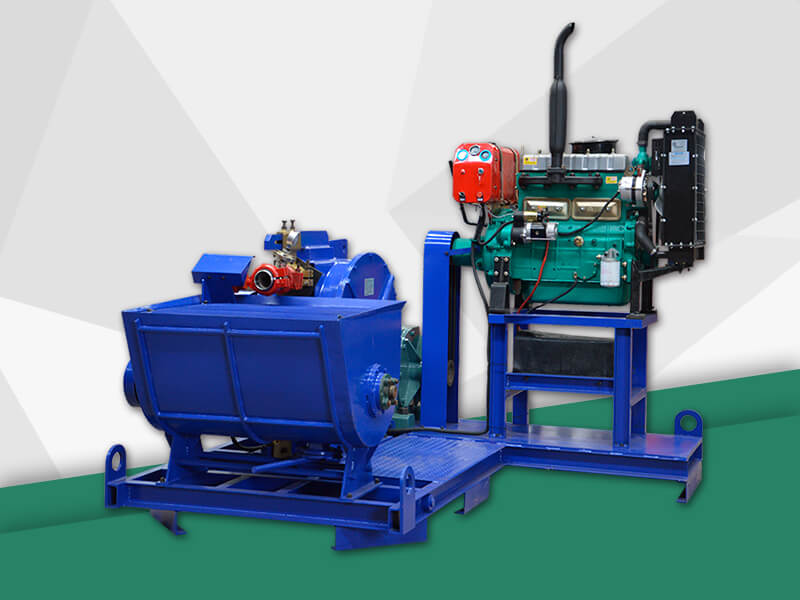

GCP15H-D peristaltic concrete pump is a kind of concrete pump with a peristaltic pump for pumping oil slurries in underground. It can transport oil slurries,concrete slurry, cement slurry, mud,mortar, and other high viscosity liquids in a timely and effective manner.
GCP15H-D peristaltic concrete pump is a concrete pump that combines a peristaltic pump with a diesel-driven drive. Its diesel pump is powerful and easy to use, and it works perfectly in some places with insufficient power.
GCP15H-D peristaltic concrete pump has been sold abroad, and in Malaysia, Mexico, united Arab emirates, Saudi Arabia, Singapore, kazakhstan, Thailand, myanmar, Russia and many other countries sales, by foreign customers.
GCP15H-D peristaltic concrete pumps are ideal for pumping a wide range of muds and metering a variety of abrasive, corrosive, viscous or crystalline media. GCP15H-D peristaltic concrete pumps have proven to deliver outstanding performance in the most demanding applications, handling heavy-duty media, particularly in the underground,minerals, mining and metallurgical and energy, construction and environmental industries.
GCP15H-D peristaltic concrete pump can be used in the following applications:
1. Construction: transfer of mortar, concrete and sprayed layers
2. Textile mill: transfer of fiber, liquid, dye and wastewater
3. Dye manufacturing: paint, paint and pigment delivery
4. Water treatment: transporting water and wastewater
5. Papermaking: conveying pulp, pigments and glue
6. Mining: transporting mineral waste
7. Ceramic: conveying glaze and coloring
8. Beer and Beverage: transporting beer, wine, milk, juice, additives and residues
9. Underground engineering: The tunnel construction machinery of TBM bentonite pumping mud pump uses a hose pump to pump or grout bentonite.
GCP15H-D peristaltic concrete pumps have many advantages: they have the good self-priming ability, almost perfect vacuum to absorb liquid; transport contains foam, bubbles without air resistance; conveying high viscosity, shear sensitive medium is also strong; The fixed displacement is independent of the outlet pressure and is a natural metering pump.
The characteristics of the GCP15H-D peristaltic concrete pump are:
1. Compact size, hopper, extrusion pumps, power sources combined in a base frame.
2. Adopting squeeze type pumping, the squeeze hose is the only wearing parts.
3. Imported special concrete squeeze tubes, pressure, wear, long life.
4. Clean on the line, sample, convenient.
Description |
parameter |
Type |
GH76-610 |
Hose ID |
76mm (Trelleborg Squeeze hose) |
Speed |
37rpm |
Output |
15m3/h |
Pressure |
2.5Mpa |
Max. Aggregate size |
<15mm |
Concrete Slump |
15-23cm |
Hopper Capacity |
350L |
Stirring speed |
37rpm |
Diesel engine power |
30KW |
Overall Dimension |
2400x2100x1800mm |
Weight |
2300kg |
Used for spraying, recommend air compressor: the output is 6m3/h, the pressure≥0.5bar |
