GMP40/10-H Mortar Plaster Pump for Construction
1
430mm
38mm/1.5inch
15-33rpm
18-40L/min
10 bar
440kg
PRODUCTS LIST
HOT products
CASE
Inquiry
Introduction
Product Details
Technical data
Cases
Inquiry
Description

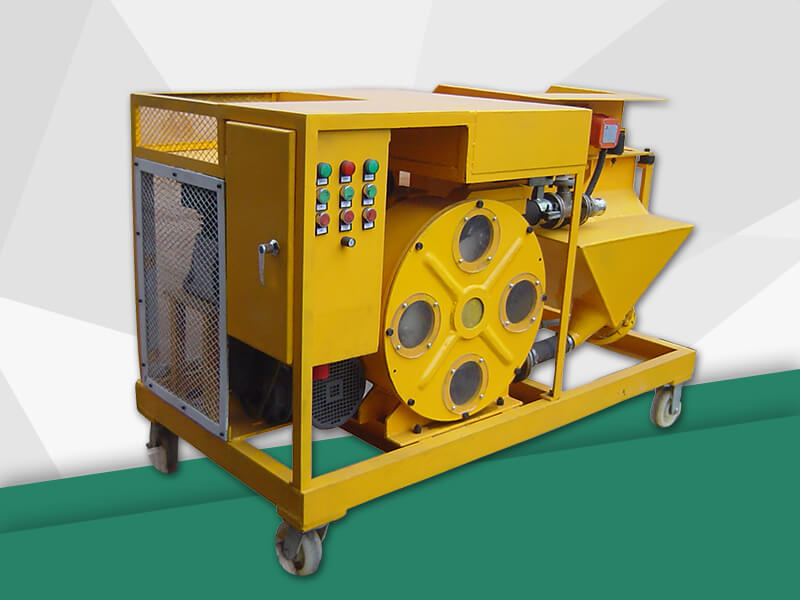

GMP40/10-H Mortar Plaster Pump is designed as the combination of GH38-430 hose pump (peristaltic type), mini air compressor and frequency converter.
GMP40/10-H mortar plaster pumps are used in a wide range of applications in the construction sector. They can deliver high concentration fluids containing particles such as lightweight concrete, cement and mortar. Mud, cement foam concrete, treatment of erosion, high viscosity, high density products, strong self-absorption, large flow, easy to operate. Widely used in construction industry, etc.
GMP40/10-H mortar plaster pump has been sold abroad, and in Malaysia, Mexico, united Arab emirates, Saudi Arabia, Singapore, kazakhstan, Thailand, myanmar, Russia and many other countries sales, by foreign customers.
Application
GMP40/10-H Mortar Plaster Pump is successfully used for spraying mortar in construction and 3D Panel, etc.
Features
1. Rigid tooth flank helical gear;
2. Nozzle specially design to get continuous spaying flow;
3. Mini air compressor;
2. Nozzle specially design to get continuous spaying flow;
3. Mini air compressor;
Product Details
Technical Parameters
Technical Data
|
Specification: this pump is designed as the combination of GH38-430 hosepump (peristaltic type), mini air compressor and frequency converter. |
||
|
GH38-430 HEAVY-DUTY HOSE PUMP TECHINCAL DATA |
||
|
Item |
Description |
Remarks |
|
Rotor Dia.(D) |
430mm |
|
|
Hose ID |
38mm/1.5inch |
|
|
Rotor Rev. |
15-33rpm |
|
|
Rated Output/Flow |
18-40L/min |
|
|
Rated pressure |
10 bar |
|
|
Motor Power |
3 KW hp, 3 phase, 380v, 50 Hz,IP55 |
* |
|
Suck lift |
5 meter |
|
|
Hose material |
NR(Natural Rubber) |
|
|
Overall Dimension |
1600x800x1060mm |
|
|
Weight |
440kg |
|
