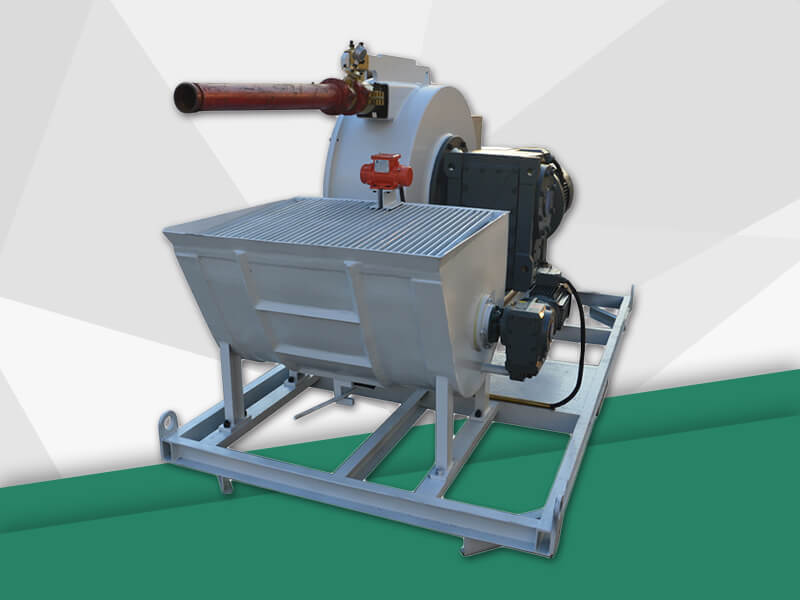

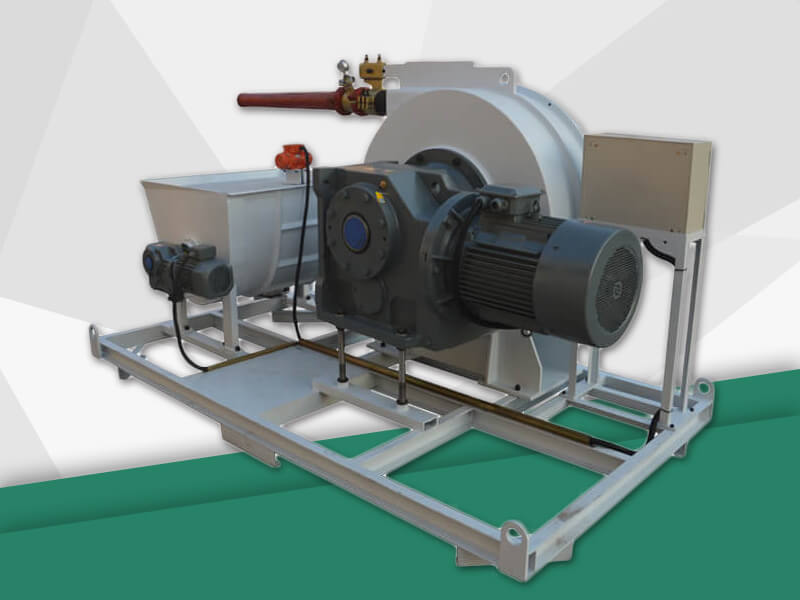

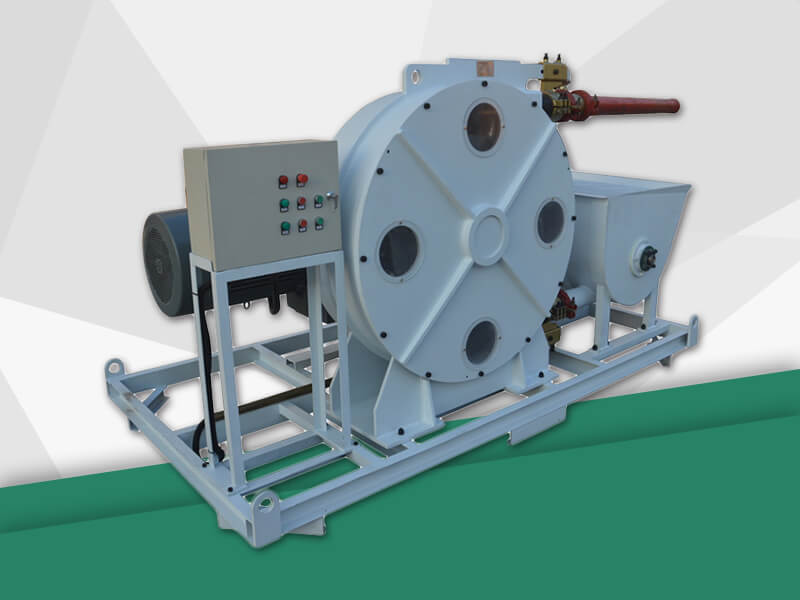

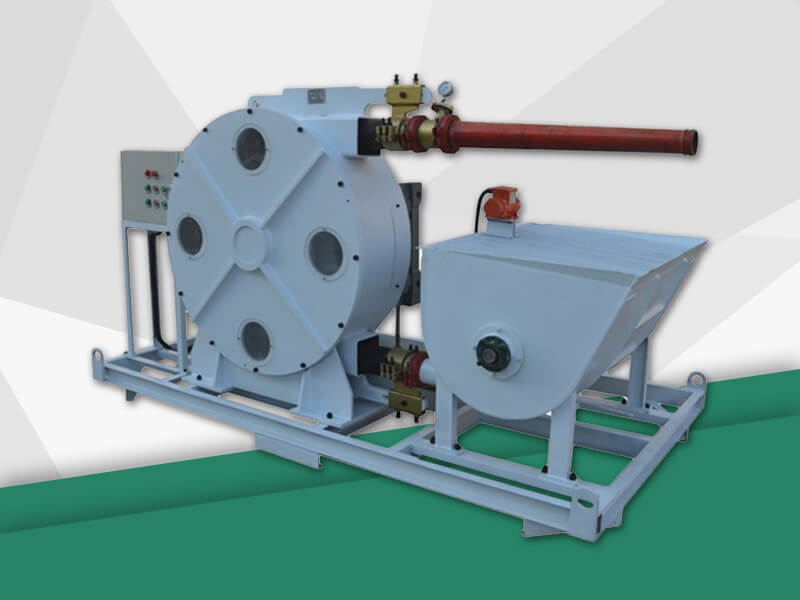

GCP40H-E high volume and high flow hose type concrete spraying pump is equipped with a heavy-duty gearbox, strong power, large flow, rated output of up to 45m3 / h, excellent performance in the building site, stable performance.
GCP40H-E high volume and high flow hose type concrete spraying pump is widely used in concrete pumping or grouting and painting projects. Typical applications include: transportation of high-rise building mortar and fine stone concrete, secondary structural column grouting, reservoirs, hydropower stations, various concrete transportations at ports and terminals, foundation treatment, weak foundations, reinforced grouting, tunnels, subways, mine backfill grouting anchoring Bracket, II waters the building column.
Because GCP40H-E high volume and high flow hose type concrete spraying pumps are far superior in function and application to other types of pumps, they are widely used worldwide.
GCP40H-E high volume and high flow hose type concrete spraying pumps can be used in following field: Construction, pharmacy, textile mill, dye making, water treatment, paper making, mining, ceramic, brewery and beverage, underground engineering, etc. It's perfect to pump corrosive, abrasives, shear sensitive fluids, high viscosity fluids, high density fluids, large solids, metering(±1%), high pressure(3Mpa). GCP40H-E high volume and high flow hose type concrete spraying pump are mainly applied in distant conveying, grouting and dosing of viscous slurries in construction, mining, food,papermaking, ceramic, etc.
The main application aspects of GCP40H-E high volume and high flow hose type concrete spraying pump are:
1. Mining, metallurgical industry: such as gold mining in filling materials, iron oxide scale, flue mud treatment of thick slurry, underground passage drainage, adsorbents, mortar and mortar;
2. Pharmaceutical industry: transportation of liquid materials;
3. Food industry: food and beverage transportation;
4. Paper industry: pulp, sulphur pulp transportation;
5. Construction industry: cement and mortar transportation;
6. Ceramic industry: transportation of raw material slurry;
7. Nuclear waste, electrolytic waste, metal slag solution, paint, paint and other liquids, material transportation;
8. Beer industry: yeast, diatomaceous earth, distiller's grains, syrup, ingredients, concentrate (liquid), gas-liquid mixture;
GCP40H-E high volume and high flow hose type concrete spraying pump is a new hose pump produced by Gaodetec, which absorbs advanced technology at home and abroad. GCP40H-E high volume and high flow hose type concrete spraying pump has more advantages than traditional other types of pumps.
1. Compact size: hopper with agitator, hose pump, power combined in a base frame.
2. Soft start: electric motor smoothly start and protect the motor
3. Low wear: the squeeze hose is the only wear part of the pump and can be replaced very quickly
4. Delivers even the most difficult materials
5. Quiet pumping process
6. Forwards and reverse, easily to removal the block.
7. Clean on the line: Quick and easy cleaning
8. No residual concrete remains in the system
Description |
parameter |
Hose Pump |
GH100-1050 |
Hose ID |
100mm (Trelleborg Squeeze hose) |
Pump Speed |
39rpm |
Rated Output |
45m3/h |
Pressure |
2.5Mpa |
Max. Aggregate size |
<15mm |
Concrete Slump |
15-23cm |
Hopper Capacity |
400L |
Hopper mixing speed |
37rpm |
Power Voltage |
45KW 50HZ IP55 3~380V |
Overall Dimension |
3080x1560x1730mm |
Weight |
2840kg |
