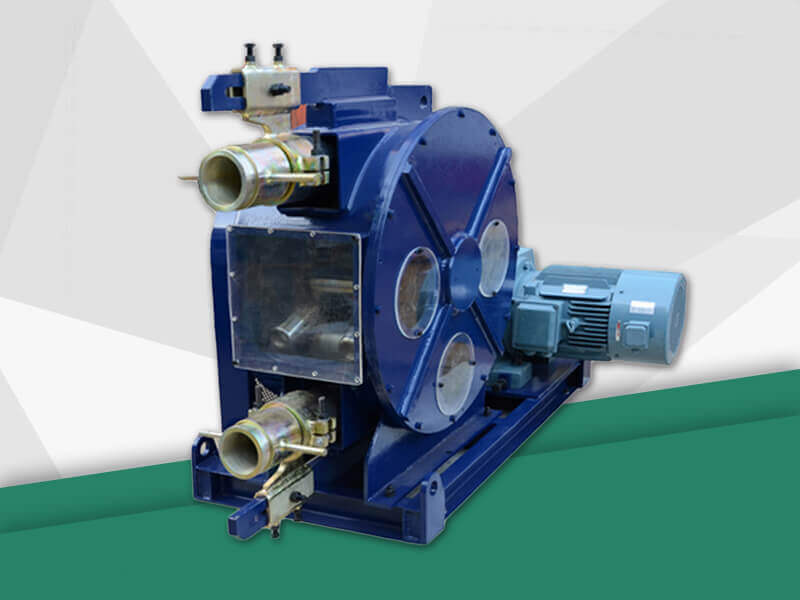

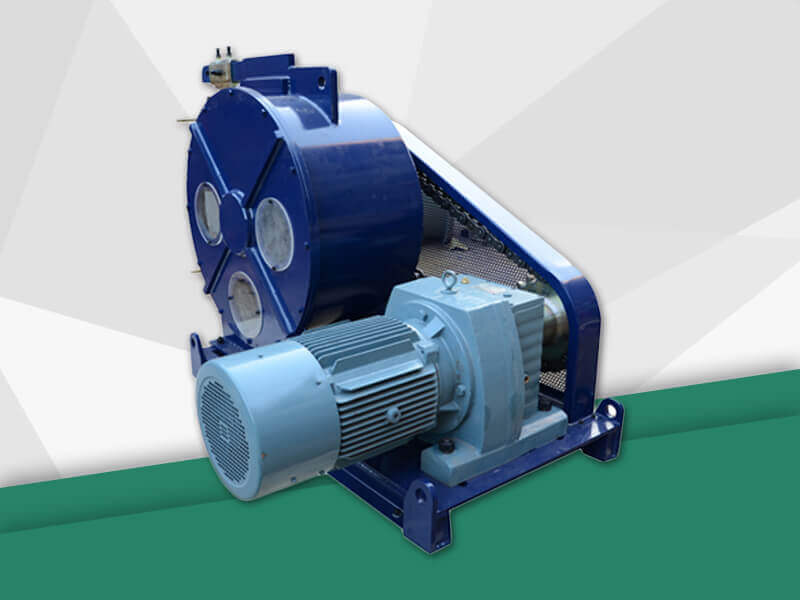

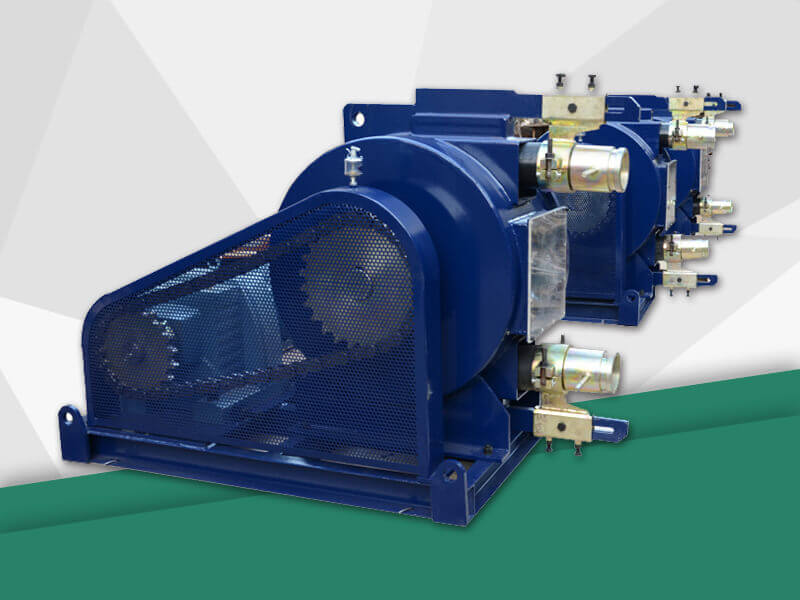

GH89-610C Chemical Liquid Transfer Hose Pump Manufacturers
1
GH89-610C
240L/min
45RPM
89mm
1.0Mpa
3 phase, 380V, 50HZ
Introduction
Product Details
Technical data
Cases
Inquiry
Description

GH89-610C chemical liquid transfer hose pumps are used in a wide range of applications in the chemical industry, such as pumping paints, coatings and pigments for paint plants; transporting or discharging fiber liquids, dyes or waste water for textile mills; pumping or metering of corrosive and hazardous materials in pharmaceutical plants.

GH89-610C chemical liquid transfer hose pump is simple in layout, no impeller, no cavity, etc. It is flexible and can transport liquid, mud and viscous suspended solids. In particular, the hose elastic chamber can pump liquids with a particle size smaller than 1/4 of the hose diameter, impurities in various fibers and solid mud, and the smooth hose cavity does not cause any blockage. Large solid particles are allowed. The concentration of the transport medium can reach more than 70%. Therefore, it is very convenient to transport high-concentration materials.

GH89-610C chemical liquid transfer hose pump has been sold abroad, and in Malaysia, Mexico, united Arab emirates, Saudi Arabia, Singapore, kazakhstan, Thailand, myanmar, Russia and many other countries sales, by foreign customers.



Application

GH89-610C chemical liquid transfer hose pump products comply with national and international standards. The product has stable performance, good sealing performance, easy operation, no water cooling, beautiful and durable. They are suitable for transporting a variety of chemical media with different viscosities and temperatures and are therefore widely used in many fields.

GH89-610C chemical liquid transfer hose pump can be used in the following applications:

1. Construction: transfer of mortar, concrete and sprayed layers

2. Textile mill: transfer of fiber, liquid, dye and wastewater

3. Dye manufacturing: paint, paint and pigment delivery

4. Water treatment: transporting water and wastewater

5. Papermaking: conveying pulp, pigments and glue

6. Mining: transporting mineral waste

7. Ceramic: conveying glaze and coloring

8. Beer and Beverage: transporting beer, wine, milk, juice, additives and residues

9. Underground engineering: The tunnel construction machinery of TBM bentonite pumping mud pump uses a hose pump to pump or grout bentonite.

Features

GH89-610C chemical liquid transfer hose pumps have many advantages: they have the good self-priming ability, almost perfect vacuum to absorb liquid; transport contains foam, bubbles without air resistance; conveying high viscosity, shear sensitive medium is also strong; The fixed displacement is independent of the outlet pressure and is a natural metering pump.

These are all because GH89-610C chemical liquid transfer hose pumps have these unique characteristics:

  1. Reversibility

  2. Seamlessness and valveless

  3. Abrasion resistance

  4. Self priming with high suction

  5. With 1% repeat precision

  6. Corrosion-resistant

  7. Easy to clean

  8. Can run dry without damage

  9. Hose tube  is the only consumption part

Product Details
Technical Parameters
Technical Data

Type

GH89-610C

Max. ouput

240L/min

Rotation

45RPM

Squeeze hose ID

89mm

Max.  pressure

1.0Mpa

Voltage

3 phase, 380V, 50HZ

Power

22KW
