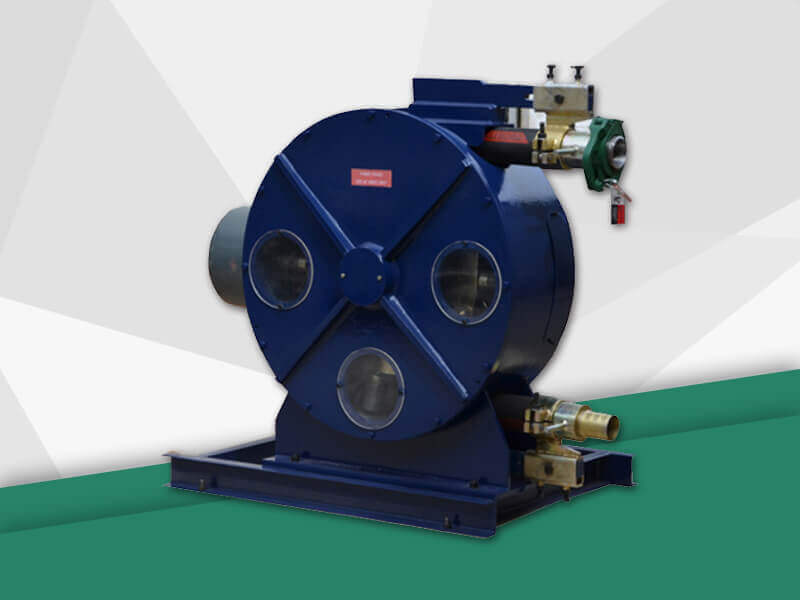

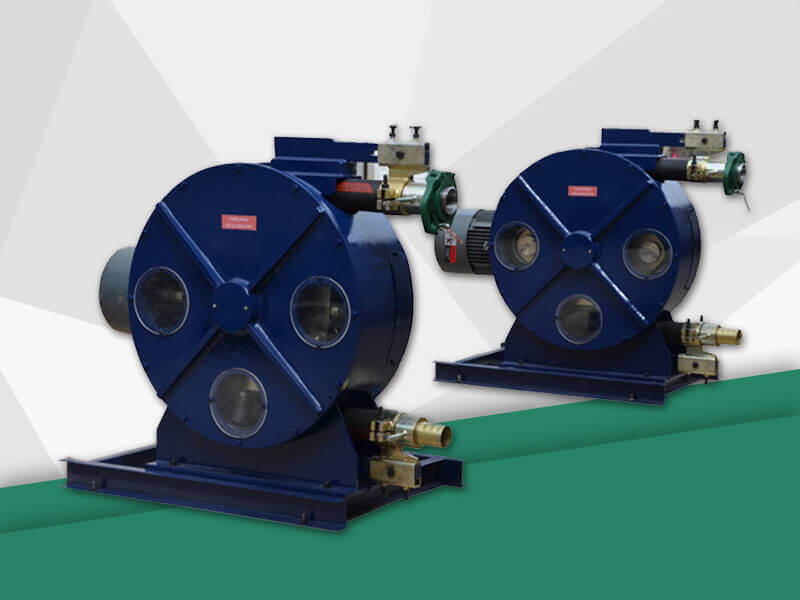

GH76-770B Hose Pump for Construction
1
14m3/h
35RPM
76mm
25 bar
3 phase, 220V, 60HZ
18.5 KW
Introduction
Product Details
Technical data
Cases
Inquiry
Description

GH76-770B hose pump for construction is a new multi-purpose industrial peristaltic hose pump developed by advanced technology. GH76-770B hose pump has no seal, no leakage, strong self-priming ability, simple structure and convenient operation and maintenance. Suitable for conveying various viscosity, density, corrosive and abrasive substances. It can be used in petroleum, chemical, water treatment, mining, gold smelting, medicine, paper, ceramics and other industries.

GH76-770B hose pump for construction has been sold abroad, and in Malaysia, Mexico, united Arab emirates, Saudi Arabia, Singapore, kazakhstan, Thailand, myanmar, Russia and many other countries sales, by foreign customers.

GH76-770B hose pump for construction products comply with national and international standards. The product has stable performance, good sealing performance, easy operation, no water cooling, beautiful and durable. They are suitable for transporting a variety of chemical media with different viscosities and temperatures and are therefore widely used in many fields.

Application
GH76-770B hose pump for construction can be used in following field: Construction, pharmacy, textile mill, dye making, water treatment, paper making, mining, ceramic, brewery and beverage, underground engineering, etc. It's perfect to pump corrosive, abrasives, shear sensitive fluids, high viscosity fluids, high density fluids, large solids, metering(±1%), high pressure(3Mpa). GH series industrial hose pump are mainly applied in distant conveying, grouting and dosing of viscous slurries in construction, mining, food, papermaking, ceramic, etc.
Features

GH76-770B hose pump for construction is a new hose pump produced by Gaodetec, which absorbs advanced technology at home and abroad.GH76-770B hose pump for construction has more advantages than traditional other types of pumps.

The characteristics of the GH76-770B Industrial hose pumps are as follows:

1. No seals
2. No valves
3. Self -priming
4. Only tube to replace
5. Dry –running without damage
6. Reversible
7. No contact between product and mechanical parts
8. Able to pump products with solid parts inside
9. Easy maintenance, low-cost, short down time

Product Details
Technical Parameters
Technical Data

Type

GH76-770B

Output

14m3/h

Rotation

35RPM

Squeeze hose ID

76mm

Working pressure

25 bar

Voltage

3 phase, 220V, 60HZ

Power

18.5 KW

Voltage

3 phase, 380V, 50HZ anti-explosion electric motor
