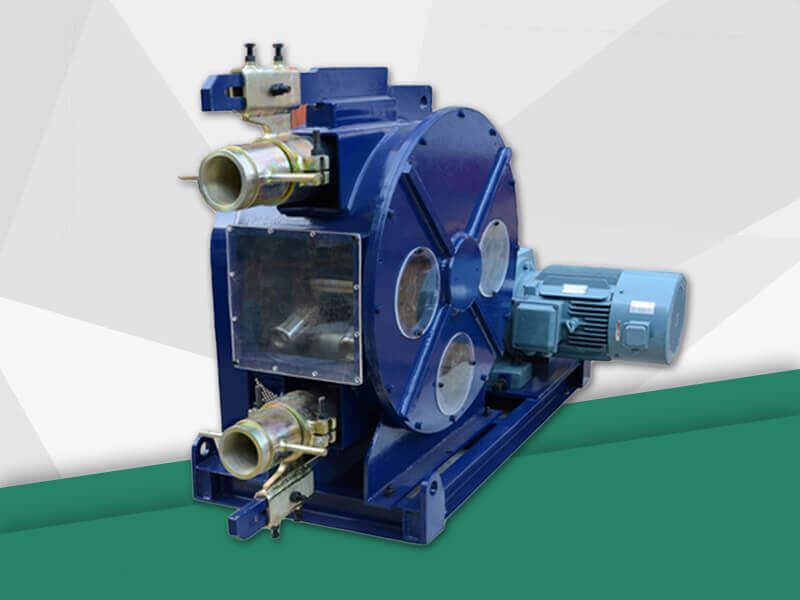

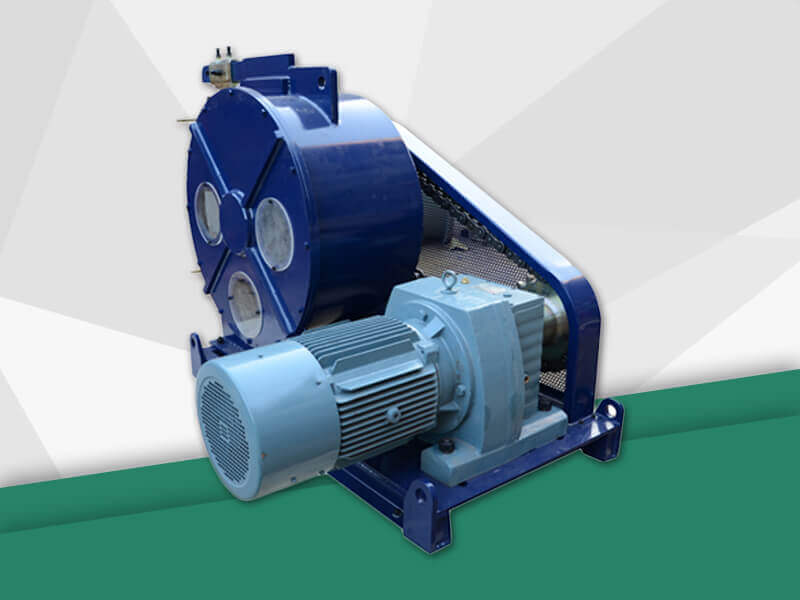

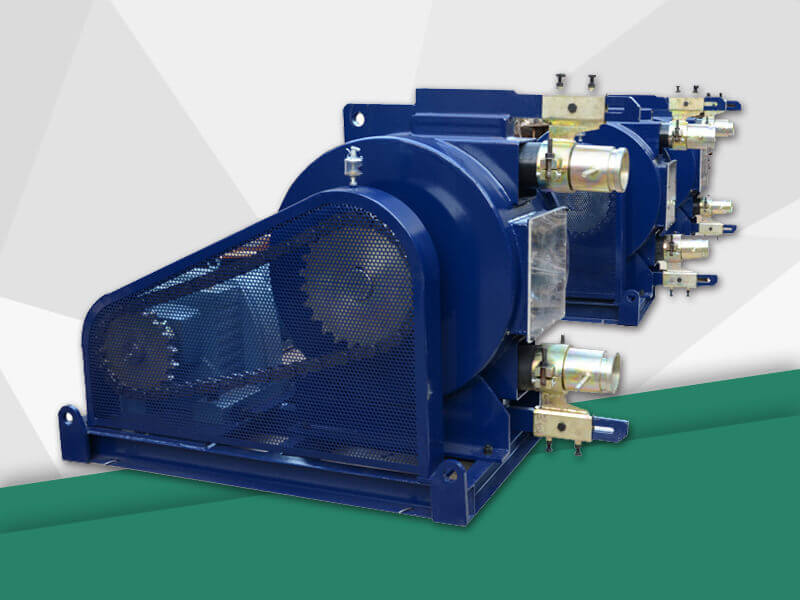

GH89-610C food grade hose pump is widely used in the food industry to transport beer and milk. GH89-610C food grade hose pump uses a hose pump in the food and beverage industry to deliver beer, milk, soy milk, dairy products, meat products, jelly gels, jams, residues, salads, oils, wines, condiments during food processing. , tomato plants. sauce. , juice, sugar, chocolate, honey, bean paste, noodle sauce, soy sauce, vinegar, etc.
GH89-610C food grade hose pump is a peristaltic pump. The elastomer tube is extruded in the length direction by a roller that pushes the fluid contained therein. After extrusion, the recovery of the tube creates a vacuum that continuously draws fluid into the tube. This produces a gentle suction without damaging the product. Since the tube contains fluid, contamination can be avoided and the food grade hose used in the hose pump is safe, hygienic and has a long service life.
GH89-610C food grade hose pump has been exported to foreign countries and sold in many countries such as Malaysia, Mexico, United Arab Emirates, Saudi Arabia, Singapore, Kazakhstan, Thailand, Myanmar, Russia, etc., and has been well received by foreign customers.
GH89-610C food grade hose pump can be used in food processing plants to transport dairy products, beverages, oils, etc. with stable performance, safety and hygiene. In addition to the food industry, GH89-610C food grade hose pump is also widely used in other fields:
GH89-610C food grade hose pump can be used in the following applications:
1. Construction: transfer of mortar, concrete and sprayed layers
2. Textile mill: transfer of fiber, liquid, dye and wastewater
3. Dye manufacturing: paint, paint and pigment delivery
4. Water treatment: transporting water and wastewater
5. Papermaking: conveying pulp, pigments and glue
6. Mining: transporting mineral waste
7. Ceramic: conveying glaze and coloring
8. Beer and Beverage: transporting beer, wine, milk, juice, additives and residues
9. Underground engineering: The tunnel construction machinery of TBM bentonite pumping mud pump uses a hose pump to pump or grout bentonite.
GH89-610C food grade hose pump products comply with national and international standards. GH89-610C food grade hose pump has stable performance, good sealing performance, easy operation, no water cooling, beautiful and durable. They are suitable for transporting a variety of chemical media with different viscosities and temperatures and are therefore widely used in many fields.
The characteristics of the GH89-610C food grade hose pump are:
Reversibility
Seamlessness and valveless
Abrasion resistance
Self priming with high suction
With 1% repeat precision
Corrosion-resistant
Easy to clean
Can run dry without damage
Hose tube is the only consumption part
Type |
GH89-610C |
Max. ouput |
240L/min |
Rotation |
45RPM |
Squeeze hose ID |
89mm |
Max. pressure |
1.0Mpa |
Voltage |
3 phase, 380V, 50HZ |
Power |
22KW |
