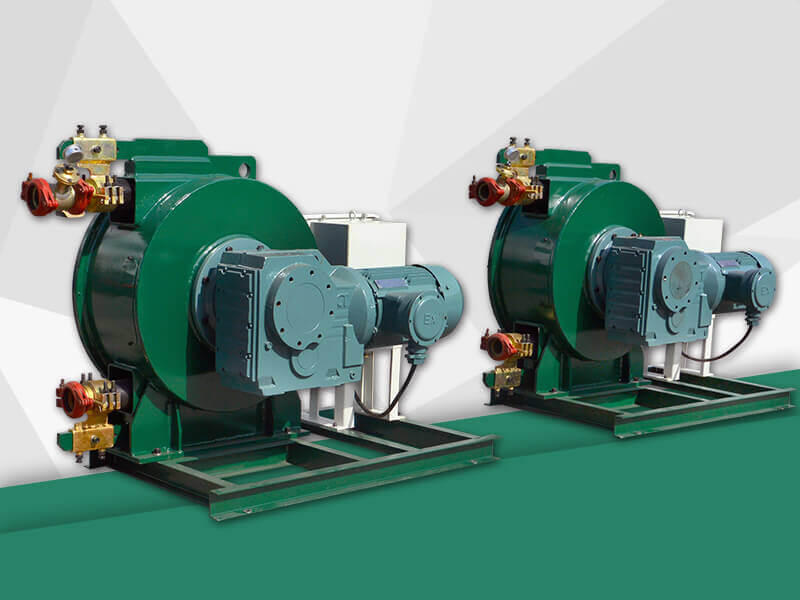

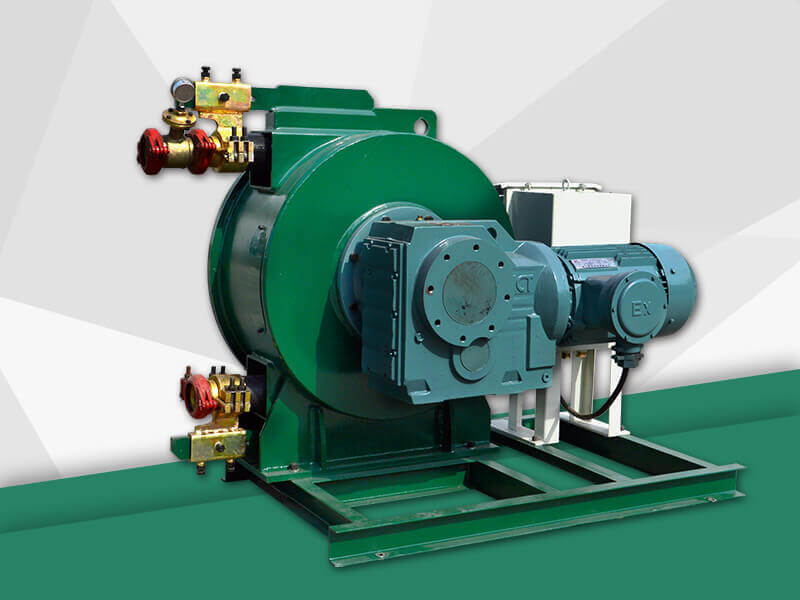

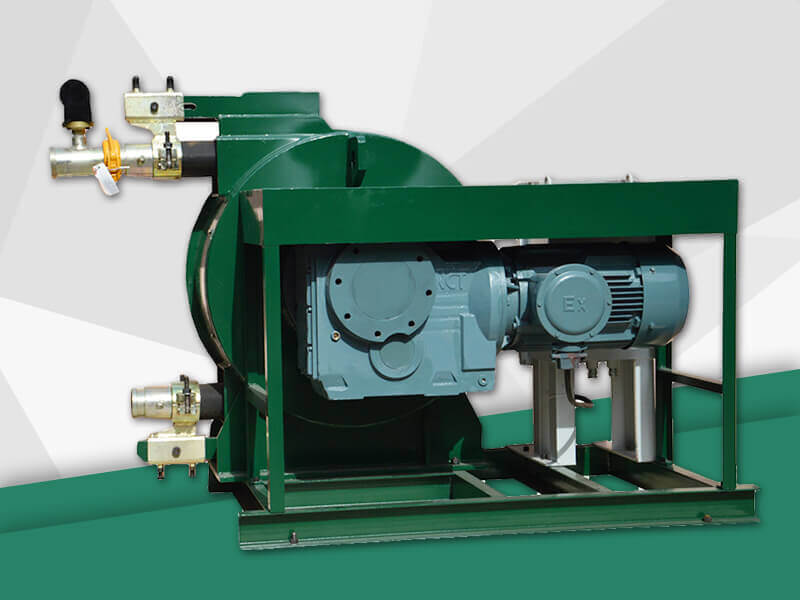

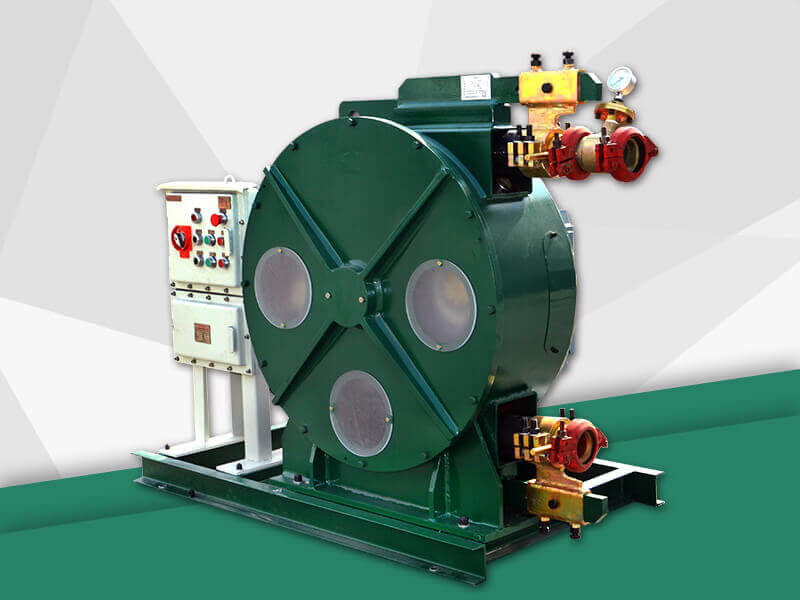

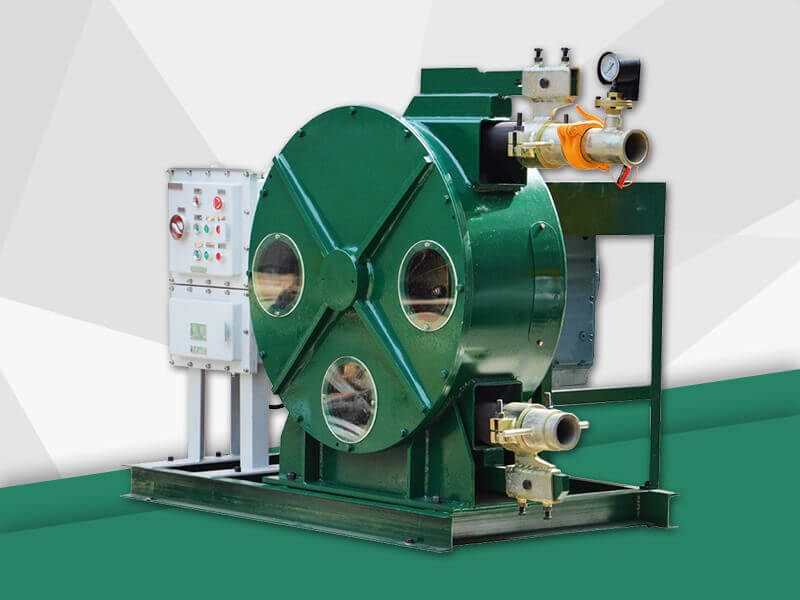

GH76-770B Explosion-proof Hose Squeeze Pump for Pumping Oil Base
1
GH76-770B
300L/min or 18m3/h ( at 0.5Mpa, 50HZ)
35RPM
76mm
1.5 Mpa
3 phase, 380V, 50HZ anti-explosion Gaodetec electric motor
Introduction
Product Details
Technical data
Cases
Inquiry
Description

GH76-770B Special peristaltic pump have added explosion-proof motors, control equipment and frequency converters. In the construction industry, GH76-770B Special peristaltic pump can be used to pump pumping oil base,oil slurries ,corrosive, flammable, explosive and some high viscosity fluids.

GH76-770B Special peristaltic pumps are usually composed mainly of pump hoses, rotors, rollers, idlers, squeeze hoses and drive units. The squeeze hose is U-shaped in the pump room, and the hose is deformed when the rotor drives the drum to rotate. After the drum rotates, the deformed hose will recover through its elasticity. Therefore, the negative pressure generated by the hose attracts the slurry and is discharged through the outlet under the push of the roller, eventually forming a pressure transfer of the slurry.

Compared to other types of pumps, GH76-770B Special peristaltic pumps are easy to operate and maintain, and only the hose is in contact with the material. In case of problems, just replace the squeeze hose in time.





Application

GH76-770B Special peristaltic pump products comply with national and international standards. GH76-770B Special peristaltic pump has stable performance, good sealing performance, easy operation, no water cooling, beautiful and durable. They are suitable for transporting a variety of chemical media with different viscosities and temperatures and are therefore widely used in many fields.

1. Gold smelting industry: gold pulp and tailings transportation;

2. Chemical industry: acid, alkali, phosphate and titanium dioxide phosphate, titanium dioxide (met titanate) slurry, crystallization liquid, suspension, latex, resin, slime and various liquids;

3. Drilling mud in the petroleum industry: transportation of crude oil and transportation of organic solvents and fuels such as gasoline and kerosene;

4. Water treatment: sludge, lime slurry, added chemicals, sampled water, sediment transport;

5. Mining, metallurgical industry: such as gold mining in filling materials, iron oxide scale, flue mud treatment of thick slurry, underground passage drainage, adsorbents, mortar and mortar;

6. Pharmaceutical industry: transportation of liquid materials;

7. Food industry: food and beverage transportation;



Features

GH76-770B Special peristaltic pump is suitable for pumping oil base, oil slurry, corrosive, flammable, explosive and some high viscosity fluids. It has strong self-strengthening ability, high flow capacity and easy operation.

In addition to this, GH76-770B Special peristaltic pumps have many features superior to other types of pumps.

1. Reversibility

2. No seals, no valves

3. Abrasion resistance

4. Corrosion-resistant

5. Self priming with high suction

6. With 1% repeat precision

7. Easy to clean

8. Dry-running without damage

9. Peristaltic tube is the only consumption part







Product Details
Technical Parameters
Technical Data

Type

GH76-770B

Max. ouput

300L/min or 18m3/h ( at 0.5Mpa, 50HZ)

Rotation

35RPM

Squeeze hose ID

76mm

Max.  pressure

1.5 Mpa

Voltage

3 phase, 380V, 50HZ  anti-explosion Gaodete electric motor

Power

15KW
