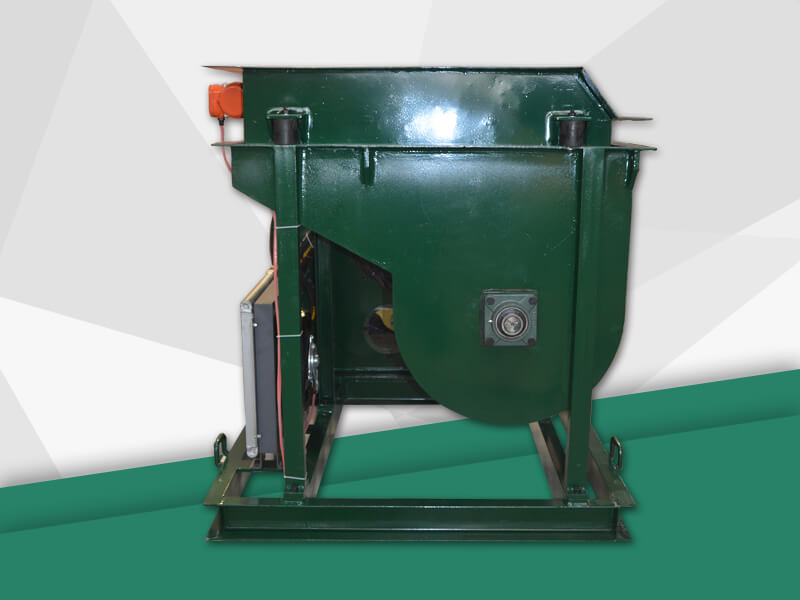

GDS2000G Hose Type Concrete Spraying Pump for Swimming Pool
1
1.5 Mpa (Chinese Hose)/3.5 Mpa (Trelleborg Hose)
4-8m3/h
10mm
ID 50mm
ID 50mm
GH50-680
Introduction
Product Details
Technical data
Cases
Inquiry
Description

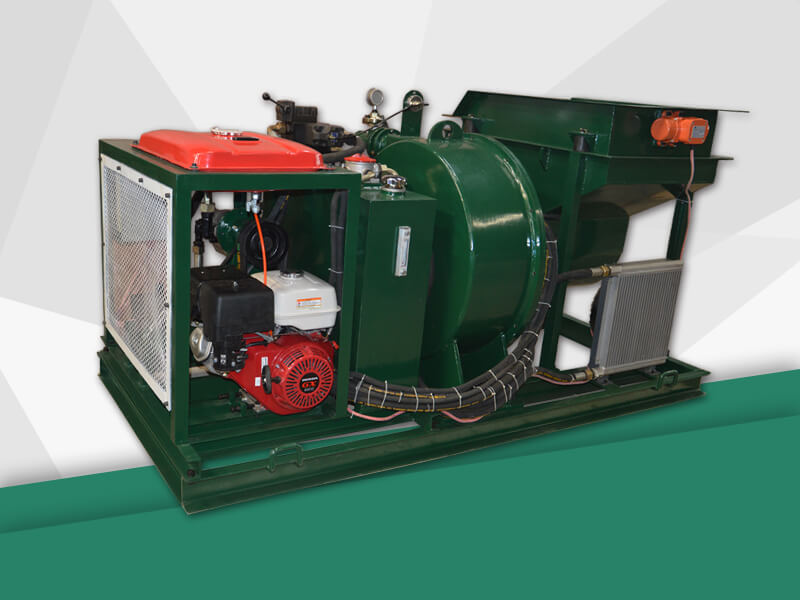

GDS2000G hose type concrete spraying pump is a lightweight shotcrete pump run by a highly-reliable direct drive planetary gearbox and hydraulic power pack. This sturdy workhorse is made better with the added improvement of a direct drive to the carousel. This pump could be used for dome building, swimming pool etc. projects.

GDS2000G hose type concrete spraying pump with advanced technology and is suitable for various types of mortars, especially mortars with high mixing and high viscosity. It can show its superior performance and is suitable for various construction conditions. It is easy to operate and maintain, and can be operated skillfully without special training.

The whole GDS2000G hose type concrete spraying pump only needs two people during construction, that is, one person transports the raw materials, one person controls the spray material, and one spray machine can easily spray the square meters per hour. Combined with the special mixing opportunity of the mortar, the machine is more advantageous than the manual.



Application

GDS2000G hose type concrete spraying pump is a lightweight shotcrete pump run by a highly-reliable direct drive planetary gearbox and hydraulic power pack. This sturdy workhorse is made better with the added improvement of a direct drive to the carousel. This pump could be used for dome- building, swimming pool etc. projects.

The main application aspects of GDS2000G hose type concrete spraying pump are:

1. Mining, metallurgical industry: such as gold mining in filling materials, iron oxide scale, flue mud treatment of thick slurry, underground passage drainage, adsorbents, mortar and mortar;

2. Pharmaceutical industry: transportation of liquid materials;

3. Food industry: food and beverage transportation;

4. Paper industry: pulp, sulphur pulp transportation;

5. Construction industry: cement and mortar transportation;

6. Ceramic industry: transportation of raw material slurry;

7. Nuclear waste, electrolytic waste, metal slag solution, paint, paint and other liquids, material transportation;

8. Beer industry: yeast, diatomaceous earth, distiller's grains, syrup, ingredients, concentrate (liquid), gas-liquid mixture

Features

GDS2000G hose type concrete spraying pump with advanced technology and is suitable for various types of mortars, especially mortars with high mixing and high viscosity. It can show its superior performance and is suitable for various construction conditions. Easy to operate and maintain.

The main features of the GDS2000G hose type concrete spraying pump are:

1. Highly-reliable direct drive planetary gearbox

2. Infinite speed variation

3. Specially hopper/ agitator stir design

4. Honda GX390 and GX630 gasoline engine for option

5. Easily operating on site work

6. Standard spare part supply

Product Details
Technical Parameters
Technical Data

Item

Description

Working Pressure

1.5 Mpa (Chinese Hose)/3.5 Mpa (Trelleborg Hose)

Output

4-8m3/h

Max. Aggregate

10mm

Squeeze Hose

ID 50mm

Conveying Hose

ID 50mm

Squeeze pump

GH50-680

Power

Honda GX390 Gasoline Engine (low pressure) Honda GX630 Gasoline engine(high pressure)

Hopper volume

240 Liter

Hopper rated rev

76r/min

Oil tank

130 Liter

Weight

610kg

Requested air compressor

6m3/min, 0.6Mpa Pressure

Vertical Conveying Distance

15 m (Chinese Hose)/30 m (Trelleborg Hose)

Horizontal Conveying Distance

40 m ( Chinese squeeze hose )/80 m ( Trelleborg squeeze hose )

Weight

900kg

Overall Dimension

2350x1250x1450mm
