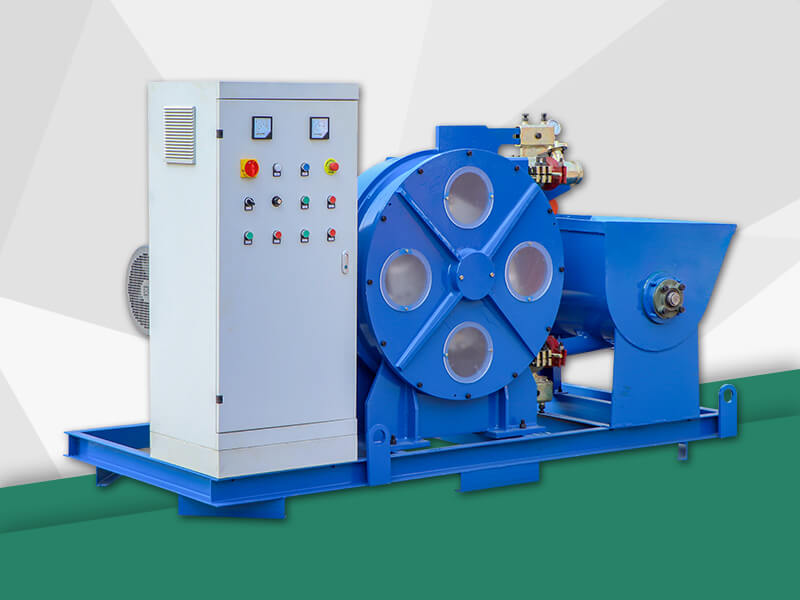

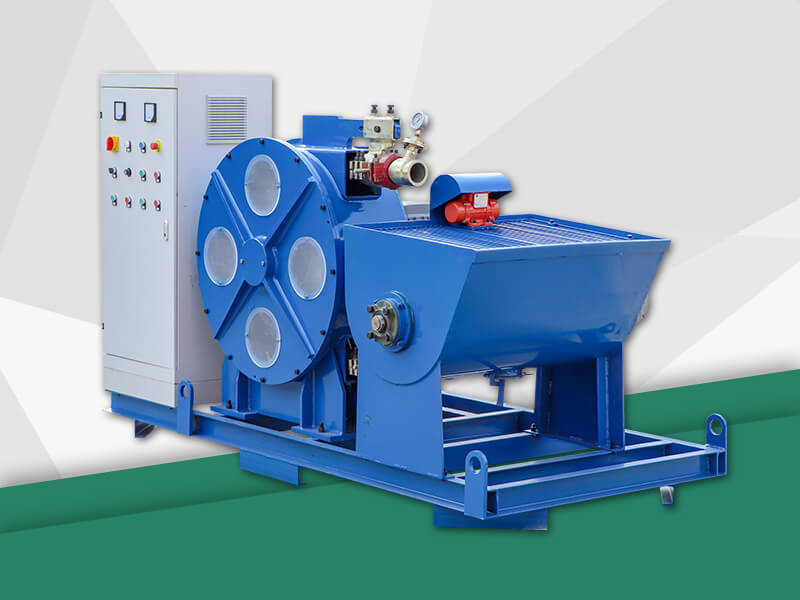

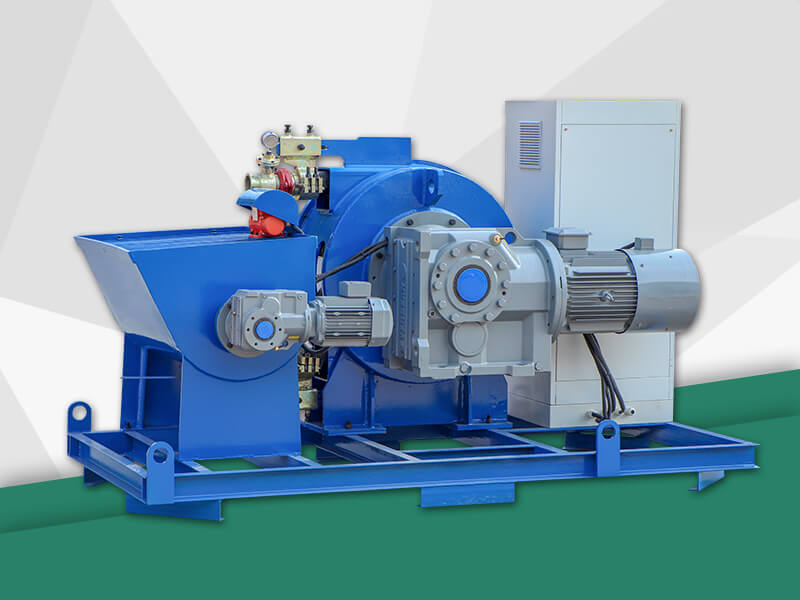

GCP15H-E Hose Type Concrete Pump for Foundation Grouting
76mm (Trelleborg Squeeze hose)
37rpm
15m3/h
3Mpa
<15mm
15-23cm
Introduction
Product Details
Technical data
Cases
Inquiry
Description

GCP15H-E hose type concrete pump is a kind of concrete pump with a squeeze hose pump for underground engineering. It can transport concrete slurry, cement slurry, mud, mortar, and other high viscosity liquids in a timely and effective manner.

GCP15H-E hose type concrete pump is a new multi-purpose industrial peristaltic hose pump developed by advanced technology. The pump has no seal, no leakage, strong self-priming ability, simple structure, and convenient operation and maintenance. Suitable for conveying various viscosity, density, corrosive and abrasive substances. It can be used in petroleum, chemical, water treatment, mining, gold smelting, medicine, paper, ceramics, and other industries.

GCP15H-E hose type concrete pump has obvious advantages in conveying strong grinding media. It means that the hose pump has a valveless and sealed structure without any leakage and pollution. Only the inner cavity of the rubber hose is in contact with the medium, and other components are completely independent of outside the medium; the flow can be adjusted linearly, without any blockage of fluid transport with high viscosity and impurities.



Application

GCP15H-E hose type concrete pump can be used in underground engineering. It can be used for the transportation of concrete, bentonite, mud and mortar in underground engineering. In addition to underground engineering, GCP15H-E hose type concrete pumps are also widely used in other fields:

1. Gold smelting industry: gold pulp and tailings transportation;

2. Chemical industry: acid, alkali, phosphate and titanium dioxide phosphate, titanium dioxide (met titanate) slurry, crystallization liquid, suspension, latex, resin, slime and various liquids;

3. Drilling mud in the petroleum industry: transportation of crude oil and transportation of organic solvents and fuels such as gasoline and kerosene;

4. Water treatment: sludge, lime slurry, added chemicals, sampled water, sediment transport;

5. Mining, metallurgical industry: such as gold mining in filling materials, iron oxide scale, flue mud treatment of thick slurry, underground passage drainage, adsorbents, mortar and mortar;

Features

GCP15H-E hose type concrete pump can show its superior performance and is suitable for a variety of construction conditions. Easy to operate and maintain. Its characteristics are as follows:

1. Compact size, hopper, extrusion pumps, power sources combined in a base   frame.

2. Installation of frequency control, stepless output.

3. Adopting squeeze type pumping, the squeeze hose is the only wearing parts.

4. Imported special concrete squeeze tubes, pressure, wear, long life.

5. Reversible work, facilitate the removal of plugging failure.

6. Clean on the line, sample, convenient.

Product Details
Technical Parameters
Technical Data

Description

parameter

Squeeze Pump

GH76-610

Hose ID

76mm (Trelleborg Squeeze hose)

Speed

37rpm

Output

15m3/h

Pressure

3Mpa

Max. Aggregate size

<15mm

Concrete Slump

15-23cm

Hopper Capacity

350L

Stirring speed

37rpm

Reducer Model

NR137

Voltage

22KW  50HZ  IP55  3~380V

Overall Dimension

2400x1300x1200mm

Weight

1560kg

Used for spraying, recommend air compressor: the output is 6m3/h, the pressure≥0.5bar
