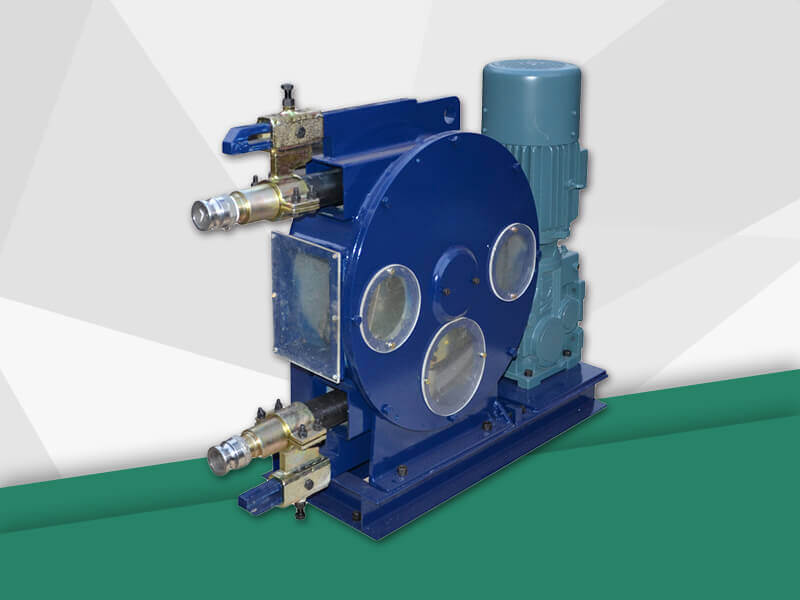

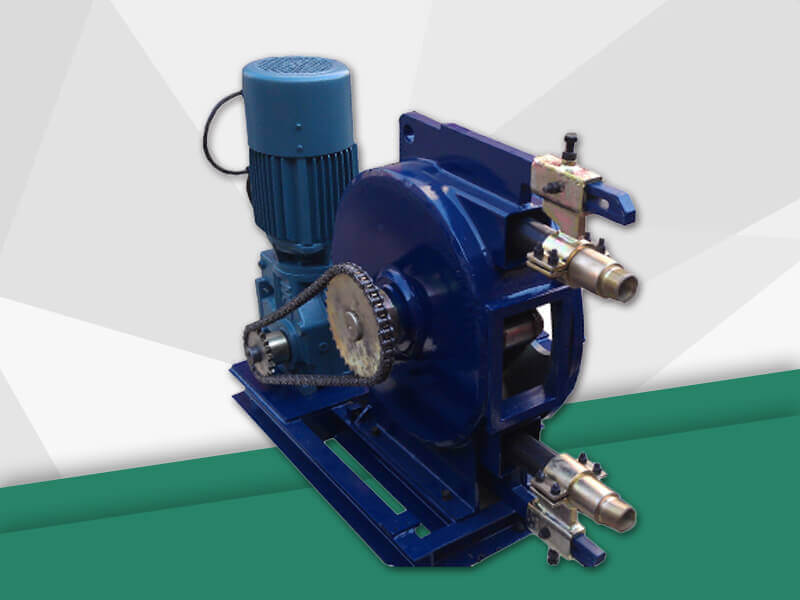

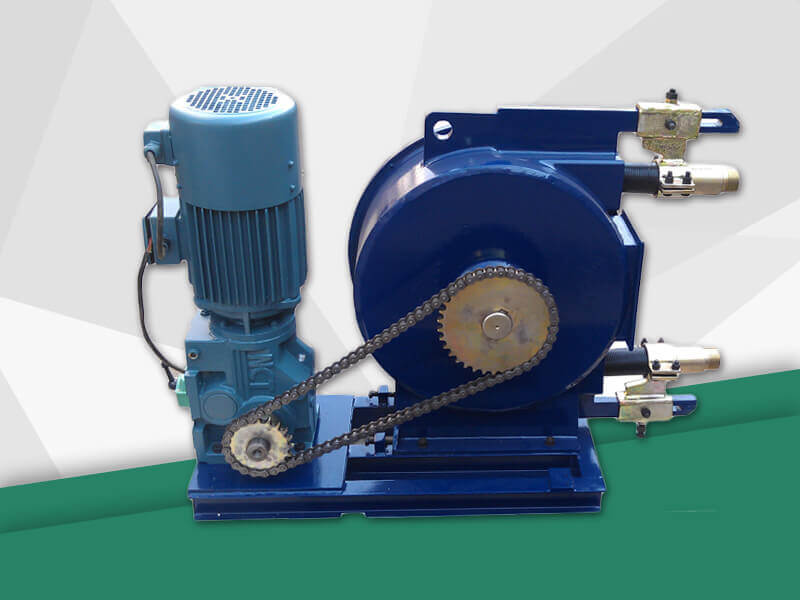

GH32-450C seal less chemical transfer and metering peristaltic hose pumps are used in a wide range of applications in the chemical industry, such as pumping paints, coatings and pigments for paint plants; transporting or discharging fiber liquids, dyes or waste water for textile mills; pumping or metering of corrosive and hazardous materials in pharmaceutical plants .
GH32-450C seal less chemical transfer and metering peristaltic hose pumps have many advantages: they have the good self-priming ability, almost perfect vacuum to absorb liquid; transport contains foam, bubbles without air resistance; conveying high viscosity, shear sensitive medium is also strong; The fixed displacement is independent of the outlet pressure and is a natural metering pump.
GH32-450C seal less chemical transfer and metering peristaltic hose pump can be used in the following areas: construction, pharmaceutical, textile, dye manufacturing, water treatment, paper, mining, ceramics, beer and beverages, underground engineering, etc. Ideal for pumping corrosive, abrasive, shear sensitive fluids, high viscosity fluids, high density fluids, large solids, metering (±1%), high pressure (3Mpa).
GH32-450C seal less chemical transfer and metering peristaltic hose pump products comply with national and international standards. The product has stable performance, good sealing performance, easy operation, no water cooling, beautiful and durable. They are suitable for transporting a variety of chemical media with different viscosities and temperatures and are therefore widely used in many fields.
1. Gold smelting industry: gold pulp and tailings transportation;
2. Chemical industry: acid, alkali, phosphate and titanium dioxide phosphate, titanium dioxide (met titanate) slurry, crystallization liquid, suspension, latex, resin, slime and various liquids;
3. Drilling mud in the petroleum industry: transportation of crude oil and transportation of organic solvents and fuels such as gasoline and kerosene;
4. Water treatment: sludge, lime slurry, added chemicals, sampled water, sediment transport; Mining, metallurgical industry: such as gold mining in filling materials, iron oxide scale, flue mud treatment of thick slurry, underground passage drainage, adsorbents, mortar and mortar;
6. Pharmaceutical industry: transportation of liquid materials; Food industry: food and beverage transportation;
GH32-450C seal less chemical transfer and metering peristaltic hose pump produced by Gaodetec, which absorbs advanced technology at home and abroad.GH32-450C seal less chemical transfer and metering peristaltic hose pump has more advantages than traditional other types of pumps.
The characteristics of the GH32-450C seal less chemical transfer and metering peristaltic hose pumps are as follows:
Reversibility
Sealessness and valveless
Abrasion resistance
Self priming with high suction
With 1% repeat precision
Corrosion-resistant
Easy to clean
Can run dry without damage
Peristaltic tube is the only consumption part
Type |
GH32-450C |
Max. ouput |
30L/min ( at 0.3Mpa, 50HZ) |
Rotation |
36RPM |
Squeeze hose ID |
32mm |
Max. pressure |
1.5Mpa |
Voltage |
3 phase, 380V, 50HZ |
Power |
3KW |
