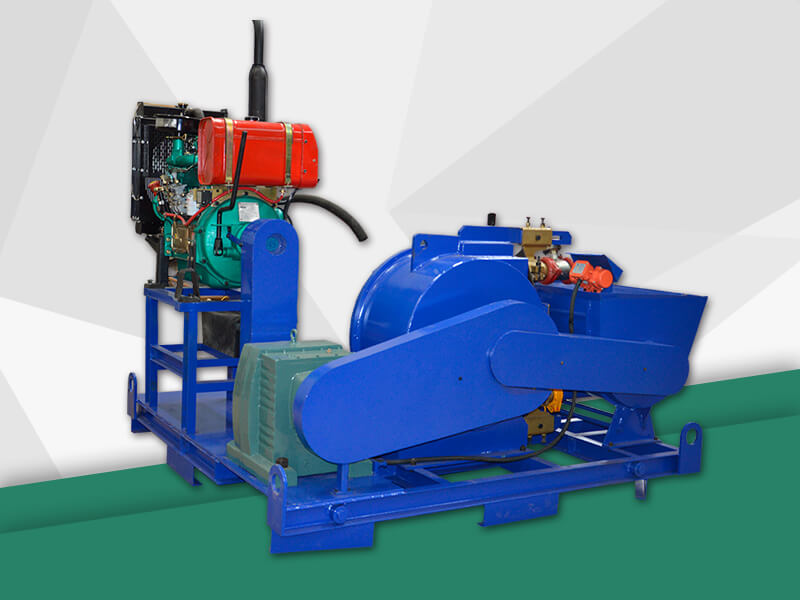

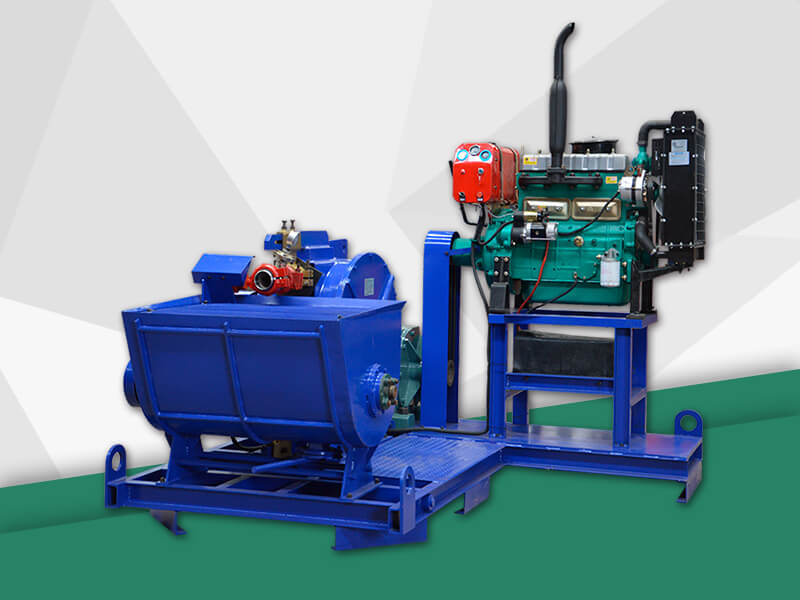

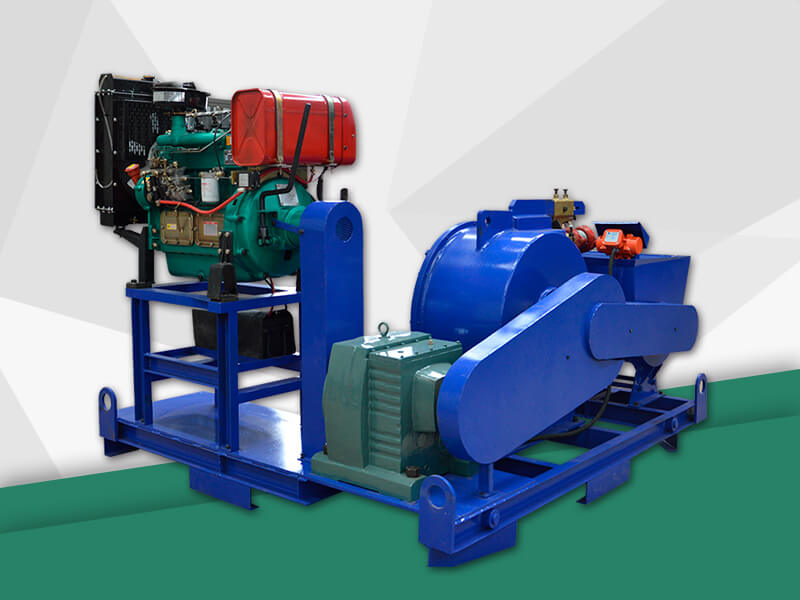

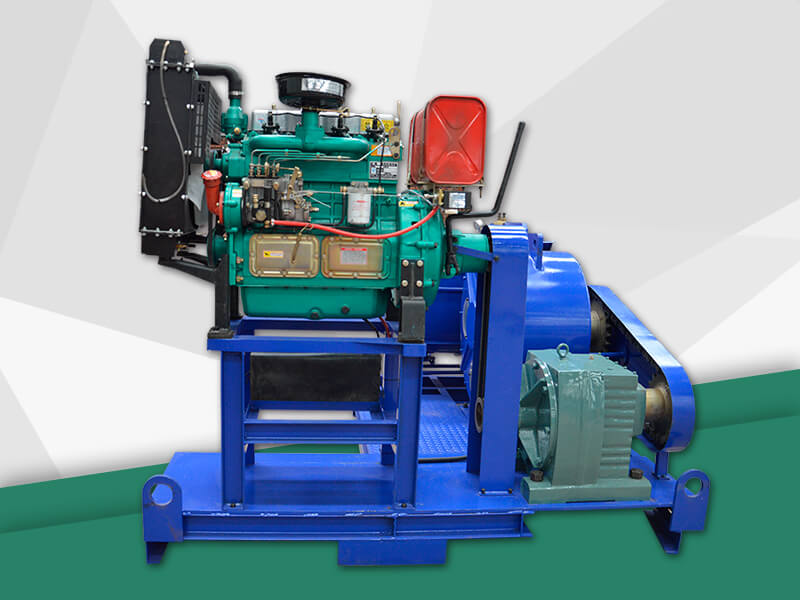

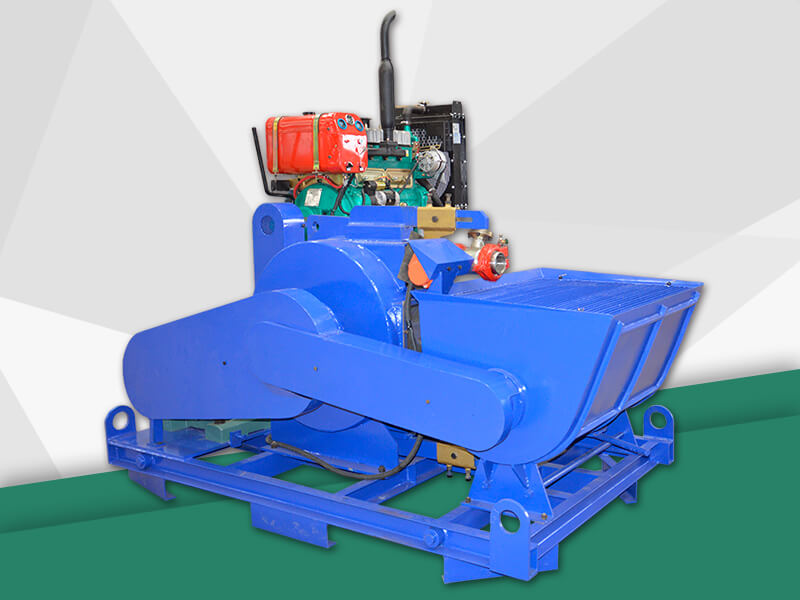

GCP15H-D diesel engine hose type concrete pump that combines a peristaltic pump with a diesel-driven drive for pumping cement slurry in construction. Its diesel pump is powerful and easy to use, and it works perfectly in some places with insufficient power.
GCP15H-D diesel engine hose type concrete pump has obvious advantages in conveying strong grinding media. It means that the hose pump has a valveless and sealed structure without any leakage and pollution. Only the inner cavity of the rubber hose is in contact with the medium, and other components are completely independent of Outside the medium; the flow can be adjusted linearly, without any blockage of fluid transport with high viscosity and impurities;
GCP15H-D diesel engine hose type concrete pumps are ideal for pumping a wide range of muds and metering a variety of abrasive, corrosive, viscous or crystalline media. GEC peristaltic pumps have proven to deliver outstanding performance in the most demanding applications, handling heavy-duty media, particularly in the minerals, mining and metallurgical and energy, construction and environmental industries.
GCP15H-D diesel engine hose type concrete pump is a new hose pump produced by Gaodetec, which absorbs advanced technology at home and abroad. GCP15H-D diesel engine hose type concrete pump has more advantages than traditional other types of pumps.
The characteristics of the GCP15H-D diesel engine hose type concrete pumps are as follows:
1. Compact size, hopper, extrusion pumps, power sources combined in a base frame.
2. Adopting squeeze type pumping, the squeeze hose is the only wearing parts.
3. Imported special concrete squeeze tubes, pressure, wear, long life.
4. Clean on the line, sample, convenient.
Description |
parameter |
Type |
GH76-610 |
Hose ID |
76mm (Trelleborg Squeeze hose) |
Speed |
37rpm |
Output |
15m3/h |
Pressure |
2.5Mpa |
Max. Aggregate size |
<15mm |
Concrete Slump |
15-23cm |
Hopper Capacity |
350L |
Stirring speed |
37rpm |
Diesel engine power |
30KW |
Overall Dimension |
2400x2100x1800mm |
Weight |
2300kg |
Used for spraying, recommend air compressor: the output is 6m3/h, the pressure≥0.5bar |
