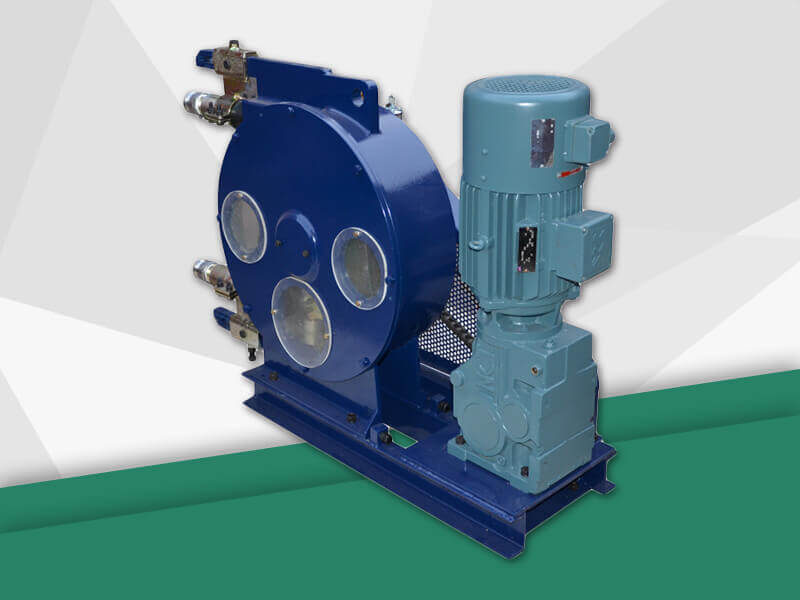

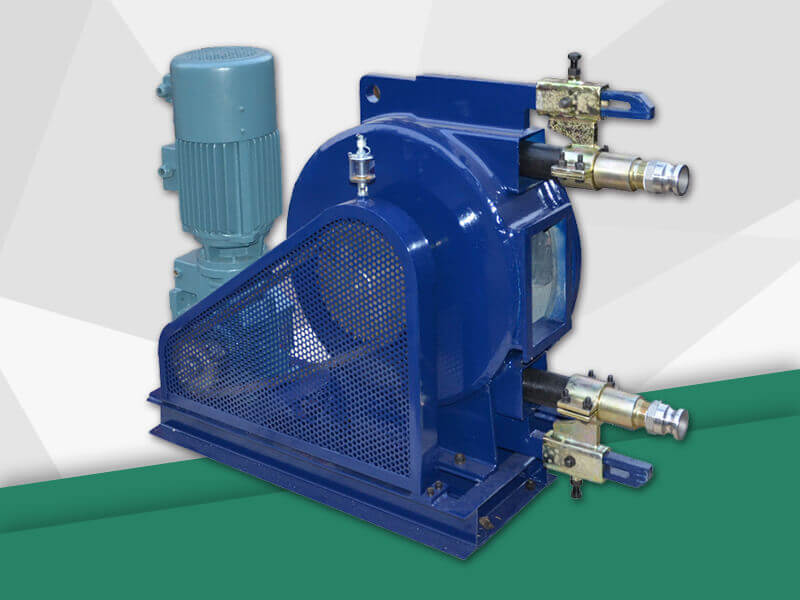

GH32-450C Food Grade Squeeze Hose Pump for Beer Brewing
GH32-450C food-grade squeeze hose pump is an ideal solution for beer brewing applications, as it ensures hygienic handling of ingredients while providing efficient and reliable pumping capabilities.
30L/min ( at 0.3Mpa, 50HZ)
36RPM
32mm
1.5Mpa
3 phase, 380V, 50HZ
3KW
Introduction
Product Details
Technical data
Cases
Inquiry
Description

GH32-450C food grade squeeze hose pump  is widely used in the food industry for beer brewing.GH32-450C food grade squeeze hose pump in the food and beverage industry to conveying milk, soy milk, dairy products, meat products, jelly gels, jams, residues, salads, oils, wines, condiments, ketchups in food processing plants. , juice, sugar, chocolate, honey, bean paste, noodle sauce, soy sauce, vinegar, etc.

GH32-450C food grade squeeze hose pump is a peristaltic pump. The elastomer tube is extruded in the length direction by a roller that pushes the fluid contained therein. After squeezing, the recovery of the test tube creates a vacuum that continuously draws the fluid into the test tube. This produces a gentle pumping action without any damage to the product. Since the fluid is contained in the tube, contamination is avoided, and the hose pump uses a food grade hose, which is safe, hygienic and has a long service life.

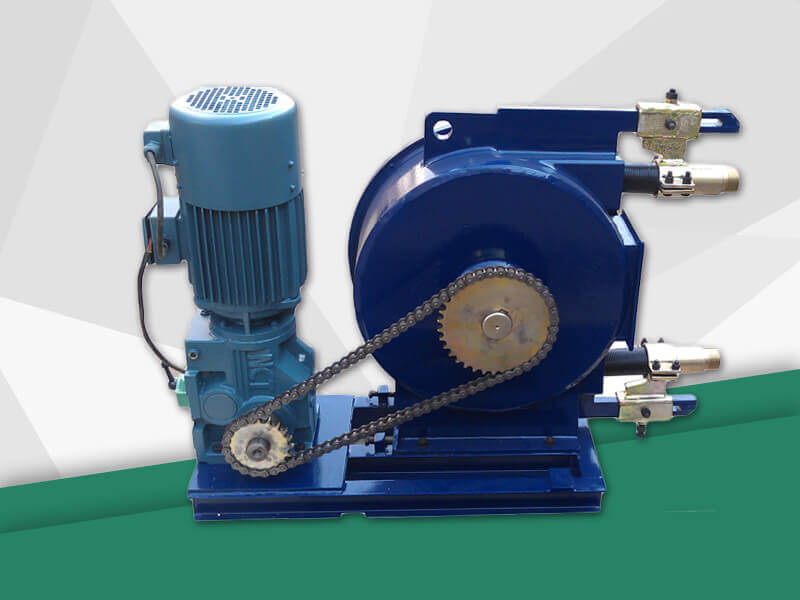

GH32-450C food grade squeeze hose pump is a new type of peristaltic pump.Adopt chain drive mode.Chain is easy to install, easy to replace, moderate price, reduce the maintenance cost.

Application

GH32-450C food grade squeeze hose pump products comply with national and international standards. The product has stable performance, good sealing performance, easy operation, no water cooling, beautiful and durable. They are suitable for transporting a variety of chemical media with different viscosities and temperatures and are therefore widely used in many fields.

  1. Water treatment: Sampling, Muds transfer, Abrasive products dosing: Lime slurry, Carbon slurry, Potassium Permanganate, etc... Chemicals dosing: Ferric Chloride, Sodium Hypochlorite, Sodium Bisulphite, Polymers, etc...

  2. Chemical industry: Dosing of all kinds of liquids in process, Dyes, Pigments, Paints,

  3. Detergents, Cosmetic creams, Gel, Resins, Latex, Corrosive acids, Inks, Anti-foaming, Glue, Oils, Peroxide, etc...

  4. Food and Beverage: Additives dosing in bakery, Beverages, Juices, Sauces, Enzymes, Syrup, Milk, Oils, Enology additives, Liquid egg, Jams, Marmalades, Meat products, Mayonnaise, etc...

  5. Other: Laboratory, Paper industry, Printing and packaging, Mortars, Ceramics, Agriculture, Mining, Pharmaceutical industry, Engineering, etc...

Features

GH32-450C food grade squeeze hose pump is a new hose pump produced by Gaodetec, which absorbs advanced technology at home and abroad.GH32-450C food grade squeeze hose pump has more advantages than traditional other types of pumps.

The characteristics of the GH32-450C food grade squeeze hose pumps are as follows:

  1. Reversibility

  2. Sealessness and valveless

  3. Abrasion resistance

  4. Self priming with high suction

  5. With 1% repeat precision

  6. Corrosion-resistant

  7. Easy to clean

  8. Can run dry without damage

  9. Peristaltic tube  is the only consumption part

Product Details
Technical Parameters
Technical Data

Type

GH32-450C

Max. ouput

30L/min ( at 0.3Mpa, 50HZ)

Rotation

36RPM

Squeeze hose ID

32mm

Max.  pressure

1.5Mpa

Voltage

3 phase, 380V, 50HZ

Power

3KW
