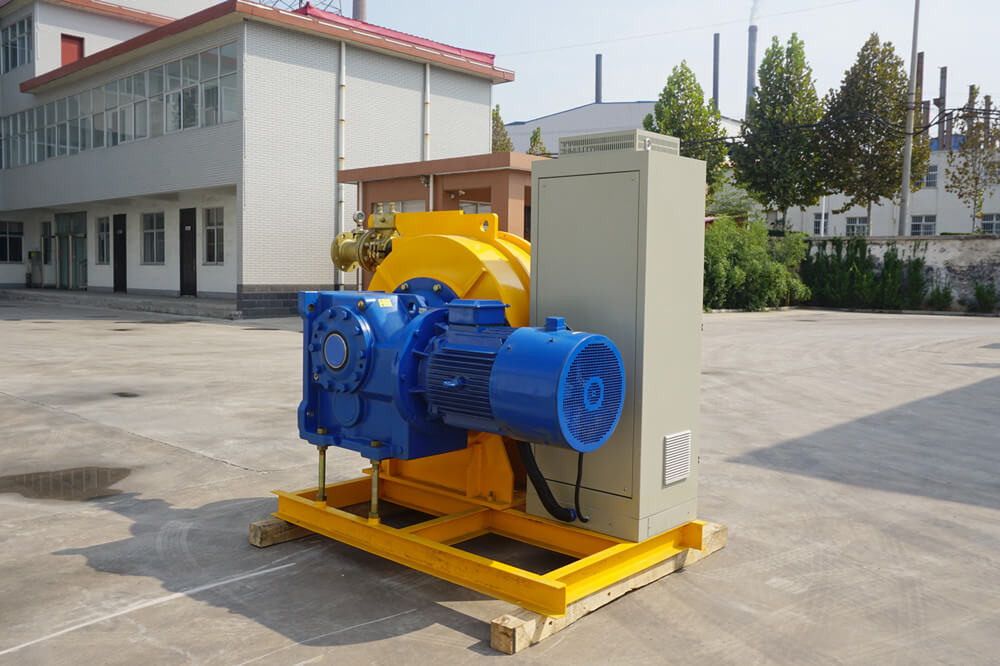

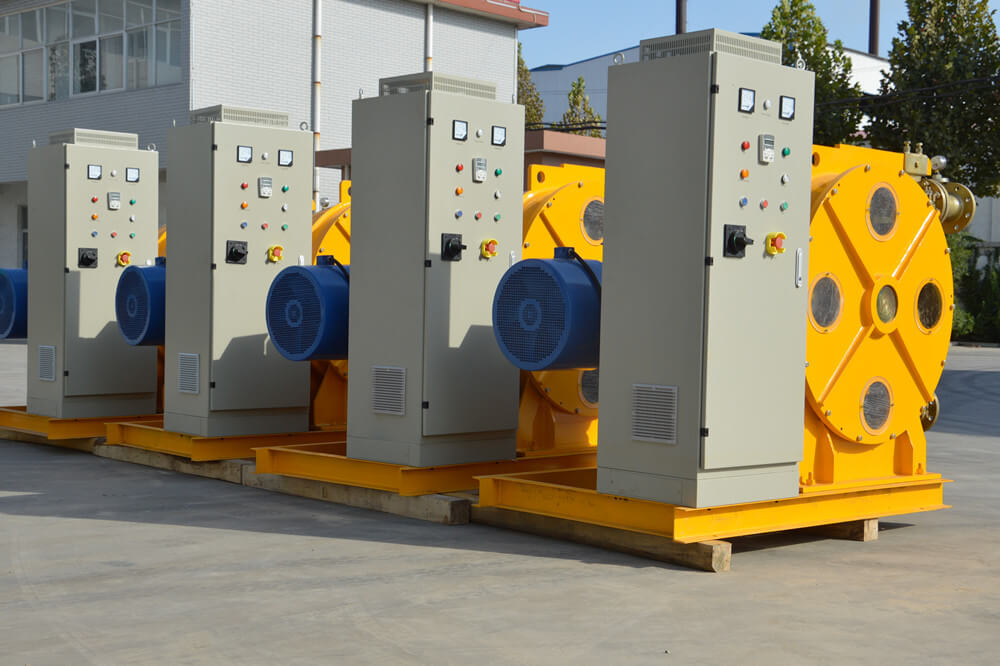

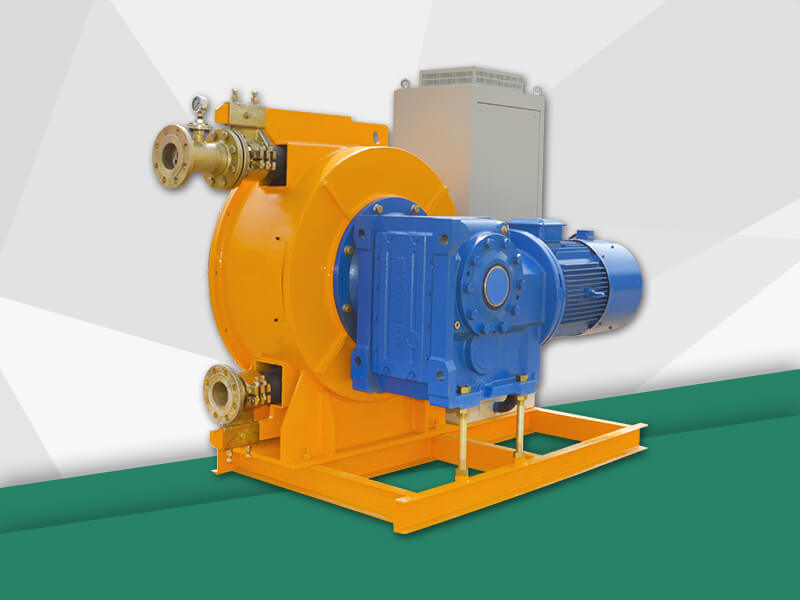

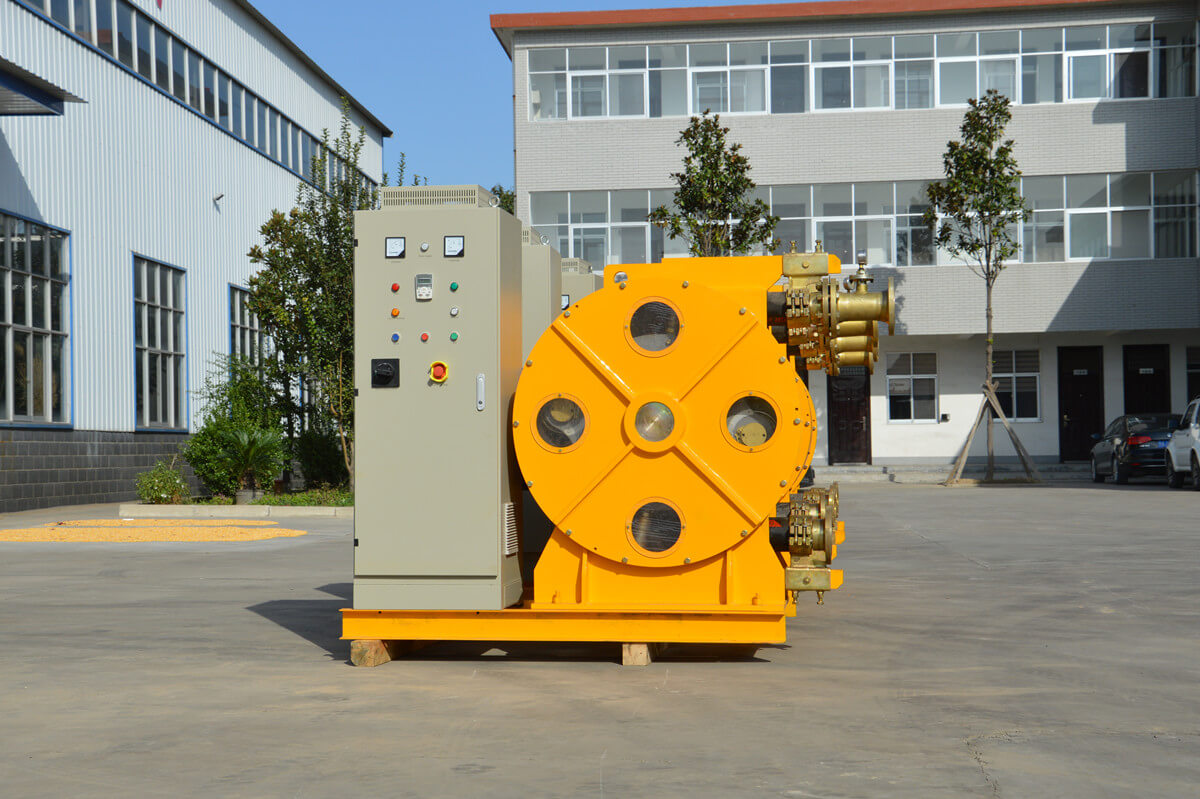

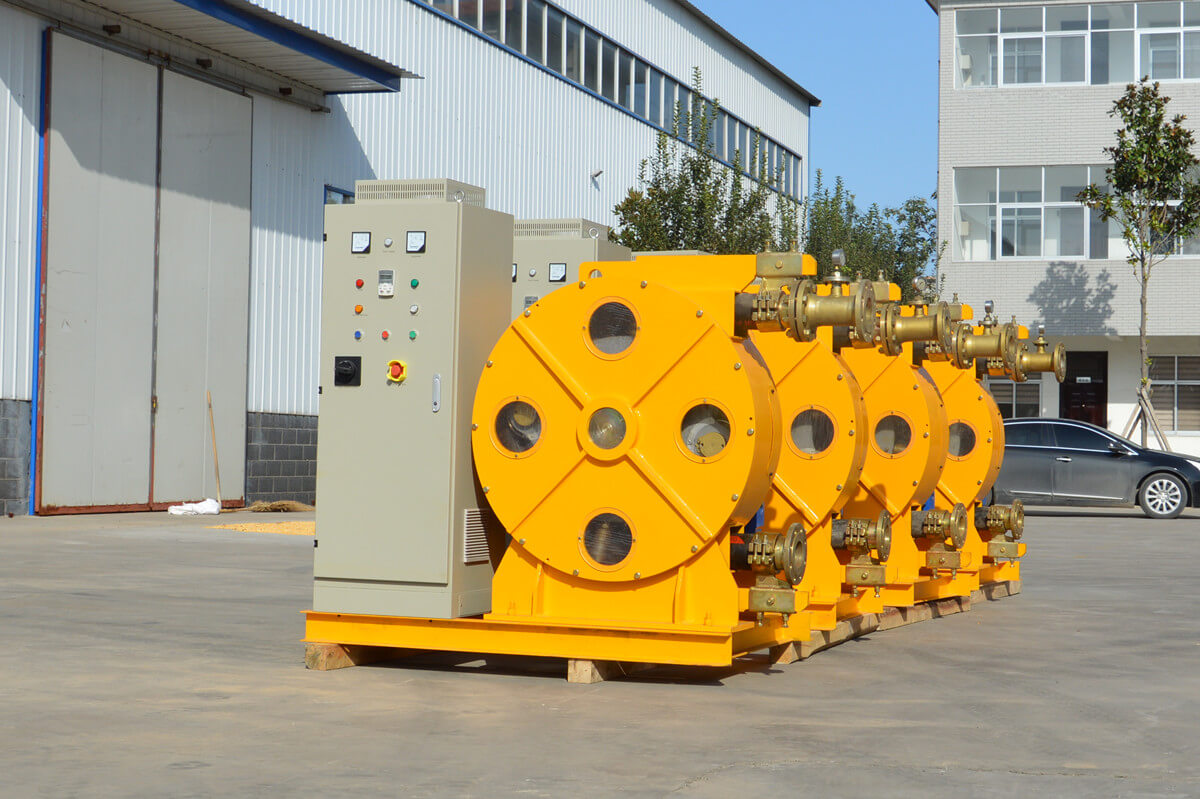

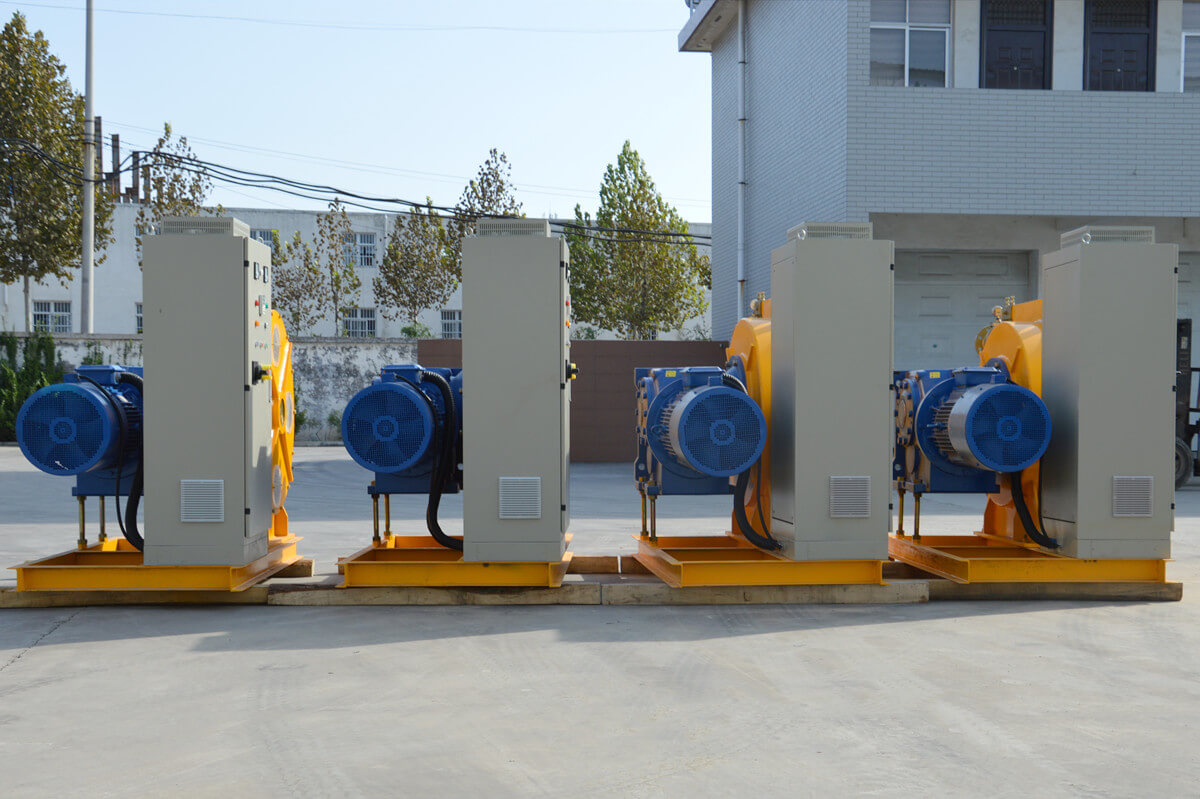

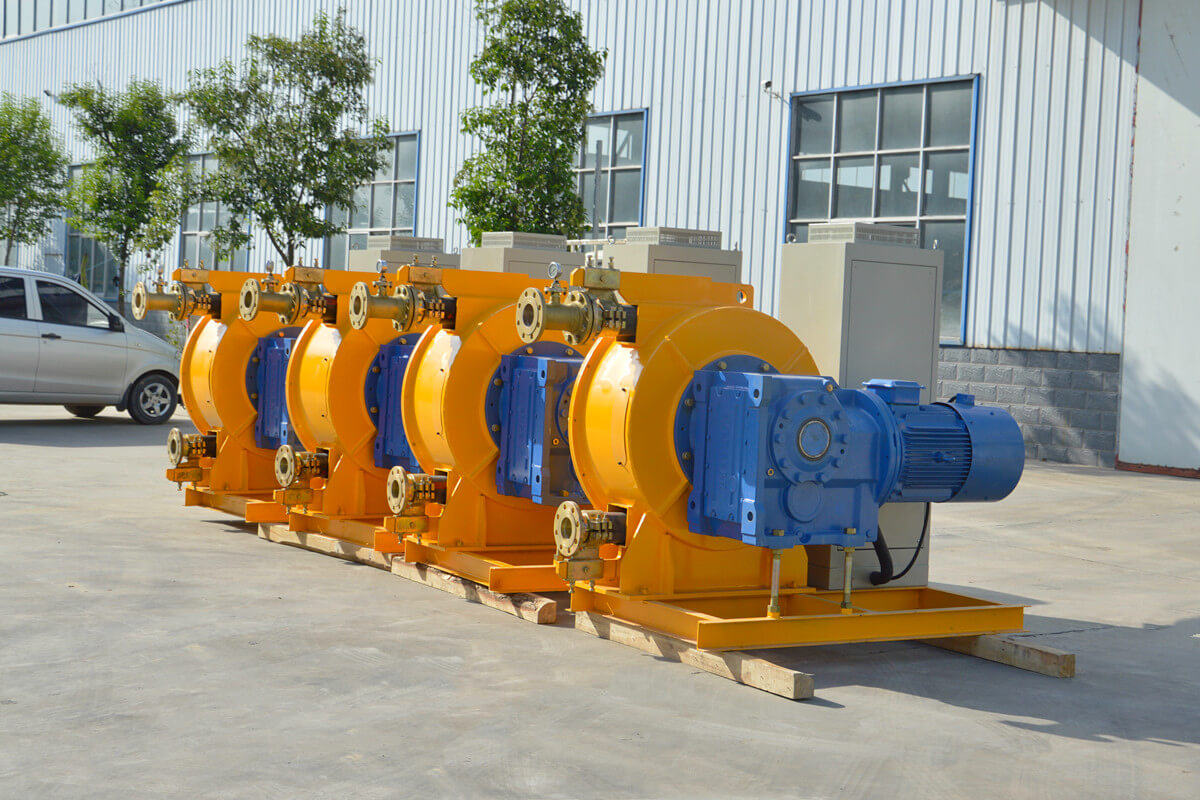

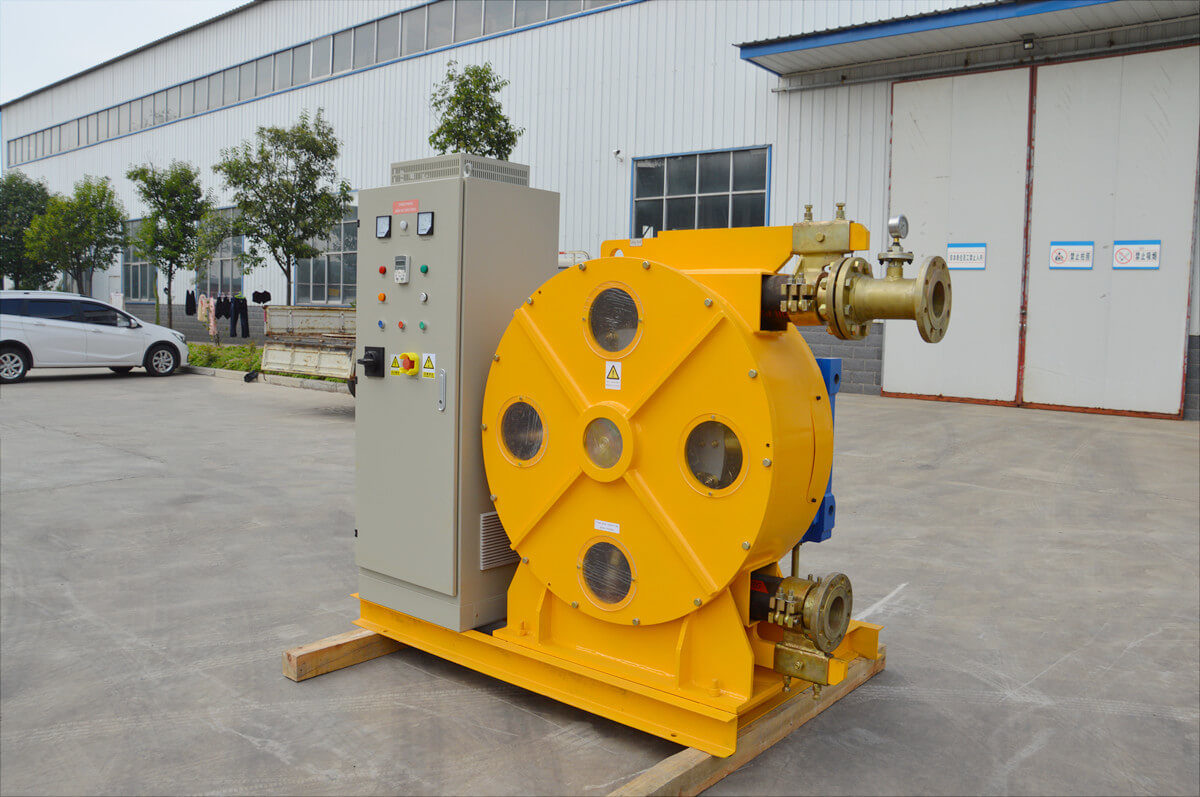

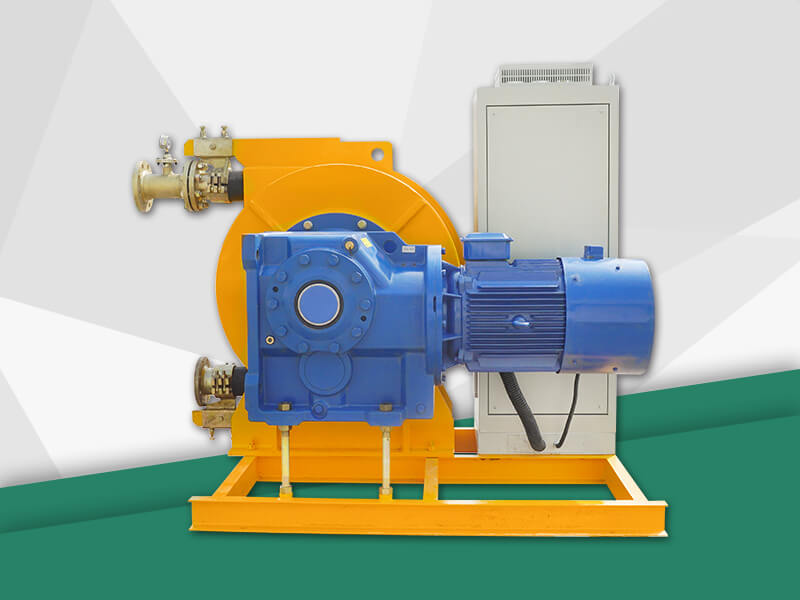

GH100-915R Peristaltic pump for tunnel underground is a peristaltic pump suitable for pumping bentonite, foam concrete, mud, mortar and other viscous liquids up to a pressure of 26 bar in underground tunnels.

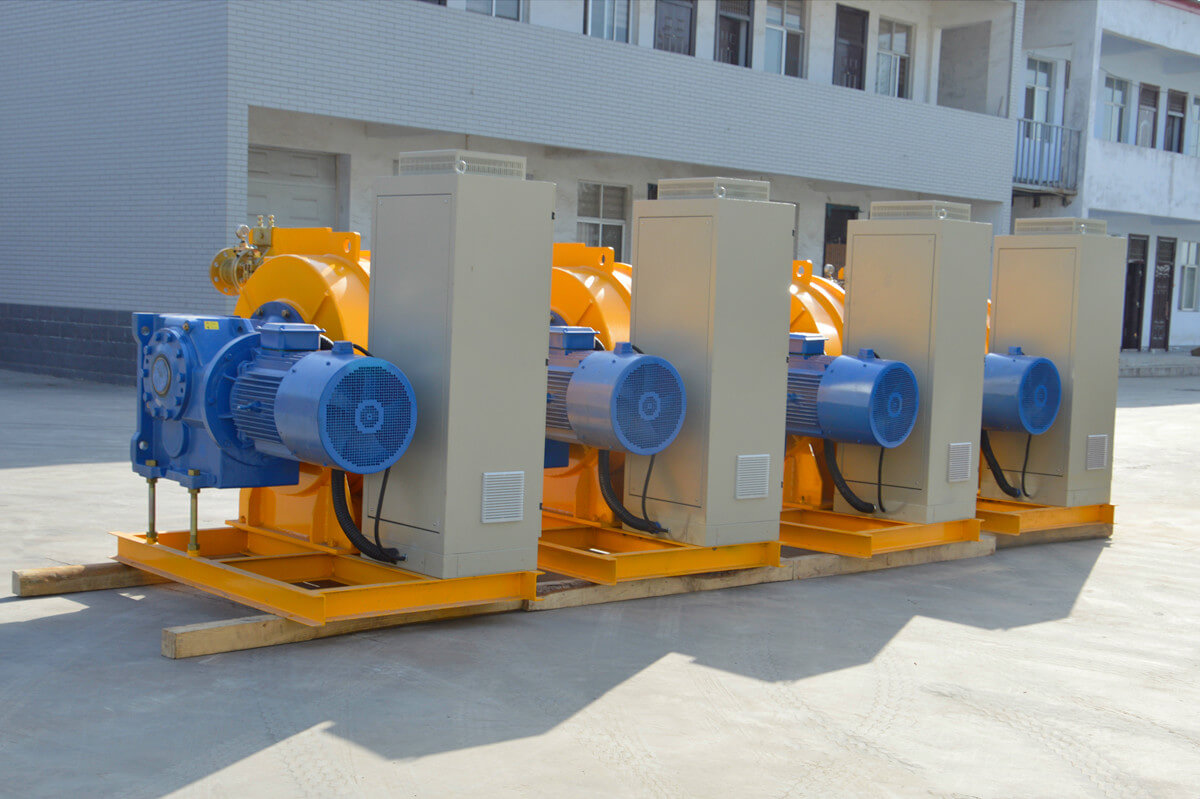

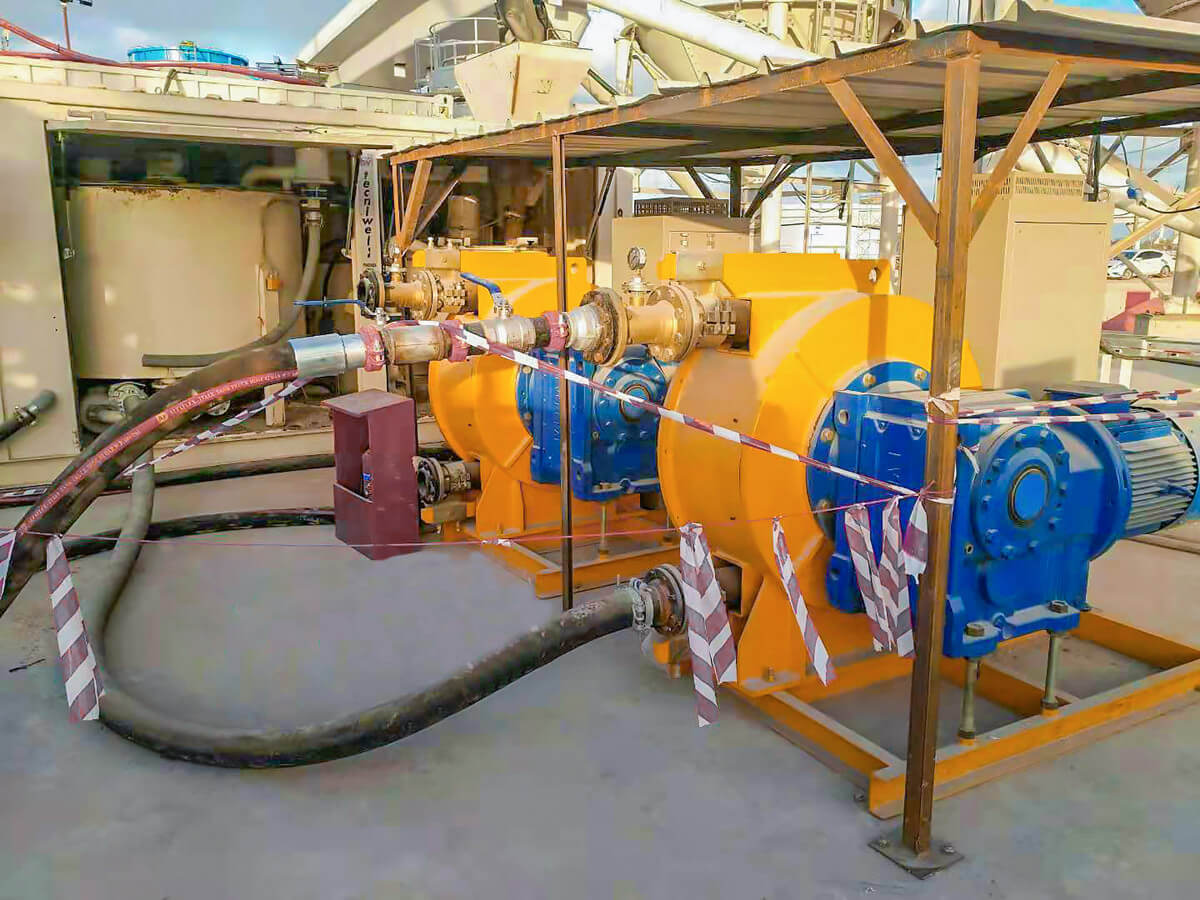

GH100-915R Peristaltic Hose Pump has strong power and stable performance and is widely used in underground. Large underground construction such as tunnel/TBM/metro construction.

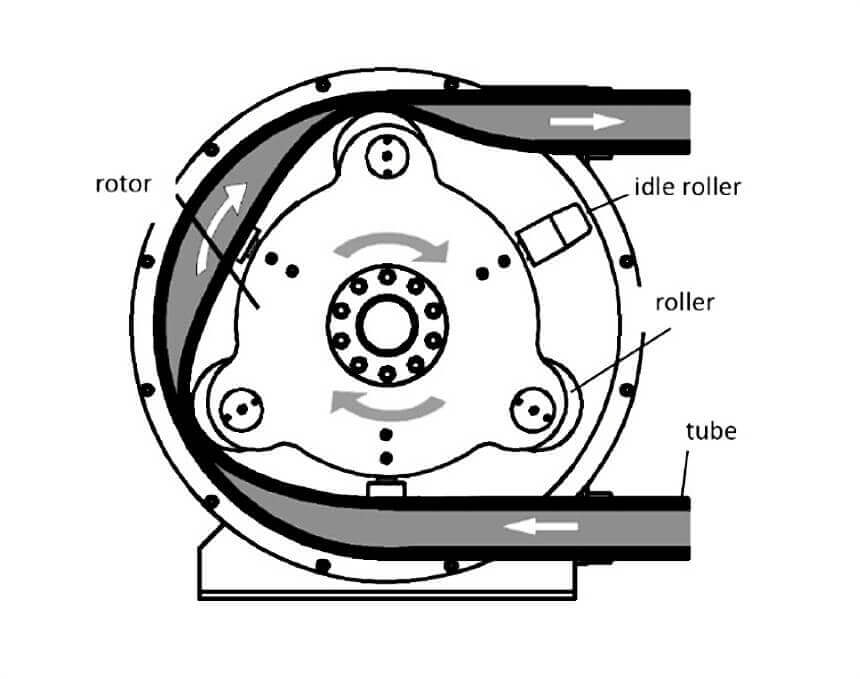

GH100-915R High flow electric peristaltic pump has obvious advantages in conveying strong grinding media. It means that the hose pump has a valveless and sealed structure without any leakage and pollution. Only the inner cavity of the rubber hose is in contact with the medium, and other components are completely independent of outside the medium; the flow can be adjusted linearly, without any blockage of fluid transport with high viscosity and impurities.
GH100-915R High flow electric peristaltic pumps have many advantages: they have the good self-priming ability, almost perfect vacuum to absorb liquid; transport contains foam, bubbles without air resistance; conveying high viscosity, shear sensitive medium is also strong; The fixed displacement is independent of the outlet pressure and is a natural metering pump.

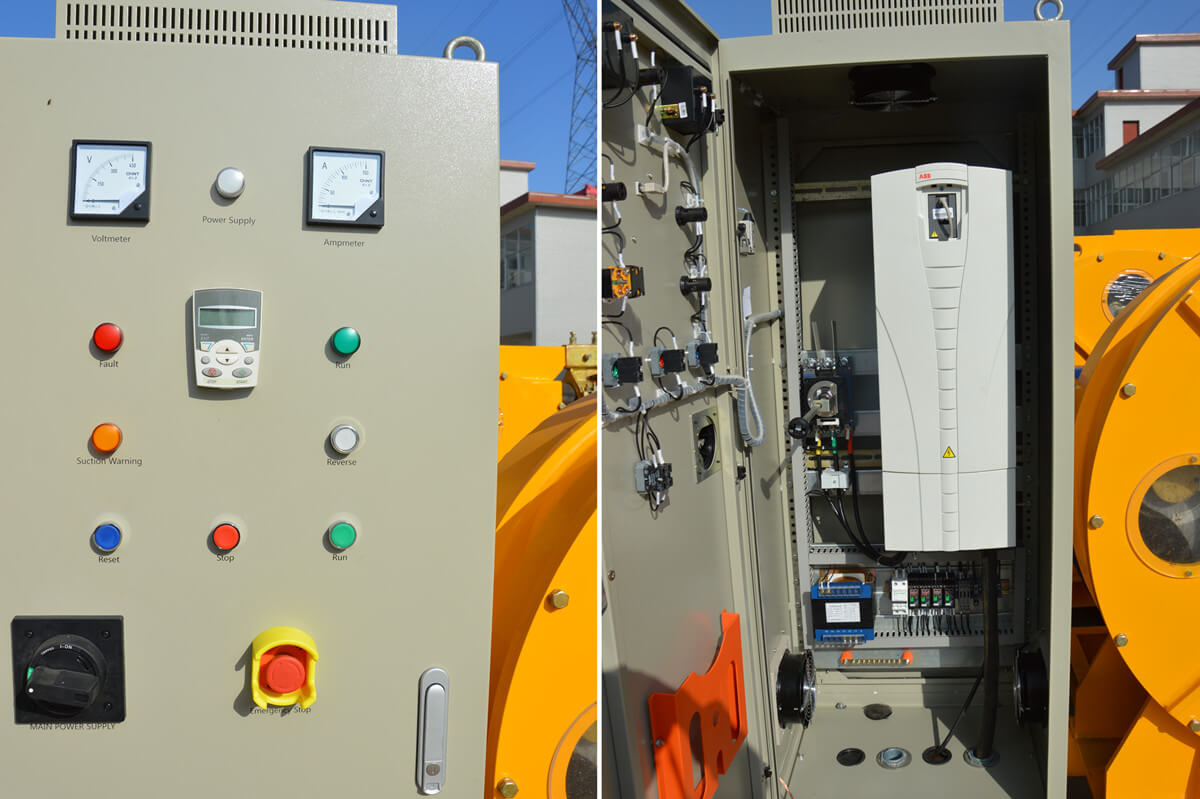

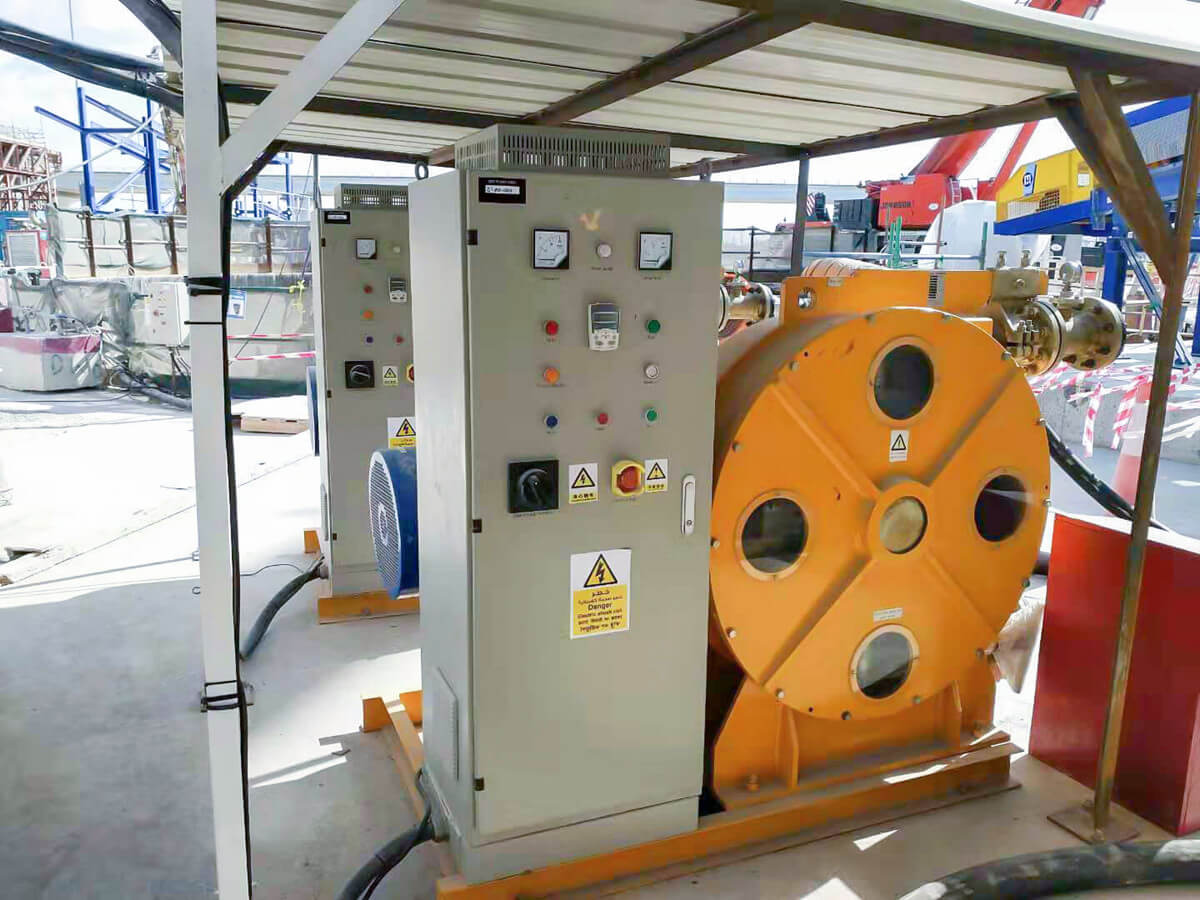

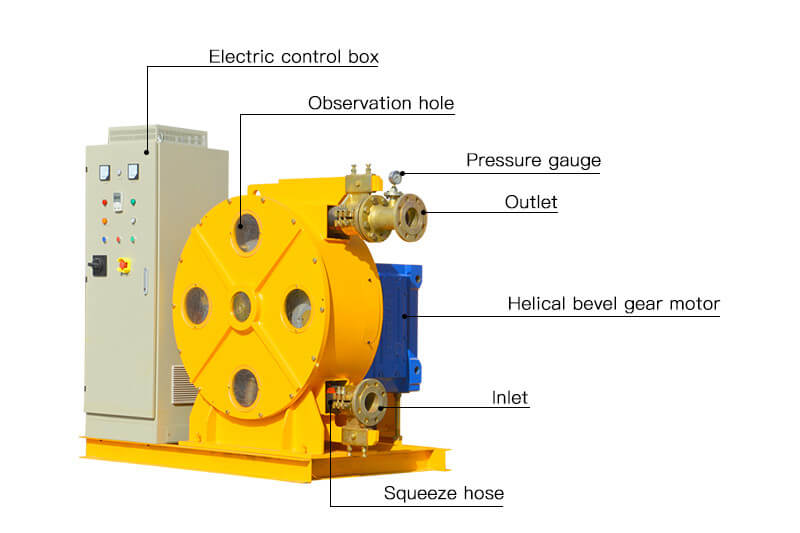

GH100-915R Peristaltic Pump for Tunnel Underground is a kind of peristaltic pump. It adopts the international top-grade ultra-high pressure hose, which can pump bentonite, foam concrete, mud, mortar and other viscous liquids up to 26 bar. The electric control box of the GH100-915R High flow high pressure peristaltic hose pump is optional, and the low-pressure can be reduced according to different conditions of the customer.
GH100-915R Peristaltic Pump for Tunnel Undergrounds are used in many industries:
1. Gold smelting industry: gold pulp and tailings transportation;
2. Chemical industry: acid, alkali, phosphate and titanium dioxide phosphate, titanium dioxide (met titanate) slurry, crystallization liquid, suspension, latex, resin, slime and various liquids;
3. Drilling mud in the petroleum industry: transportation of crude oil and transportation of organic solvents and fuels such as gasoline and kerosene;
4. Water treatment: sludge, lime slurry, added chemicals, sampled water, sediment transport;
5. Mining, metallurgical industry: such as gold mining in filling materials, iron oxide scale, flue mud treatment of thick slurry, underground passage drainage, adsorbents, mortar and mortar.
GH100-915R peristaltic squeeze hose pump is a new hose pump produced by Gaodetec, which absorbs advanced technology at home and abroad. GH100-915R high pressure peristaltic pump has more advantages than traditional other types of pumps.
The characteristics of the GH100-915R peristaltic hose pumps are as follows:
1. High pressure, high flow
2. No seals, no valves
3. Self-priming
4. Only tube to replace
5. Dry-running without damage
6. Reversible
7. No contact between product and mechanical parts
8. Able to pump products with solid parts inside
9. Easy maintenance, low-cost, short down time
Type |
GH100-915R Peristaltic pump for tunnel underground |
Output |
30m3/h |
Rotation |
32RPM |
Squeeze hose ID |
100mm |
Working pressure |
26bar |
Max.Aggregate size |
20mm |
Max.Suction ift |
5m |
Motor power |
45KW |
Weight |
1750kg |
