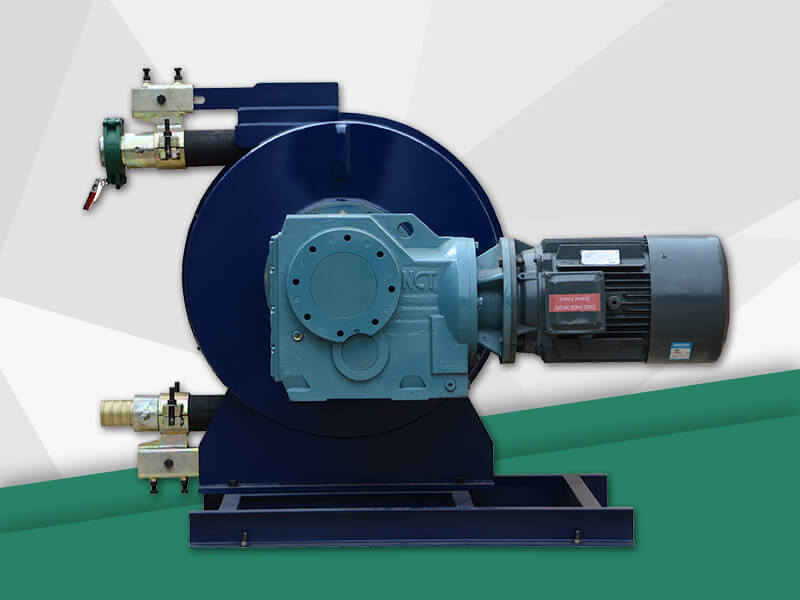

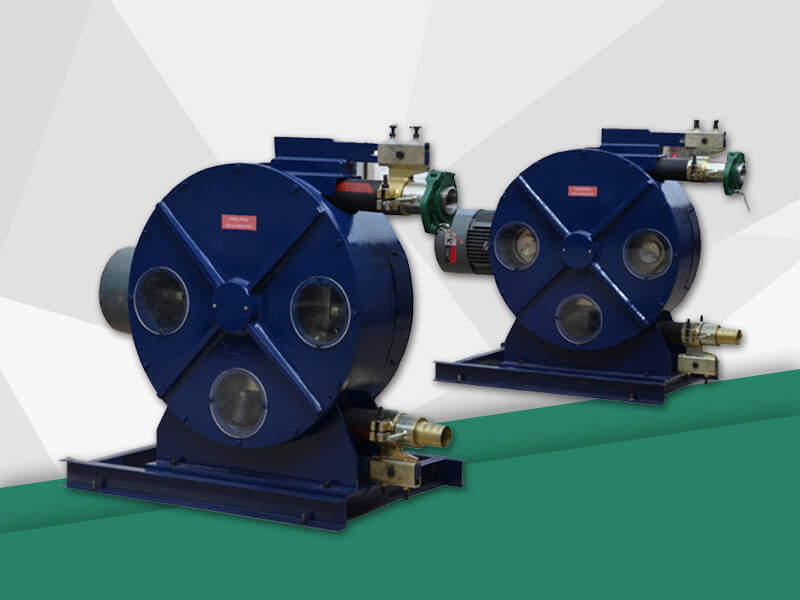

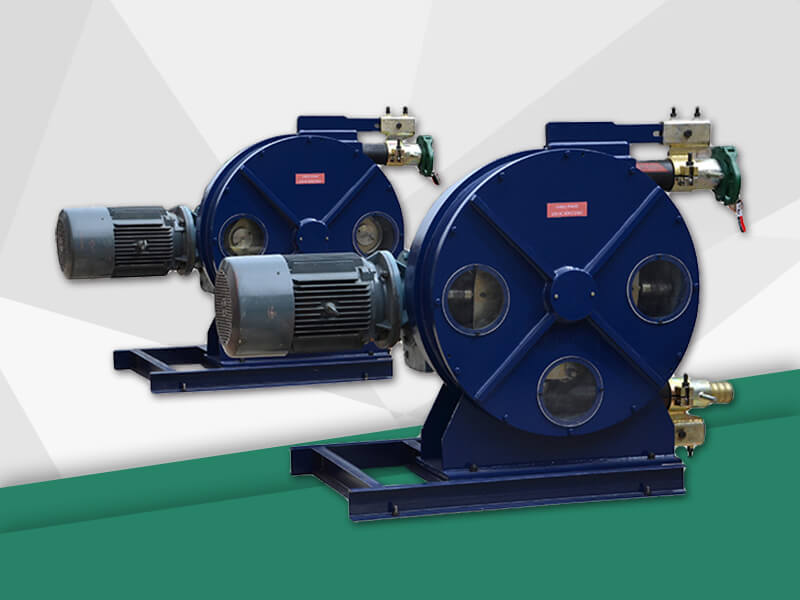

GH76-770R Metering Industrial Peristaltic Hose Pump
14m3/h
35RPM
76mm
25 bar
3 phase, 220V, 60HZ
18.5 KW
Introduction
Product Details
Technical data
Cases
Inquiry
Description

GH76-770R hot sale industrial peristaltic hose pump for pharmaceutical addition, drinking water disinfection, pH adjustment in drinking water and industrial wastewater treatment, industrial cooling water preparation, flocculant, mineralizer addition, disinfection laboratory, etc.

GH76-770R industrial peristaltic hose pumps have many advantages: they have the good self-priming ability, almost perfect vacuum to absorb liquid; transport contains foam, bubbles without air resistance; conveying high viscosity, shear sensitive medium is also strong; The fixed displacement is independent of the outlet pressure and is a natural metering pump.

GH76-770R industrial peristaltic pump is a new industrial  hose pump developed by advanced technology. The pump has no seal, no leakage, strong self-priming ability, simple structure, and convenient operation and maintenance. Suitable for conveying various viscosity, density, corrosive and abrasive substances. It can be used in petroleum, chemical, water treatment, mining, gold smelting, medicine, paper, ceramics, and other industries.

Application

GH76-770R industrial peristaltic hose pumps are used for the metering of additives in the pharmaceutical industry. The chemical industry is used to add chemical media containing acidic and corrosive substances; metering pumps for environmentally friendly industrial water treatment. Adjustable flow, self-priming ability,high metering accuracy and repeatability can reach ±1%.

In addition, GH76-770R peristaltic hose pumps can be applied to many industries, such as:

1. Construction: transfer of mortar, concrete and sprayed layers

2. Textile mill: transfer of fiber, liquid, dye and wastewater

3. Dye manufacturing: paint, paint and pigment delivery

4. Water treatment: transporting water and wastewater

5. Papermaking: conveying pulp, pigments and glue

6. Mining: transporting mineral waste

7. Ceramic: conveying glaze and coloring

8. Beer and Beverage: transporting beer, wine, milk, juice, additives and residues

9. Underground engineering: The tunnel construction machinery of TBM bentonite pumping mud pump uses a hose pump to pump or grout bentonite.

Features

GH76-770R hot sale industrial peristaltic hose pump can be used for drinking water disinfection, pH adjustment in drinking water and industrial wastewater treatment, industrial cooling water preparation, flocculant, beneficiation-agent addition, disinfection laboratory, etc.



GH76-770R hot sale peristaltic hose pump is widely used because of its unique advantages.

1. No valves, perfect pump for high viscosity fluids, simple structure, easy to  clean.

2. High measurement accuracy, repeatability ± 1%.

3. Self-priming ability, suction height.

4. Uniform continuous pumping, pulse small

5. No bear, easy to clean and maintain.

6. Less wear parts, the only hose is wear part, low cost.

7. Flow infinitely adjustable for different requirements.

8. Just replace the different hose, can pump the different material.



Product Details
Technical Parameters
Technical Data

Type

GH76-770R industrial peristaltic hose pump

Output

14m3/h

Rotation

35RPM

Squeeze hose ID

76mm

Working pressure

25 bar

Voltage

3 phase, 220V, 60HZ

Power

18.5 KW

Voltage

3 phase, 380V, 50HZ anti-explosion electric motor
