GCP15H-E Industrial Peristaltic Pump
GCP15H-E industrial peristaltic pump is designed by Peristaltic Pump Manufacturer Lead Equipment based on a concrete pump. This industrial peristaltic pump uses a high-pressure, wear-resistant extrusion tube. More widely used for pumping foam concrete, lightweight concrete, mortar, and refractory materials.
parameter
GH76-610
76mm (Trelleborg Squeeze hose)
37rpm
15m3/h
2.5Mpa
PRODUCTS LIST
HOT products
CASE
Inquiry
Introduction
Product Details
Technical data
Cases
Inquiry
Description
GCP15H-E industrial peristaltic pump is designed by industrial peristaltic pump manufacturer Lead Equipment based on a concrete pump. GCP15H-E industrial peristaltic pump uses a high-pressure, wear-resistant extrusion tube, the pressure can reach 2.5Mpa, and the output is 15m3/h.
Application
GCP15H-E industrial peristaltic pump has no seal, no leakage, strong self-priming ability, simple structure, convenient operation and maintenance. Suitable for conveying all kinds of viscosity, density, corrosive and abrasive materials. It can be used for ground construction, underground engineering, tunnels, mines, highways, railways, hydropower and construction projects.
Features
The main features of the GCP15H-E industrial peristaltic pump are as follows:
1. Compact size, hopper, extrusion pumps, and power sources combined in a base frame.
2. GCP15H-E industrial peristaltic pump installation of frequency control, stepless output.
3. Adopting squeeze-type pumping, the squeeze hose is the only wearing part.
4. Imported special concrete squeeze tubes, pressure, wear, and long life.
5. Reversible work, facilitates the removal of plugging failure.
6. Clean on the line, sample, convenient.
1. Compact size, hopper, extrusion pumps, and power sources combined in a base frame.
2. GCP15H-E industrial peristaltic pump installation of frequency control, stepless output.
3. Adopting squeeze-type pumping, the squeeze hose is the only wearing part.
4. Imported special concrete squeeze tubes, pressure, wear, and long life.
5. Reversible work, facilitates the removal of plugging failure.
6. Clean on the line, sample, convenient.
Product Details
-

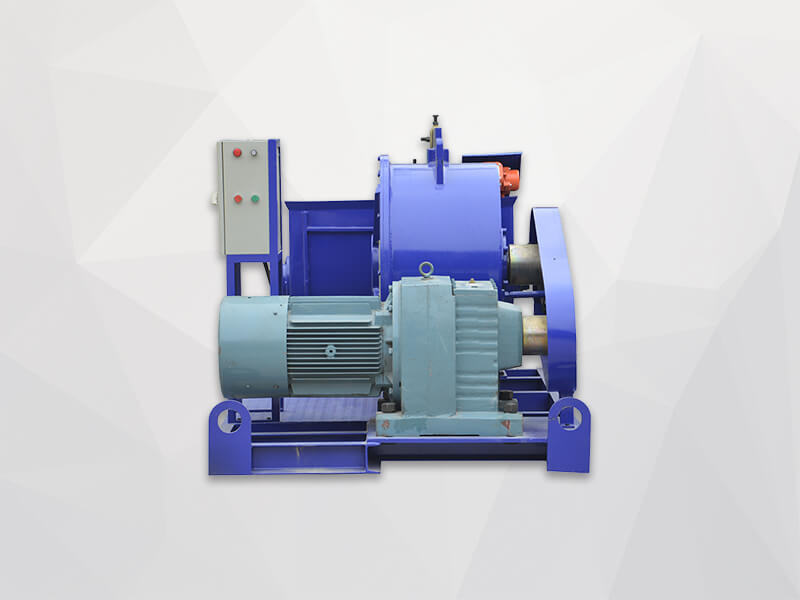

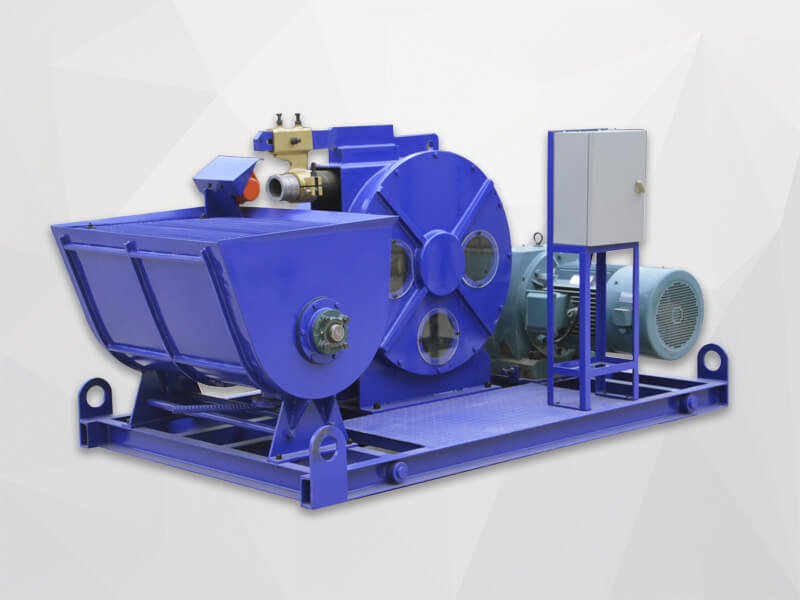

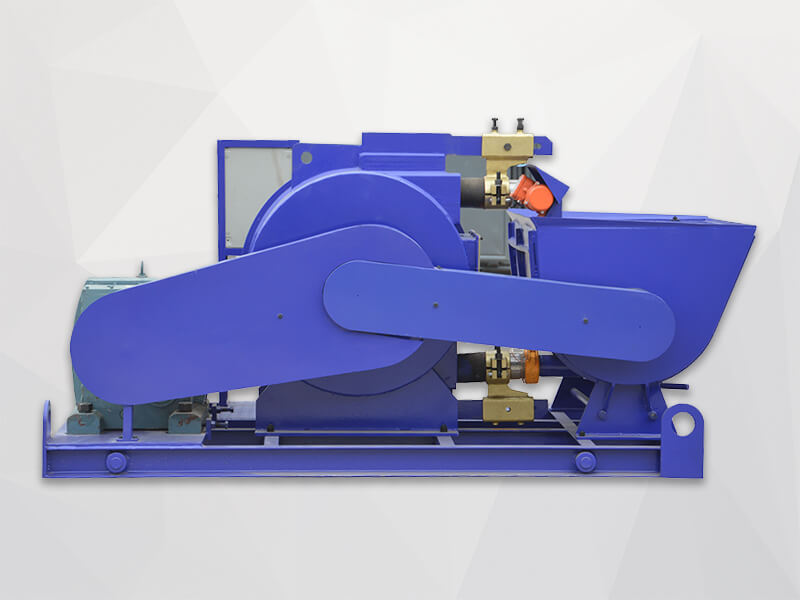

hose type concrete pump -

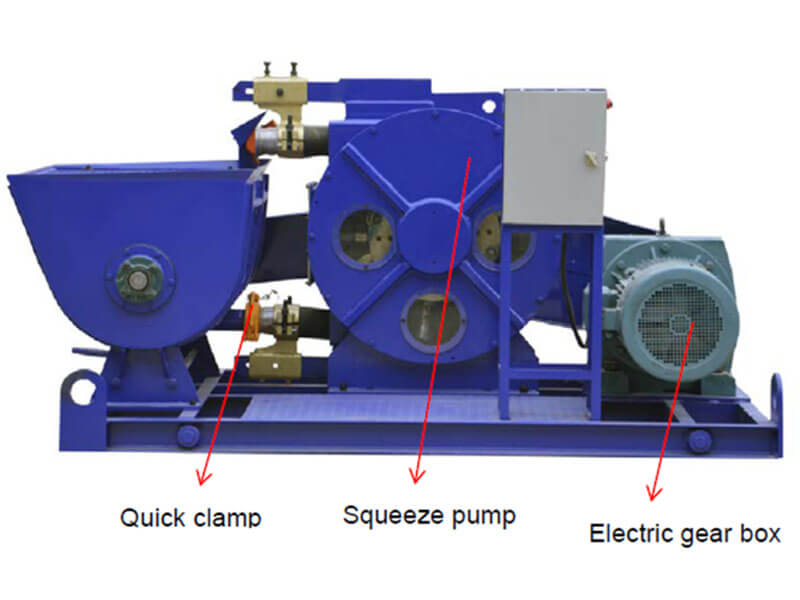

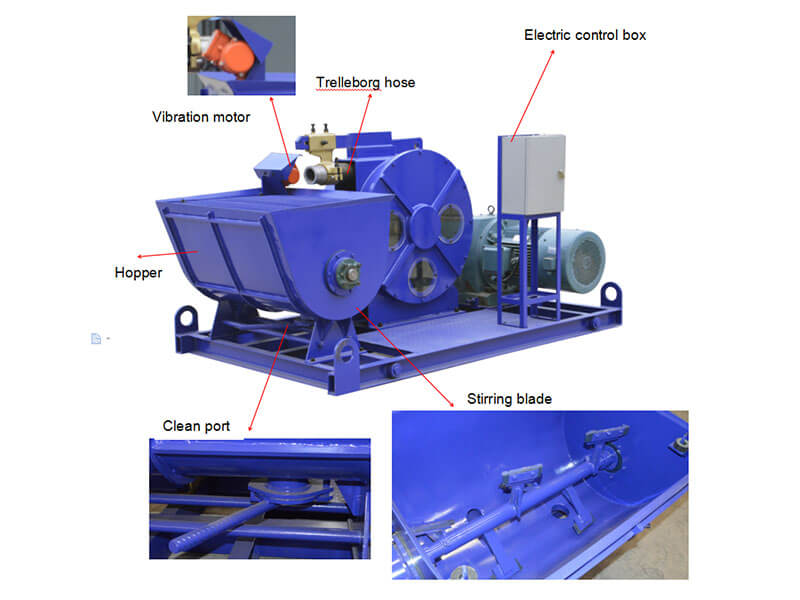

hose type concrete pump detail -

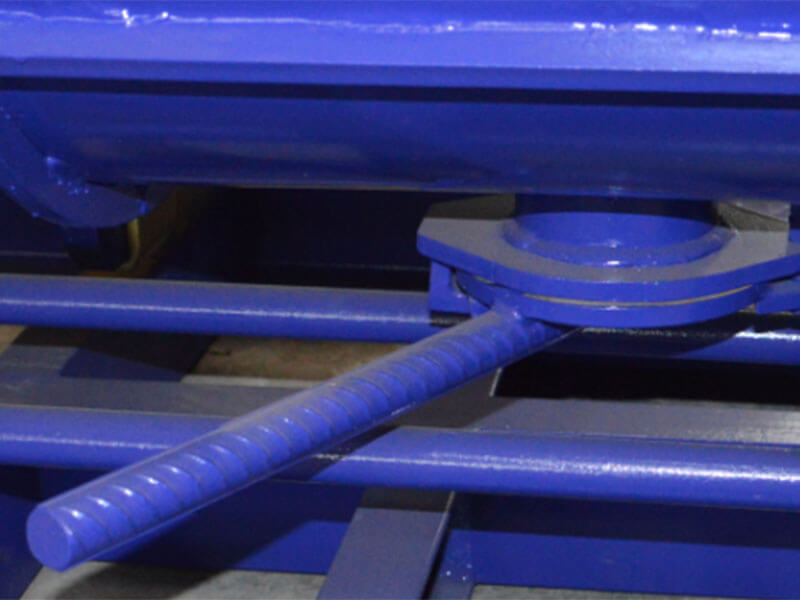

Clean port -

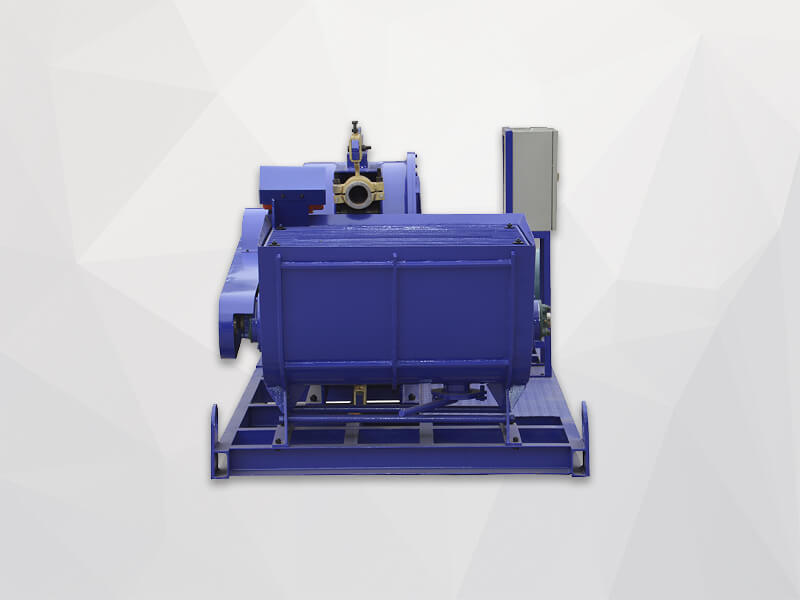

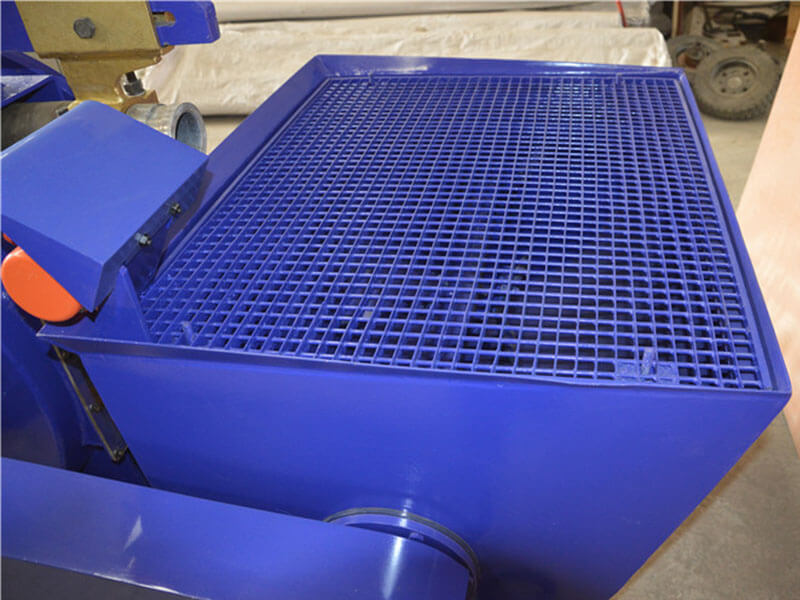

Hopper for hose type concrete pump -

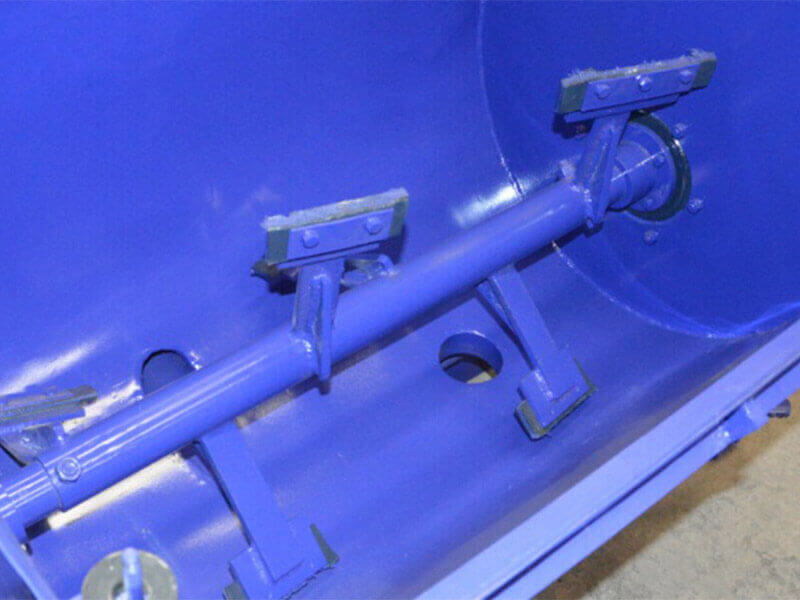

Stirring blade -

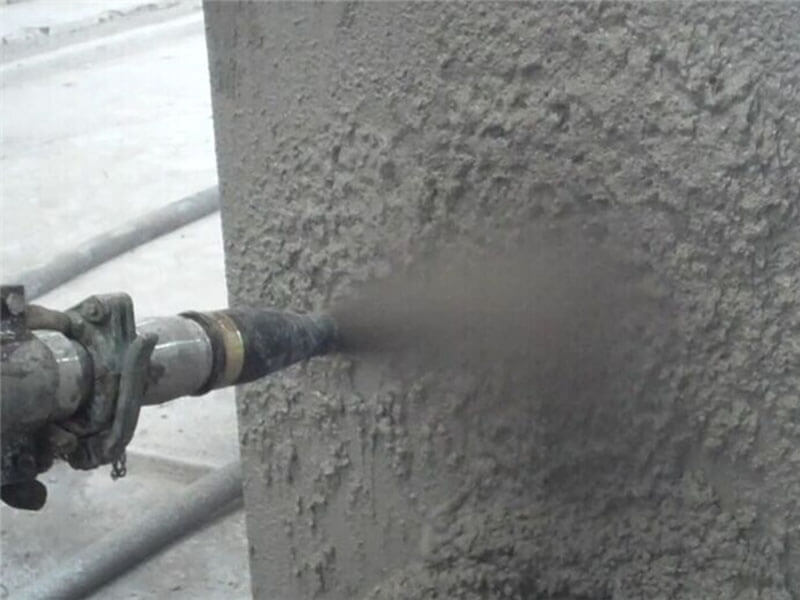

hose type concrete pump spraying
Technical Parameters
| Description | parameter |
| Squeeze Pump | GH76-610 |
| Hose ID | 76mm (Trelleborg Squeeze hose) |
| Speed | 37rpm |
| Output | 15m3/h |
| Pressure | 2.5Mpa |
| Max. Aggregate size | <15mm |
| Concrete Slump | 15-23cm |
| Hopper Capacity | 350L |
| Stirring speed | 37rpm |
| Reducer Model | NR137 |
| Voltage | 22KW 50HZ IP55 3~380V |
| Overall Dimension | 2400x1300x1200mm |
| Weight | 1560kg |
| Used for spraying, recommend air compressor: the output is 6m3/h, the pressure≥0.5bar | |
