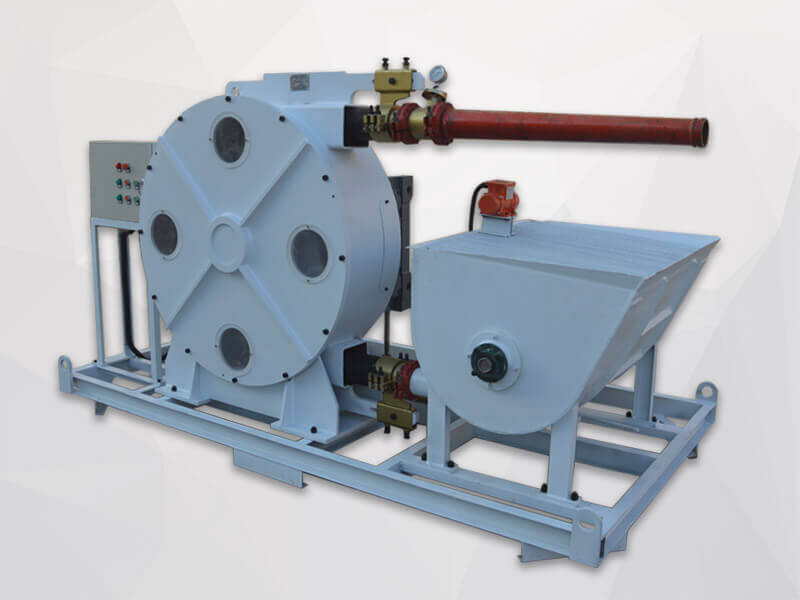

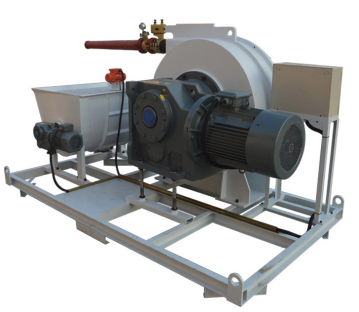

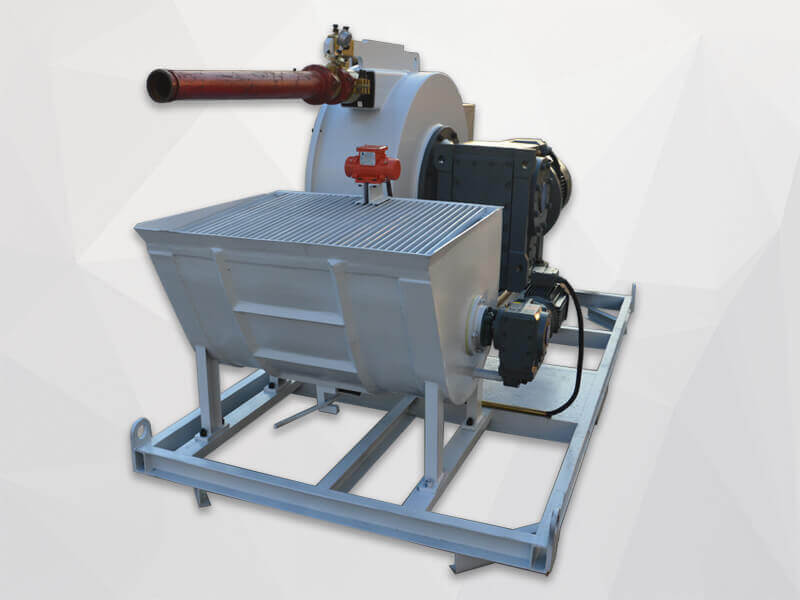

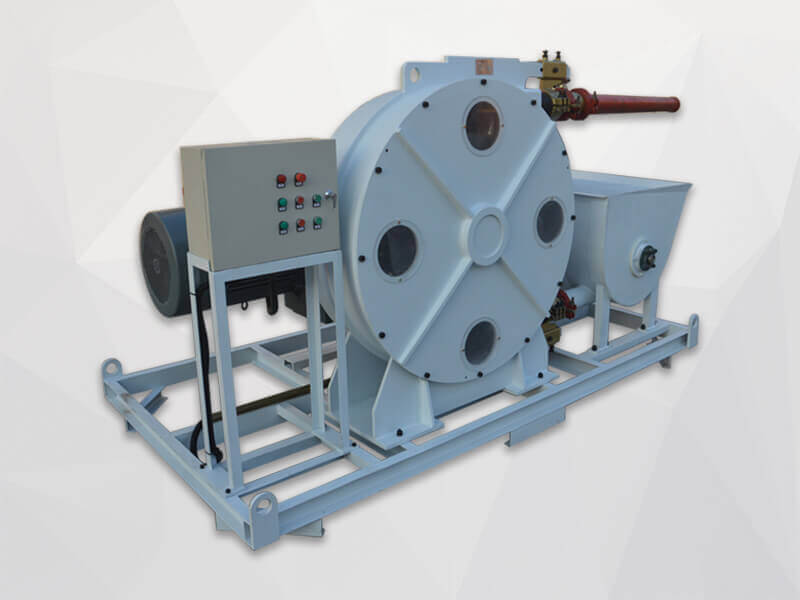

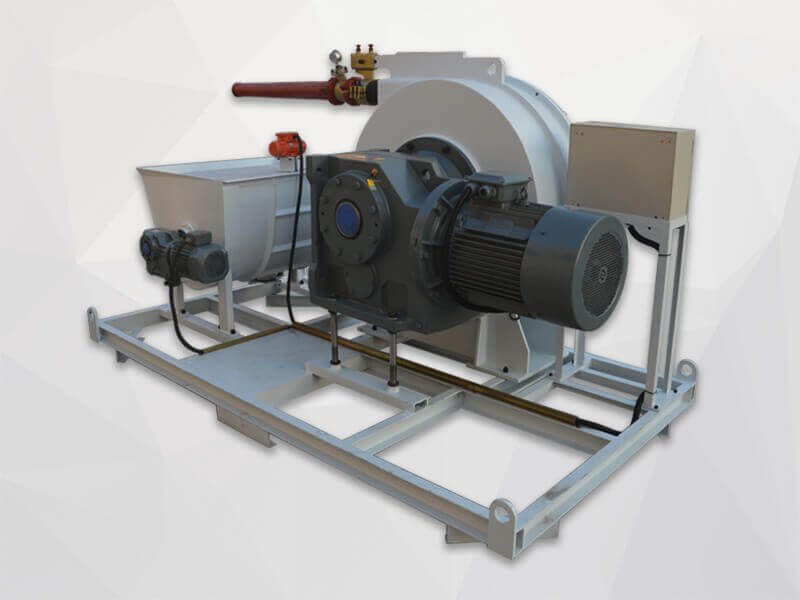

GCP40H-E Industrial Hose Pump
GCP40H-E industrial hose pump is based on the hose pump by industrial hose pump supplier Lead Equipment. GCP40H-E industrial hose pump uses high-pressure wear-resistant extruded tube with a pressure of 2.5Mpa and a production capacity of 45m3/h.
parameter
GH100-1050
100mm (Trelleborg Squeeze hose)
39rpm
45m3/h
2.5Mpa
Introduction
Product Details
Technical data
Cases
Inquiry
Description
GCP40H-E industrial hose pump is based on the hose pump by industrial hose pump supplier Lead Equipment. GCP40H-E industrial hose pump uses a high-pressure wear-resistant extruded tube with a pressure of 2.5Mpa and a production capacity of 45m3/h. More widely used for pumping foam concrete, lightweight concrete, mortar and refractory materials. GCP40H-E industrial hose pump can also be used to spray or grout concrete or refractory materials.
Gaode Equipment as a supplier of GP40H-E industrial hose pumps, we have strict control over the quality of our products. GCP40H-E industrial hose pump meets national standards, has strong self-priming ability, and unique structure, and adopts a unique seal to prevent leakage. It meets the requirements of worksite management.
Heavy-duty gearbox

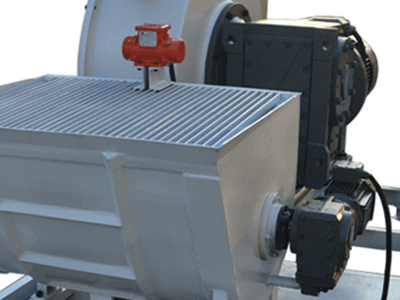

IP65 waterproof vibrator
Application
Gaode Equipment is China's leading supplier of industrial hose pumps. Our GCP40H-E industrial hose pump has been exported to South Africa, the United States, Canada, India, Malaysia, Pakistan, South Korea, Bahrain and Nepal, and are used in many large projects such as tunnels. Excavation, subway construction, bridge construction, sewage treatment, mining, etc.

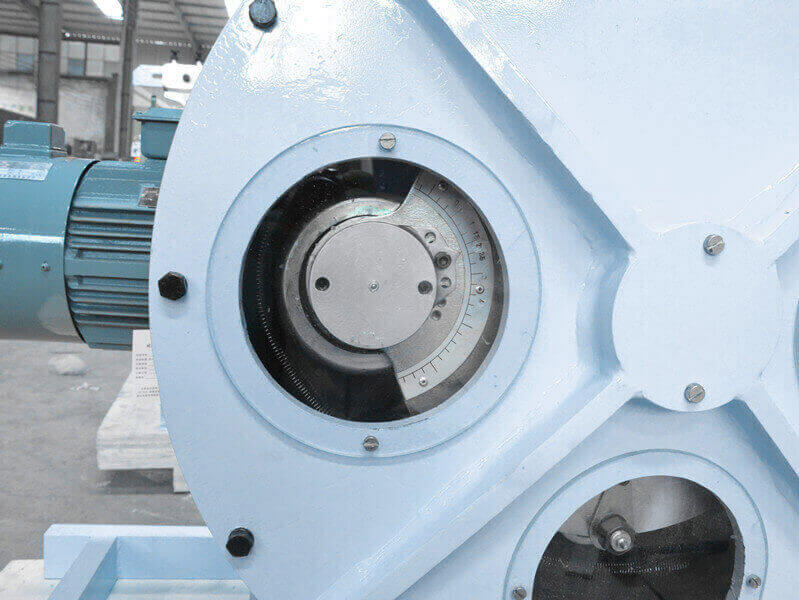

The gap size between the roller and the pump house is sited by the below scale, then locked by a screw.

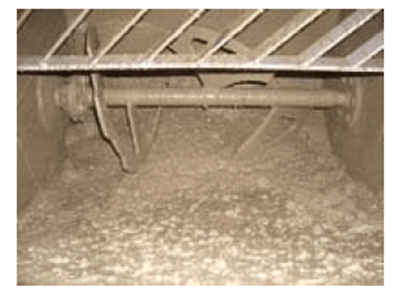

Almost no residual concrete
Nearly 100 % of the concrete in the hopper can be delivered to the construction site. I.e. no more concrete residue, and expensive concrete residue disposal can also be avoided.
Features
As an industrial hose pump supplier with 20 years of experience, our company's GCP40H-E industrial hose pump has performance advantages that cannot be ignored, and its main features are:
1. Compact size: hopper with agitator, hose pump, and power combined in a base frame.
2. Soft start: the electric motor smoothly starts and protects the motor
3. Low wear: the squeeze hose is the only worn part of the pump and can be replaced very quickly
4. Delivers even the most difficult materials
5. Quiet pumping process
6. Forwards and reverse, easily remove the block.
7. Clean on the line: Quick and easy cleaning
8. No residual concrete remains in the system

Delivers even the most difficult materials
Delivers even the most difficult of materials: steel fiber concrete, broken material, screed, foamed concrete, fluid concrete, and lightweight concrete up to a particle distribution of 20 mm.

Product Details
Electric squeeze hose pump
IP65 waterproof vibrator
Almost no residual concrete
Technical Parameters
Description parameter
Hose Pump GH100-1050
Hose ID 100mm (Trelleborg Squeeze hose)
Pump Speed 39rpm
Rated Output 45m3/h
Pressure 2.5Mpa
Max. Aggregate size <15mm
Concrete Slump 15-23cm
Hopper Capacity 400L
Hopper mixing speed 37rpm
Power Voltage 45KW  50HZ  IP55  3~380V
Overall Dimension 3080x1560x1730mm
Weight 2840kg
