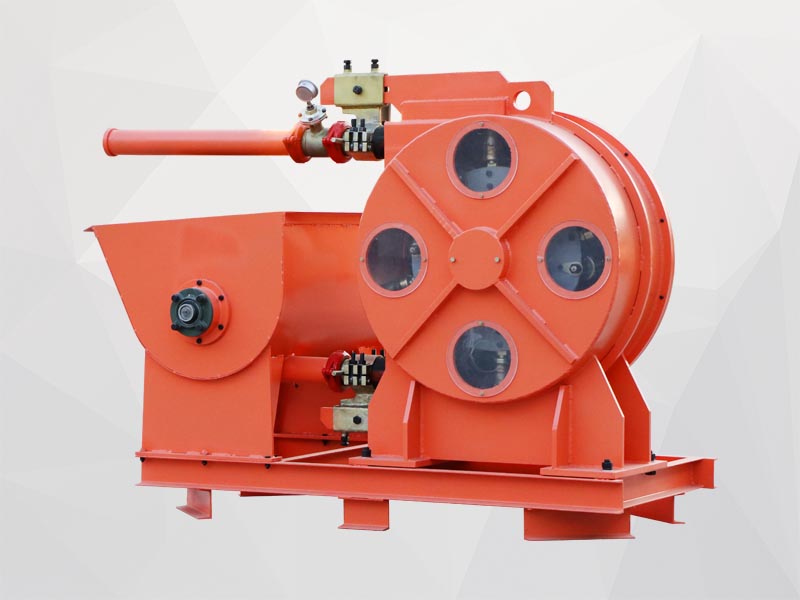

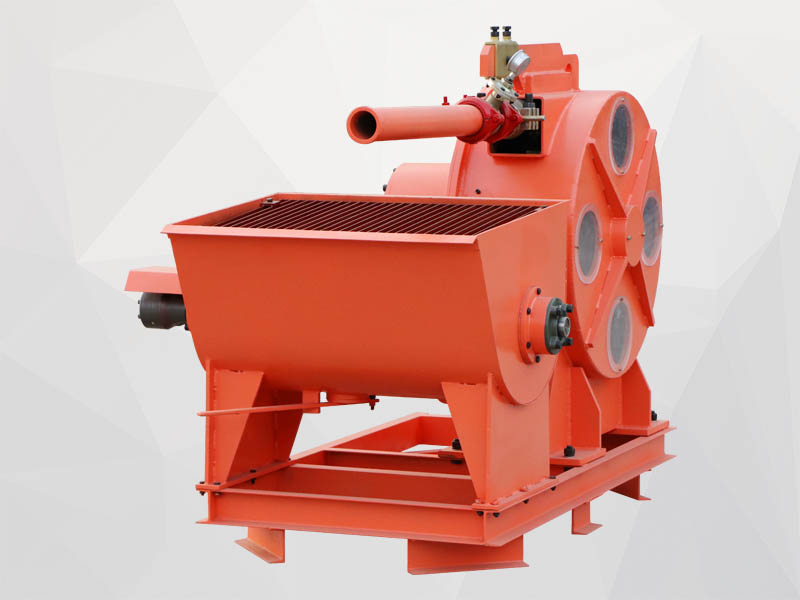

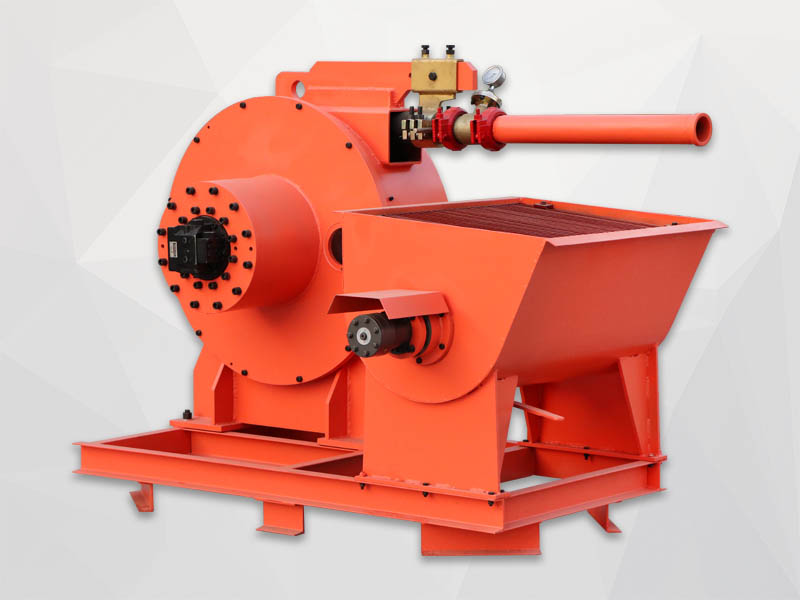

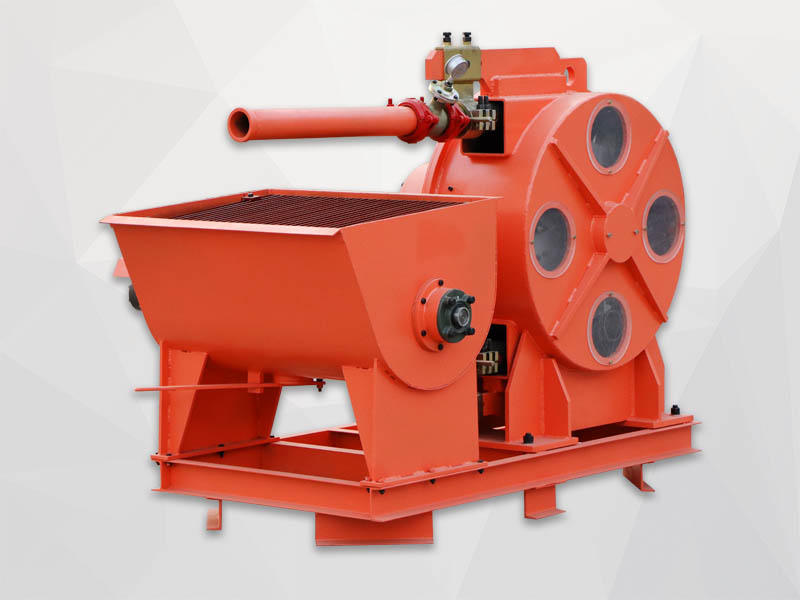

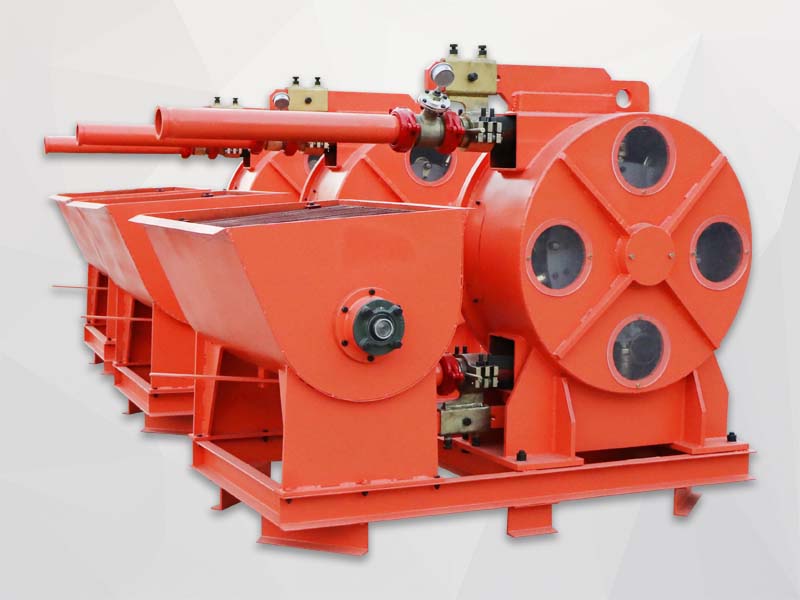

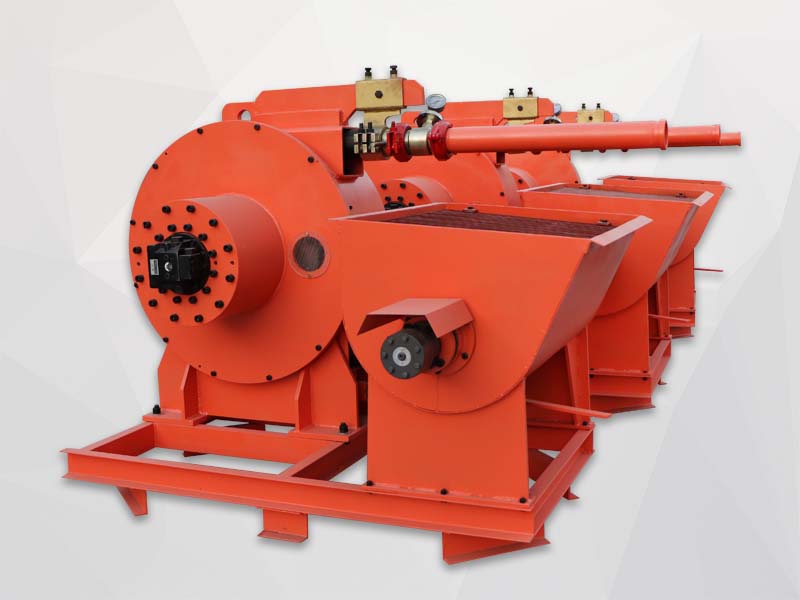

GCP20H-H Hose Type Concrete Pump
Best price GCP20H-H hose type concrete pump was designed based on the squeeze hose pump, hose type concrete pump uses high pressure, resisting wear squeeze concrete hose with steel wire reinforcement layers, the working pressure is up to 25 bars.
20M3/h
40rpm
<15mm
15-23cm
130L/min
10Mpa
Introduction
Product Details
Technical data
Cases
Inquiry
Description
Best price GCP20H-H hose type concrete pump was designed based on the squeeze hose pump, hose type concrete pump concrete pump uses high pressure, resisting wear squeeze concrete hose with steel wire reinforcement layers, the working pressure is up to 25 bars.
GCP20H-H hose type concrete pump price concessions and stable performance. Only the hose is in contact with the material during work to avoid causing pollution. GCP20H-H hose type concrete has strong self-priming ability, large flow rate, and easy operation. It is suitable for conveying concrete, mud, bentonite, cement foam concrete, and handling erosion, high viscosity, high density products.
Application
GCP20H-H hose type concrete pump price concessions, long machine life and high working efficiency, and has been widely used in many fields, such as construction, pharmaceutical, textile, dye manufacturing, water treatment, papermaking, mining, ceramics, beer and beverages, underground engineering, etc.
Features

GCP20H-H hose type concrete products comply with national and international standards. LCP20H-H hose type concrete price concessions, stable performance, good sealing performance, easy operation, no water cooling, beautiful and durable. The main features of GCP20H-H hose type concrete are:
1. Quiet pumping process.
2. Clean on the line: Quick and easy cleaning.
3. No residual concrete remains in the system.
4. hose type concrete pump delivers even the most difficult materials.
5. Forwards and reverse, easily to removal the block.
6. Compact size: hose pump, agitator and hydraulic motor gearbox combined in a base frame.
7. Hydraulic motor gearbox: stepless speed control, connect with own hydraulic power pack could work directly, easy to operate.
8. Low wear: the squeeze hose is the only wear part of the pump and can be replaced very quickly.

Product Details

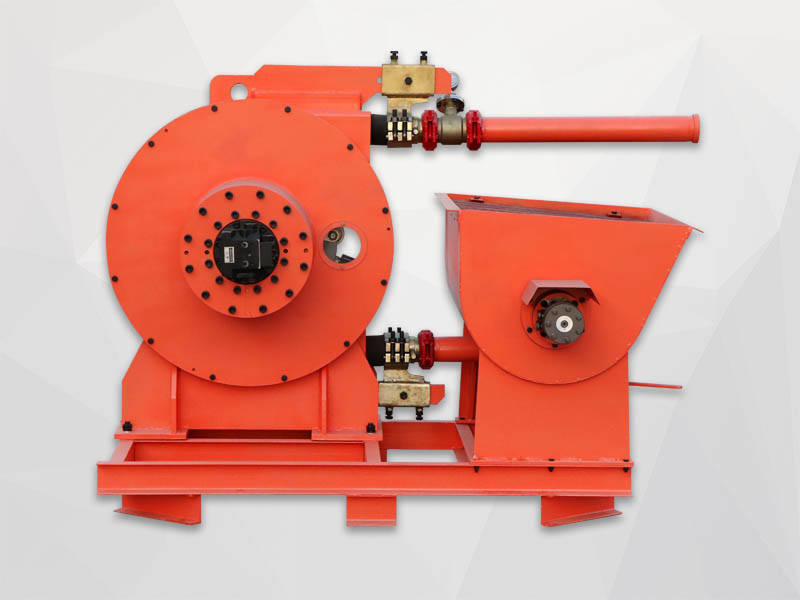

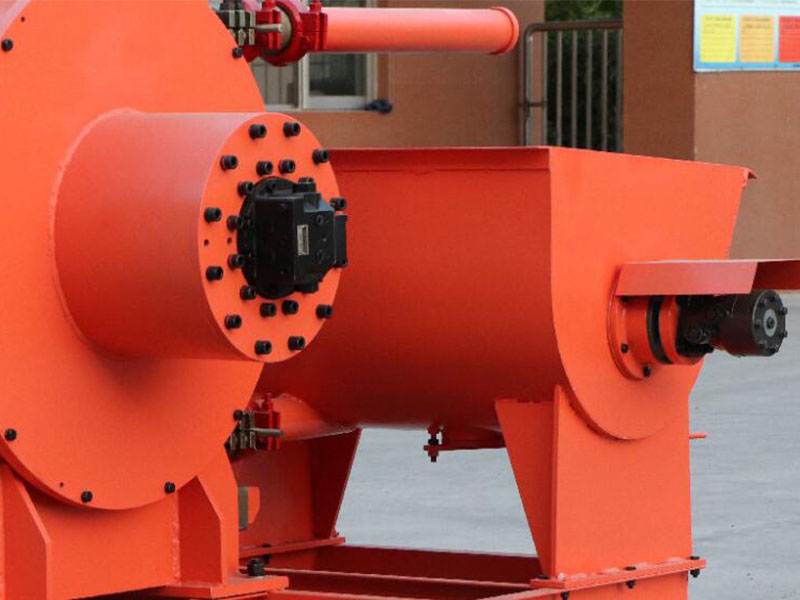

Hydraulic motor drive

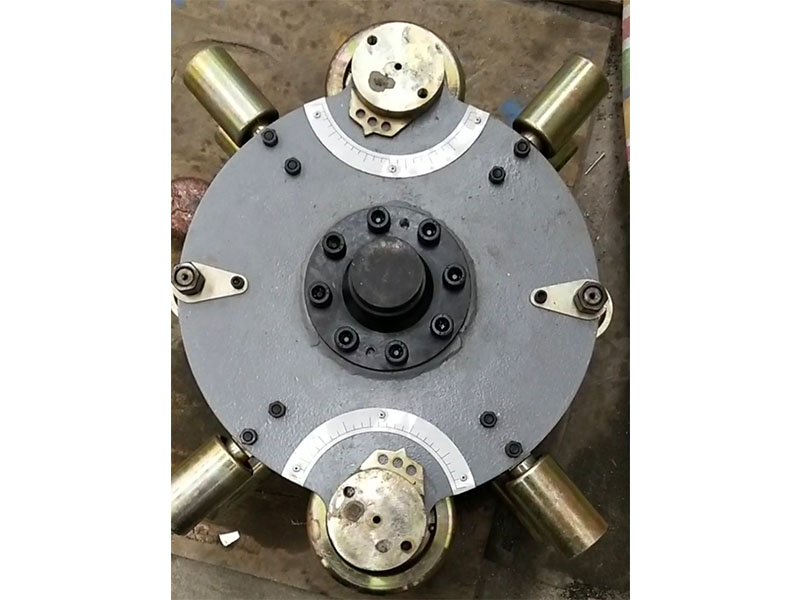

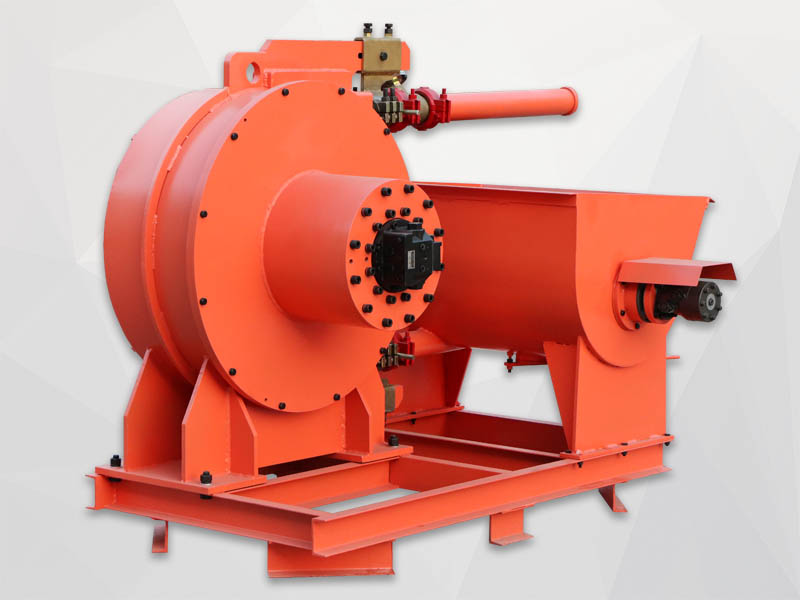

Peristaltic pump pump core
Trelleborg hoses
Technical Parameters
Description Parameter
Model GCP20H-H
Overall Dimension 2000x1350x1500mm
Weight 1145kg
Pump Head
Hose Pump GH76-915B
Squeeze Hose ID 76mm (Trelleborg Squeeze hose)
Pump Speed 40rpm
Rated Output 20m3/h
Pressure 2.5Mpa
Max. Aggregate size <15mm
Concrete Slump 15-23cm
Heavy Duty Hydraulic Motor Gearbox
Required flow 130L/min
Required pressure 10Mpa
Hydraulic Mixing Motor
Model BMH200-4-B-D
Required flow 10L/min
Required pressure 10Mpa
Hopper Capacity 400L
