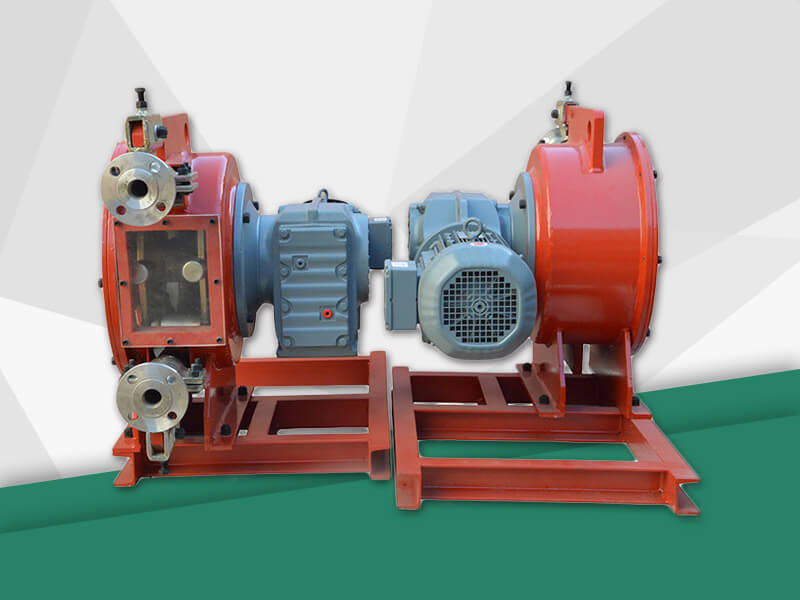

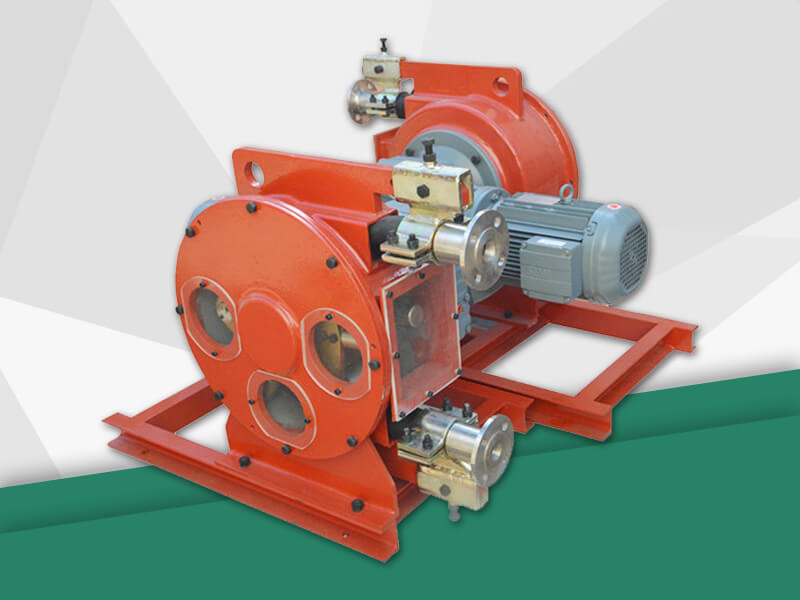

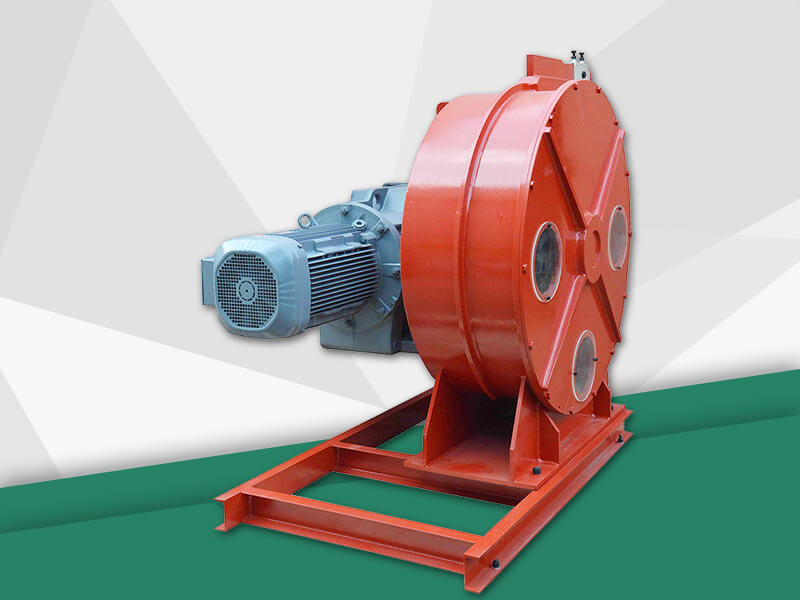

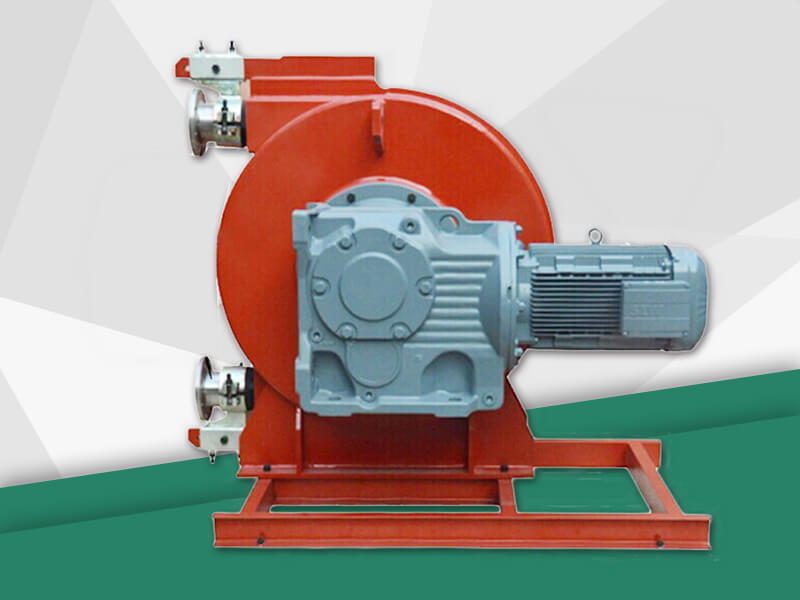

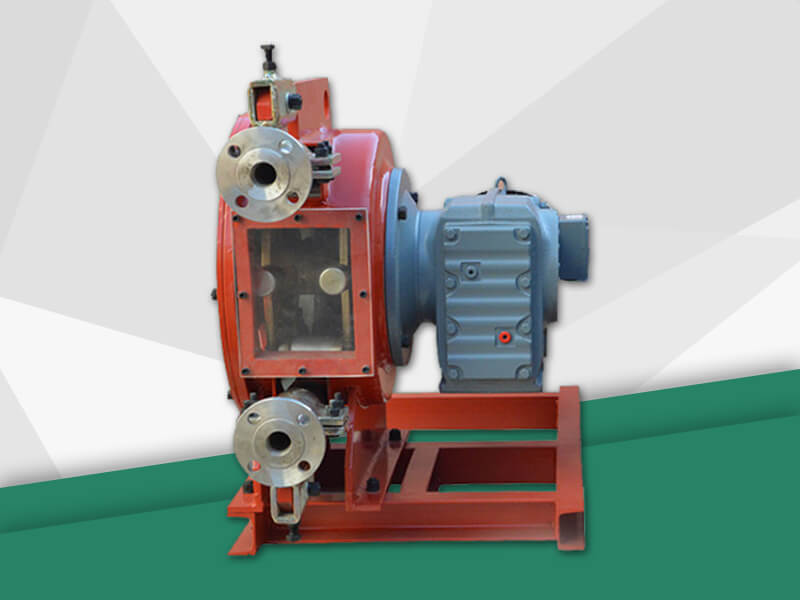

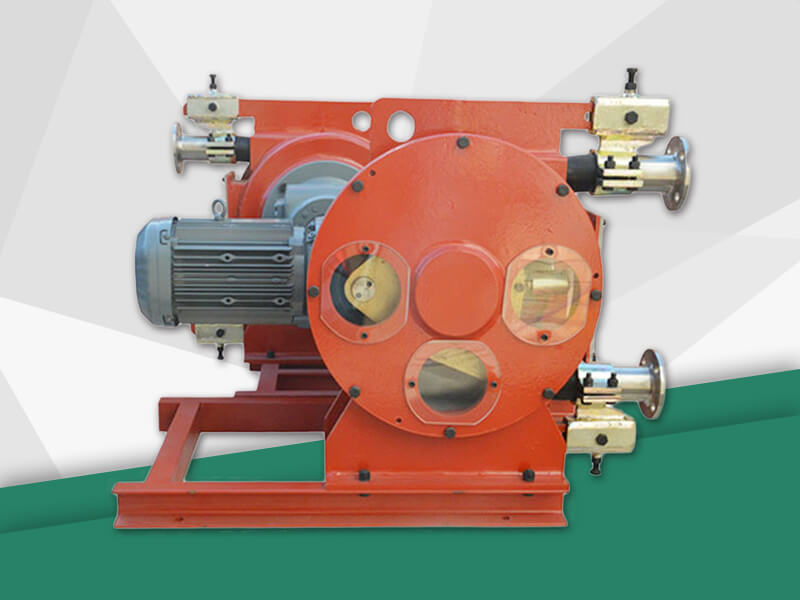

GH32-330R waste water treatment peristaltic pump is designed for use in water treatment. Its connector is stainless steel flanged and the gearbox is SEW gearbox. It has better transmission efficiency and smaller size, saving space.
GH32-330R water treatment peristaltic pump has the advantages of products that cannot be ignored.
(1) GH32-330R water treatment peristaltic pump is of the volumetric type, with inorganic sealing, strong self-priming ability and self-cleaning.
(2) No pump valve will not breed signs of harmonious resistance of sealed pump discharge, eliminate leakage caused by the operation, operation, dripping, loss and pollution, and clean up your site.
(3) GH32-330R water treatment peristaltic pump is simple in layout, no impeller, no cavity, etc. It is flexible and can transport liquid, mud and viscous suspended solids. In particular, the hose elastic chamber can pump liquids with a particle size smaller than 1/4 of the hose diameter, impurities in various fibers and solid mud, and the smooth hose cavity does not cause any blockage. Large solid particles are allowed. The concentration of the transport medium can reach more than 70%. Therefore, it is very convenient to transport high-concentration materials.
GH32-330R water treatment peristaltic pumps we produce meets the national standards and international standards. The products have stable performance, good sealing performance, easy operation, water-free cooling, beautiful and durable. They are suitable for conveying various chemical media with various viscosity and temperature, so they are widely used in many fields.
1. Gold smelting industry: gold pulp and tailings transportation;
2. Chemical industry: acid, alkali, phosphate and titanium dioxide phosphate, titanium dioxide (met titanate) slurry, crystallization liquid, suspension, latex, resin, slime and various liquids;
3. Drilling mud in the petroleum industry: transportation of crude oil and transportation of organic solvents and fuels such as gasoline and kerosene;
4. Water treatment: sludge, lime slurry, added chemicals, sampled water, sediment transport;
5. Mining, metallurgical industry: such as gold mining in filling materials, iron oxide scale, flue mud treatment of thick slurry, underground passage drainage, adsorbents, mortar and mortar;
GH32-330R water treatment peristaltic pump is designed for use in water treatment. Its connector is stainless steel flanged and the gearbox is SEW gearbox. It has better transmission efficiency and smaller size, saving space.
In addition, GH32-330R water treatment peristaltic pumps have many advantages over other types of pumps. The specific characteristics are as follows:
1. No seals
2. No valves
3. Self-priming
4. Only tube to replace
5. Dry-running without damage
6. Reversible
7. No contact between product and mechanical parts
8. Able to pump products with solid parts inside
9. Easy maintenance, low-cost, short down time
Type | GH32-330R |
Output | 1.2m3/h |
Rotation | 34 RPM |
Squeeze hose ID | 32mm |
Working pressure | 18bar |
Voltage | 3 phase, 380V, 50HZ IP55 |
Power | 2.2 KW |
