GH32-450R OEM Mine Industrial Mud Peristaltic Pump for Sale
30L/min ( at 0.3Mpa, 50HZ)
36RPM
32mm
1.5Mpa
3 phase, 380V, 50HZ
3KW
Introduction
Product Details
Technical data
Cases
Inquiry
Description

GH32-450R OEM mine industrial mud peristaltic pump is used for slurry transportation in the mining industry.GH32-450R OEM mine industrial mud peristaltic pump uses a wear-resistant hose suitable for pumping abrasive slurry concentrate slurry, underground passage drainage, adsorbent, mortar and mortar, etc. When conveying materials, only the hose In contact with the material, the hose is the only vulnerable item. When there is a problem, it only needs to be replaced in time to be used normally.

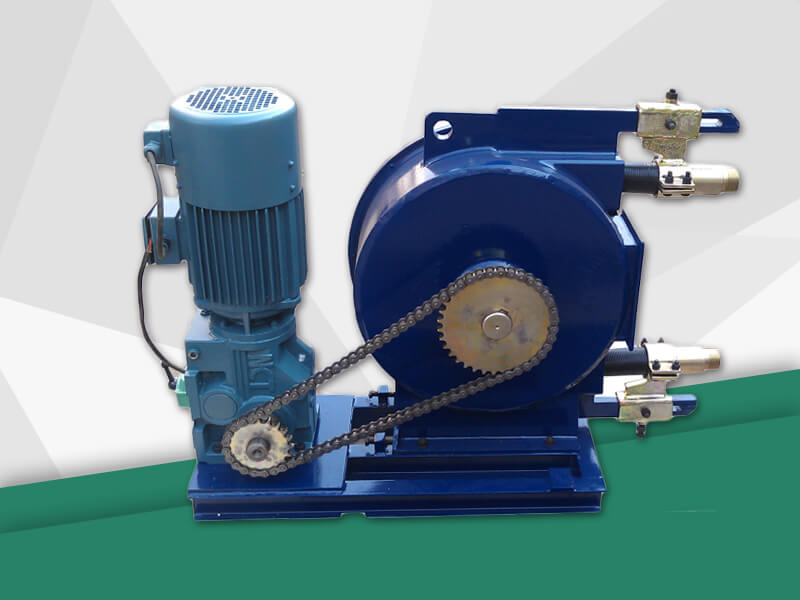

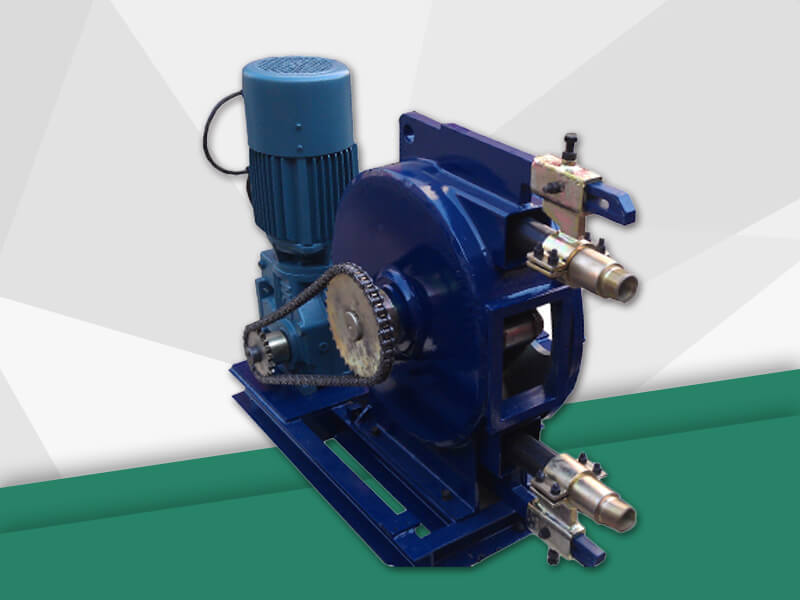

GH32-450R OEM mine industrial mud peristaltic pump is a new type of peristaltic pump. It adopts the chain transmission type. The chain is easy to install, easy to replace, and affordable, reducing the maintenance cost.

GH32-450R OEM mine industrial mud peristaltic pump can be used in the following applications: Construction: Transfer of mortar and concrete and spray coatings: Transport of corrosive and toxic substances Textile mills: Transport of fibres, liquids, dyes and wastewater Dye manufacturing: paints, paints and colours Conveying water treatment: conveying water and wastewater Papermaking: conveying pulp, pigment and glue mining: transporting mineral waste ceramics: conveying glaze and coloring beer and beverages: conveying beer, wine, milk, juice, additives and residues underground engineering: Conveying mud TBMH bentonite pumping pump tunnel construction machinery uses a hose pump to pump or grout bentonite.

Application

GH32-450R OEM mine industrial mud peristaltic pump products comply with national and international standards. The product has stable performance, good sealing performance, easy operation, no water cooling, beautiful and durable. They are suitable for transporting a variety of chemical media with different viscosities and temperatures and are therefore widely used in many fields.

1. Gold smelting industry: gold pulp and tailings transportation;

2. Chemical industry: acid, alkali, phosphate and titanium dioxide phosphate, titanium dioxide (met titanate) slurry, crystallization liquid, suspension, latex, resin, slime and various liquids;

3. Drilling mud in the petroleum industry: transportation of crude oil and transportation of organic solvents and fuels such as gasoline and kerosene;

4. Water treatment: sludge, lime slurry, added chemicals, sampled water, sediment transport; Mining, metallurgical industry: such as gold mining in filling materials, iron oxide scale, flue mud treatment of thick slurry, underground passage drainage, adsorbents, mortar and mortar;

6. Pharmaceutical industry: transportation of liquid materials; Food industry: food and beverage transportation;

Features

GH32-450R OEM mine industrial mud peristaltic pump produced by Gaodetec is used to pump slurry, slag, mud and mortar in the mining industry. GH32-450R OEM mine industrial mud peristaltic pump absorbs advanced technology at home and abroad, so it is widely used in various industries. GH32-450R OEM mine industrial mud peristaltic pump It has more advantages than other types of pumps.

1. Reversibility

2. Sealessness and valveless

3. Abrasion resistance

4. Self priming with high suction

5. With 1% repeat precision

6. Corrosion-resistant

7. Easy to clean

8. Can run dry without damage

9. Peristaltic tube is the only consumption part



Product Details
Technical Parameters
Technical Data

Type

GH32-450R

Max. ouput

30L/min ( at 0.3Mpa, 50HZ)

Rotation

36RPM

Squeeze hose ID

32mm

Max.  pressure

1.5Mpa

Voltage

3 phase, 380V, 50HZ

Power

3KW
