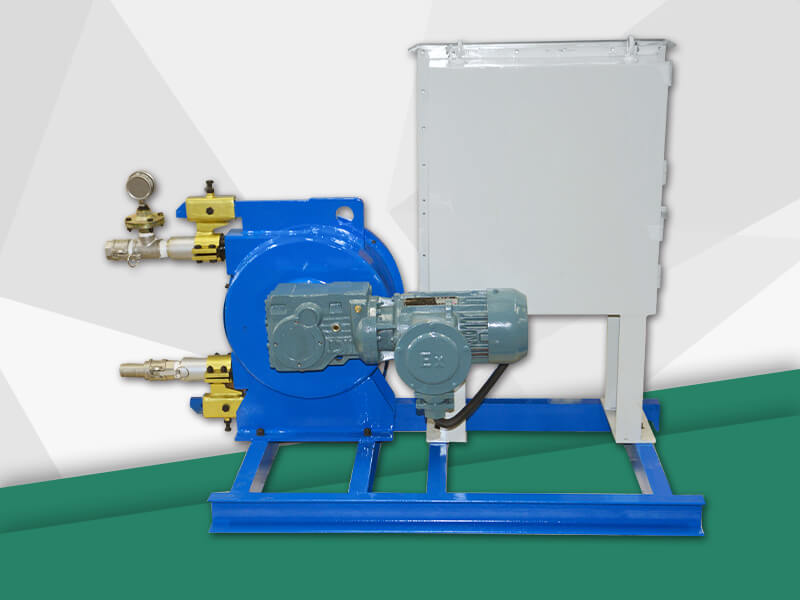

GH32-330R Explosion Proof Mining Hose Pump for Slurry Transport
2m3/h
0.5Mpa
60rpm
32mm
NR
1.5kw
Introduction
Product Details
Technical data
Cases
Inquiry
Description

GH32-330R explosion proof mining hose pump is used for slurry transportation in the mining industry. GH32-330R explosion proof mining hose pump uses a wear-resistant hose suitable for pumping abrasive slurry concentrate slurry, underground passage drainage, adsorbent, mortar and mortar, etc. When conveying materials, only the hose In contact with the material, the hose is the only vulnerable item. When there is a problem, it only needs to be replaced in time to be used normally.

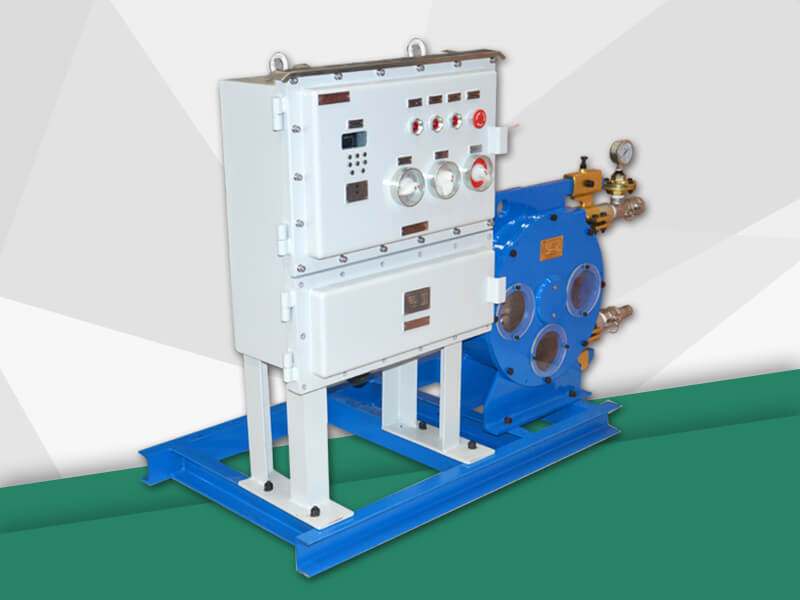

We have added explosion-proof motors, control equipment and frequency converters to the GH32-330R explosion proof mining hose pump to improve the construction quality to a greater extent and to protect the safety of the operators.



GH32-330R explosion proof mining hose pump is a new multi-purpose industrial peristaltic hose pump developed by advanced technology. The pump has no seal, no leakage, strong self-priming ability, simple structure, and convenient operation and maintenance. Suitable for conveying various viscosity, density, corrosive and abrasive substances. It can be used in petroleum, chemical, water treatment, mining, gold smelting, medicine, paper, ceramics, and other industries.

Application

GH32-330R explosion proof mining hose pump is used for mud transportation in the mining industry. GH32-330R explosion proof mining hose pump has a simple structure, no impeller, no cavity and so on. It is flexible and can transport liquids, slurries and viscous suspended solids. In particular, the hose elastic chamber can pump liquids with a particle size smaller than 1/4 of the hose diameter, impurities in various fibers and solid mud, and the smooth hose cavity does not cause any blockage. Larger solid particles are allowed. The concentration of the transport medium can reach more than 70%. Therefore, it is very convenient to transport high concentration materials.

GH32-330R explosion proof mining hose pump are used in many industries:

1. Construction: transfer of mortar, concrete and sprayed layers

2. Textile mill: transfer of fiber, liquid, dye and wastewater

3. Dye manufacturing: paint, paint and pigment delivery

4. Water treatment: transporting water and wastewater

5. Papermaking: conveying pulp, pigments and glue

6. Mining: transporting mineral waste

7. Ceramic: conveying glaze and coloring

8. Beer and Beverage: transporting beer, wine, milk, juice, additives and residues

9. Underground engineering: The tunnel construction machinery of TBM bentonite pumping mud pump uses a hose pump to pump or grout bentonite.





Features

GH32-330R explosion proof mining hose pump is a new hose pump produced by Gaodetec, which absorbs advanced technology at home and abroad.GH32-330R explosion proof mining hose pump has more advantages than traditional other types of pumps.

The characteristics of the GH32-330R explosion proof mining hose pumps are as follows:

  1. No seals

  2. No valves

  3. Self-priming

  4. Only tube to replace

  5. Dry–running without damagae

  6. Reversible

  7. No contact between product and mechanical parts

  8. Able to pump products with solid parts inside

  9. Easy maintenance, low-cost, short down time

Product Details
Technical Parameters

Model

GH32-330R

Output

2m3/h

Rated pressure

0.5Mpa

Rotation

60rpm

Squeeze hose ID

32mm

Squeeze hose material

NR

Electric motor

1.5kw

Electric voltage

3 phase 380v 50hz
