GH89-610R Industrial Hose Pump Machine for Shield Tunneling
240L/min
45RPM
89mm
1.0Mpa
3 phase, 380V, 50HZ
22KW
Introduction
Product Details
Technical data
Cases
Inquiry
Description

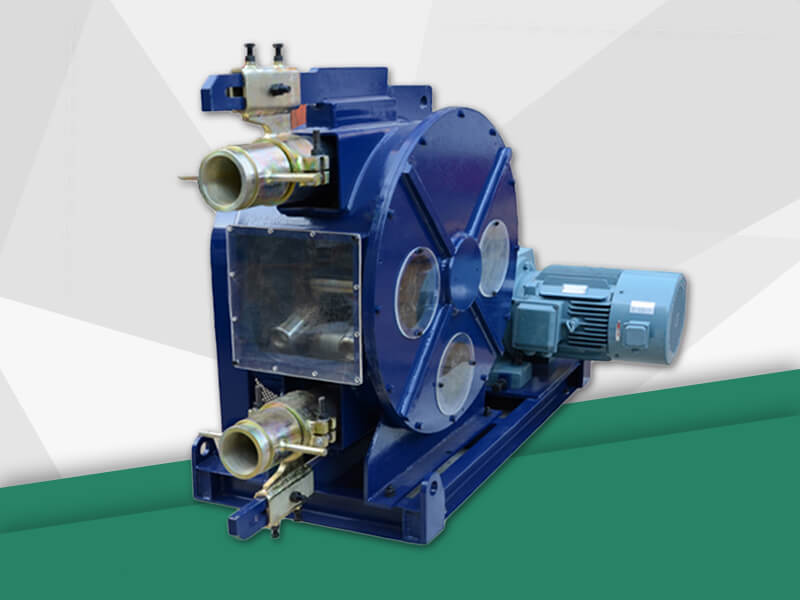

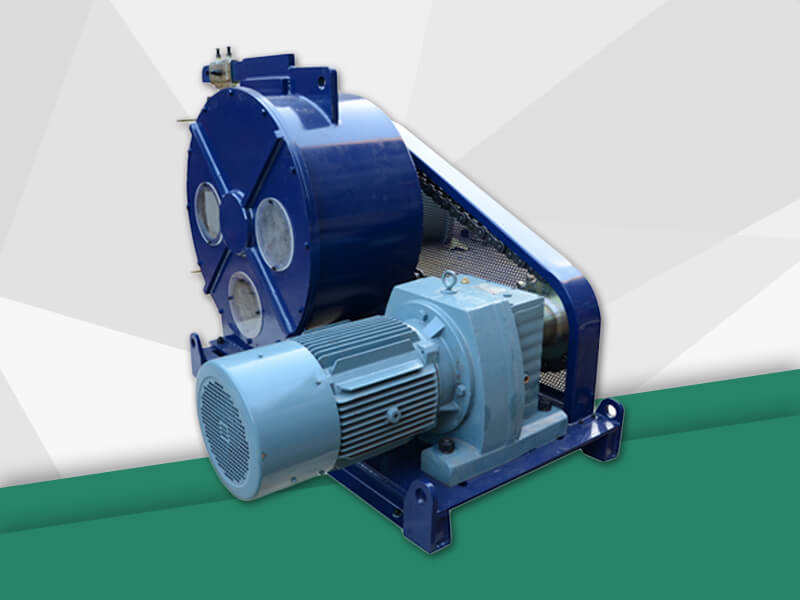

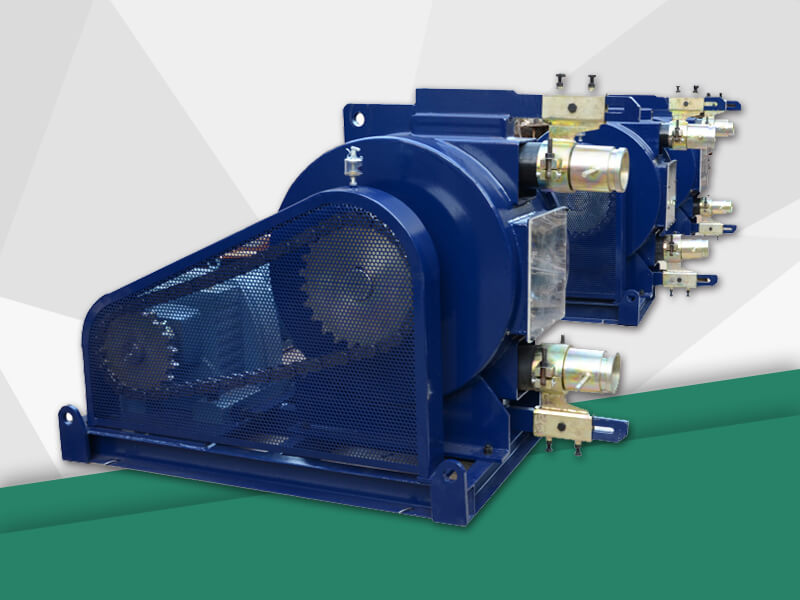

GH89-610R industrial hose pump machines designed  for shield tunneling  and is mainly used for pumping bentonite in shield tunneling machine of underground engineering.

GH89-610R industrial hose pump machines is an ideal choice for pumping corrosive, abrasive, shear sensitive fluids, high viscosity fluids, high density fluids, large solids, metering (± 1%), high pressure (3Mpa).

GH89-610R industrial hose pump  products comply with national and international standards. GH89-610R industrial hose pump has stable performance, good sealing performance, easy operation, no water cooling, beautiful and durable. They are suitable for transporting a variety of chemical media with different viscosities and temperatures and are therefore widely used in many fields.

Application

GH89-610R industrial hose pump machines can be used in measuring pump, bentonite pump, foam pump, mud pump, etc. Because it has no seal, no valve, strong self-suction, easy maintenance. , so it can be applied to many large projects.

1. Civil Engineering- dam foundations, tunnels, mining, soil nails, tiebacks, earth anchors, cable and rock bolts;

2. Structural-building and bridge restoration, foundation stabilization, foundation raising, soil compaction grouting; soil & rock grouting;

3. Construction- pavement undersealing, slab jacking and slab raising;

4. Marine- underwater foundations, piers, breakers, shoreline foundations;

5. Mining- tunnel lining, contact grouting, shaft waterproofing;

6. Utilities- encasements, waterproofing, slope line grouting;

7. Geotechnical- deep well casing, monitor wells, well sealing and abandonment;

Features

GH89-610R industrial hose pump machines designed  for shield tunneling, which absorbs advanced technology at home and abroad. It pumps bentonite or other viscous materials in underground engineering. Compared with other pumps of the same type, it has the following features:

  1. Reversibility

  2. Seamlessness and valveless

  3. Abrasion resistance

  4. Self priming with high suction

  5. With 1% repeat precision

  6. Corrosion-resistant

  7. Easy to clean

  8. Can run dry without damage

  9. Hose tube  is the only consumption part

Product Details
Technical Parameters
Technical Data

Type

GH89-610R

Max. ouput

240L/min

Rotation

45RPM

Squeeze hose ID

89mm

Max.  pressure

1.0Mpa

Voltage

3 phase, 380V, 50HZ

Power

22KW
