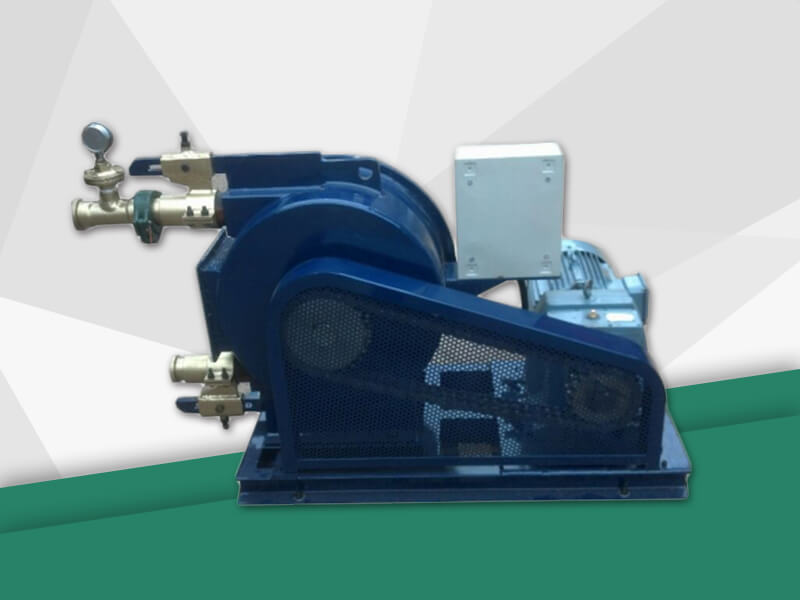

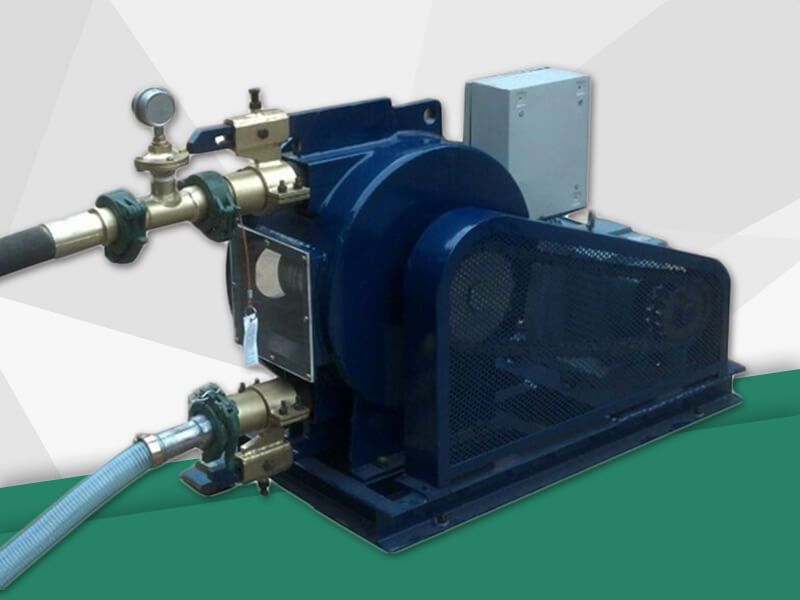

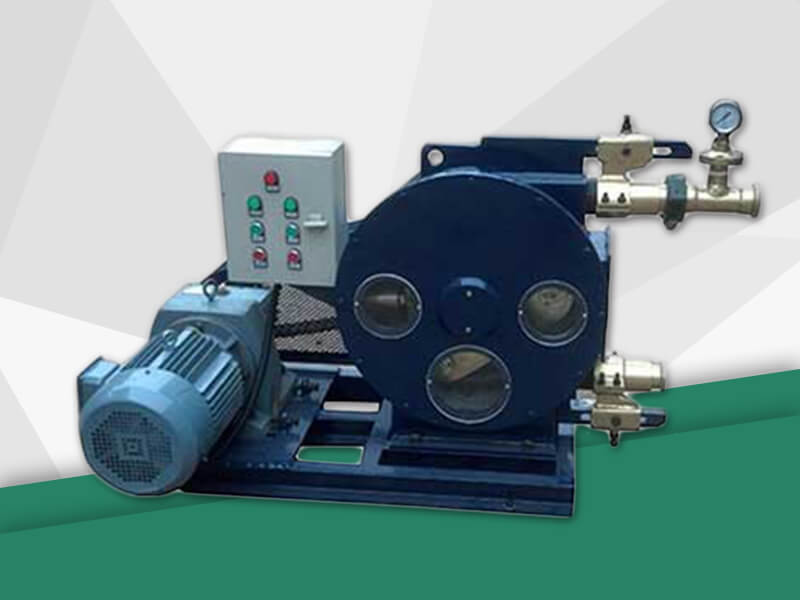

GH50-445R Electric Food Process Peristaltic Hose Pump
3.7m3/h
30RPM
50mm
30bar
3 phase, 380V, 50HZ
5.5KW
Introduction
Product Details
Technical data
Cases
Inquiry
Description

GH50-445R electric food process peristaltic hose pumps are widely used in the food industry.GH50-445R electric food process peristaltic hose pumps pump food and beverages in food processing plants such as dairy products, meat products, jelly gels, jams, residues, salads, oils, wine, condiments, ketchup , juice, sugar, chocolate, honey, bean paste, noodle sauce, soy sauce, vinegar, etc.



GH50-445R electric food process peristaltic hose pump is a peristaltic pump. The elastomer tube is extruded in the length direction by a roller that pushes the fluid contained therein. After squeezing, the recovery of the test tube creates a vacuum that continuously draws the fluid into the test tube. This produces a gentle pumping action without any damage to the product. Since the fluid is contained in the tube, contamination is avoided, and the hose pump uses a food grade hose, which is safe, hygienic and has a long service life.



GH50-445R electric food process peristaltic hose pump is a new industrial  hose pump developed by advanced technology. The pump has no seal, no leakage, strong self-priming ability, simple structure, and convenient operation and maintenance. Suitable for conveying various viscosity, density, corrosive and abrasive substances. It can be used in petroleum, chemical, water treatment, mining, gold smelting, medicine, paper, ceramics, and other industries.

Application

GH50-445R electric food process peristaltic hose pump can be used in food processing plants to transport dairy products, beverages, oils, etc. with stable performance, safety and hygiene. In addition to the food industry, GH50-445R electric food process peristaltic hose pump is also widely used in other fields:



GH50-445R electric food process peristaltic hose pump can be used in the following applications:

1. Construction: transfer of mortar, concrete and sprayed layers

2. Textile mill: transfer of fiber, liquid, dye and wastewater

3. Dye manufacturing: paint, paint and pigment delivery

4. Water treatment: transporting water and wastewater

5. Papermaking: conveying pulp, pigments and glue

6. Mining: transporting mineral waste

7. Ceramic: conveying glaze and coloring

8. Beer and Beverage: transporting beer, wine, milk, juice, additives and residues

9. Underground engineering: The tunnel construction machinery of TBM bentonite pumping mud pump uses a hose pump to pump or grout bentonite.



Features

GH50-445R electric food process peristaltic hose pump products comply with national and international standards. GH50-445R electric food process peristaltic hose pump has stable performance, good sealing performance, easy operation, no water cooling, beautiful and durable. They are suitable for transporting a variety of chemical media with different viscosities and temperatures and are therefore widely used in many fields.



The characteristics of the GH50-445R electric food process peristaltic hose pump are:

  1. Reversibility

  2. No seals, no valves

  3. Abrasion resistance

  4. Corrosion-resistant

  5. Self priming with high suction

  6. With 1% repeat precision

  7. Easy to clean

  8. Dry-running without damage

  9. Peristaltic tube is the only consumption part

Product Details
Technical Parameters
Technical Data

Type

GH50-445R

Max. output

3.7m3/h

Rotation

30RPM

Squeeze hose ID

50mm

Working pressure

30bar

Voltage

3 phase, 380V, 50HZ

Power

5.5KW

Voltage

3 phase, 380V, 50HZ anti-explosion electric motor

Power

15KW
