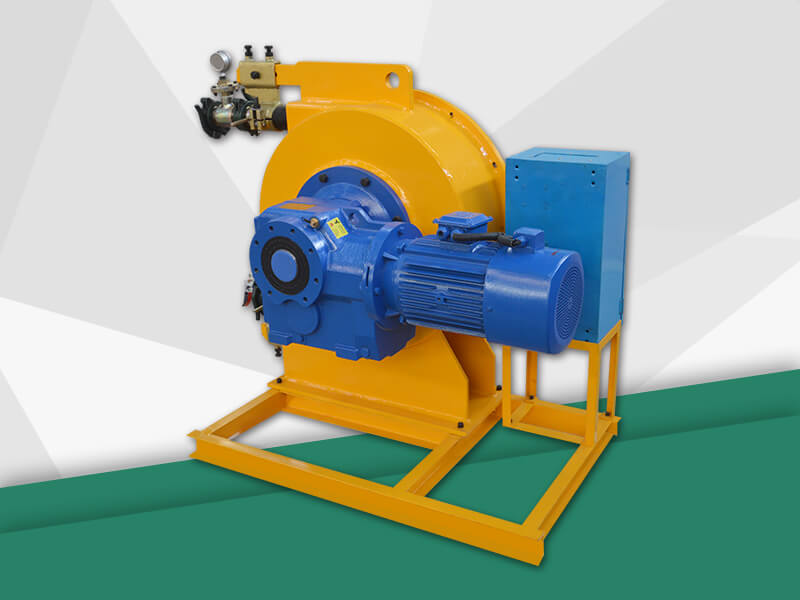

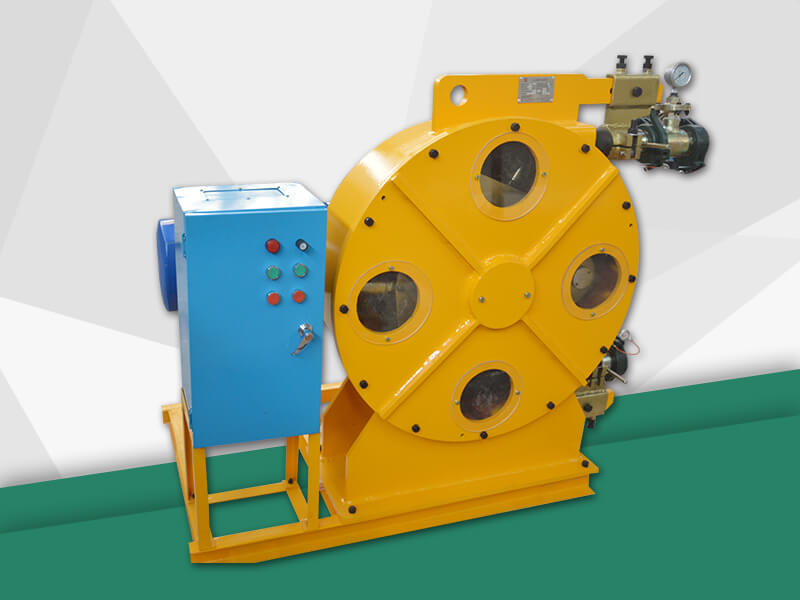

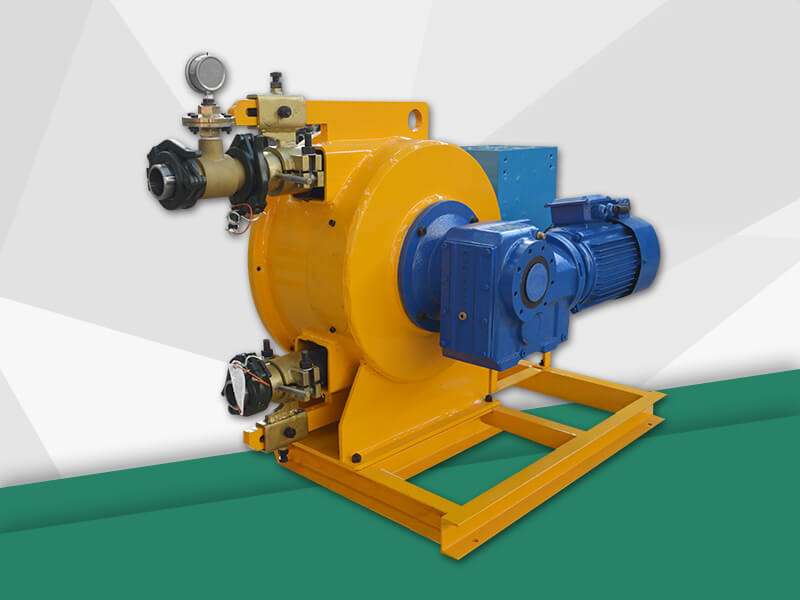

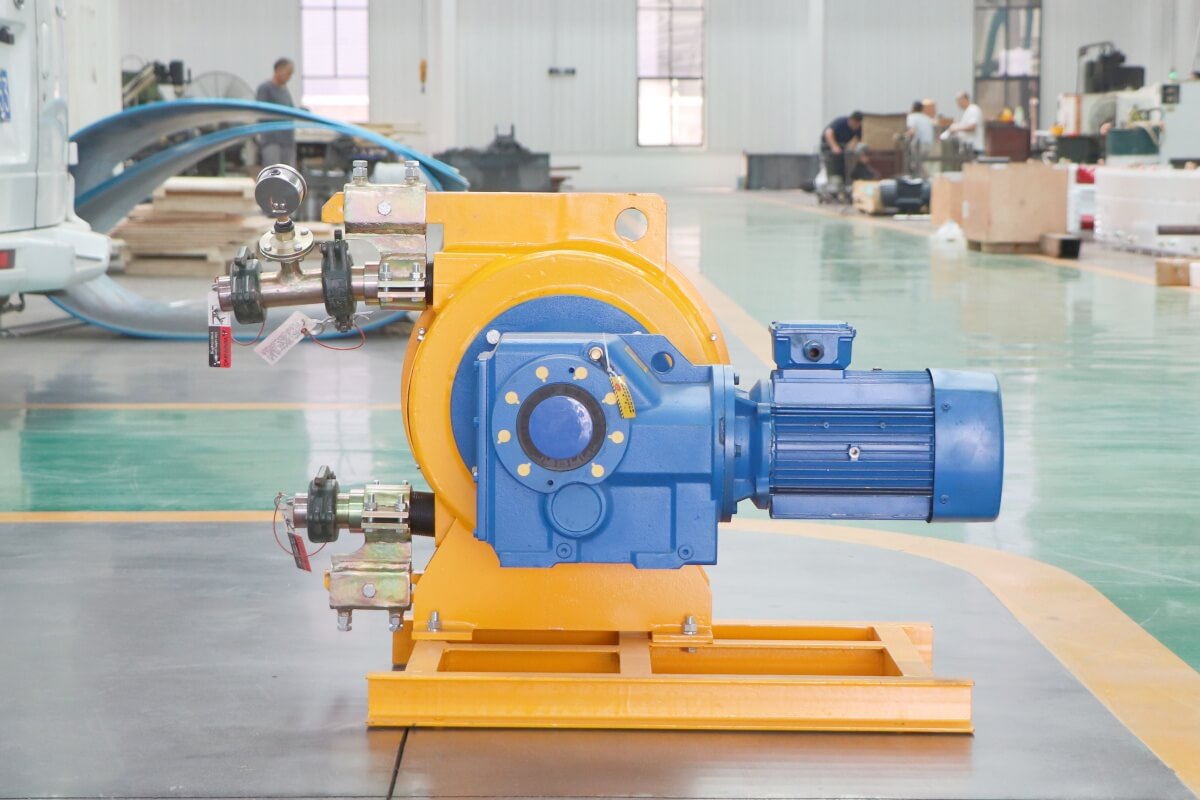

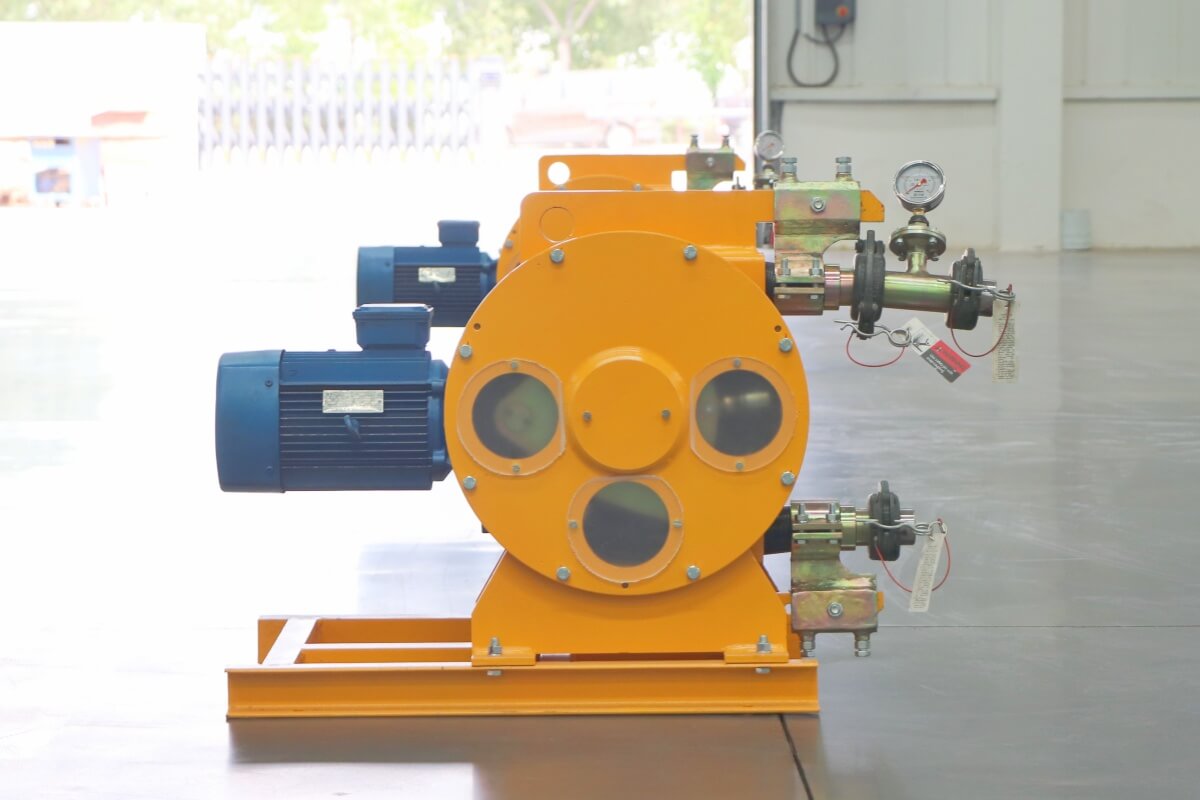

GH38-430R customized industrial hose peristaltic pump is a hose pump customized by Gaodetec for customers, equipped with electric control box and ABB frequency converter is optional part.
GH38-430R customized industrial hose peristaltic pump has a unique non-sealed structure, no leakage and Pollution; few wearing parts, only the hose is in contact with the material; self-priming ability and self-cleaning ability can be used for positive and negative suction; simple hose assembly, easy installation and maintenance, low maintenance cost, simple operation; Certain measurement functions. Conveying fluids with high viscosity and impurities will not cause any blockage; the pump has a long service life, high head, and high pump port pressure.
The main applications range of GH38-430R Customized Industrial Hose Peristaltic Pump are:
1. Construction: transfer of mortar, concrete and sprayed layers
2. Textile mill: transfer of fiber, liquid, dye and wastewater
3. Dye manufacturing: paint, paint and pigment delivery
4. Water treatment: transporting water and wastewater
5. Papermaking: conveying pulp, pigments and glue
6. Mining: transporting mineral waste
7. Ceramic: conveying glaze and coloring
8. Beer and Beverage: transporting beer, wine, milk, juice, additives and residues
9. Underground engineering: The tunnel construction machinery of TBM bentonite pumping mud pump uses a hose pump to pump or grout bentonite.
The characteristics of the GH38-430R Customized Industrial Hose Peristaltic Pumps are as follows:
1. No seals
2. No valves
3. Self -priming
4. Only tube to replace
5. Dry –running without damage
6. Reversible
7. No contact between product and mechanical parts
8. Able to pump products with solid parts inside
9. Easy maintenance, low-cost, short down time
Model |
GH38-430B |
Output Capacity |
2.2m3/h |
Working Pressure |
1.5Mpa |
Rotate Speed |
32rpm |
Squeeze Hose ID |
38mm |

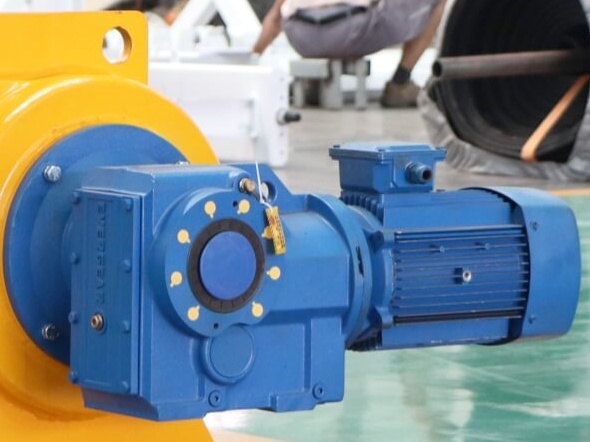

Motor Power |
3Kw |
Taiwan customers use it to pump chemical liquids. |
