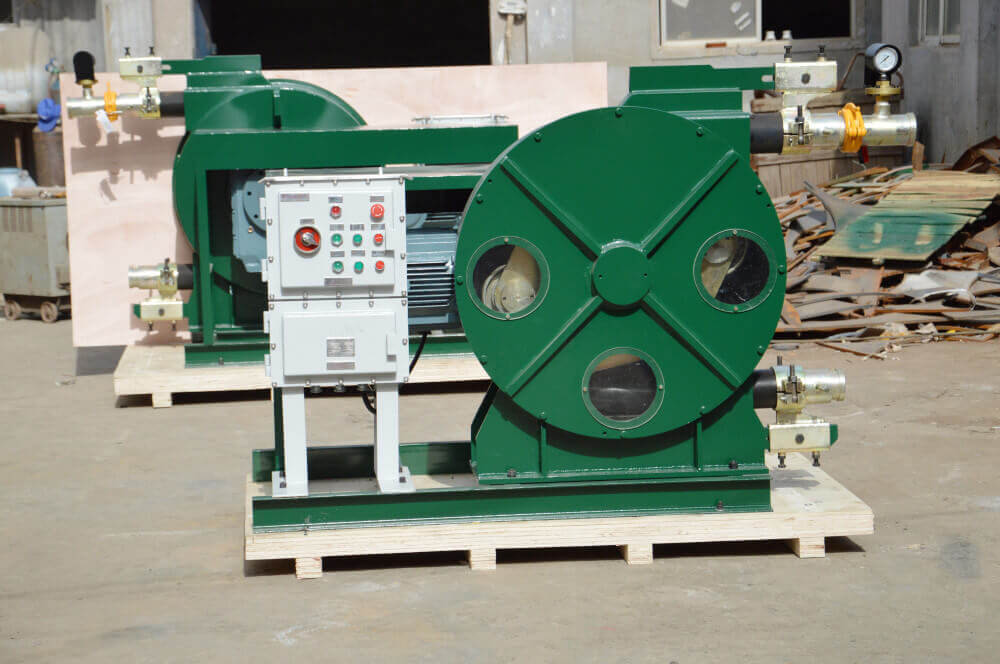

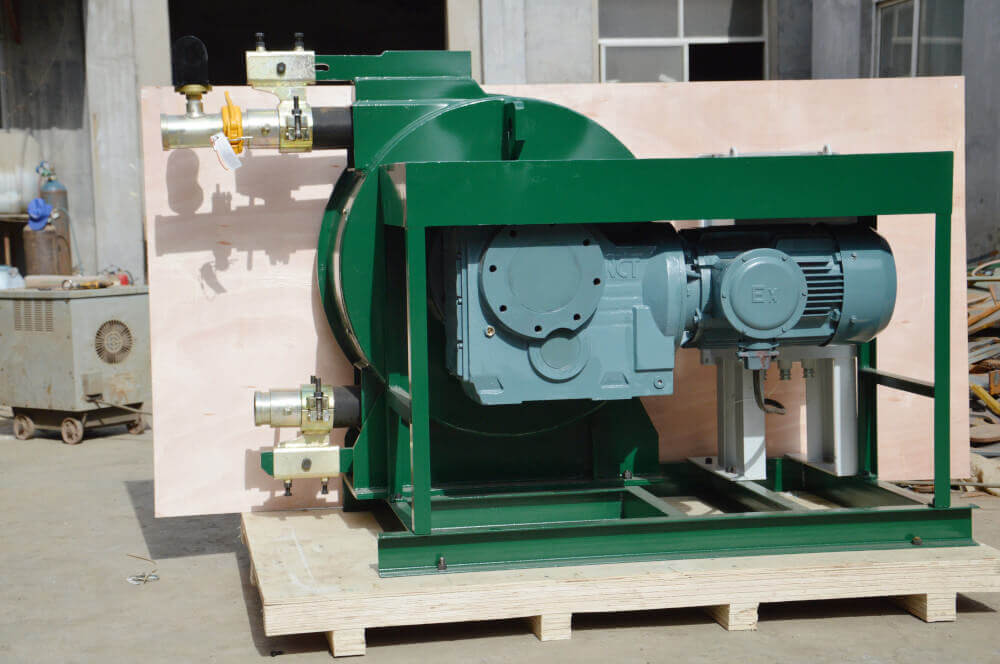

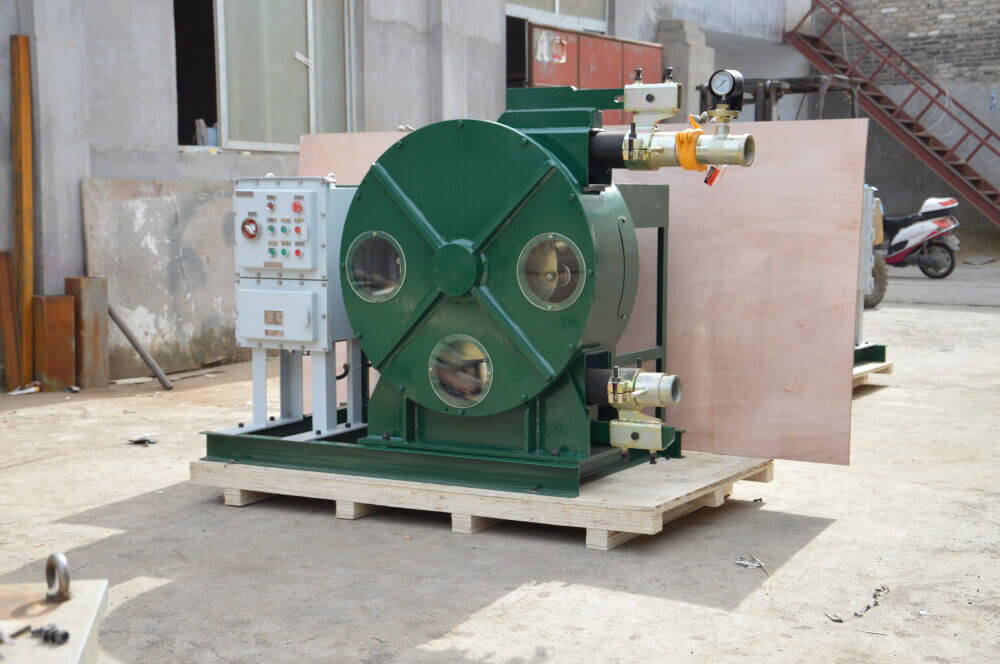

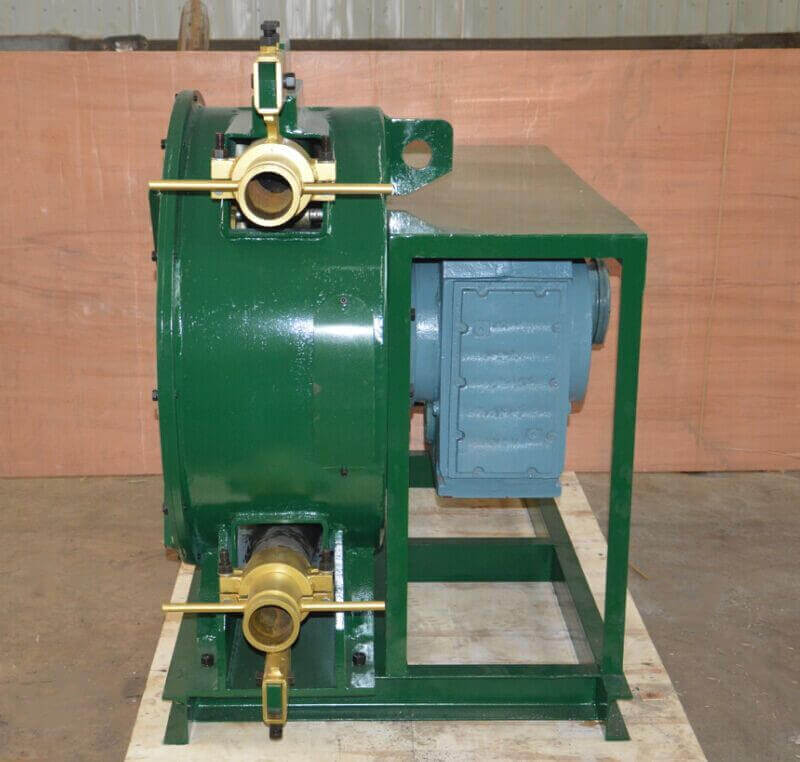

Peristaltic pumps for mining slurry is a new type, multi-functional, multi-purpose industrial pump developed by absorbing foreign advanced technology. The peristaltic pumps for mining completely gets rid of the operation mode of traditional pump impeller and shaft seal, and has great advantages in the transportation of media with high viscosity, high corrosion and large fluid impurities. It is a completely different principle from traditional pumps and has a wide range of applications. The peristaltic pumps for pumping mining slurry also can be used in chemical, petroleum, water treatment, medicine, food, metallurgy, mining, construction, building materials, ceramics, papermaking and other industries.


The peristaltic pumps for mining is composed of 5 parts: pump casing, rotor body, reducer, frame and hose. When the hose pump is working, the rotor body and a pair of pressure rollers on the rotor body are along a rubber tube. The pressure roller and the pump shell generate force to flatten the rubber tube. Under the force of the tube's own elasticity and the side guide roller, a vacuum is generated through the recovery state. , It is discharged from the tube under the pressure roller machinery, so that it reciprocates. The peristaltic pumps for mining slurry has a simple structure and is easy to manufacture. The durability of the pump is mainly determined by the tube performance and corrosion resistance. Its flow rate is related to the motor speed and the size of the tube. Therefore, the key is to choose the tube and the speed control mechanism. As long as the tube has a long life and speed, it is not necessary to maintain quantitative delivery for a long time. problem.


Characteristics and uses of the peristaltic pumps for pumping mining slurry:

1. The unique non-sealed structure prevents any leakage;

2. Strong self-priming ability;

3. The pumped fluid is only in contact with the hose, so it can transport various viscosity, density, corrosive and abrasive fluid materials;

4. The peristaltic pumps for pumping mining slurry can run in forward and reverse directions, and has self-cleaning ability;

5. Simple structure, convenient operation and maintenance;


Before the peristaltic pumps for mining slurry starts to work, please make the following preparations before starting:

1. Check whether the lubricating oil in the reducer in the pump cavity is sufficient.

2. Check whether the inlet and outlet pipes of the pump are properly installed and fixed. Whether the bolts at each flange are tightened.

3. Check whether the inlet and outlet valves of the pump are all opened.

4. Press the start and stop buttons to start the pump, check whether the rotation of the motor matches the pump inlet and outlet, and check whether the pump is stuck.

The peristaltic pumps for mining slurry has the compact structure and easy to operate, and if you are interested in the peristaltic pump, please contact us!
