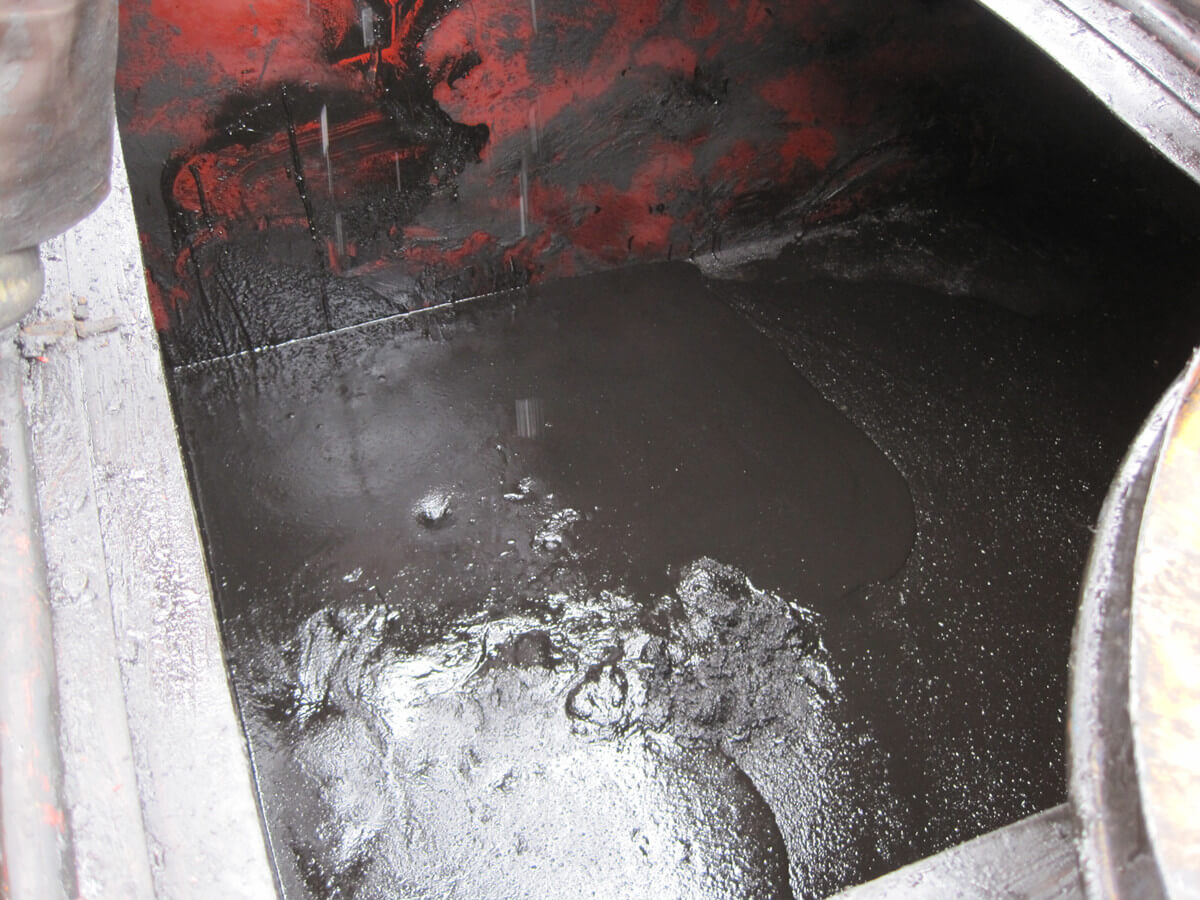

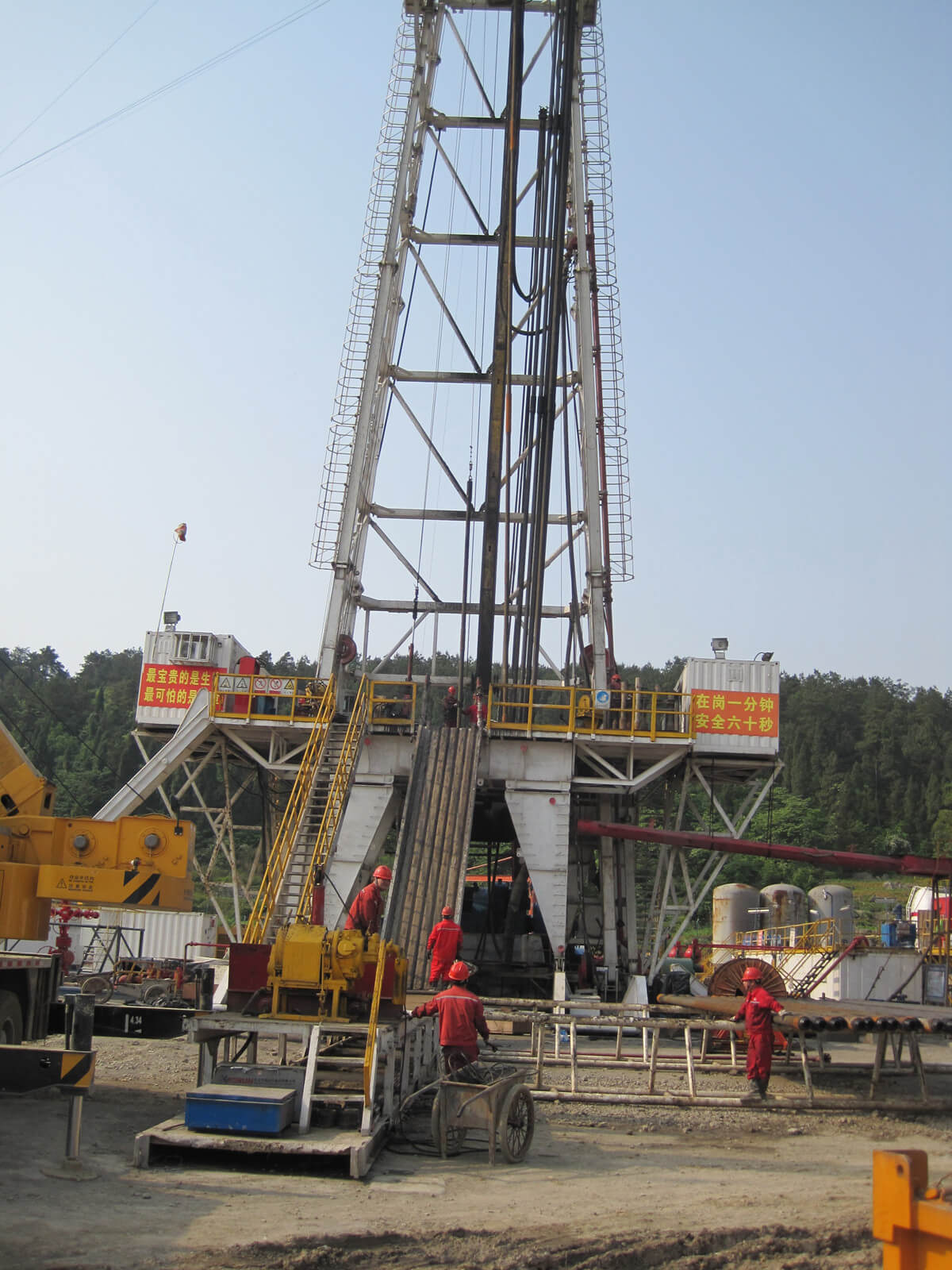

Gaodetec industrial peristaltic hose pump is a heavy-duty industrial hose pump (squeeze pump), which is a type of peristaltic pump. It is designed for pumping various fluids, including but not limited to oil-based mud. GH76-770B hose pump is specially developed for pumping oil based mud in the oil drilling industry. It has been widely used in Sinopec Jianghan oil drilling site. The pump adopts imported oil-resistant extruded hose, ExdIIBT4 explosion-proof motor and electric control box, which can pump oil-based mud efficiently; no leakage during pumping, can effectively protect the environment; the pump is easy to operate and can effectively save Labor cost; the pump has strong power and long conveying distance, which can well solve the problem that the drilling oil-based mud slurry is small in space and inconvenient to transport.
Main features of GH76-770B hose pump for pumping oil base mud:
High performance: The pump has excellent pumping capacity and can handle high-viscosity oil-based mud.
Wear resistance: The high-quality hose material is used, which has excellent wear resistance and corrosion resistance, and can operate stably for a long time.
No pollution: Since the working principle of the hose pump is to pump the fluid by squeezing the hose, there is no direct contact between the fluid and the mechanical parts, avoiding the pollution problem.
Easy maintenance: The structure of the hose pump is relatively simple and easy to maintain. Only the hose needs to be replaced regularly.
Technical data sheet of hose pump for pumping oil base mud:
Model |
|
Max. ouput |
18m3/h |
Rotation |
35 RPM |
Squeeze hose ID |
76mm |
Working pressure |
10bar |
Voltage |
3 phase, 380V, 50HZ |
Power |
15 KW |
Application field of GH76-770B hose pump for pumping oil base mud:
GH76-770B hose pump is not only suitable for pumping oil-based mud, but also widely used in many fields such as construction, underground construction, petrochemical, metallurgy, food industry, ceramics, mining, water treatment, pharmaceuticals and papermaking.
Gaodetec is a professional industrial hose pump manufacturer with rich production experience and advanced manufacturing technology. The products are known for their high quality, high performance and reliability, and are deeply trusted and praised by domestic and foreign customers. Are you still worry about how to pump oil base mud OBM? Check this GH76-770B oil based mud hose pump out! It works very well and gets good feedback from customers.
