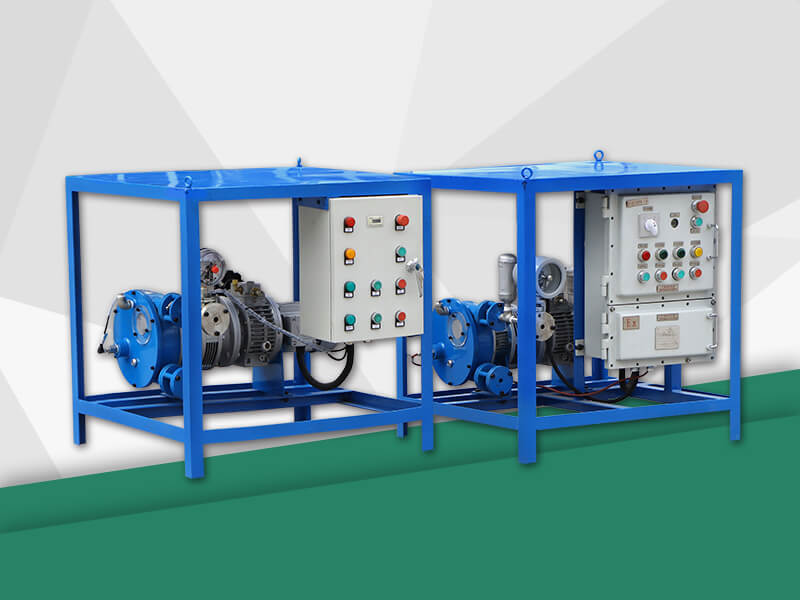

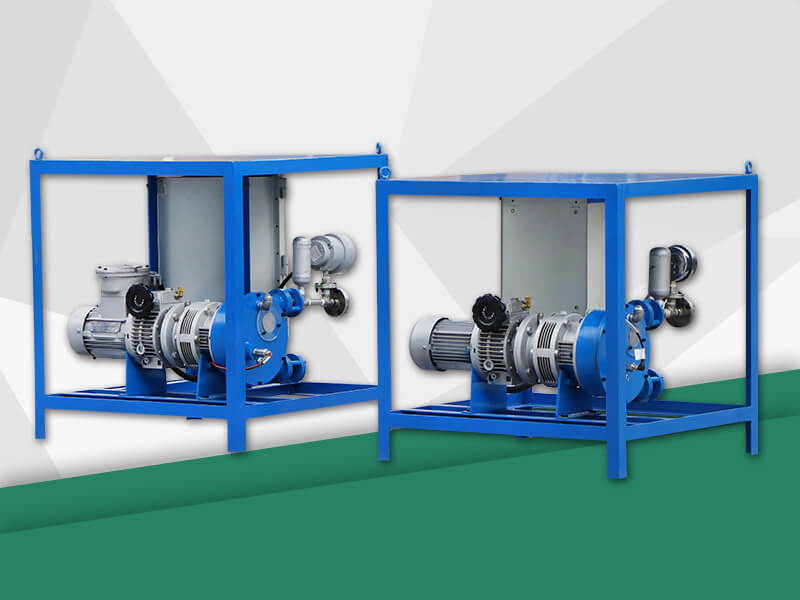

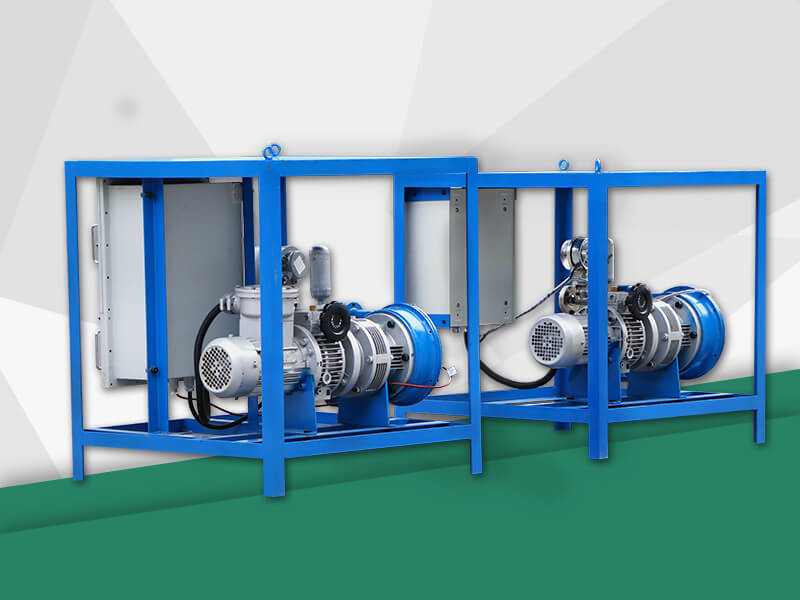

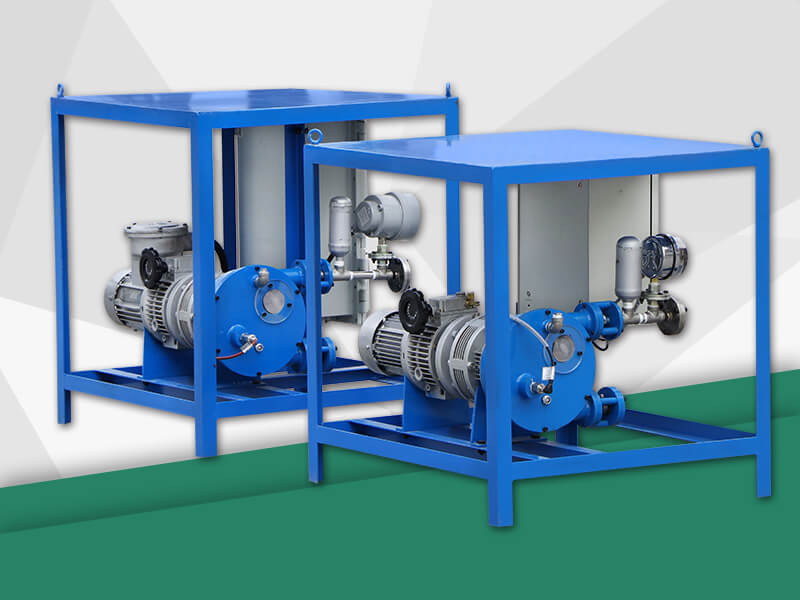

GH15-200S Peristaltic Metering Hose Pump
1
GH15-200S
12-58rpm
70-321L/h
6bar
20L
0.75Kw
Introduction
Product Details
Technical data
Cases
Inquiry
Description

GH15-200S peristaltic metering pump for pharmaceutical industry can be used for pumping, metering and adding of corrosive or hazardous materials with 1% repeat precision and 2 meter suck lift . It has a wide range of applications in the pharmaceutical industry.

GH15-200S peristaltic metering pump for pharmaceutical industrys have many advantages: they have the good self-priming ability, almost perfect vacuum to absorb liquid; transport contains foam, bubbles without air resistance; conveying high viscosity, shear sensitive medium is also strong; The fixed displacement is independent of the outlet pressure and is a natural metering pump.

GH15-200S peristaltic metering pump for pharmaceutical industry is a new multi-purpose industrial peristaltic hose pump developed by advanced technology. The pump has no seal, no leakage, strong self-priming ability, simple structure, and convenient operation and maintenance. Suitable for conveying various viscosity, density, corrosive and abrasive substances. It can be used in petroleum, chemical, water treatment, mining, gold smelting, medicine, paper, ceramics, and other industries.

Application

GH15-200S peristaltic metering pumps are used for the metering of additives in the pharmaceutical industry. The chemical industry is used to add chemical media containing acidic and corrosive substances; metering pumps for environmentally friendly industrial water treatment. Adjustable flow, self-priming ability,high metering accuracy and repeatability can reach ±1%.

GH15-200S peristaltic metering pump can be used for drinking water disinfection, pH adjustment in drinking water and industrial wastewater treatment, industrial cooling water preparation, flocculant, beneficiation-agent addition, disinfection laboratory, etc.

Features

GH15-200S peristaltic metering pump can be used for drinking water disinfection, pH adjustment in drinking water and industrial wastewater treatment, industrial cooling water preparation, flocculant, beneficiation-agent addition, disinfection laboratory, etc.

GH15-200S peristaltic metering pump is widely used because of its unique advantages.

1. No valves, perfect pump for high viscosity fluids, simple structure, easy to  clean.

2. High measurement accuracy, repeatability ± 1%.

3. Self-priming ability, suction height.

4. Uniform continuous pumping, pulse small

5. No bear, easy to clean and maintain.

6. Less wear parts, the only hose is wear part, low cost.

7. Flow infinitely adjustable for different requirements.

8. Just replace the different type hose, can pump the different material.

Product Details
Technical Parameters
Technical Data

Dosing Pump Model

GH15-200S

Speed

12-58rpm

Output

70-321L/h

Pressure

6bar

Hopper Capacity

20L

Power

0.75Kw

Reducer Model

MBNL07-Y0.75-XL3-17-SX-B5

Overall Dimension

700×700×850mm

Weight

75kg
