GH89-610C Industrial Squeeze Hose Pump
GH89-610C industrial hose squeeze pump for sale is a kind of peristaltic pump. An elastomeric tube is squeezed along a length by rollers that push the fluid contained within. The tube’s restitution after squeezing produces a vacuum that draws fluid continuously into the tube. This creates a gentle pumping action that doesn’t cause any damage to the product. Contaminations are avoided because the fluid is contained within the tube.
240L/min
45RPM
89mm
1.0mpa
3 phase, 380V, 50HZ
22KW
Introduction
Product Details
Technical data
Cases
Inquiry
Description
GH89-610C industrial hose squeeze pump for sale is a kind of peristaltic pump. An elastomeric tube is squeezed along a length by rollers that push the fluid contained within. The tube's restitution after squeezing produces a vacuum that draws fluid continuously into the tube. This creates a gentle pumping action that doesn't cause any damage to the product. Contaminations are avoided because the fluid is contained within the tube.
GH89-610C industrial hose squeeze pump for sale employs a rotor with rollers mounted on it that continually compress and occlude some portion of the tube. This action moves the fluid through the tube with a constant rate of displacement for each revolution of the rotor, enabling a precise measurement of the volume of fluid pumped through the tube.
Application
GH89-610C industrial hose squeeze pump for sale can be used in the following fields: construction, pharmaceutical, textile, dye manufacturing, water treatment, paper making, mining, ceramics, beer and beverage, underground engineering, etc.
Features
1. GH89-610C industrial hose squeeze pump no seals
2. No valves
3. Self - priming
4. Only tube to replace
5. Dry - running without damage
6. Reversible
7. No contact between product and mechanical parts
8. Able to pump products with solid parts inside
9. Easy maintenance, low-cost, short down time
Product Details

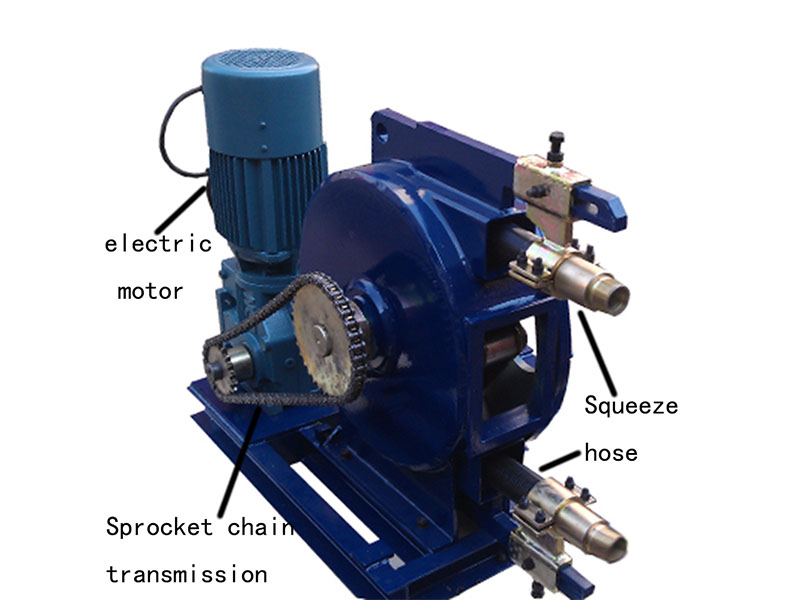

industrial hose squeeze pump

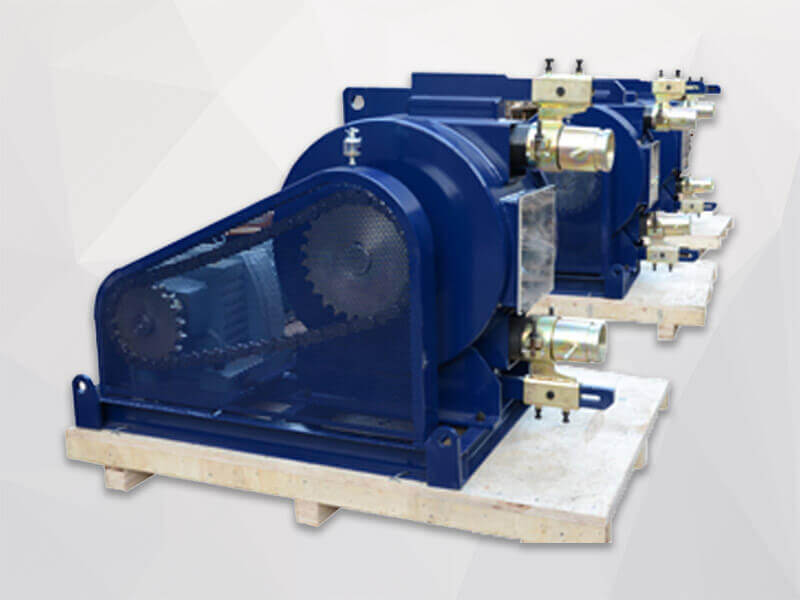

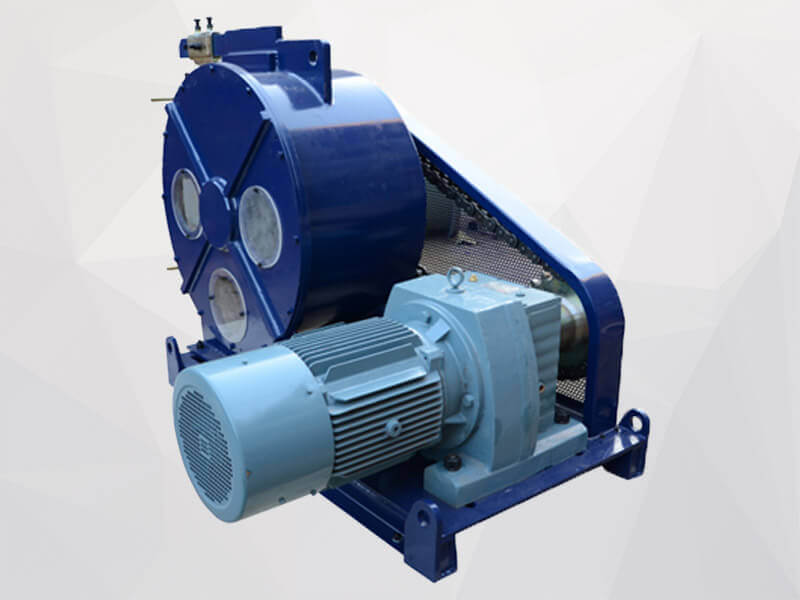

industrial hose pump

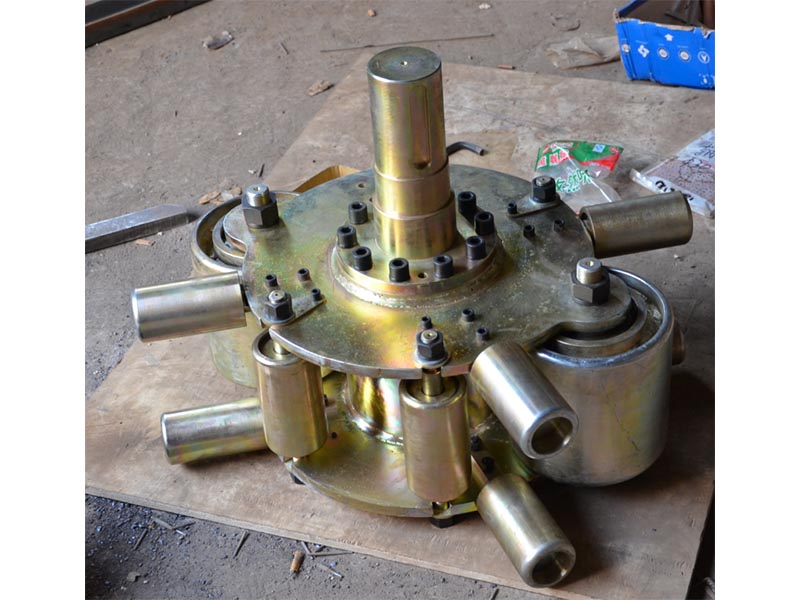

hose squeeze pump core
Technical Parameters
Type GH89-610C
Max. output 240L/min
Rotation 45RPM
Squeeze hose ID 89mm
Voltage 3 phase, 380V, 50HZ
Power 22KW
Max. pressure 10Mpa

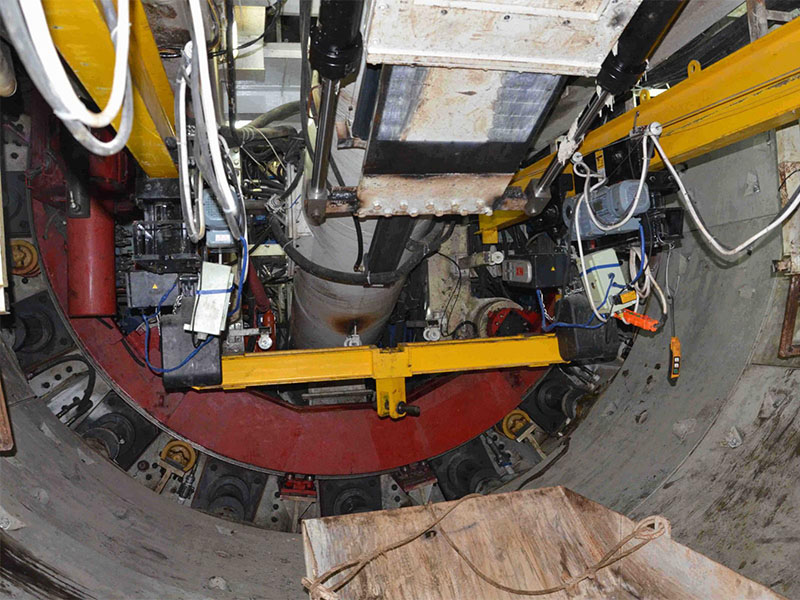

case
