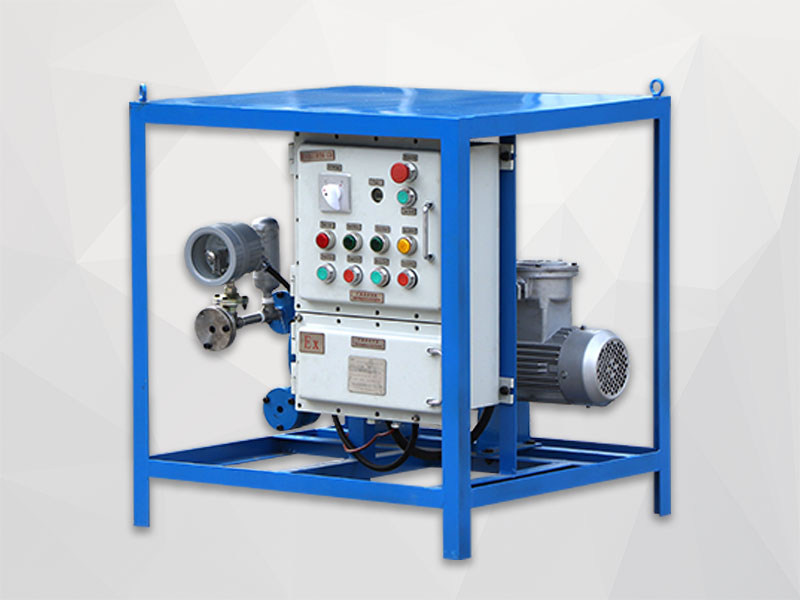

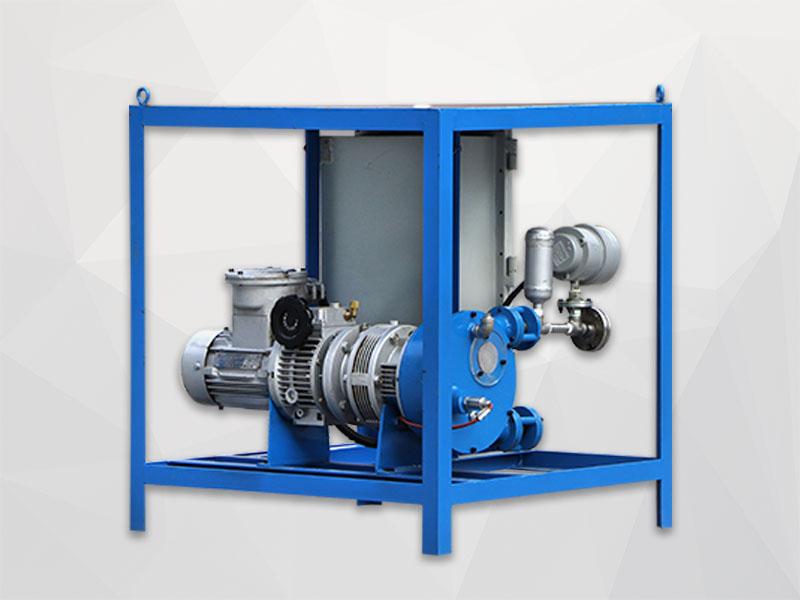

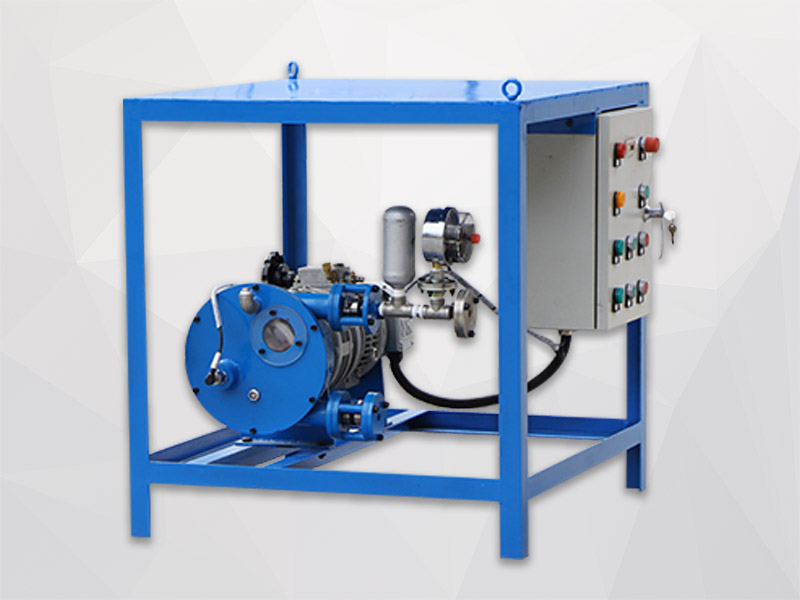

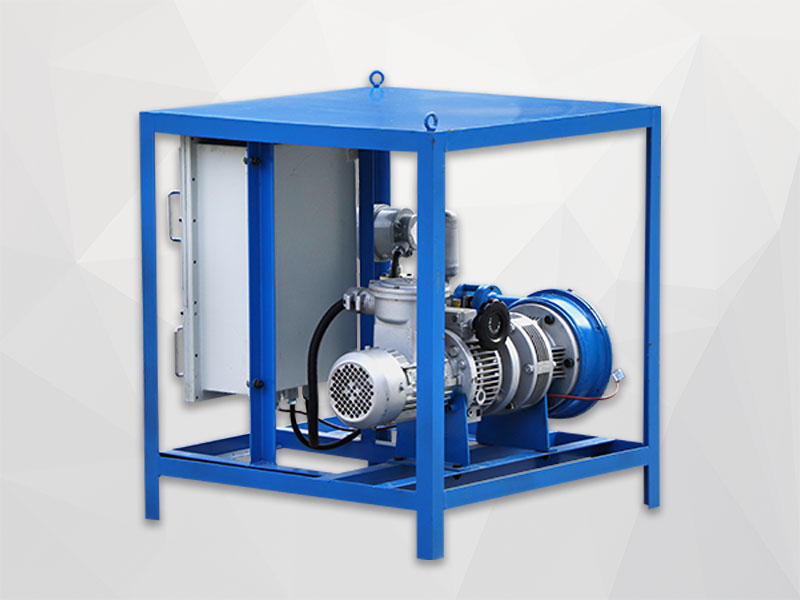

GH15-200 Peristaltic Hose Dosing Pump
GH15-200 peristaltic hose dosing pump can be used for metering, pumping, and adding corrosive or harmful substances. The repeatability is 1%, the suction stroke is 2 meters, and the flow rate can be adjusted steplessly within the range of 0-100%. The outlet pressure is irrelevant and is a natural metering pump.
GH15-200B
60rpm
300L/h
15bar
15mm
0.75Kw
Introduction
Product Details
Technical data
Cases
Inquiry
Description
GH15-200 peristaltic hose dosing pump can be used for metering, pumping and adding corrosive or harmful substances. The repeatability is 1%, the suction stroke is 2 meters, and the flow rate can be adjusted steplessly within the range of 0-100%. The outlet pressure is irrelevant and is a natural metering pump. GH15-200 peristaltic hose dosing pump has a wide range of applications in the pharmaceutical and chemical industries.
Electric contact pressure gaugeExplosion proof electric control box for optionExplosion proof motor for option
Application
GH15-200 peristaltic hose dosing pump can be used for drinking water disinfection, pH adjustment in drinking water and industrial wastewater treatment, industrial cooling water preparation, flocculant, beneficiation-agent addition, disinfection laboratory, etc.

♦GH15-200 peristaltic hose dosing pump Detailed Parts
Hose leak detection devicePressure shoe structureSpeed control handle
Features
GH15-200 peristaltic hose dosing pumps have many advantages: they have good self-priming ability, and almost perfect vacuum absorption of liquids; transportation contains foam, bubbles, and no air resistance; transportation of high viscosity, shear-sensitive media is also strong; The fixed displacement has nothing to do with the outlet pressure and is a natural metering pump. In addition, it has many unique performance characteristics:
1. Hose leak detection, quickly detect hose failure;
2. Electric contact pressure gauge, ensure that GH15-200 peristaltic hose dosing pump could stop working automatically once the pressure is too high speed control handle, adjusted stepless;
3. Pressure shoe structure, like Bredel hose pump;
4. Explosion-proof motor and electric control box for option.

Product Details

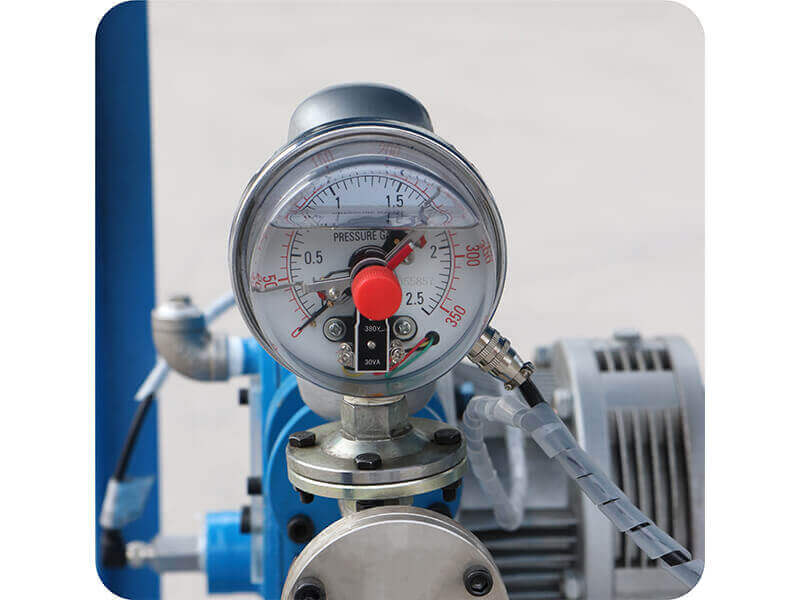

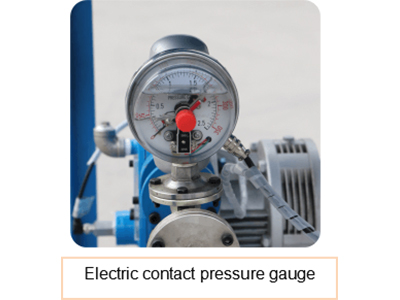

Electric contact pressure gauge

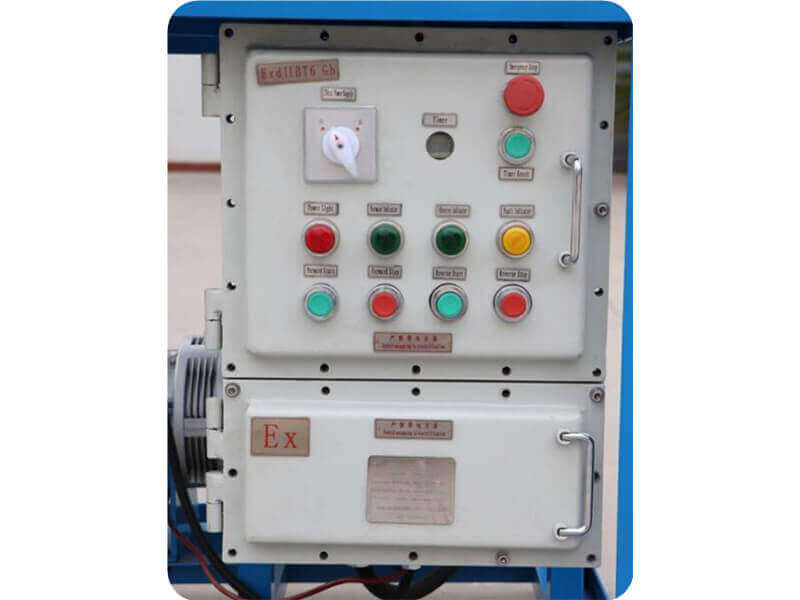

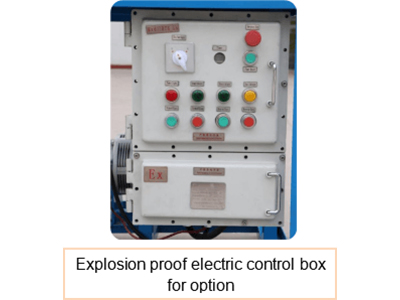

Explosion proof electric control box for option

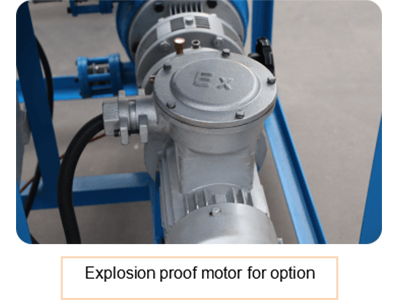

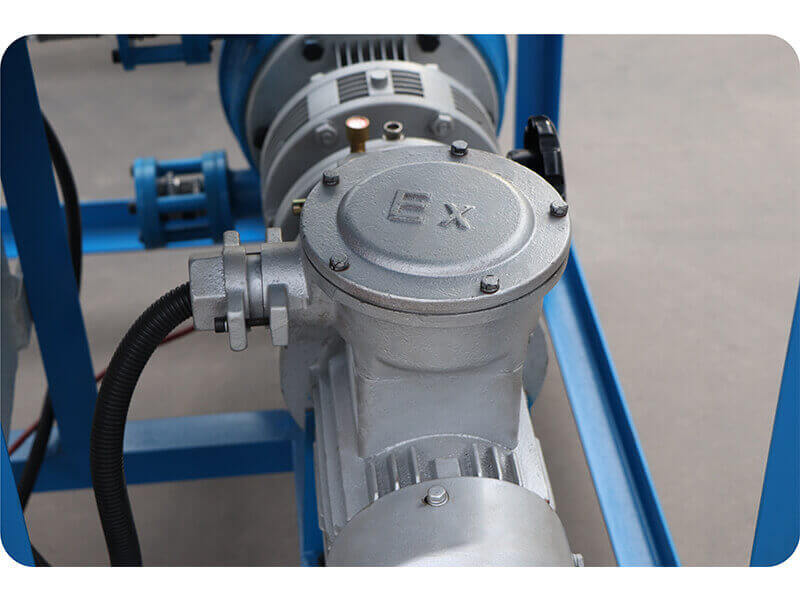

Explosion proof motor for option

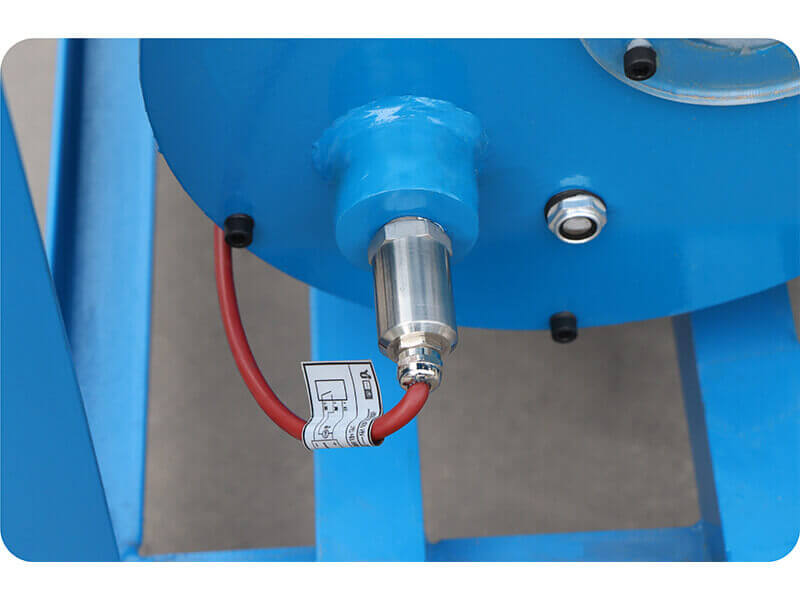

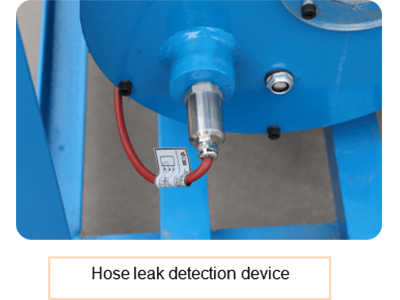

Hose leak detection device

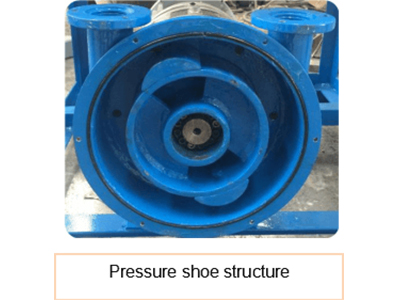

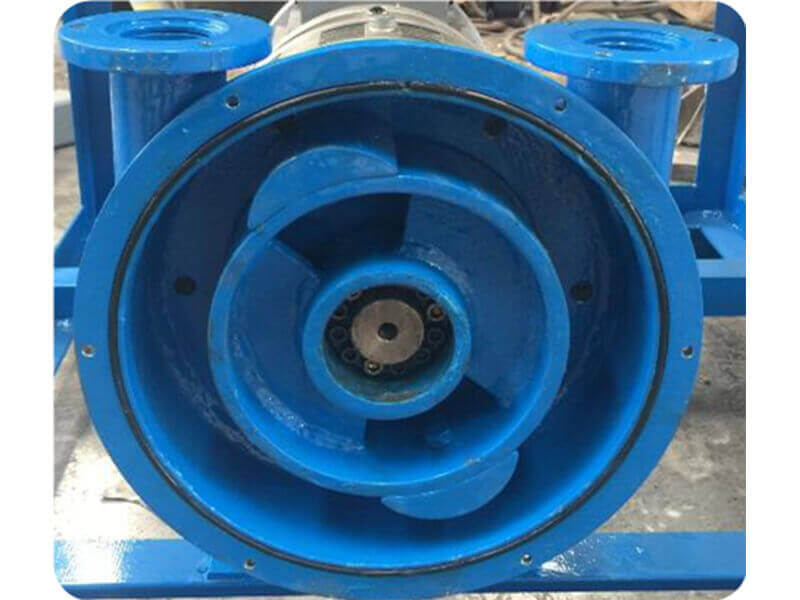

Pressure shoe structure

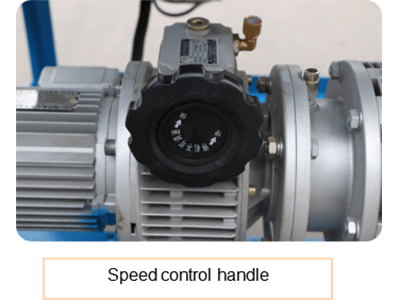

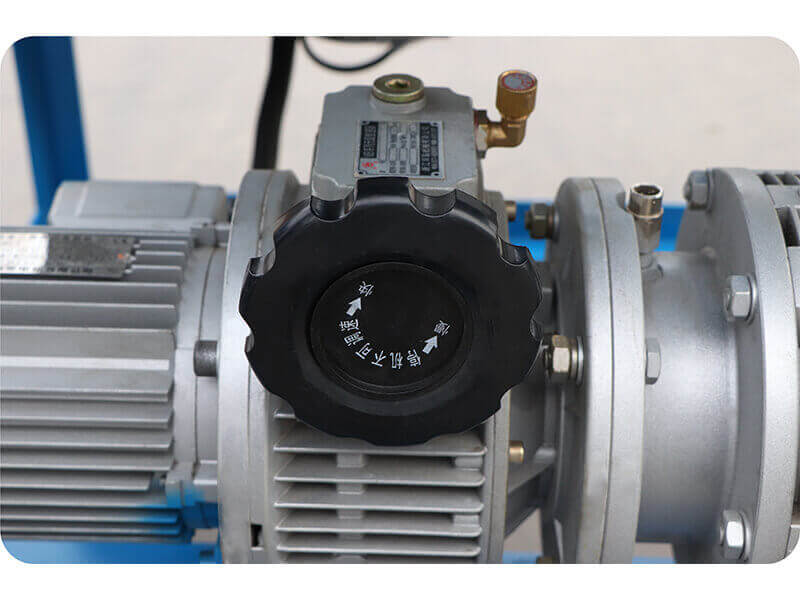

Speed control handle
Technical Parameters
Description Item
Dosing Pump GH15-200B GH15-200B (EX)
Speed 60rpm 60rpm
Output 300L/h 300L/h
Pressure 15bar 15bar
Squeeze Hose ID 15mm 15mm
Power 0.75Kw 0.75Kw (explosion proof motor)
Overall Dimension 800×750×800mm 800×750×850mm
Weight 101kg 162kg
