Peristaltic hose tubing pump for drill
date: 2024-09-13

Peristaltic hose tubing pump for drill is a new type of multifunctional multipurpose industrial pump developed by absorbing foreign advanced technology. Mining perturbation pumps completely eliminate the mode of operation of traditional pump impellers and shaft seals, with great advantages in transporting media containing high viscosities, high corrosion, and large fluid impurities. This is a completely different principle from traditional pumps and has a wide range of applications. Swivel pumps for pumping mining slurries can also be used in chemical, petroleum, water treatment, pharmaceuticals, food, metallurgy, mining, construction, building materials, ceramics, papermaking and other industries.

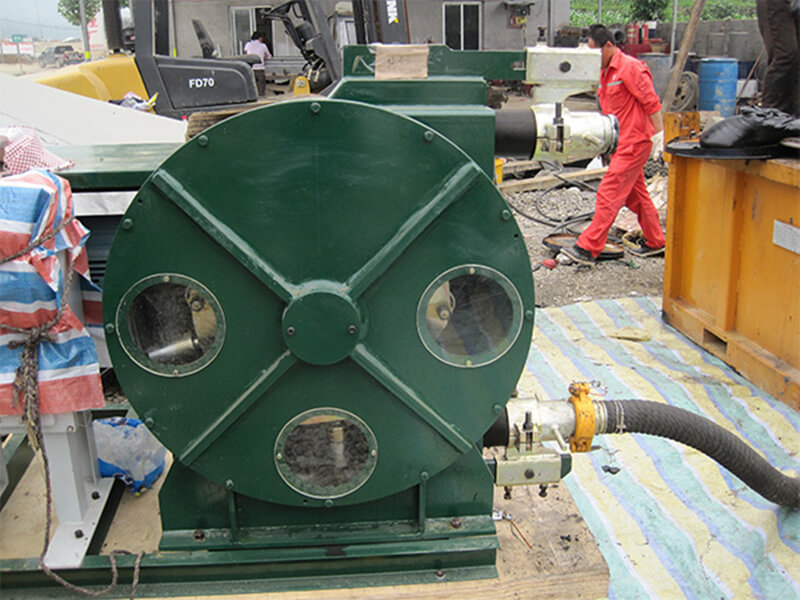

Peristaltic hose tubing pump for drill

peristaltic hose tubing pump

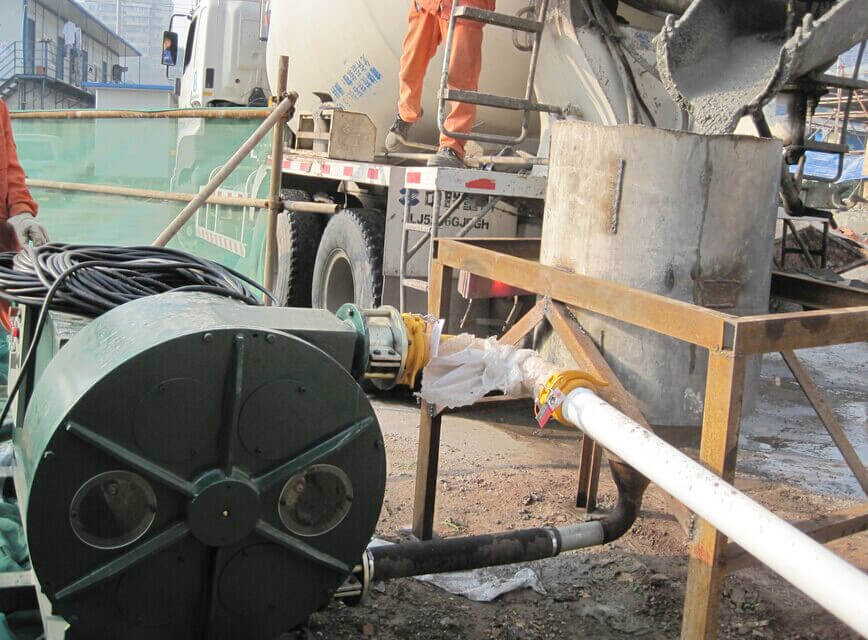

Peristaltic hose pump for drill

Peristaltic hose tubing pump for drill consists of five parts: a pump casing, a rotor body, a reducer, a frame, and a hose. When the hose pump is operating, the rotor body and the pair of pressure rollers on the rotor body are along the rubber tube. The pressure roller and pump shell generate force to flatten the rubber tube. The elasticity of the tube itself and the force of the side guide rollers create a vacuum in the recovery state. It is discharged from the tube under the pressure roller mechanism and reciprocates. The hose tubing pump for drill are simple in structure and easy to manufacture. Pump durability is primarily determined by tube performance and corrosion resistance. Its flow rate is related to motor speed and tube size. Therefore, it is important to choose the tube and speed control mechanism. As long as the life and speed of the tube is long, it is not necessary to maintain quantitative delivery for a long period of time. problem.

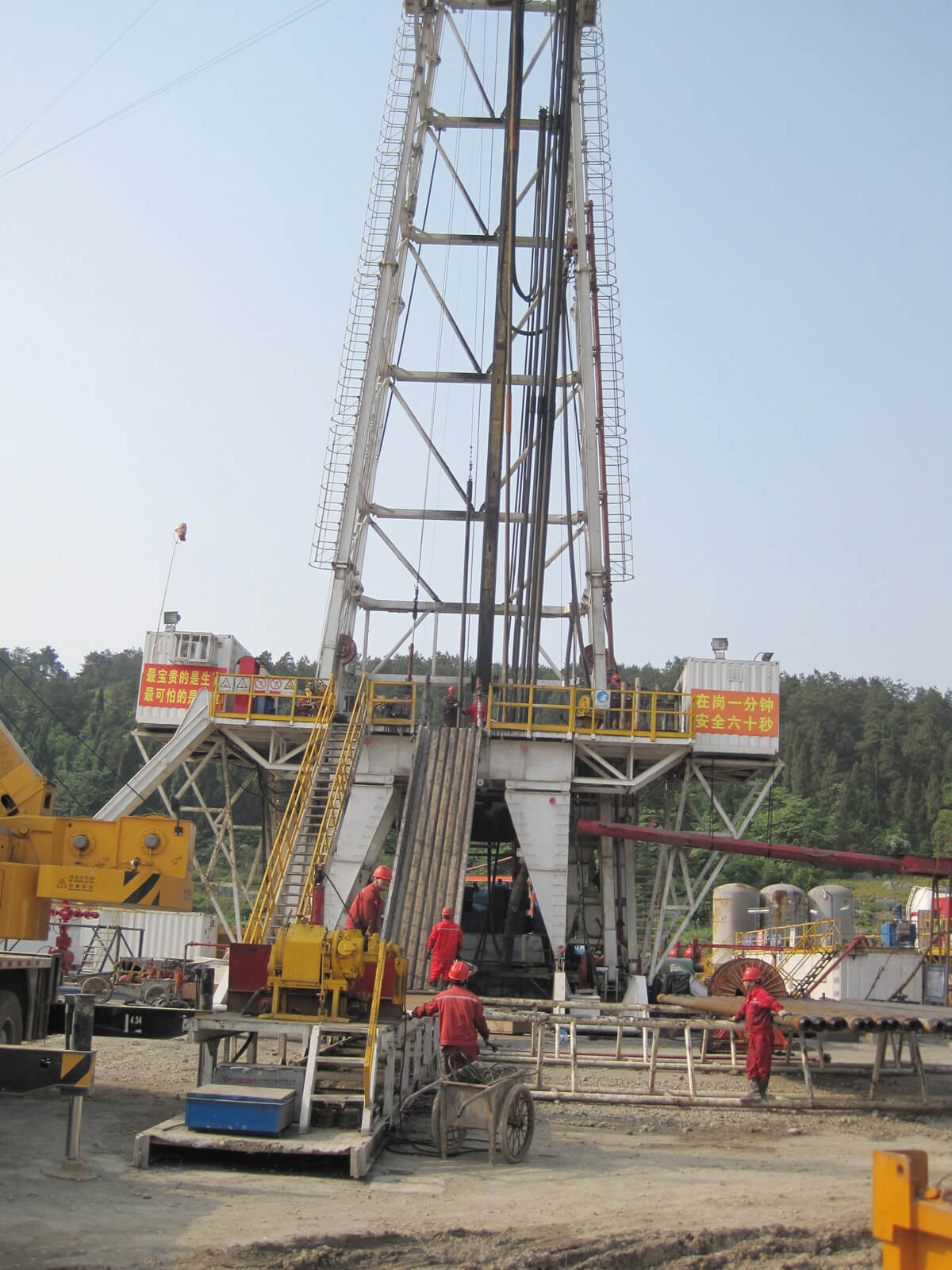

hose tubing pump for drill

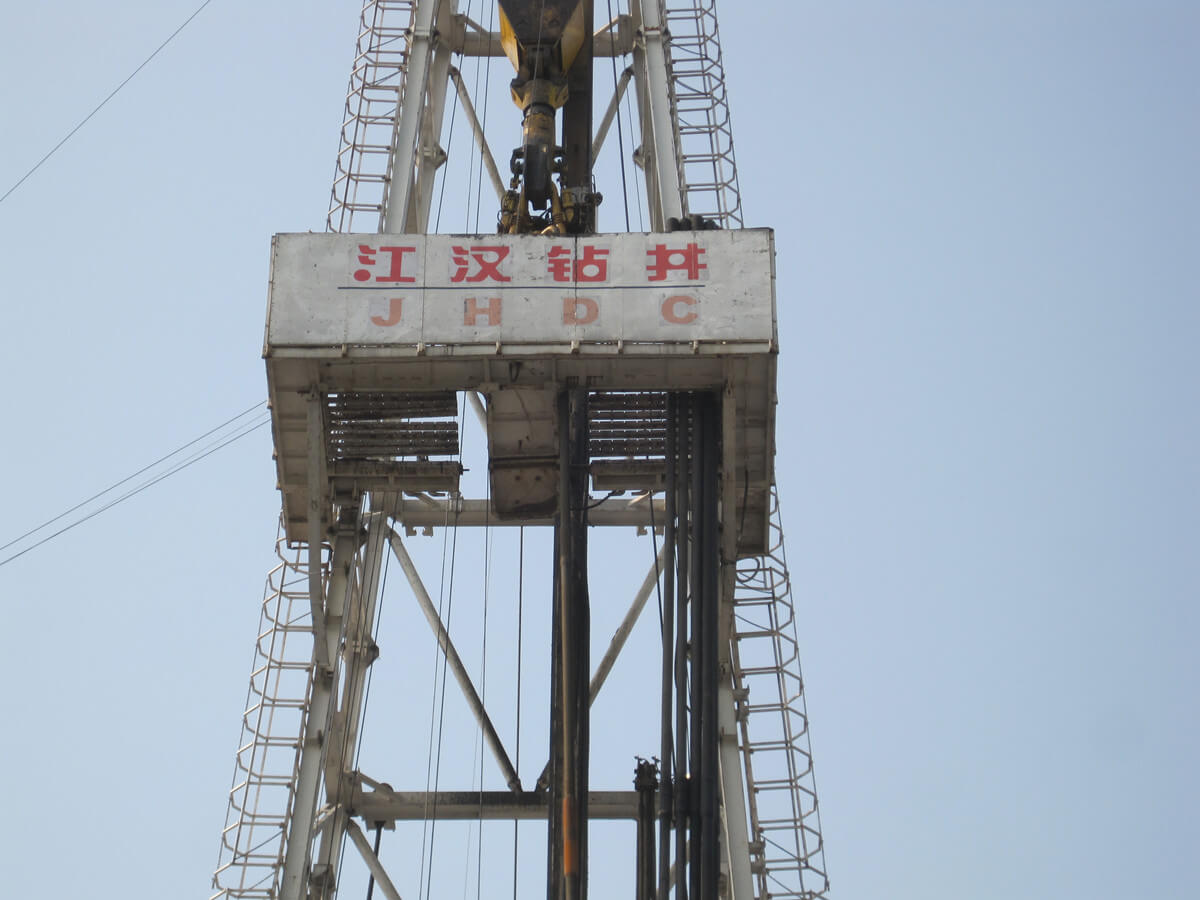

hose tubing pump for drill working application

Characteristics and usage of peristaltic hose tubing pump for drill:

1. Unique non-sealing structure prevents leakage.

2. Strong self-priming ability;

3. The pumped fluid only contacts the hose, allowing it to transport fluid materials of varying viscosities, densities, corrosive and abrasive properties.

4. The peristaltic pump for pumping the mining slurry can be run in the forward and reverse directions and has a self-cleaning function.

5. Simple structure, convenient operation and maintenance.

Before the peristaltic hose tubing pump for drill starts working, make the following preparations before starting.

1. Check if the reducer lubrication in the pump cavity is sufficient.

2. Make sure that the pump inlet and outlet pipes are properly installed and secured. Whether the bolts on each flange are tightened.

3. Make sure the pump inlet and outlet valves are all open.

4. Press the start and stop buttons to start the pump, check if the rotation of the motor matches the inlet and outlet of the pump, and check if the pump is stuck.

The peristaltic hose tubing pump for drill has a compact structure and is easy to operate. Please contact us if you are interested in peristaltic pumps! Email: peate@gaodetec.com  and tell us the required working pressure and output capacity. We recommend the right model peristaltic pump for you
